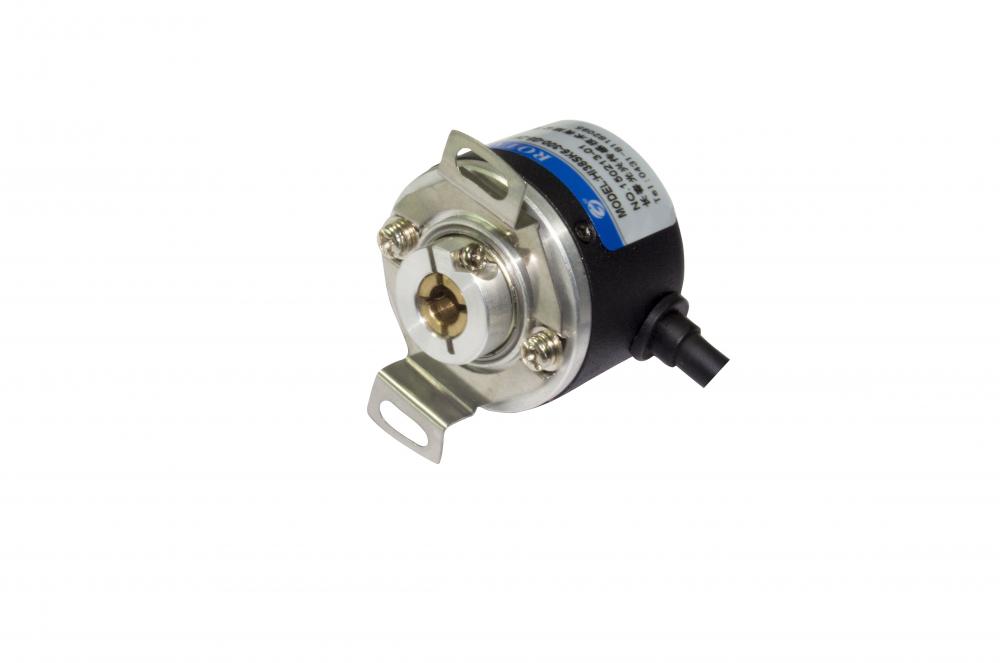

Encoder type quadrature encoder

Get Latest Price

You might also like

Encoder motor sensor

1 (MOQ)

Encoder in sensors encoder

1 (MOQ)

Encoder optical sensors

1 (MOQ)

Sensors and encoders

1 (MOQ)

Sensor is encoders

1 (MOQ)

Encoder transducer sensors

1 (MOQ)

Sensor in encoders

1 (MOQ)

Sensor for optical encoders

1 (MOQ)

Magnetic Shaft Encoder

1 (MOQ)

High Precision Encoders

1 (MOQ)

Basic Info

Model No.	HI38k 4
Brand Name

Product description

Application of photoelectric encoder: car driving simulator, the measurement of steering wheel rotation angle selects photoelectric encoder as sensor. The gravity measuring instrument uses a photoelectric encoder to connect its shaft to the compensation knob shaft of the gravity measuring instrument. The torsion angle meter uses the encoder to measure the torsion angle changes, such as torsion experiment machine, fishing rod torsion fishing performance test, etc

Electrical parameters
Resolution	10-2500P/R	10-2500P/R
Circuit characteristics	Current type (C)	Voltage type (E)
Voltage	DC(5-30)V	DC(5-30)V
Current consumption	80mA Max.	100mA Max.
Signal high level	VH＞Vcc-0.7V	VH＞Vcc-0.7V
Signal low	VL＜0.5V	VL＜0.5V
Output signal	A B or A B Z	A B or A B Z
Response frequency	300KHz Max.	300KHz Max.
Signal rise time	/	Max.1μs
Signal fall time	/	Max.1μs
Insulation resistance	Above 50MΩ (DC500V megohmmeter)	Above 50MΩ (DC500V megohmmeter)
Short circuit protection	Have	Have
Power reverse wiring protection	Have	Have

Electrical parameters
Resolution	10-2500P/R	10-2500P/R
Circuit characteristics	Push-pull (F)	Differential (L)
Voltage	DC(5-30)V	DC(5-30)V
Current consumption	125mA Max.	80mA Max.
Signal high level	VH＞Vcc-0.7V	VH＞Vcc-0.7V
Signal low	VL＜0.5V	VL＜0.5V
Output signal	A B or A B Z	A A B B or A A B B Z Z
Response frequency	300KHz Max.	300KHz Max.
Signal rise time	Max.1μs	Max.1μs
Signal fall time	Max.1μs	Max.1μs
Insulation resistance	Above 50MΩ (DC500V megohmmeter)	Above 50MΩ (DC500V megohmmeter)
Short circuit protection	Have	Have
Power reverse wiring protection	Have	Have

Mechanical parameters
Spindle diameter	Φ6mm, 8mm
Protection level	IP54
Shaft speed	6,000rpm Max.
Shaft load	Radial: 20N Axial: 10N
Impact resistance	980m/s (2 X Y Z three directions each 3 times, each lasting 6ms)
Vibration resistance	50m/s^2 (10～200Hz X Y Z each direction for 2 hours)
Starting torque	1×10^-4 N.m（25℃）
Moment of inertia	2×10^-5 kgm^2
Product weight	About 0.1Kg
Working humidity	35～85%RH (no condensation)
Operating temperature	-10～70℃ Storage temperature -25～85℃
Angular acceleration	1×10r^4ad/s 2
