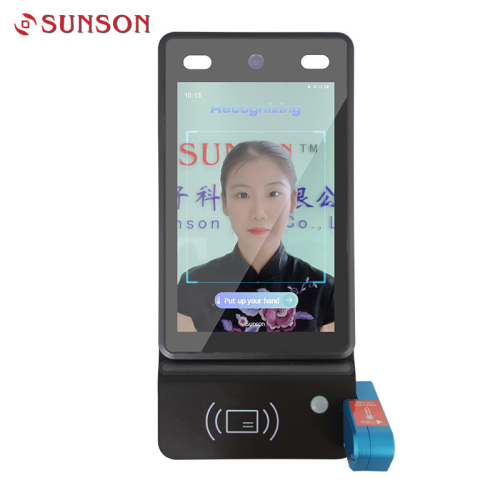

Face Recognition Skin Temperature Reader Pad

Sunson Tech is an AI pioneer based on deep learning technologies which are widely applied in modern intelligent equipment development. We are committed to make our communities smarter and our lives easier. Our Face Recognition Skin Temperature Reader Pad and related series products are widely used in office buildings, schools, communities, and government service lobbies, and are contributing to build a smarter and safer world.

Main Features

1)  Integration capabilities

2)  High temperature alerts sent by email

3)  Fast live detection and face recognition, less than 300ms with accuracy of 99.5%

4)  Able to recognize wearing-mask faces

5)  Reduce human contacts and epidemic transmission

6)  Real-time data report and export in excel format

It uses an embedded system with high performance hardware processing platform, including Mini-Cosmos Management System for viewing of incoming and outgoing staff attendance and temperature summary data in a real-time manner.

Note: This device is not for medical use. The function temperature detection is only used to assist rapid screening. If high temperature is detected, it is recommended to use a medical device to re-measure.

System Specification

Item	Parameter
Display	8 inch, 1280*800,16:10
CPU	4 core
RAM	4GB
Flash	16GB
Card reader	NFC
IR measuring module	Yes
Camera (HDR, monocular)	RGB 2 million pixel; IR 1.3 million pixel
LED	White
Access control module	Switch; Wiegand
Wi-Fi	Yes
Speaker	5W
RJ45	1
Micro-USB	1
Remote upgrade	Yes
Power	Input AC 220/110V, output DC 12V 2A
Waterproof level	IP54
Face data capacity	20000
Size & Weight	298*153*73mm, 1311g

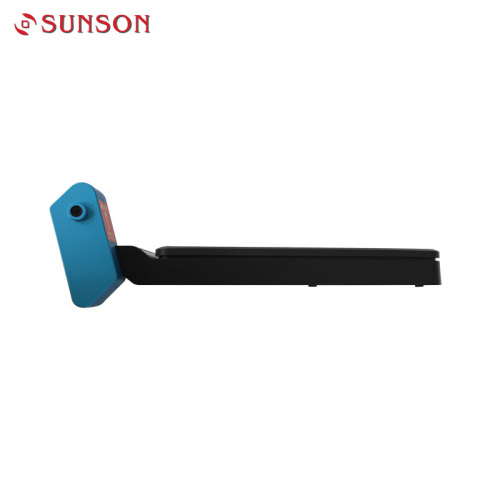

 Wrist Module Specification

Item	Parameter
Measuring method	Wrist temperature
Measuring distance	1 to 4cm
Size	86*33*25mm
Weight	119g
Temperature range	35 ~ 41℃ (customizable)
Temperature sensor	Infrared measuring sensor
Min display unit	0.01℃
Temperature accuracy	< ± 0.2℃
Viewing angle	35°FOV
Working temperature	0 ~ 31℃
Waterproof level	IP54, applicable to indoors scenarios with environment temperature of 31℃

 Advantages of Wrist Version terminals over Forehead ones

A. Temperature detecting even when foreheads are covered.

B.  For privacy and other reasons, different detecting modes are available.

Application Scenarios

Sunson Partners

Sunson Profile

FAQ:

Q1: Does someone need to operate the scanner pad?

A1:The scanner pad is touchless and requires no interaction by an operator. It is handsfree for the customer and employee. The person being scanned only needs to put his/her wrist next to the sensor of the scanner pad for less than 300ms.

Q2: How long does it take to setup?
A2: There is no software configuration necessary. We pre-configure and test the device in our warehouse before it is shipped out.

Q3: Can the scanner pad take temperatures wearing a mask?
A3: Yes, the scanner pad can take temperatures with users wearing a mask. It can also be configured to require the person to wear a mask in order to pass the screening and enter the premises.

Q4: How accurate is the temperature scan?

A4:The scanner pad has extremely accurate readings, approximately ±0.2℃.

Q5:How does the kiosk display the results?

A5:The screen will display the person’s actual temperature as well as a green light for a passing temperature reading or a red light if the temperature is above the normal threshold. It can also be configured to send a manager or director of HR an instant email notification of an elevated temperature.

Q6:What is the warranty?

A6:The device comes with a 12-month manufacturer warranty. It covers manufacture defects only.

Q7:Does the system integrate with other device?

A7:The system can integrate with certain gate or door entries, turnstiles, and access control systems.
