Hydraulic shearing machine

* The second generation of hydraulic shear.
* Welded Steel plate structure, heating to eliminate stress, with high strength and good rigidity.
* Advanced integrated hydraulic system with an excellent reliability.
* The rolling guide with 3-point support and improves the shearing quality.
* Rapidly, accurately and conveniently adjusting the blade clearance with the hand wheel.
* The rectangular block blades featuring long lifetime with 4cutting edges in several sections.
* The adjustable rake angle can minimize plate deformation.
* As the cutting beam has been designed in inner- inclined structure, it is easy for plates to fall down and the accuracy of products can be also guaranteed.
* Counter for the motorized back gauge and front control post.
* Rear plate-support of the machine (optional).

Technical parameters:
1. Thickness:3mm‐20mm
2. Max length :12‐15M
3. Max cutting width: 900-1200mm
4. Speed for cutting: 8‐10m/min
5. Main power: 30Kw(20mm) 20Kw(18mm) 15Kw(12mm)
6. Moving motor: 5.5Kw
7. Cutting angles: 0.5‐3°
8. Height of platform: 1030mm
9. Workshop dimension: 100 ㎡
10. Servo motor to control the length of the material, 3 pcs PLC Coordinated control

Brand of Electrical components:
1. Touch screen:Delta
2. PLC Delta
3. Relay:schneider
4. Circuit breaker Chint
5. Encoder:omron
6. Bottom schneider
7. Inventor Shihlin

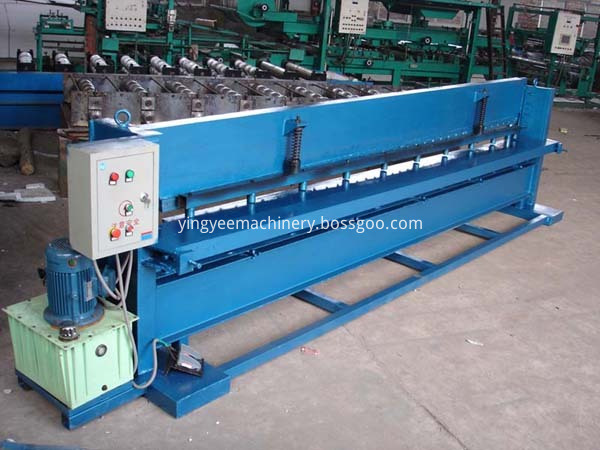

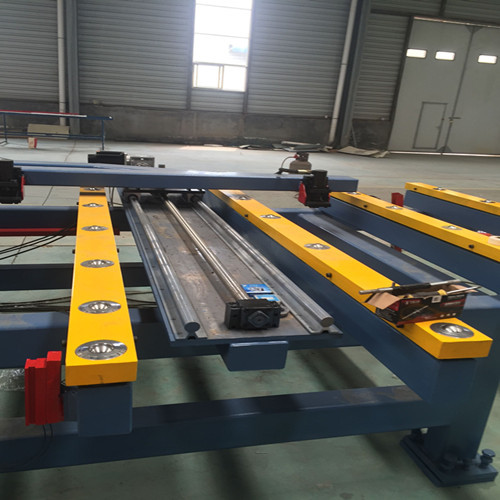

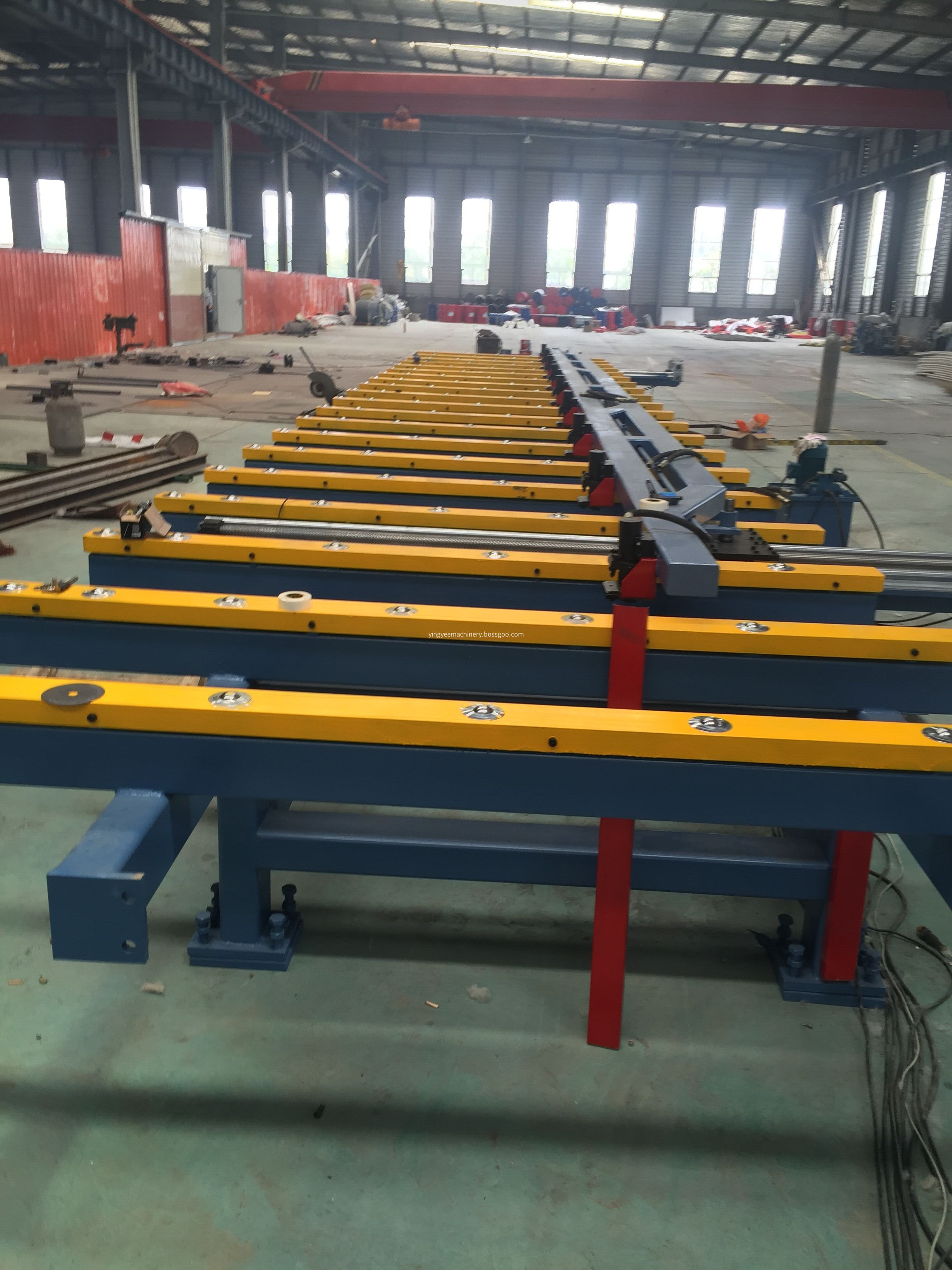

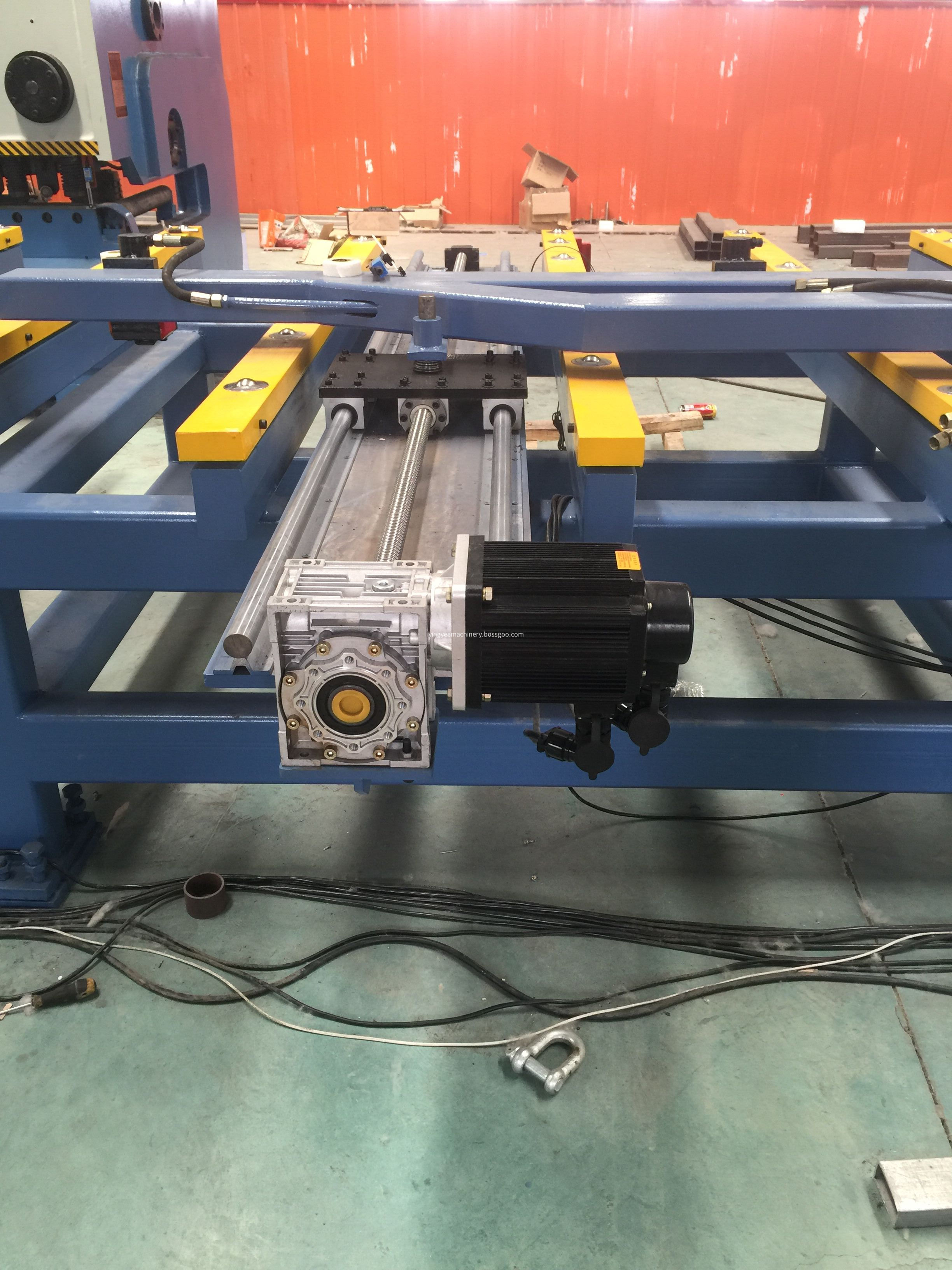

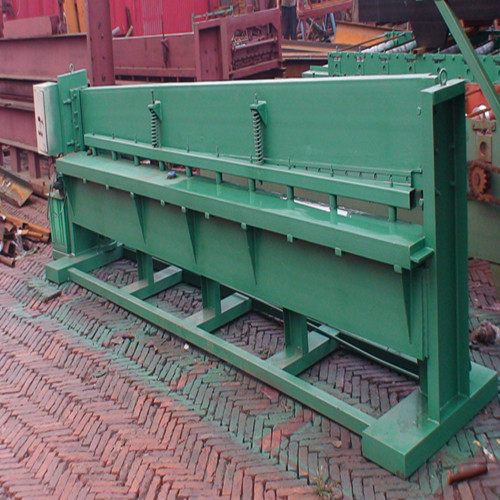

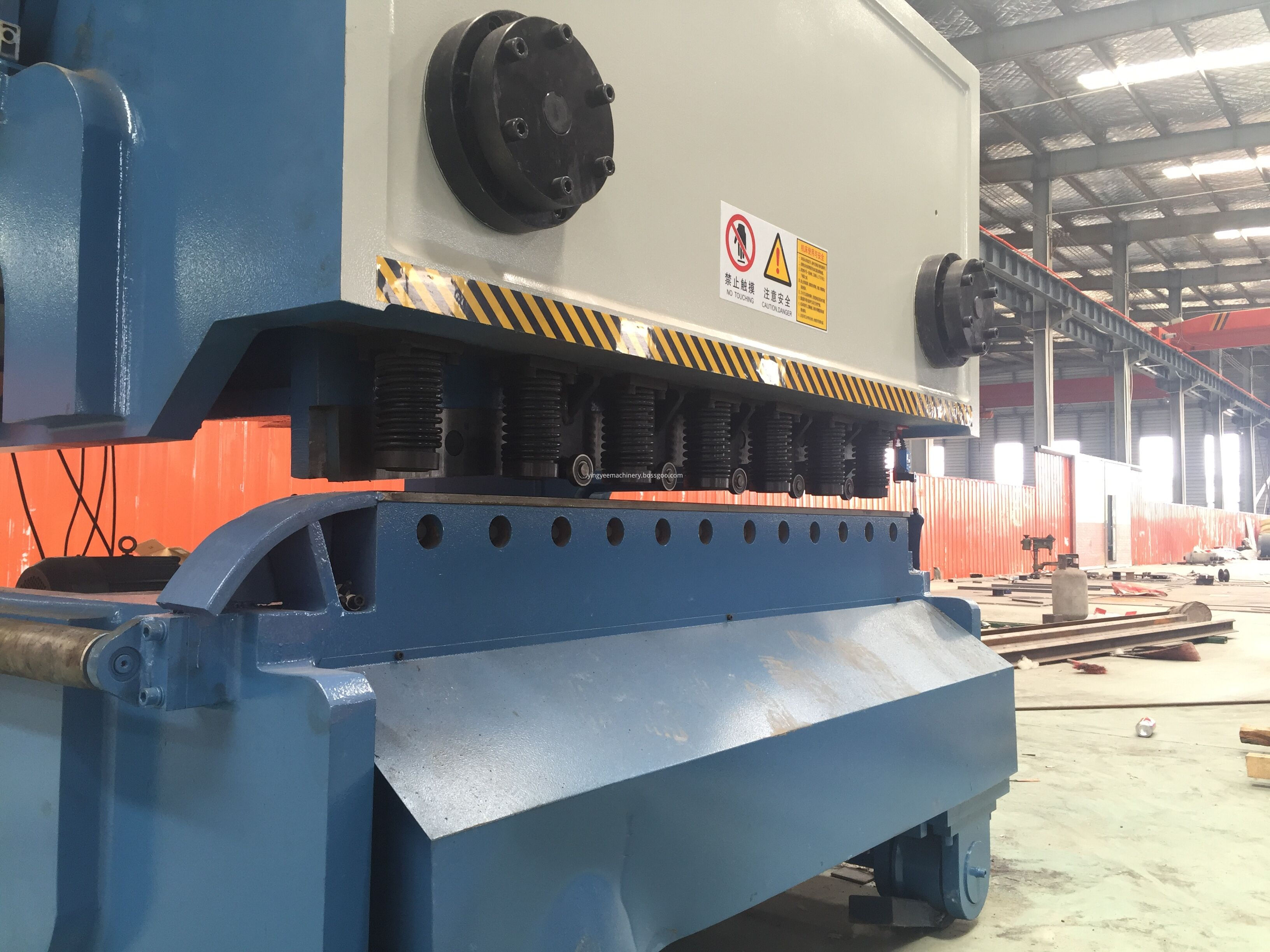

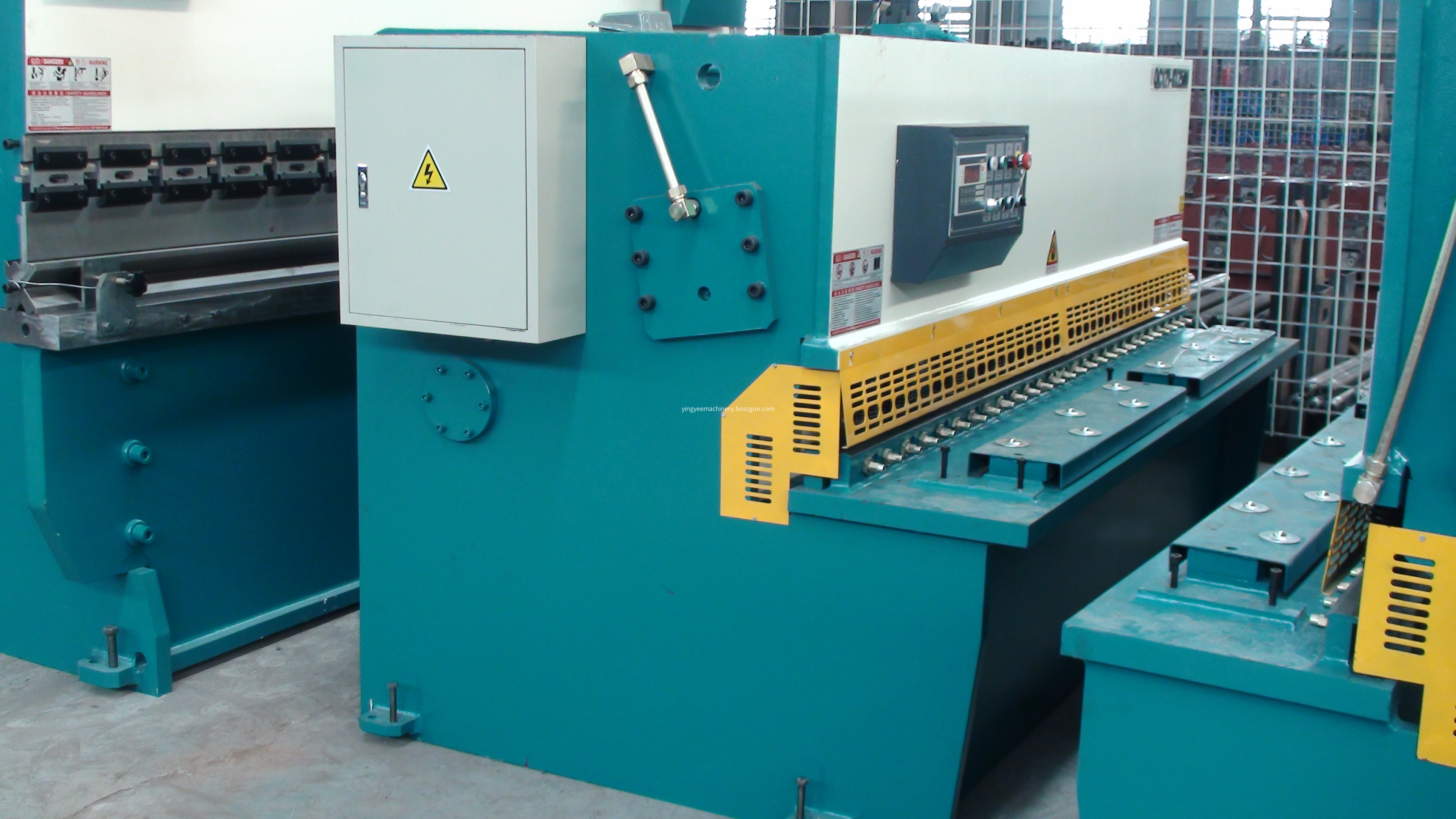

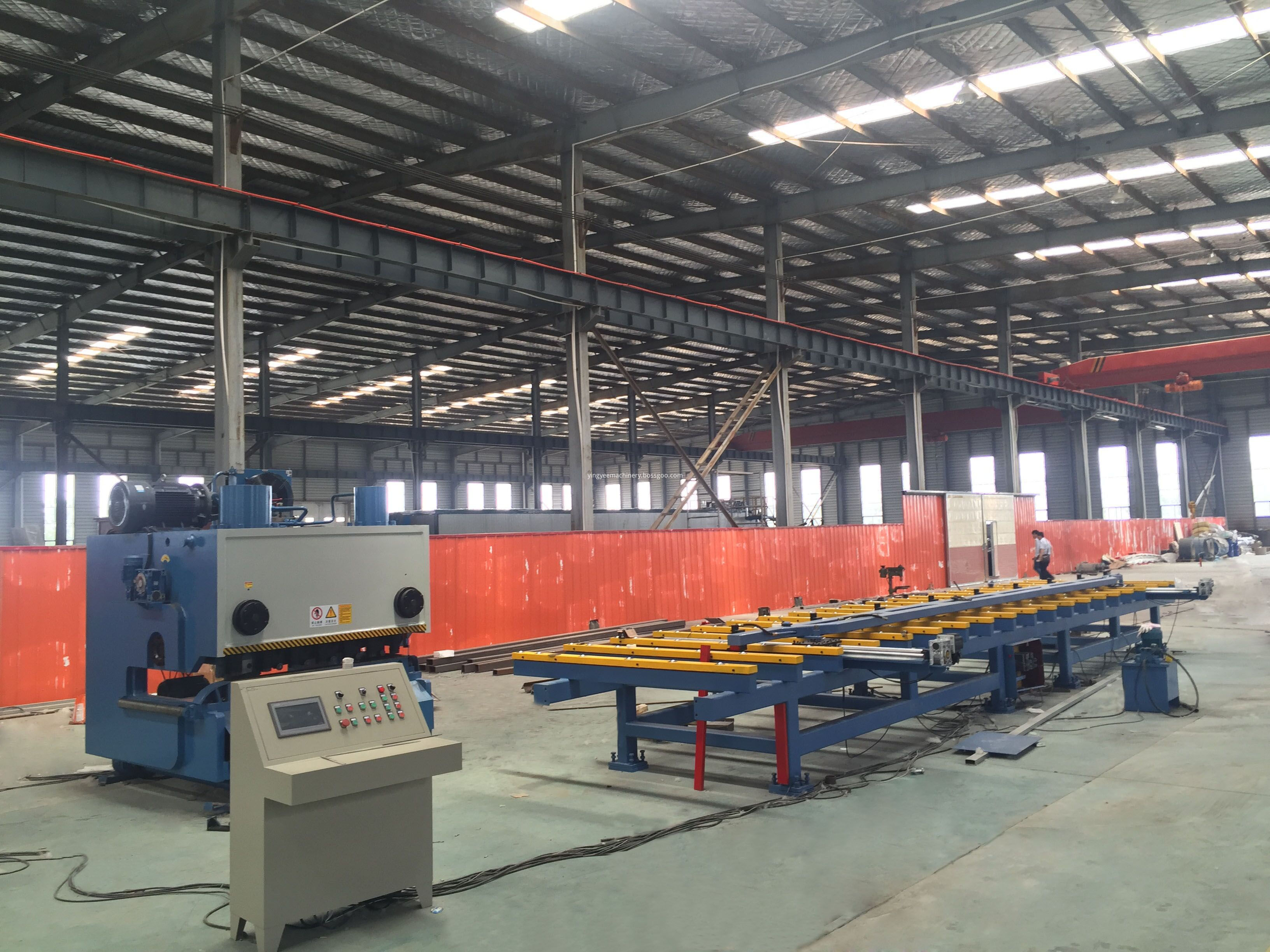

Pictures of machine:

Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.


Our products were sold to more than 20 countries already. Also included US and Germany.

Main product :

•  Roof roll forming machine
•  Roller shutter door roll forming machine
•  C and Z purlin roll forming machine
•  Downpipe roll forming machine
•  Light keel roll forming machine
•  Shearing machine
•  Hydraulic decoiler
•  Bending machine
•  Slitting machine

FAQ:

Training and Installation :
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.

Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
