Fiberglass Reinforced Plastic Pipework

Get Latest Price

You might also like

Emergency Trenchless Rehabilitation Project of Sewage Pipeline in Liangzhu Street, Yuhang District, Hangzhou

1 (MOQ)

Fuyang Urban Area Underground Pipeline Organic Renewal Project

1 (MOQ)

Yuhang District (District-Managed Roads) Trenchless Rehabilitation of Sewer Pipeline Project

1 (MOQ)

Emergency Repair Project of Sewage Pipe Network on Yaqian Road, Xiaoshan

1 (MOQ)

Wuwei City 2024 Old Urban Residential Area Renovation Supporting Infrastructure

1 (MOQ)

Rehabilitation of Sewer Pipeline, Jianshui Road, Keqiao District, Shaoxi

1 (MOQ)

Hangzhou Yuhang Palm Road Emergency Trenchless Rehabilitation of Sewer Pipeline East of Goushan Line

1 (MOQ)

FRP Pipe for Wastewater System (frp pipe)

1 Ton (MOQ)

FRP Urban Wastewater Duct (FRP pipe)

1 Ton (MOQ)

Fiberglass Reinforced Plastic wide-caliber pipe (FRP pipe)

1 Ton (MOQ)

Basic Info

Model No.
Brand Name	Huafeng new material

Product description

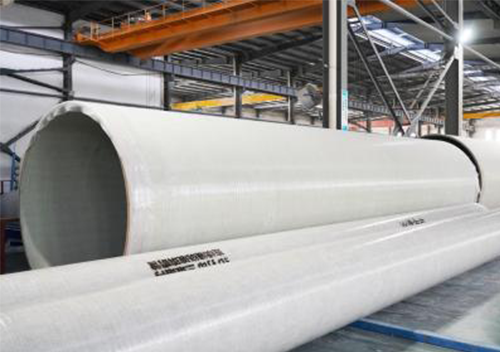

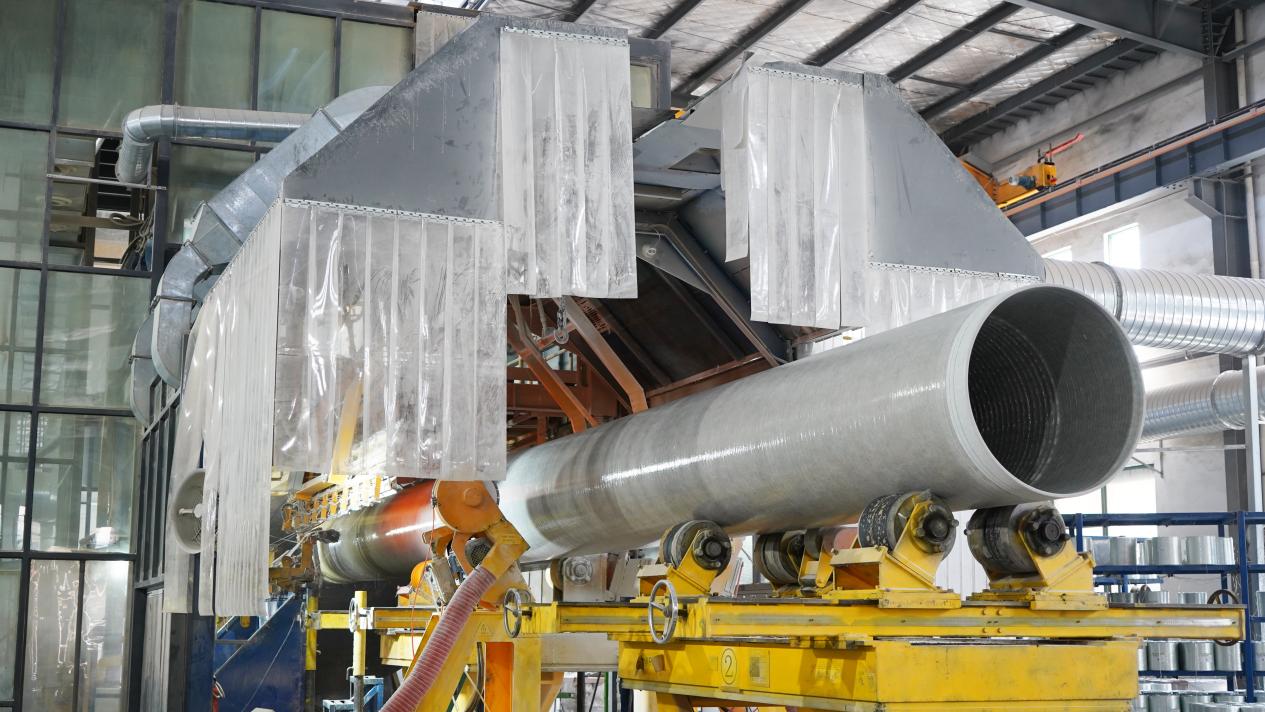

FRP Pipe is an advanced composite material pipe with three-dimensional enhanced structure which is made by 3D printing technology and continuous technology molding. The pipes are widely used in fluid transportation fields such as municipal water supply and drainage, marine engineering, and petrochemical.

Specification and Model of the Product

Nominal Diameter DN (mm): 300~4000;

Nominal Pressure PN(MPa) ≤ 3.2;

Nominal Stiffness SN(N/㎡)： 2500, 5000, 7500, 10000;

Pipe joint length L(m)：3, 6, 9, 10, 12, 18.

(Note: The above mentioned are standard specifications and may also be made to orders.)

Performance features

GRP pipe has not only the hydraulic properties and corrosion resistance of plastic pipe, but also the mechanical properties of metal pipe of the Frp Top Pipe.

Basic characteristics

(1) Light weight and high strength

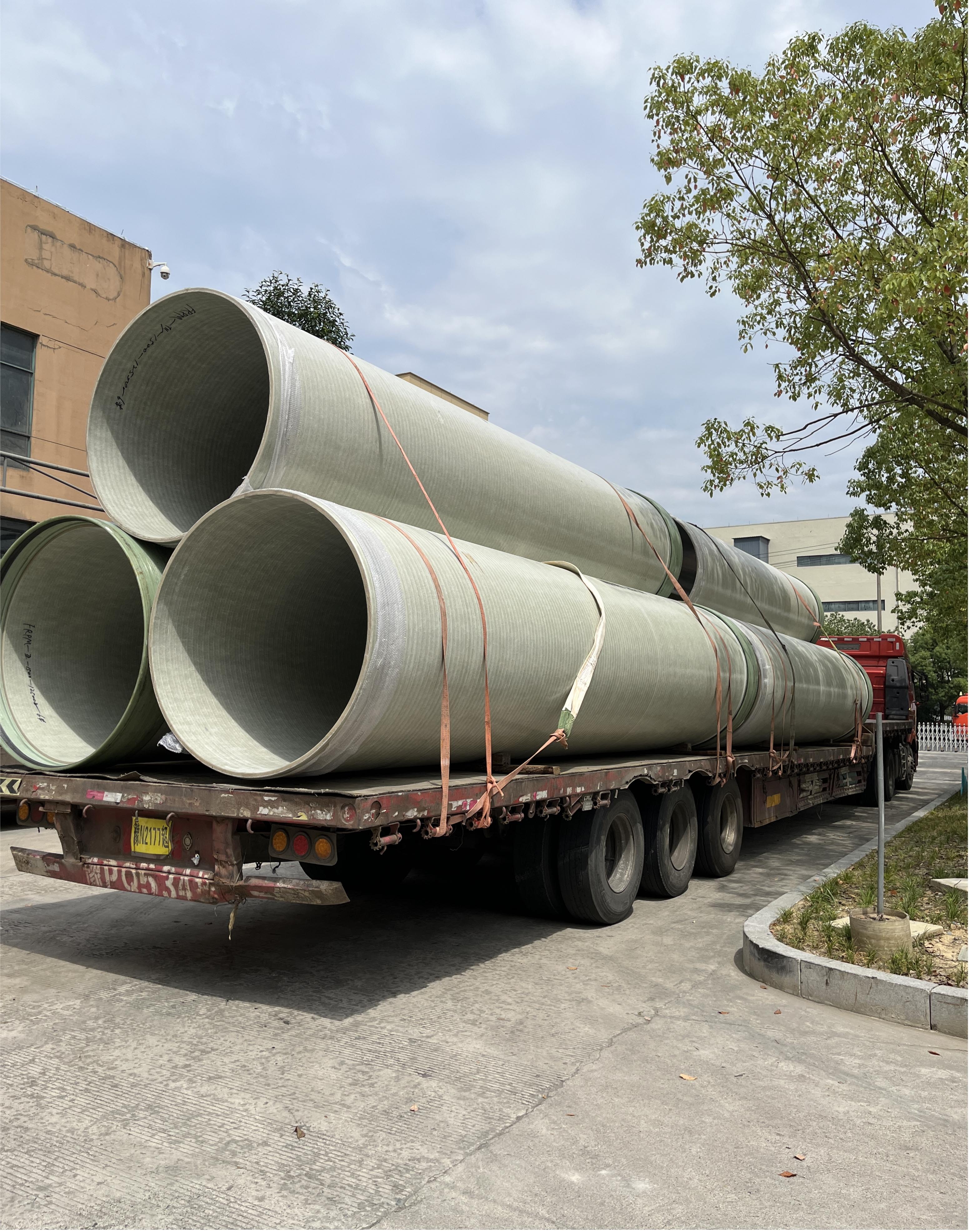

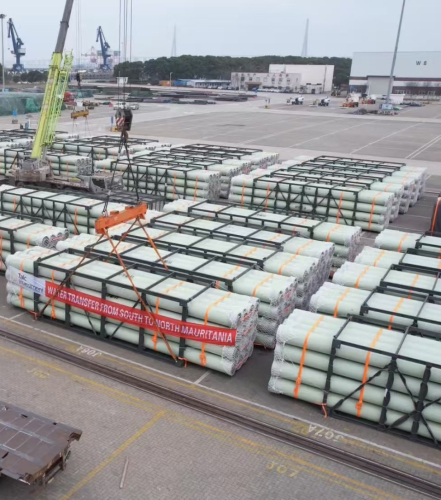

Huafeng GRP pipes weigh 1/6 of concrete and 1/3 of steel pipes. The lightweight structure not only eliminates the need for expensive handling equipment, but also offers fast and easy installation. The GRP pipes of different diameter are shipped using special packaging as a nested set without detriment to their hydraulic properties and inner surface smoothness. This also provides enormous saving in shipping costs.

(2) Excellent hydraulic characteristics

The hydraulic properties of Huafeng GRP pipe provide stability throughout the operating lifespan as courtesy of their smooth interior surface that prevents the formation of lime and sediment. Unlike conventional pipe systems, this property allows the passage of the same flow rate through smaller pipe diameter in the long run. Besides reducing the energy consumption for pumping at the pumping allows for an increase in energy generation at the power plants.

(3) Corrosion resistance

The composite structure of the Huafeng GRP pipe offers perfect corrosion resistance. The lack of corrosion eliminates the pipes’ need of cathodic protection and supplemental coating material, thus eliminating operating difficulties and expenses. Another important advantage offered by Huafeng’s pipe manufacture technique is the ability to use project specific resins in the inner liner of the pipe against highly corrosive environments or chemical effects.
