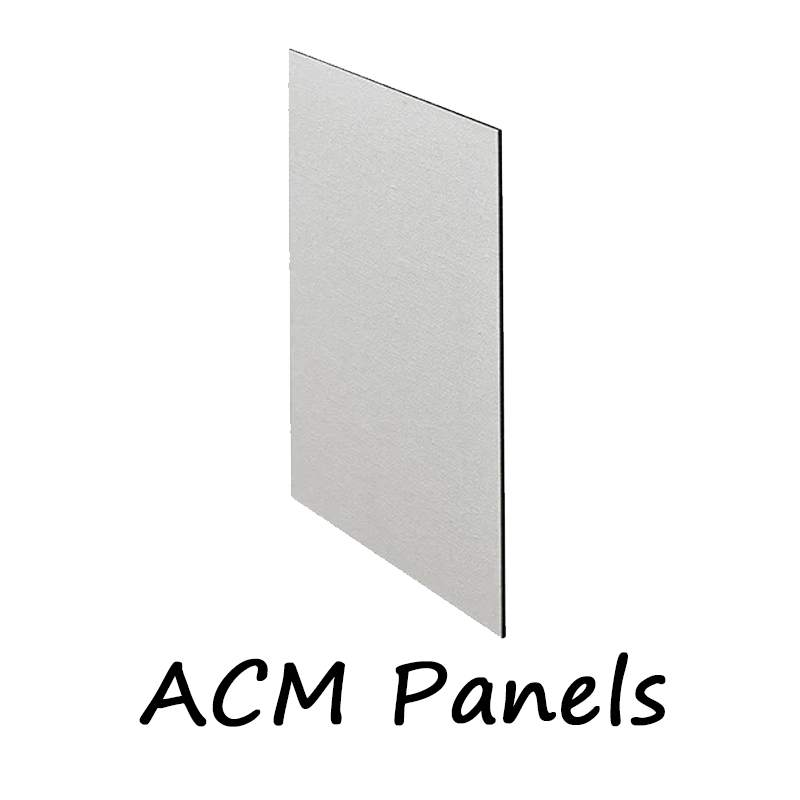

Fire-Proof Function Acm Panels

Aluminium Composite panel
The unique performance of aluminum composite panel determines its wide application: Aluminium Panel can be used for building exterior wall,curtain wallboard Acp Panels, renovation of old building, interior wall and ceiling decoration, advertising signboard, display stand, purification and dust-proof engineering. The utility model belongs to a new type of building decoration Acm Aluminum Composite Material.

Features

1) Super peeling strength
With imported high-molecular film and international high-tech compound and heat treating, our ACP is with high peeling-strength.

2) Durability
ACP with PVDF coating is extremely good for the weathering resistance, acidity, alkaline resistance, thermal insulation and damping.

3) Fireproof
The middle layer is made of anti-flame materials, processed and extruded under high temperature, which stick to ACP with excellent fireproof function.

4) Impact resistance
The aluminum is tough, the core PE panel is flexible, therefore the panel has high impact resistance.

5) Easy to be processed
It is easy to be cut, bent, folded, arched and shaped with strong flexibility.

6) Noise absorptive
The PE core absorbs noise.

7) Multiple colors and coating evenness
Available in a diversity of colors, colors of panels could be customized exactly according to the requirements of esteemed clients, so as to realize different aesthetic purpose.


Application

1) Gas piping, cables, building materials, etc
2) Curtain wall decoration for buildings
3) Renovations of old buildings and movable houses
4) indoor walls, ceilings, bathrooms, kitchens and balconies
5) Billboards, exhibition desks and notice boards
6) Materials for industrial application, car and ship bodies

Items	Standard Inde	Test Value	Individual Judgment
Density of surfac	Rating±0.5kg/m2	6.8kg/m2	Qualified
Impact strength	50kg.cmWithout paint off and crack	Without paint off and crack	Qualified
Bend strength	≥ 1OOMPa	≥ 1O4MPa	Qualified
Flexuous modulus of elasticity	≥2.00 x lO4MPa	3.00 x lO4MPa	Qualified
Through resistance	≥9.0KN	9.50KN	Qualified
Cutting strength	≥ 28.OMPa	29.OMPa	Qualified
1800peel strength	≥7.0N/mm	≥9.1N/mm	Qualified
Resistance to change of temperature	-400C~-800C20cycles without change	Unchanged	Qualified
Boiling water resistance	Unchanged	Unchanged	Qualified
Coefficient of heat expansion	≥4.00 X lO-5 0C-1	2.93 X lO-5 0C-1	Qualified
Heat deformation temperature	≥1050C	1120C	Qualified
The test result meets the index requirements of quality product of GB/T17748-1999

Test Report of Safety of State Quality Supervision & Inspection Center of Fireproof Building Materials

Items	Test method	Technical index	Result	Conclusion
Minmum value of remaining length after burning	GB/T8325-88	> 0	410	Qualified
Average value of remaining length after burning	GB/T8325-88	≥ 150	486	Qualified
Temperature of smoke	GB/T8325-88	≤ 200	116	Qualified
Height of the top of the flame,mm	GB/T8326-88	〈 150	15	Qualified
Grade of smoke density	GB/T8327-88	≤ 75	34	Qualified
Note:The technical index based on the regulation of uninflammable materials(Grade B1)of GB8624-1997.
