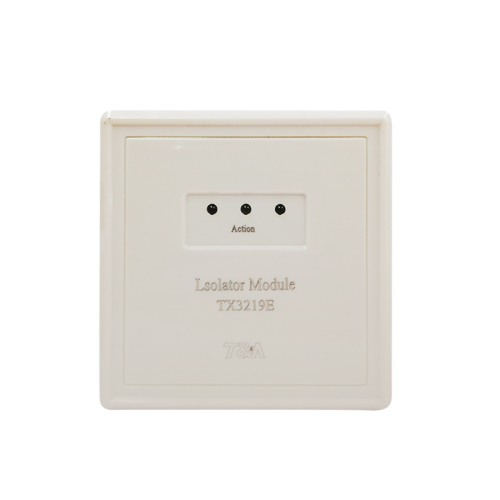

TX3219E Loop Isolator (hereinafter referred as Isolator) is used to isolate the devices in short circuit from the whole bus system to ensure normal operation of other devices in the system. The Loop Isolator can re-connect the isolated devices into control system automatically after the fault is fixed. It’s convenient to identify the location of the short circuit by use of the isolator.

Main Features

• Non-polarized input/output signal
• Isolated devices can be re-connected to system automatically after fault is fixed
• 100mA/200mA output current optional

Technical Specifications

• Operating Current:
