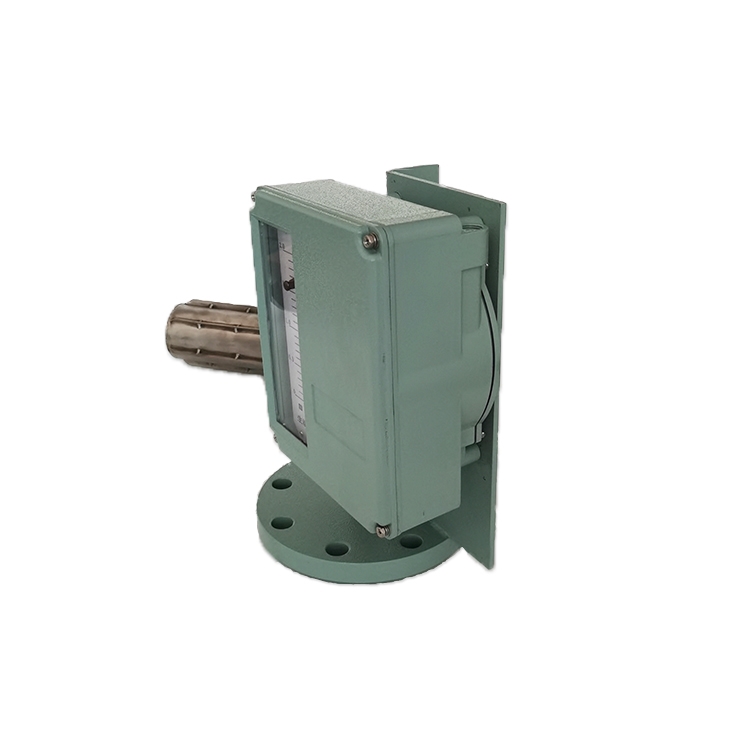

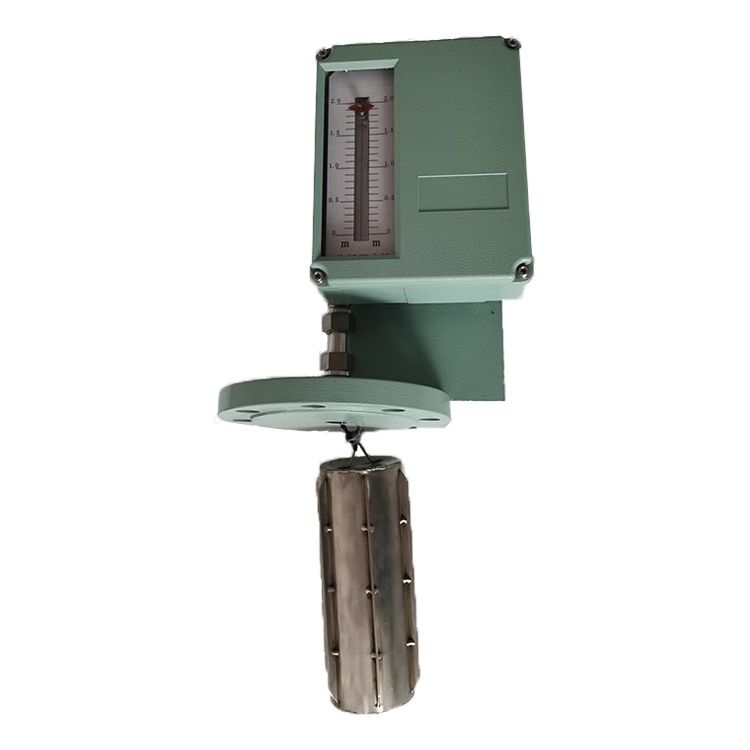

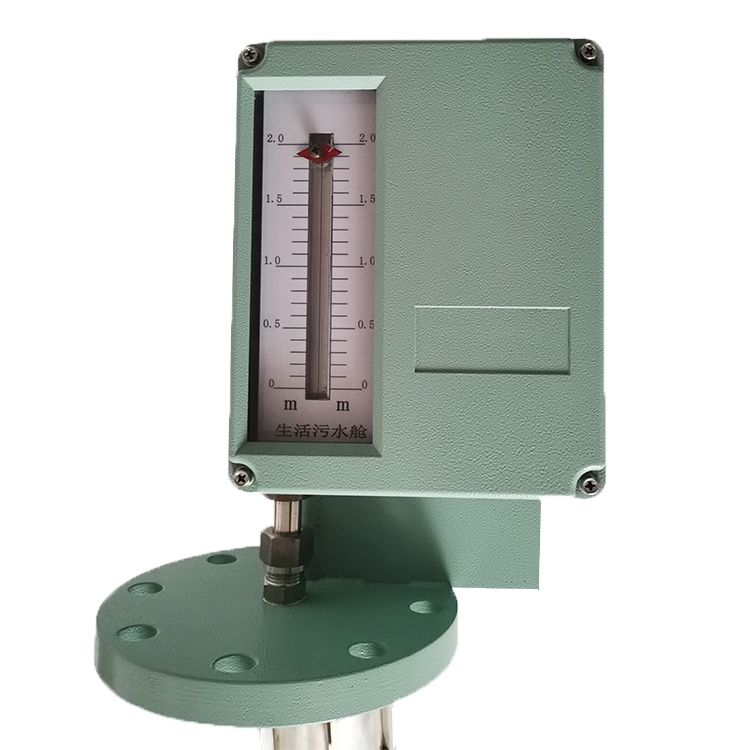

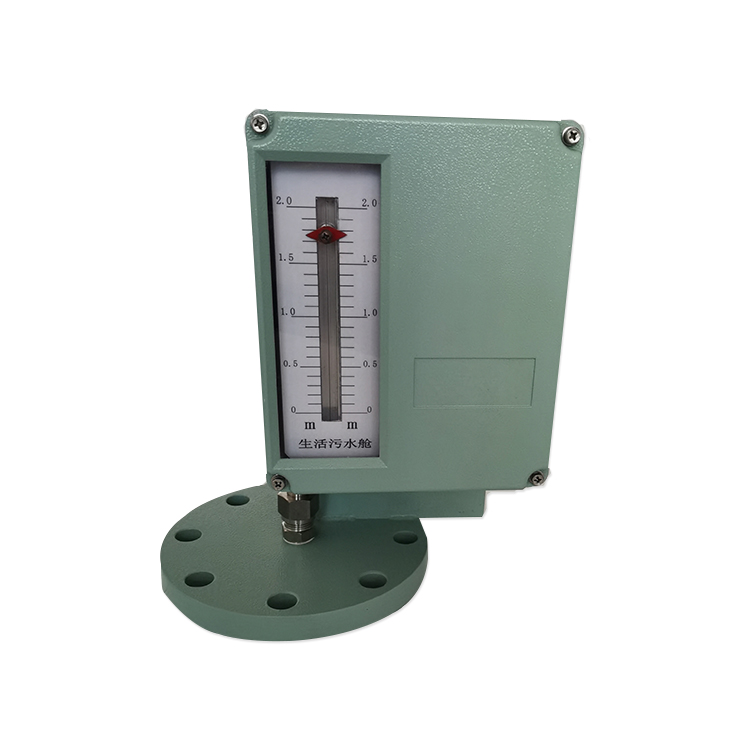

Float type liquid level measuring controller
Options:
- Green
Basic Info
| place of origin | China |
|---|---|
| Warranty | 1 Year |
| Place Of Origin | Jiangsu, China |
| Grade | Diy, Industrial |
| Customized Support | Oem, Odm |
Product description
The float type liquid level gauge uses the floating ball assembly as the measuring element. Through the action of liquid buoyancy, the floating ball moves up and down, which drives the magnetic steel at the upper end of the ejector rod to change up and down. The column is turned to track the change of the liquid level, so the display is eye-catching and the reading is intuitive. The Marine Magnetic Float Level Gauge is safe and reliable to use because the display component is completely isolated from the measured medium.Liquid Level Control Switch Module
name
|
|
Float type liquid level measuring controller
|
|
measuring range
|
0～0.5、0～1.0、0～2.0、0～3.0、0～4.0、0～5.0、0～6.0m
|
|
measurement accuracy
|
± 2% of full scale
|
|
contact information
|
SPDT (2-way independent setting output)
|
|
maximum. Contact ability
|
10W or 10va
|
|
maximum. Closing current
|
0.5A
|
|
maximum. working voltage
|
125V AC or 100V DC
|
|
protect
|
Intellectual property 44
|
|
Explosion proof type ExiaⅡCT3～6
|
|
Float type liquid level measuring controller
Options:
- Green
