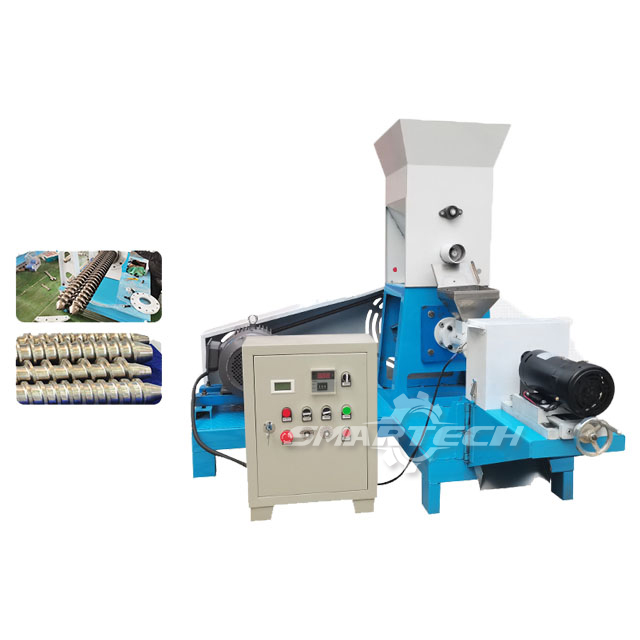

Floating Fish Feed Line Making Machine for Trout Food Extrusion Production

Video

1 / 7

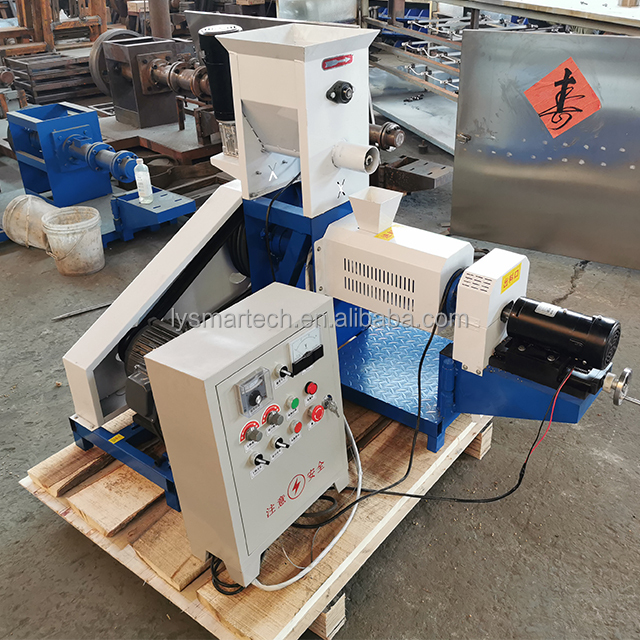

Floating Fish Feed Line Making Machine for Trout Food Extrusion Production

$2580.00

≥1 set
$550.00

≥2 set

Options:

SPH-70
28HP

Get Latest Price

Model No.
Brand Name
Capacity	180-200 kgs/h
Condition	New
Place Of Origin	Henan, China
Brand Name	Smartech
Type	Fish Feed Extruder Machine, Diesel Engine
Voltage	Diesel engine or electric engine
Dimension(LWH)	L1225W950H820mm
Weight	600 kg
Warranty	2 Years
Key Selling Points	High Productivity
Function	Dog Cat Animal Food
Application	Fish Farm
Keywords	Floating Fish Food Making Extruder Machine
After Warranty Service	Video Technical Support Online Support
Advantage	Low Consumption
Suit for	Fish .Cow.sheep Poultry
Pellet Size	2.5mm-6mm
Can make feed for	Cat Dog Fiish
Processing Types	Screw Extrusion
Applicable Industries	Farms
Showroom Location	Philippines, Peru, Colombia, South Africa, Nigeria, Malaysia
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Warranty Of Core Components	1 Year
Core components	Bearing
Marketing Type	New Product 2022

Application of feed extruder for Fish or Pet Food

1. According to different requirements, variety shapes of high-grade feed pellets
for fish, shrimps .etc

2. The finished pellets can keep floating for 12 hours without pollution to water.

3. The floating time can be controlled by the puffing degree adjustment

4. Floating feed extruder can make pellet from diameter 1mm-12mm through changing the mould.

5. Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.

6. High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.

7. The cutting device can be adjusted to make pellets of different length.

8. The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.

Production Description

Technical Parameters

Model	Capacity (kg/h)	Power (kw)	Feeding Power (kw)	Screw Diameter (mm)
SPH-40	40-60	7.5	0.4	φ40
SPH-50	80-100	11	0.4	φ50
SPH-60	120-150	15	0.4	φ60
SPH-70	180-200	18.5	0.75	φ70
SPH-80	260-300	22	0.75	φ80
SPH-90	350-400	37	1.1	φ90
SPH-100	500-800	55	1.1	φ100
SPH-135	800-1000	75	1.1	φ135
SPH-160	1200-1500	90	1.5	φ160
SPH-200	1800-2000	132	1.5	φ200

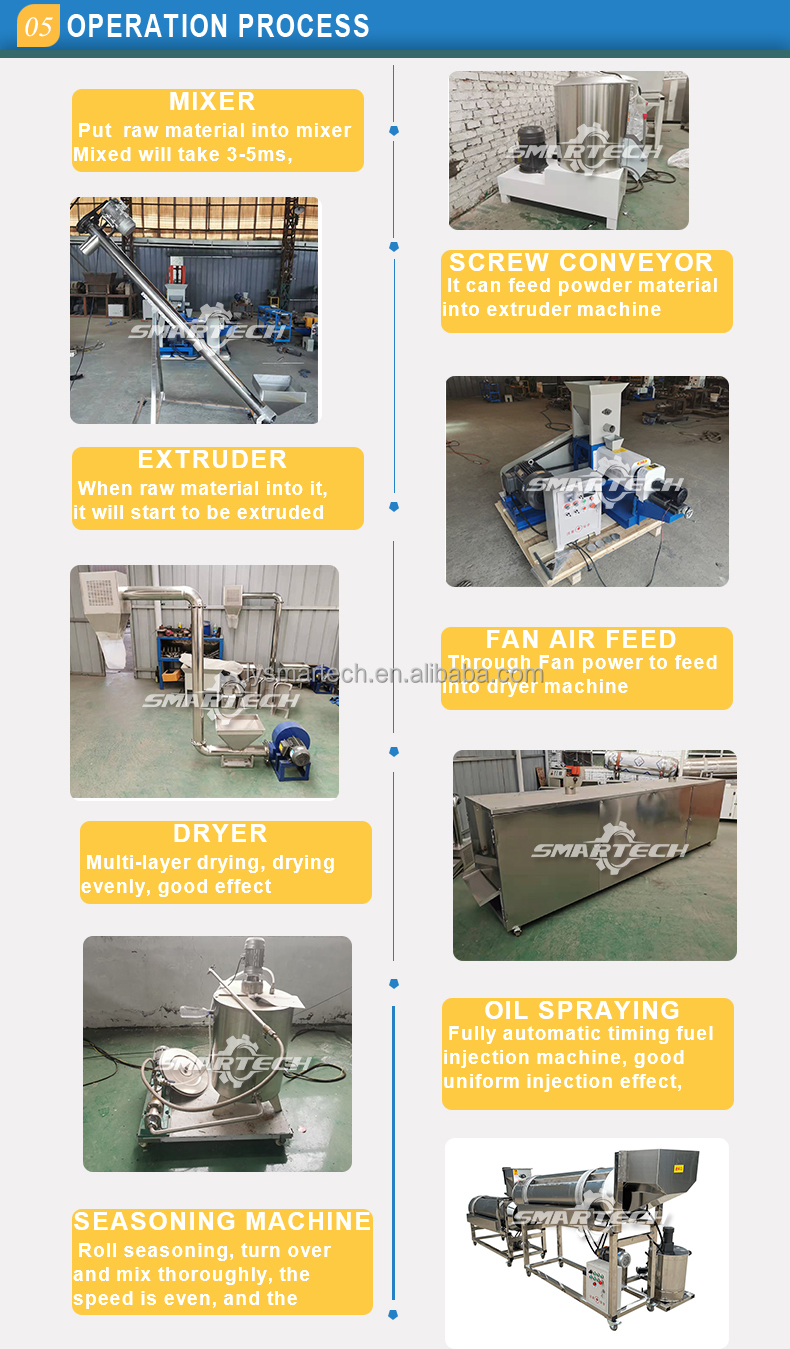

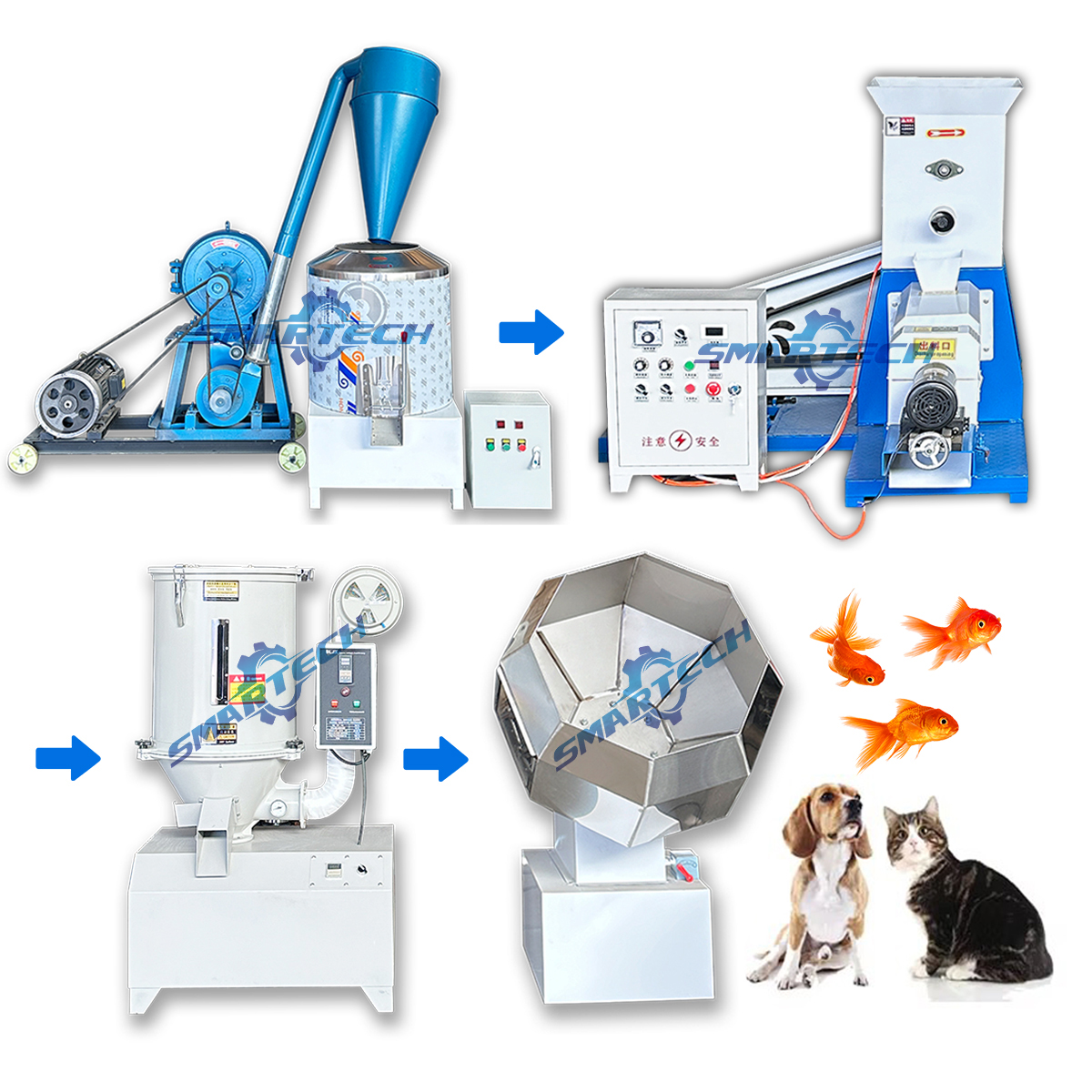

Application

Scope of Application

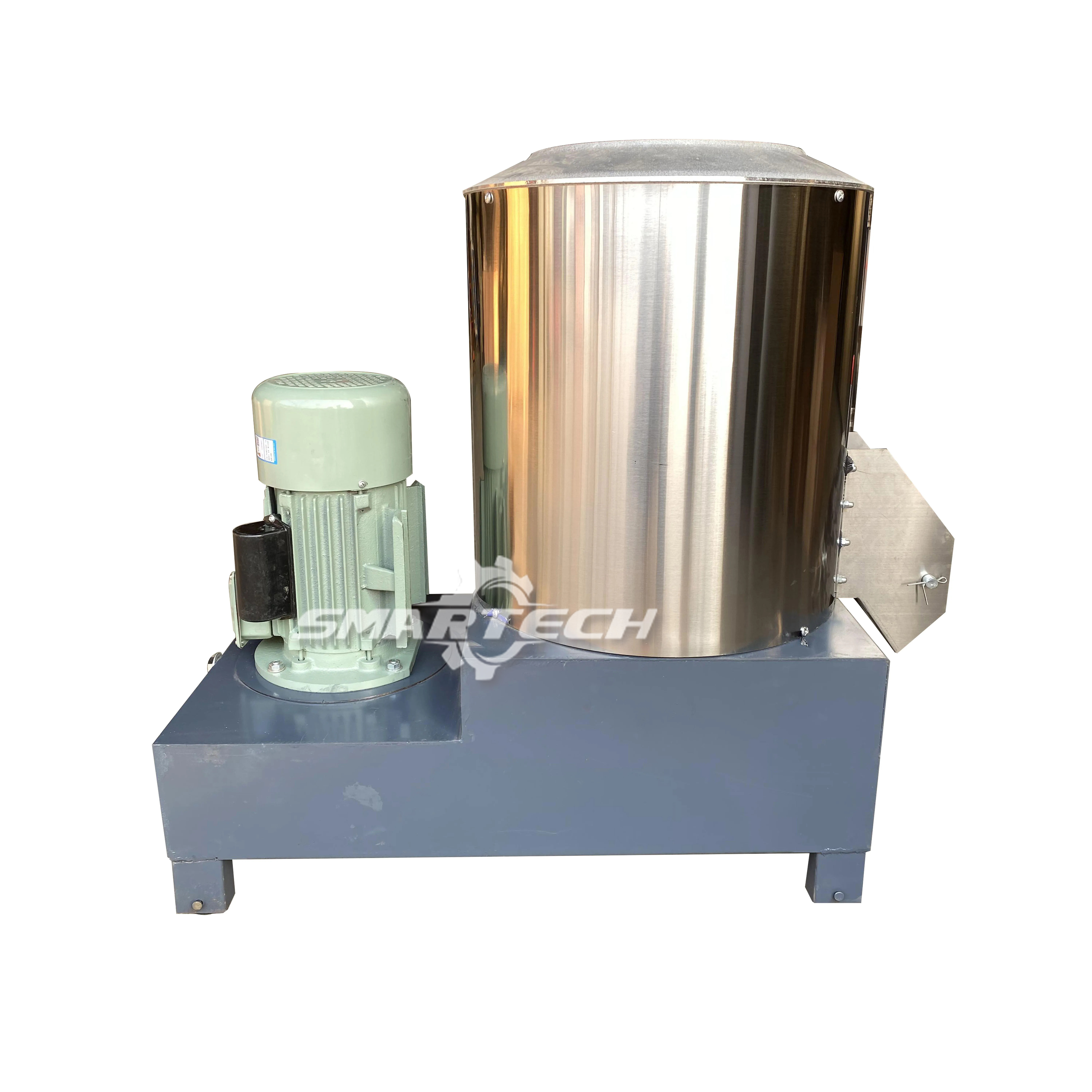

Mixer Machine

Feed mixer machine is usually used to fully and evenly mix the crushed feed raw materials together. Like wheat flour, corn flour,soybean flour, bone meal, soybean oil, etc.

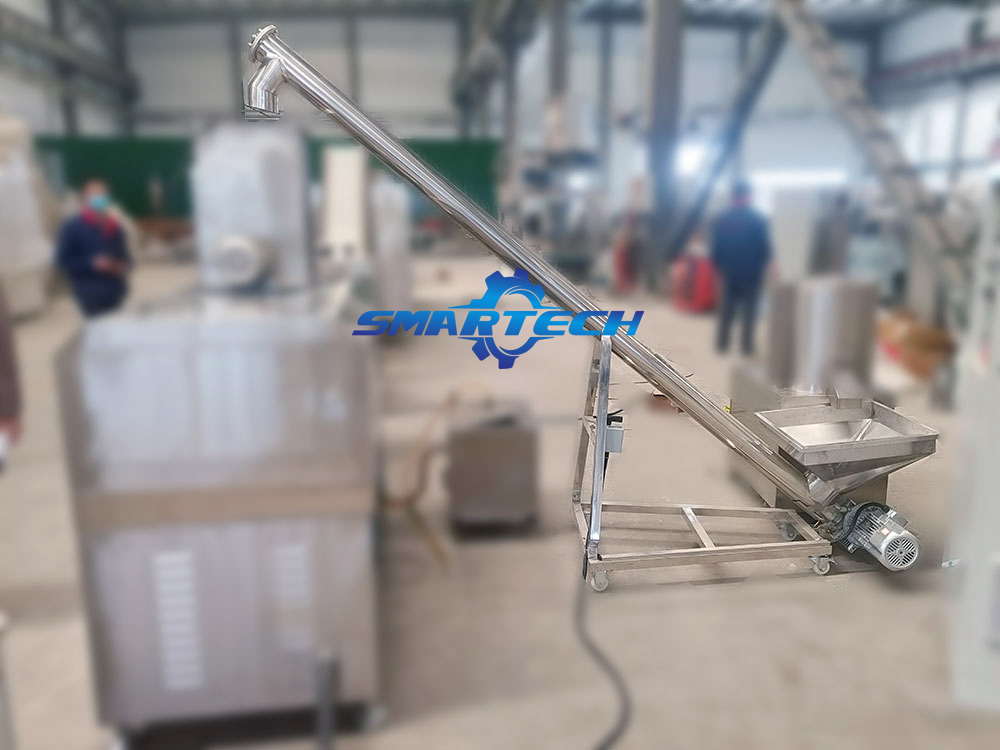

Conveyor

The conveying speed can be controlled bu frequency inverter to follow the feeding speed of extruder length can be customized.

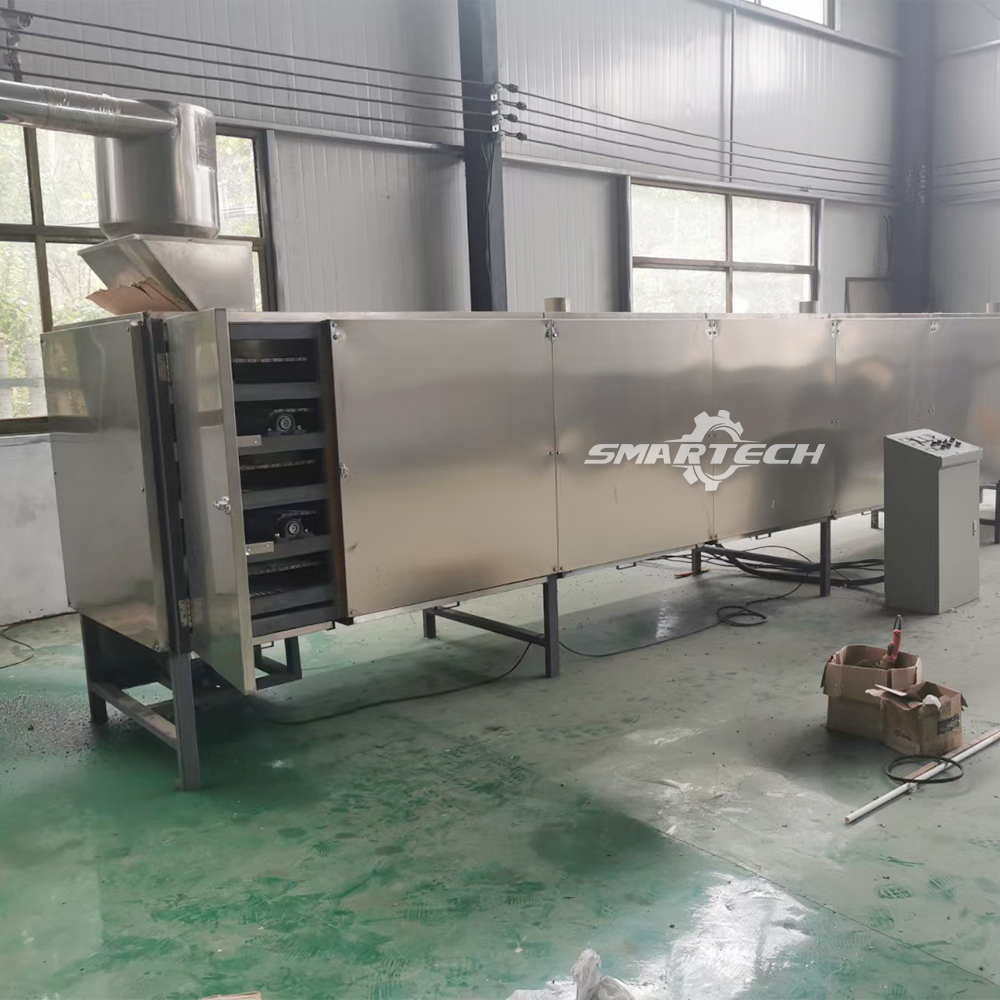

Multi-layer Dryer

It is applied in the construction industry, food industry, chemical industry, ceramic industry, paper products, bamboo and wood products, flower and grass industry, rubber industry, and food puffing industry.

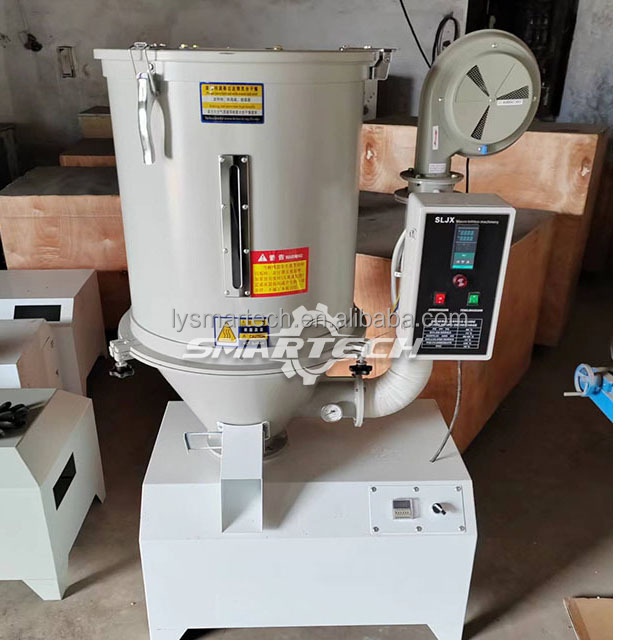

Vertical Dryier

Vertical feed pellet dryer is a machine that is designed to remove moisture from feed pellets, which are widely used to fish feed pellets.

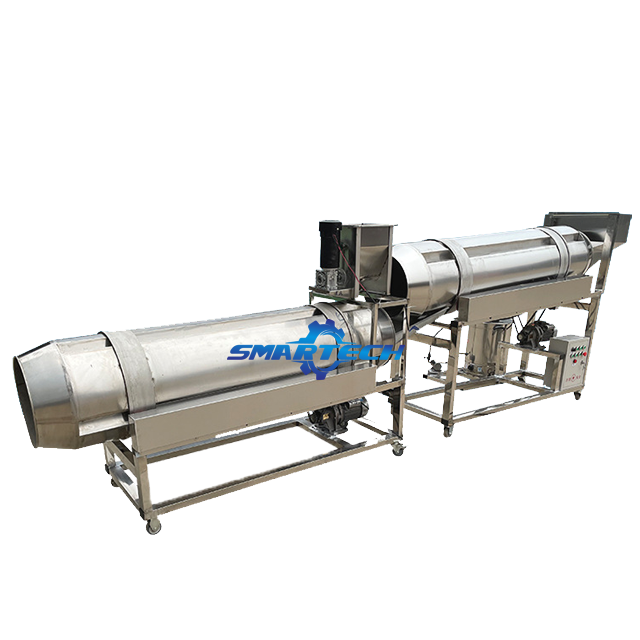

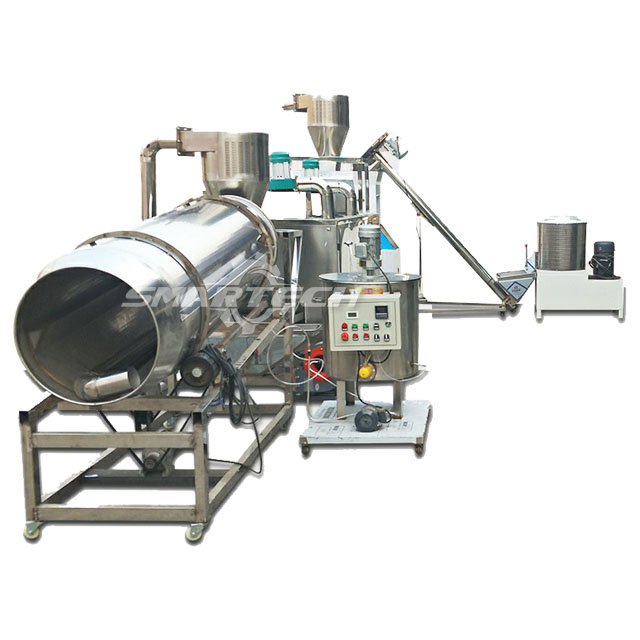

Drum Flavoring Machine

By the turning of the tumbling box, it can coat the products with even layer of the coating flour.Increase the quantity of the flour on the products surface.It causes the obvious scaly food surface.

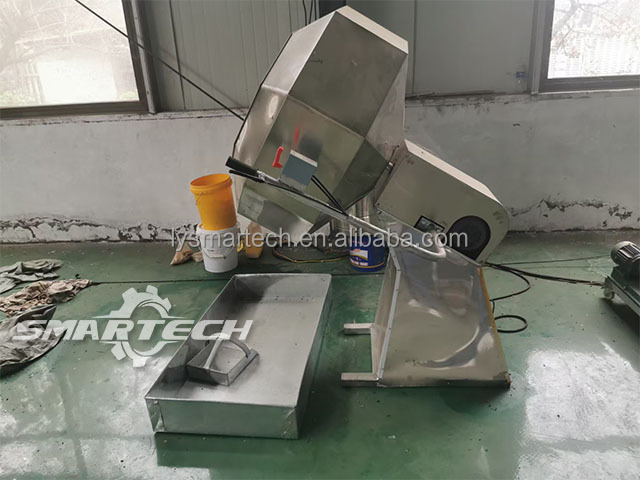

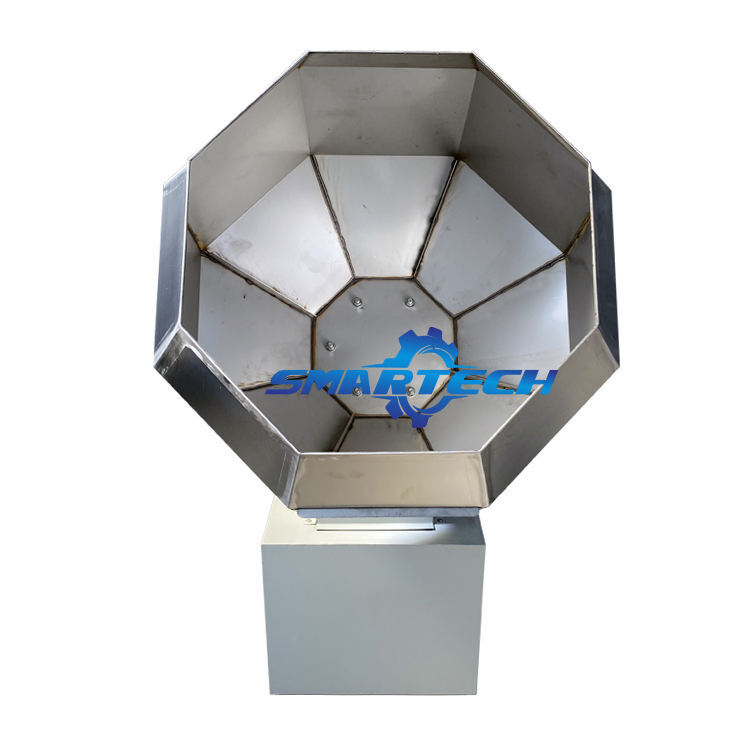

Octagonal Seasoning Machine

It is very popular in food processing industry. It's mainly used in flavoring and mixing all kinds of food, such as chips, french fries, fruit brittle, fried food, puffed food, snack food, leisure food, fruit chips, potato chips etc.
