Floor Deck Roll Forming Machine
Basic Info
| Model No. | ZT-004-098 |
|---|---|
| Brand Name | zhongtuo |
Product description

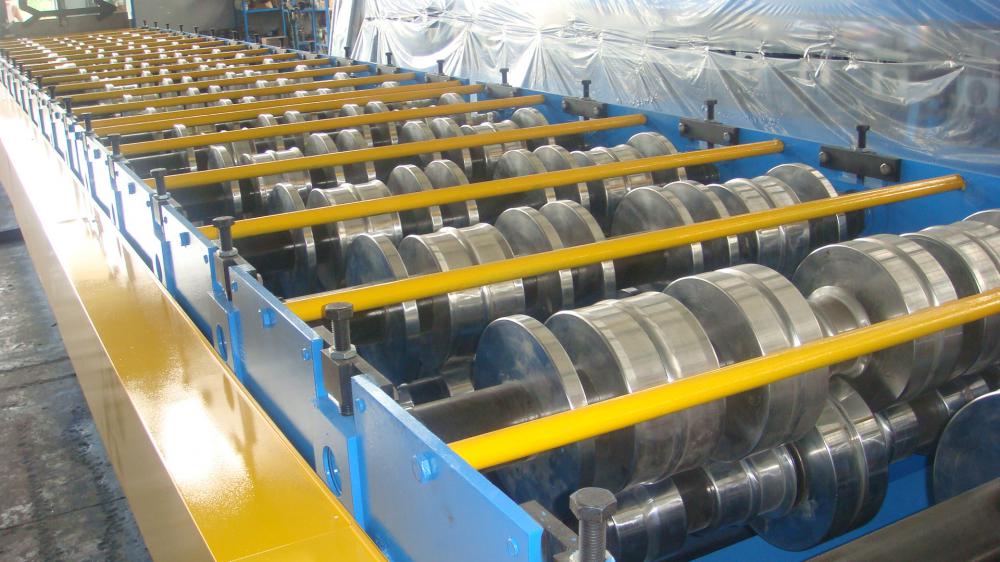

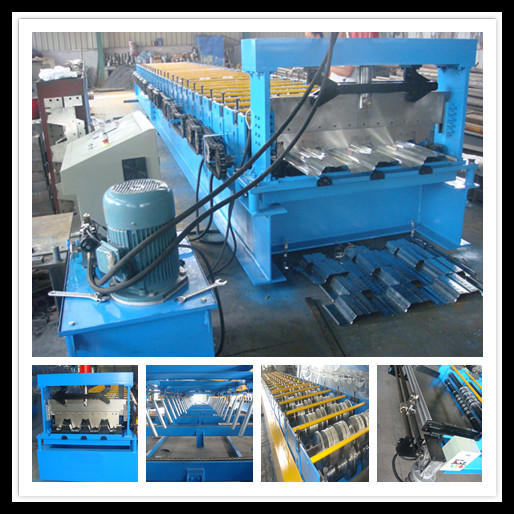

Floor Deck Roll Forming Machine
General description:
The high speed roll forming machine is the new type line which is produced both by our company and Formia company from Finland. The complete machine adopts the cold forming, cold punching, automatic stacker, industrial controlling system and precision machining technology. Therefore it can run fully automatically including by decoiling, forming, cutting to length and stacking. The highest speed can reach to 60m/min.
We can design and manufacture machines for forming different profiles according to different requests from customer.
Technical flow:
Decoiling--->guiding and feeding--->roll forming--->cut to length--->run out table
Main specification:
Item
Parameter
Model
ZT-0040005
Material
Type
Galvanized sheet
Thickness
0.8-1.2
Yield strength
195-3
Max. Forming speed
20-25
Roller material
GCR15 steel with chrome coated
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen + button
Pressure hydraulic system
20
Motor power of hydraulic station
7.5
Main motor power
4
Total power
11.5
Total weight
About 10 tons
Floor Deck Roll Forming Machine
