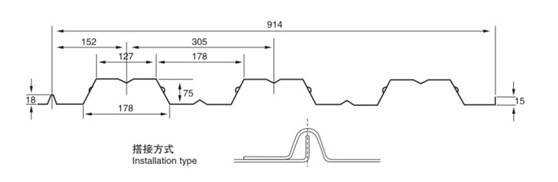

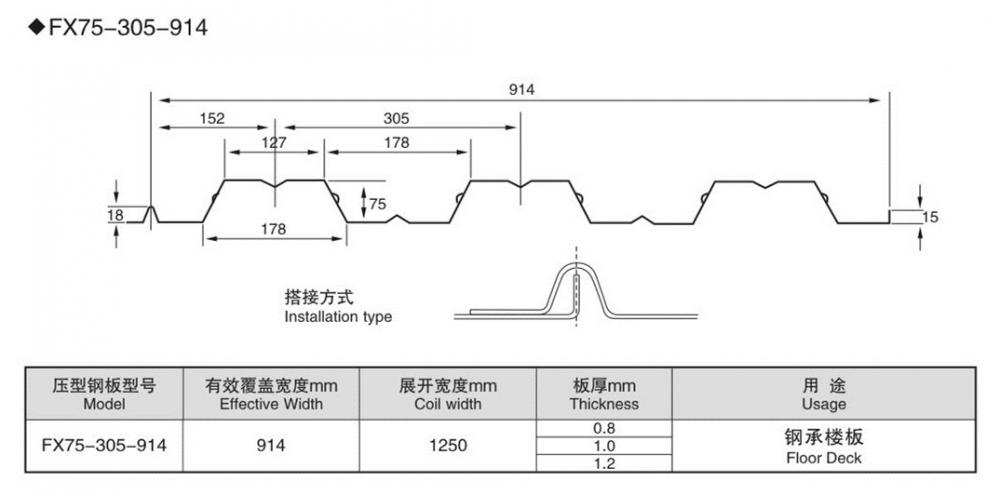

Drawing of tile:(this is just for your reference, you can send me your own drawings)

Processing material:galvanized plate

Material thickness: 0.8- 1.5 mm or as customer's requests

Material hardness: 195 mpa---350 mpa

Forming speed: 8-12 m/min

working flow:

Uncoiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Loading capacity:5 T

Uncoiling width:1200 mm

Inner diameter: 450-550 mm.

Entry Beach

Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

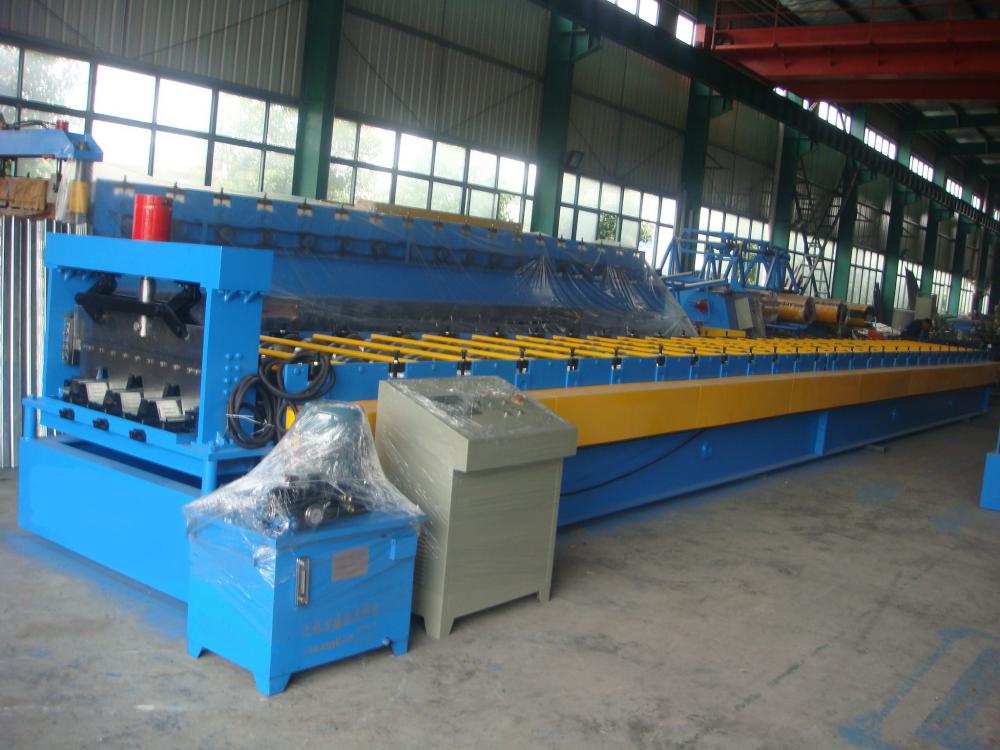

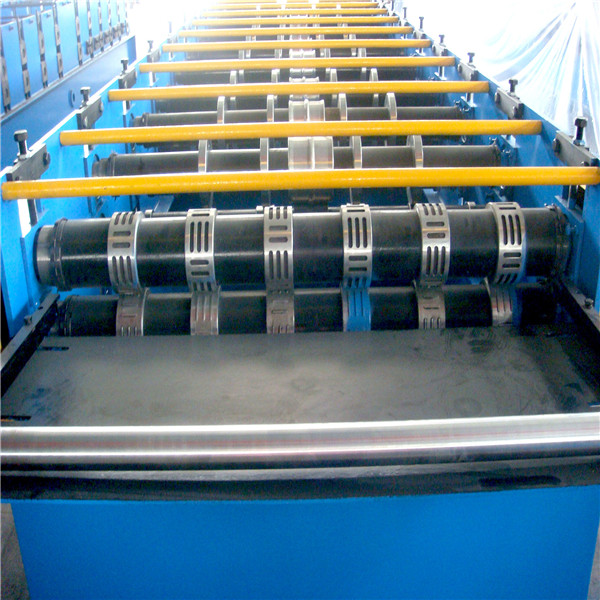

Main Roll Forming System

Size of the main part: about

12500 х 1850 х 1500

Weight of main part:11.5 tons

Voltage: 380 V/50 HZ 3 Phase or as your required

Roller fixer : middle plate

Frame : 400 mm H beam steel welded

Drive mode: case of differential

Material of rollers: 45# steel, surface hard chromium plating.

Material of shafts: 45# steel

Diameter of shafts: φ 90 mm

Number of rollers : 24 rollers

Main power:18.5 kw

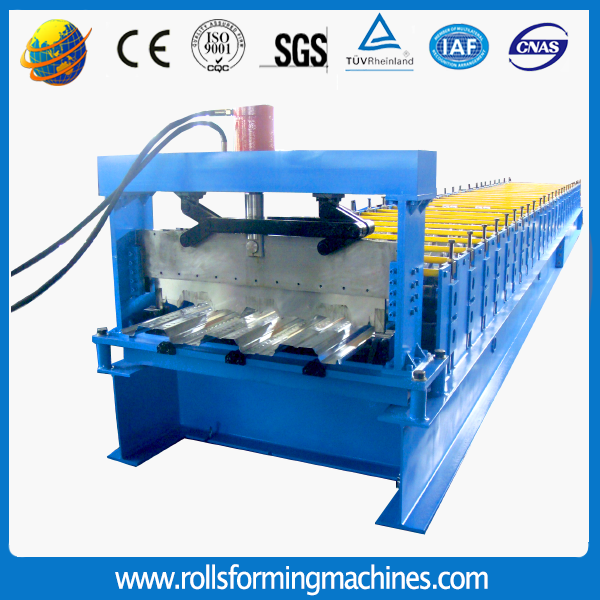

Cutting Mechanism

Feature : Ensure stability, precision and cutting speed

Function : Automatic cutting controlled by P LC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr 12 quenched

Power supply : hydraulic power

Components: It contains one set of blade, one hydraulic tank and one cutter machine.

Hydraulic Station

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job

Power: 5.5 kw

Hydraulic oil: 46#

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, 2 hydraulic pipes. And 1sets of electromagnetism valves.

Electric Control System

Feature:

1.Adopted PLC, frequency converter, Delta from Taiwan to ensure high speed with stability, precision and lifetime.

If you need, we can change it other brand or little computer type for touching screen.

Coder

One counter gauges length, pulses, and decides length.

Omron encoder for length measurement.

Products receiving tables

1. It adopts welded steel and supported roller to transmit the products.

2. 3 m/set with 2 sets

Accessories

1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2. Rubber mat 1 pcs;

3.Bolt spanner 1 pcs

Payment terms

Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery:within 45 working days after receipt of deposit.

Warranty

1. Two years guarantee, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary, one technician needed.

4. Training time: one week (contains the time of installation and adjustment)
