FOTON Self Loading And Unloading Garbage Truck

1 / 5

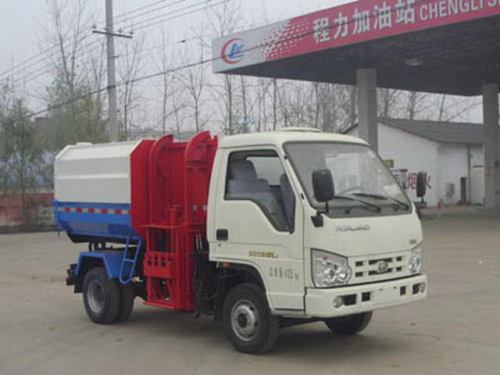

FOTON Self Loading And Unloading Garbage Truck

Get Latest Price

Model No.	CLW5043ZZZB4
Brand Name	CLW GROUP TRUCK

FOTON Self Loading And Unloading Garbage Truck

1. FOTON high quality chassis, 4X2 drive type, LHD/RHD

2. 88hp diesel engine, Euro 4 emission standard

3. Self loading and unloading garbage, Rear discharge. No secondary pollution.

4. CCC ISO BV approved, accept customization service.

Production enterprise information
Vehicle name:	FOTON Self Loading And Unloading Garbage Truck	Vehicle type:	Special vehicleLaws and regulations
Manufacturing place:	China	Type of licence:	The vehicle license plate classification standard
Announcement batch:	275	Release date:	20150812
product ID:	ZLEHU4WP03P	Directory number:	(Seventeen)74
Chinese brand:	CLW GROUP TRUCK	English brand:
Announcement type:	CLW5043ZZZB4	Exempt from:	no
Enterprise name:	CLW GROUP TRUCK	fuel:	no
Business address:	The southern suburbs of Hubei Province, Suizhou city Zengdou District Chengli Automobile Industry Park	environmental protection:	no
Inspection instructions
Exemption:	no	Check the inspection period:
Announcement status
Announcement status:	effective	Effective date of announcement:	20150812
Announcement state description:	change	change(extend)Record:
Main technical parameters
Outline dimension:	469016502200(mm)	Cargo compartment size:	* *(mm)
Total mass:	4125(Kg)	Load quality utilization factor:	0
curb weight:	2610(Kg)	Rated load quality:	1385(Kg)
Trailer quality:	(kg)	Semitrailer saddle:
Cab:		Front passenger:	2(people)
Rated capacity:	(people)	Anti lock braking system:	nothing
Approach angle/Departure angle:	26/30(DEG)	The front suspension/Rear overhang:	1000/1090(mm)
Axle load:	1400/2725	Wheelbase:	2400,2600,2500,2800(mm)
Axis number:	2	Maximum speed:	77(km/h)
Oil consumption:	14.7,14.7,14.5	Spring sheet number:	7/6+4,8/5+4,8/6+3
Tyre number:	6	Tire specifications:	6.00-14,6.50-16 10PR,6.00-15
Front track:	1320	Rear wheel:	1240
Brake front:		After braking:
Before system operation:		After the operation of the system:
Steering form:	Steering wheel	Starting method:
drive system:		Oil consumption(L/100Km):	14.7,14.7,14.5
VinVehicle identification code:	LVBV3JBBX x x x x x x x x x x x LVBV3JABX x x x x x x x x x x xLaws and regulations
Engine parameters
Engine	Engine production enterprise	displacement(ml)	power(kw)
4B1-88C40 YZ4DC1-40 4DW93-84E4 4A1-68C40	Anhui quanchai power Limited by Share Ltd Weichai Power Yangzhou Diesel Engine Co. Ltd. FAW Automobile Co., Ltd. Wuxi Diesel Engine Factory Anhui quanchai power Limited by Share Ltd	2270 2160 2540 1809	65 60 64 50
Vehicle fuel parameters
Fuel type:	diesel oil	Based on standard:
Chassis emission standard:	GB17691-2005China IV,GB3847-2005
Other
Dump mode:Rear dump. With the optional chassis cab. The optional hanging device. Protective material:Q235Acarbon steel,Connection mode:Both sides and rear lower protection are welded connection,Rear lower protection section size(mm):100*50,Rear lower protection height(mm):405. The corresponding relationship between engine model and fuel consumption is:4A1-68C40/14.7;4B1-88C40/14.7;YZ4DC1-40/14.5
Reflective marking parameters
Marking enterprise:	CLW GROUP TRUCK	Logo mark:	CLW GROUP TRUCK
Identification model:	TM1200-1,HW1400

BJ3045D8JB5-1Chassis parameters

Futian dump truck chassis|Fukuda brandBJ3045D8JB5-1Dump truck chassisDetailed parameters

Enterprise name:

Beiqi Futian Motor Company Limited

Chassis Model:

BJ3045D8JB5-1

Chassis class:

Two

Product name:

Dump truck chassis

Product trademark:

Fukuda brand

Zip code:

102206

Directory number:

Specifications:

long:4295,4350,4470,5090 wide:1640,1615 high:2100,2070

Fuel type:

diesel oil

Based on standard:

GB17691-2005China IV,GB3847-2005

Steering form:

Steering wheel

Axis number:

Wheelbase:

2400,2600,2500,2800

Spring sheet number:

7/6+4,8/5+4,8/6+3

Tyre number:

Tire specifications:

6.00-14,6.50-16 10PR,6.00-15

Tread:

Front track 1320 Rear wheel 1240

Total mass:

4125

curb weight:

1840

Trailer quality:

Semitrailer saddle:

Front passenger:

Close to the left corner:

26/37

Front suspension rear suspension:

1000/895,1000/750,1000/850,1000/550,1100/795,1100/650,1100/750,1100/770,1100/1190

Maximum speed:

picture:

Futian dump truck chassis\|Fukuda brandBJ3045D8JB5-1Dump truck chassisEngine detail parameters
Engine model	Engine production enterprise	displacement(ML)	power(ML)
4B1-88C40 YZ4DC1-40 4DW93-84E4 4A1-68C40	Anhui quanchai power Limited by Share Ltd Weichai Power Yangzhou Diesel Engine Co. Ltd. FAW Automobile Co., Ltd. Wuxi Diesel Engine Factory Anhui quanchai power Limited by Share Ltd	2270 2160 2540 1809	65 60 64 50
Identification code:	LVBV3JBBX x x x x x x x x x x x LVBV3JABX x x x x x x x x x x x
Other:	The new optional front wall and front lamps,Optional side panel,Optional rearview mirror,4B1-88C40/YZ4DC1-40/4DW93-84E4/4A1-68C40The maximum net power of the engine is:63/58/62/48kw,4B1-88C40/YZ4DC1-40/4DW93-84E4Engine correspondenceVIN:LVBV3JBBX x x x x x x x x x x x,4A1-68C40Engine correspondenceVIN:LVBV3JABX x x x x x x x x x x x,ABSModel forCM4XL-4S/4K(4S/4M),Guangzhou Comet automobile electronic control technology Limited by Share Ltd
