Product Description:

Printed Circuit Board Fabrication, Electrical Circuit Board, Prototype PCB Assembly. Single or single-sided PCB is made of single-layer substrate or substrate. The side of the substrate is coated with a thin layer of metal. Copper is the most common coating because it acts as an electrical conductor. Once copper-based plating is applied, a protective solder mask is usually applied and then the last screen is used to mark all the components on the board.

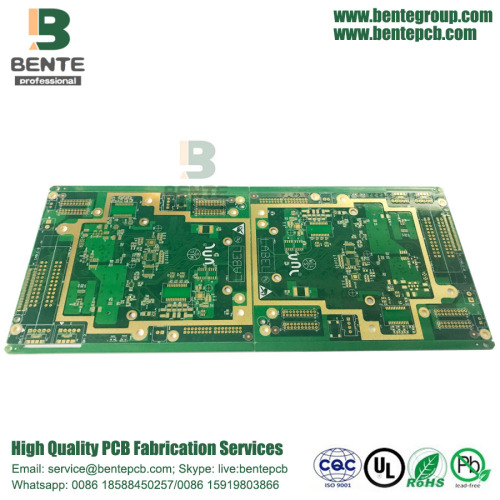

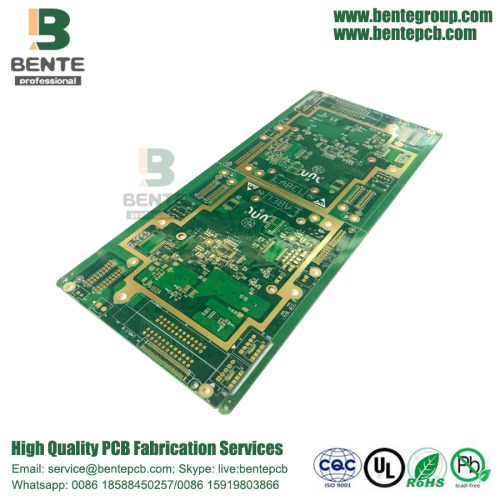

6 Layers FR4 Multilayer PCB can be uesd in Security Equipment, Features is Thick Gold and Hole Copper, Hole Copper is 35um, Surface Treatment is ENIG 3u, Finished Copper is Outer Layer 2oz and Inner Layer 1oz.
Good News: Every orders will get free SMT stencil, please check out our website at www.bentepcb.com/onlinepcb.html

Multilayer PCB:

Consist of 3 or more circuit layers bonded together by a thickness of insulating material called prepreg and core. They came into the industry with the advent of SMD population. They are found almost everywhere, wherever electronics are in use – from aircraft to motorcycles, and storage power stations to photovoltaics.

Multilayer PCBs are most complicated than others, and are generally considered to be the most sophisticated PCB product due to their construction methods and design complexities.

BentePCB offers multilayer printed circuit boards with the following special technologies:

• Edge plating for shielding and ground connection.
• High frequency base materials for applications up to 80 GHz.
• Cavities, countersunk holes or depth milling.
• Thick copper up to 105μm (inner and outer layers).
• 500μm thick copper inlays using HSMtec technology.
• Solder resist in green, white, black, blue, grey, brown, etc.
• Controlled impedances (single, differential, etc.).
• All recognised printed circuit board industry surfaces available.

About Us:

BentePCB is a professional PCB manufacturing which is focus on double side, multilayer, HDI PCB, rigid PCB and flexible PCB mass production. The company was established on 2011.
We have two factories together, The factory in Shenzhen is specialized in small and middle volume orders and the factory in Jiangxi is for big volumn.

Why Us?

UL (E492586), ISO9001,  ISO14001, TS16949, RoHS certified.
Turnover USD 10-50 million per year.
15,000 sqm area, 450 staff .
Mass Production from single to 16 layers.
Special Material:ROGERS, Arlon, Taconic.etc.
Client:Huawei, SAMSUNG, Malata, Midea,Texas Instruments.etc.

Certification(UL:E492586, TS16949, ISO14001, ISO9001,RoHS):

Factory Tour:

Exhibition:

We Took part in the famous exhibitions over the past years,and got highly appreciation from the top experts,as well as cooperated tightly with them.

Delivery:

BentePCB offers flexible shipping methods for our customers, you may choose from one of the methods below.

FAQ:

Q1: What does BentePCB need for a customized PCB order?
A: The customers need to provide Gerber or pcb file.If you do not have the file in the correct format, you can send all the details related to the products.
Q2: What is your quotation policy?
A: For the PCB order in large quantity, BentePCB will send you the quotation based on the MOQ of the products concerned, and the price will be reasonable with good quality.
Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file.
Q4:What is your minimum order quantity?
A:Our MOQ is 1 PCS.
Q5: How about the service BentePCB offered to the customers?
A: If you have any questions about our products or company, do not hesitate to send us your inquiry toour customer service representatives, Your satisfaction is our pursuits.

We don`t just sell PCBs .We sell sleep.
