Fully Automatic Fireproof Glass Processing Machine

Video

1 / 7

Fully Automatic Fireproof Glass Processing Machine

$380000.00

≥1 set

Options:

A1820
1800*2000mm

Get Latest Price

You might also like

Best Quality Fully Automatic Horizontal Fireproof Glass Machine - Warm Edge Spacer Machine

1 set (MOQ)

MBS Automatic High-Speed Horizontal Fireproof Glass Production Line

1 set (MOQ)

Automatic Horizontal Fireproof Glass Making Machine - Factory Direct Sell

1 set (MOQ)

MBS Automatic Horizontal Fireproof Glass Production Line with Spacer Application

1 set (MOQ)

MBS High-Speed Horizontal Fireproof Glass Production Line with Automatic Spacer Application

1 set (MOQ)

High-Speed Horizontal Fireproof Glass Production Line with Automatic Spacer Application

1 set (MOQ)

Superior Quality MBS Automatic Fireproof Glass Making Machine for Glass Production

1 set (MOQ)

Professional Glass Machinery: Fireproof Glass Making Machine

1 set (MOQ)

MBS Automatic Horizontal Fireproof Glass Production Line

1 set (MOQ)

OEM Fully Automatic Horizontal Fireproof Insulating Glass Production Line

1 set (MOQ)

Basic Info

Model No.
Brand Name
Machine type	Insulating Glass Production Line
Production Capacity	2set/month
place of origin	China
power	90KW
Dimension(LWH)	22000x6000x3200mm
Weight	200000 kg
Warranty	More Than 5 Years
Key Selling Points	High-Accuracy
Glass Thickness	3-6mm
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Core components	Motor
Applicable Industries	Manufacturing Plant
Showroom Location	United States
Condition	New
Marketing type	New Product 2019
Warranty of core components	5 Years

Product description

Products Description

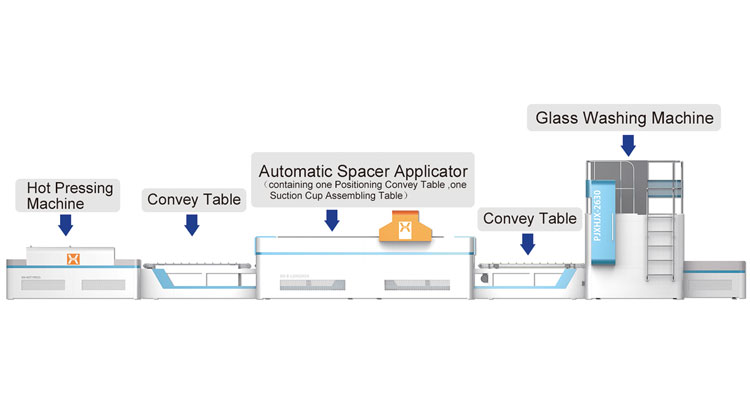

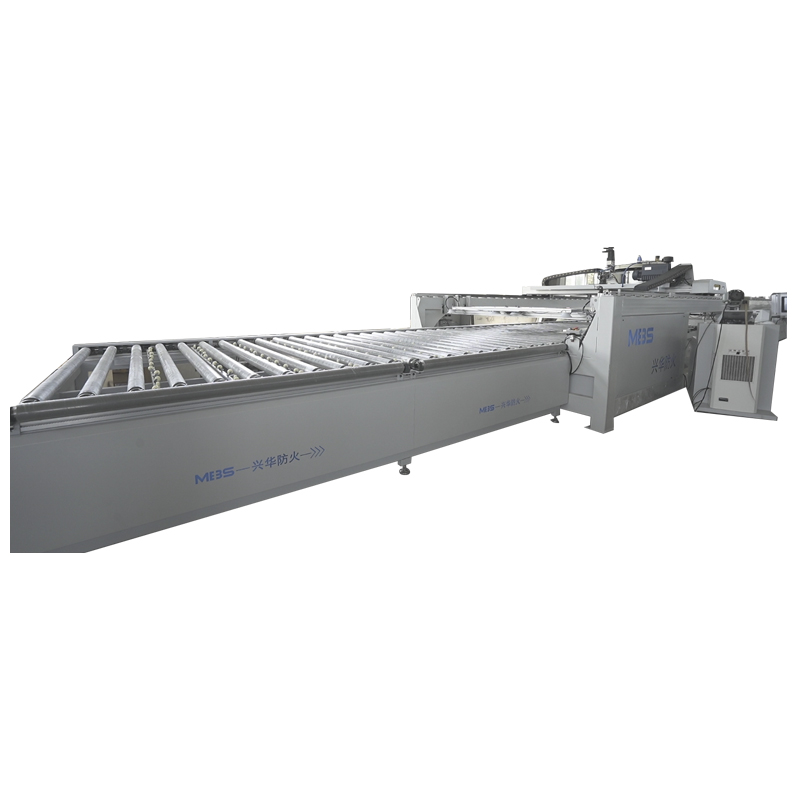

This MBS Horizontal fireproof glass line is an efficient, compact and reliable solution for fireproof glass manufacturers worldwide. It is a fully automatic production line integrated with washing, spacer applying, assembling, heating and pressing process, especially for producers who making high-performance fireproof glass.

Details Images

Our Advantages

PLC control system with touch screen interface

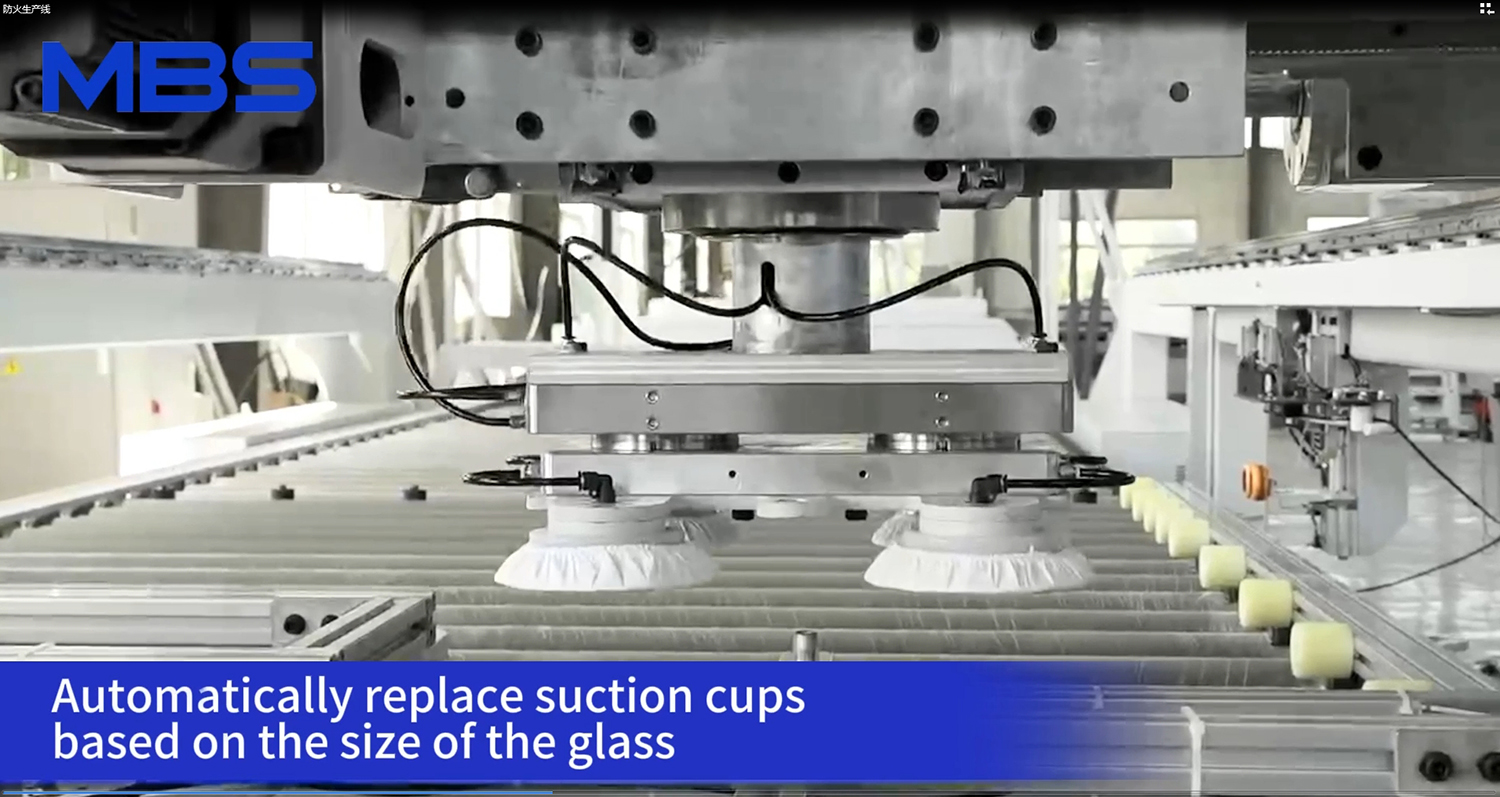

Automatic positioning system for glass
The washing parts are welded with galvanized profiles, with electrostatic spraying on the surface, equipped with frequency converter to controls brush rotation to protect Low-E glass, the parts in contact with water are made of 304 stainless steel andanti-corrosion materials.

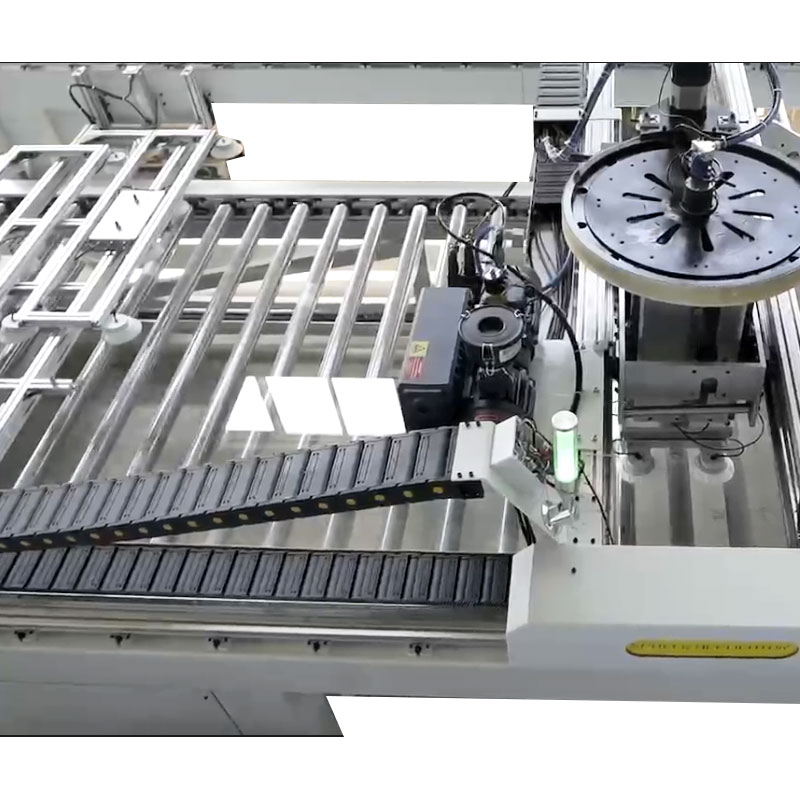

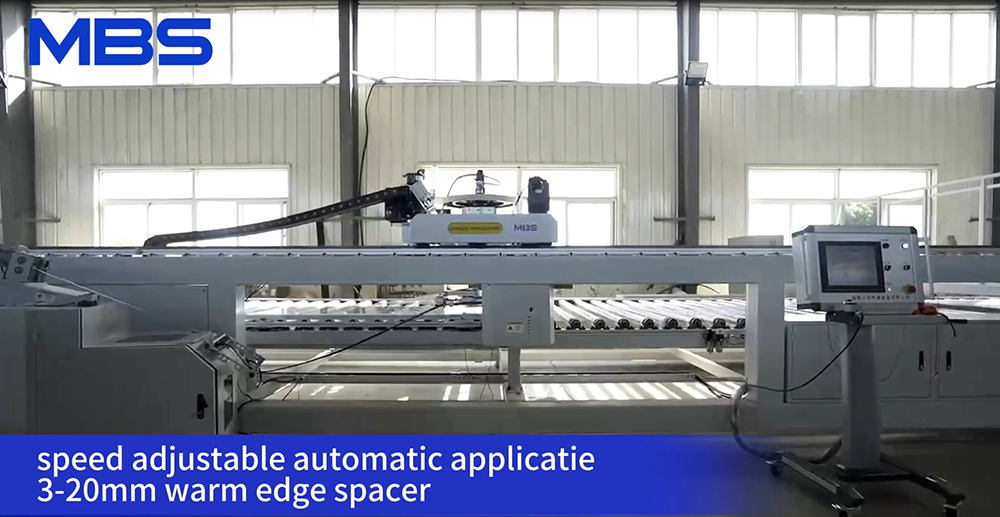

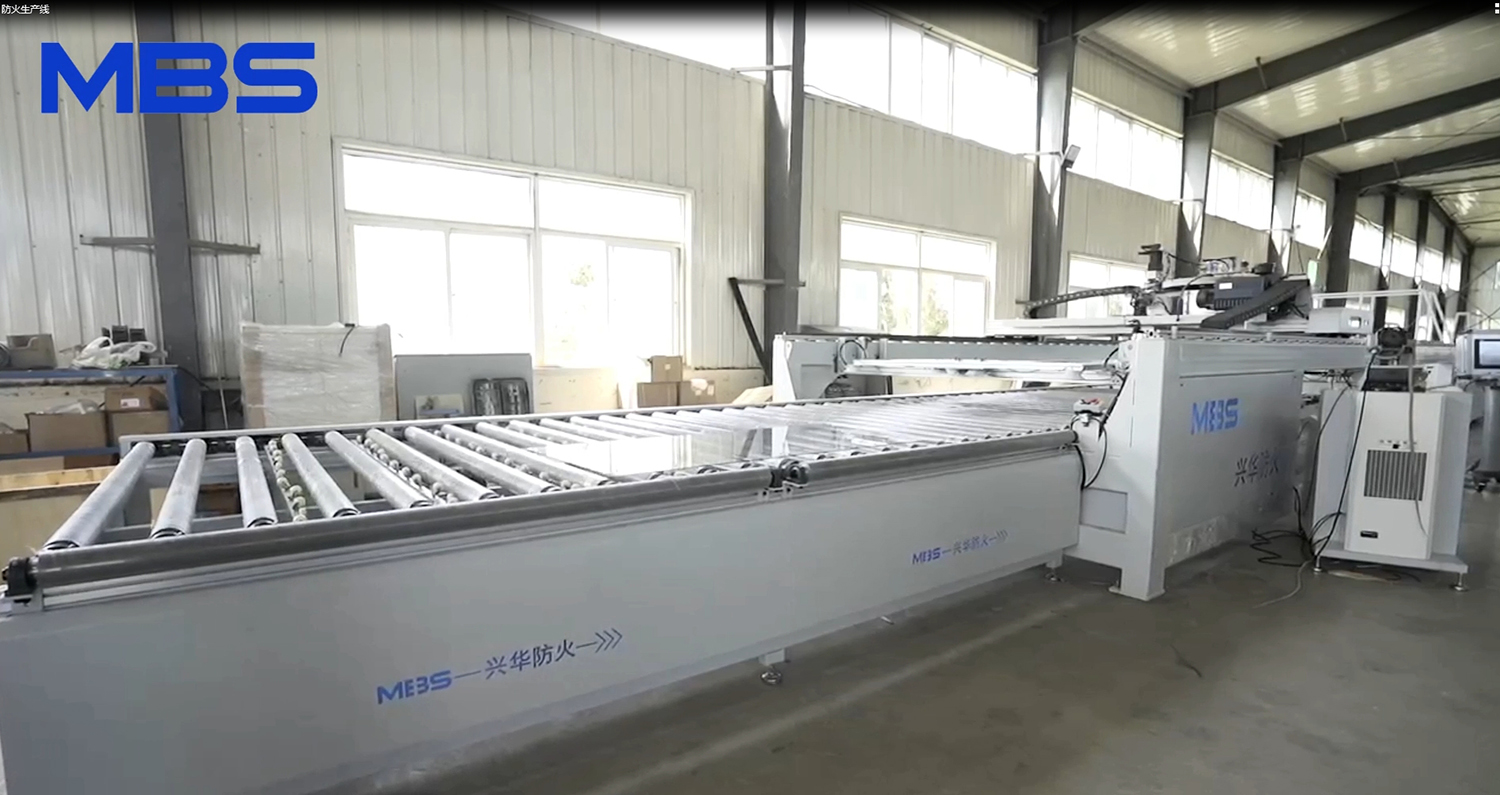

The automated Spacer Applicator Machine load the glass pane and applicate the fireproof spacers automatically and accurately. The spacers applicated in same position and well-distributed in finished double or triple glazing glass.

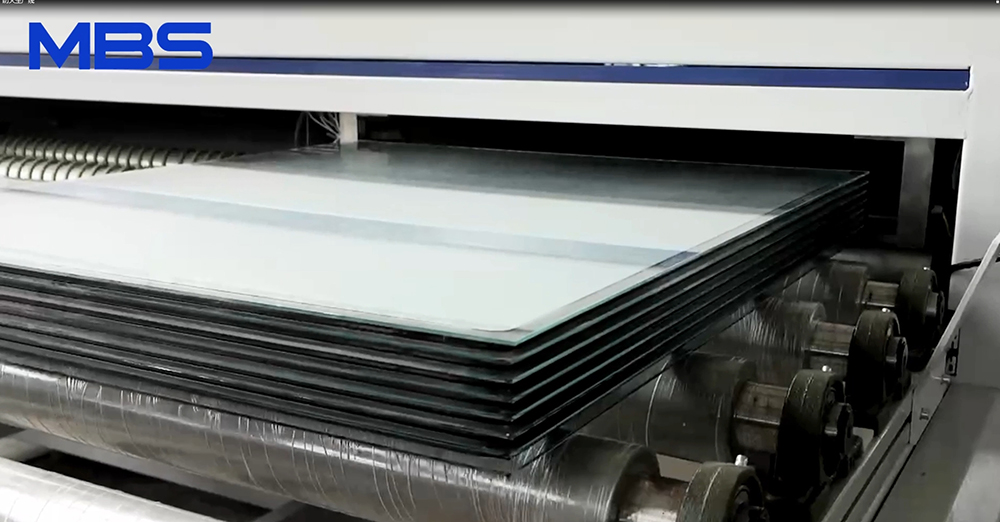

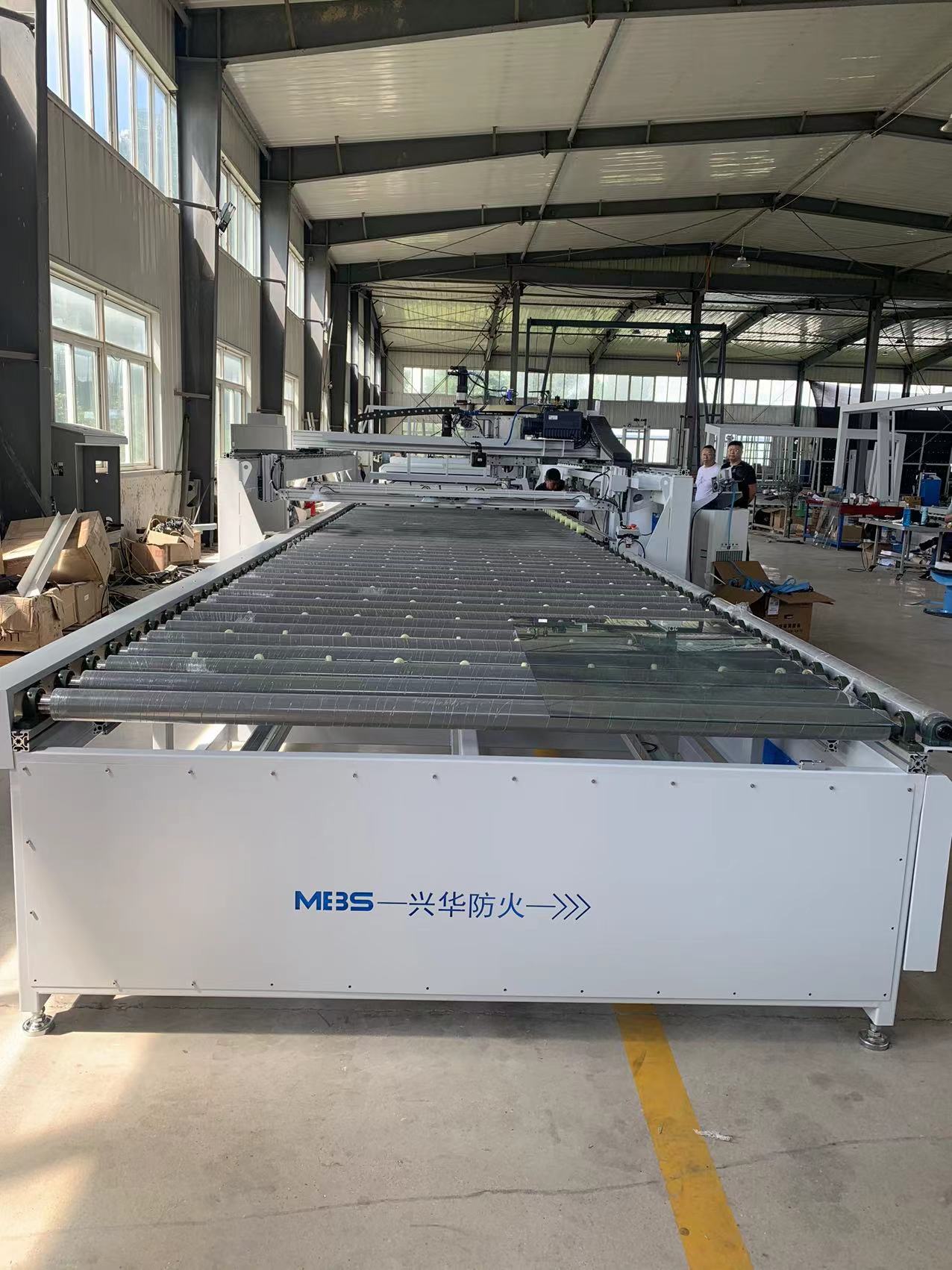

Horizontal glass conveyer adopts synchronous transmission system to make sure the glass covarying stably and safely.

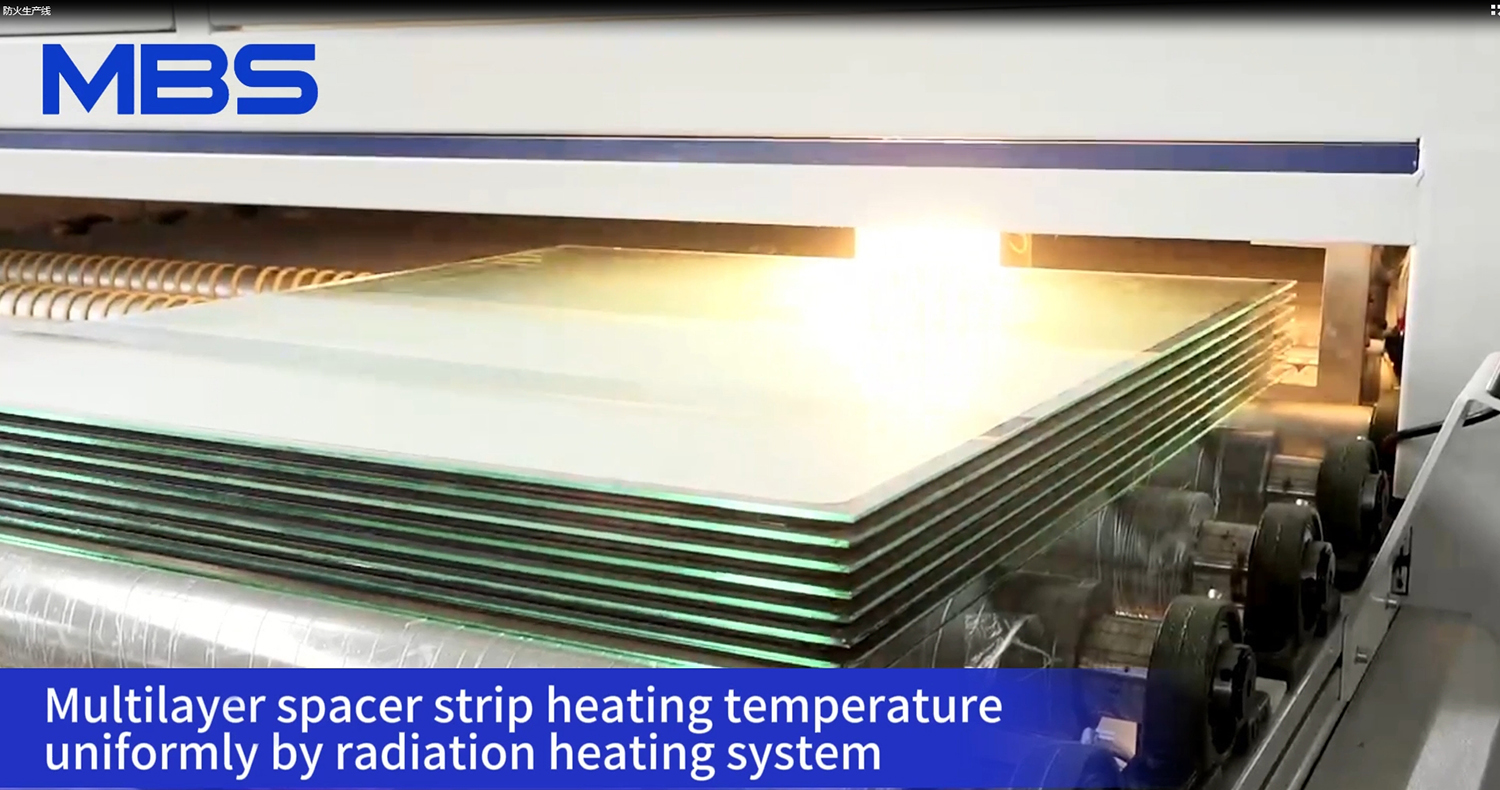

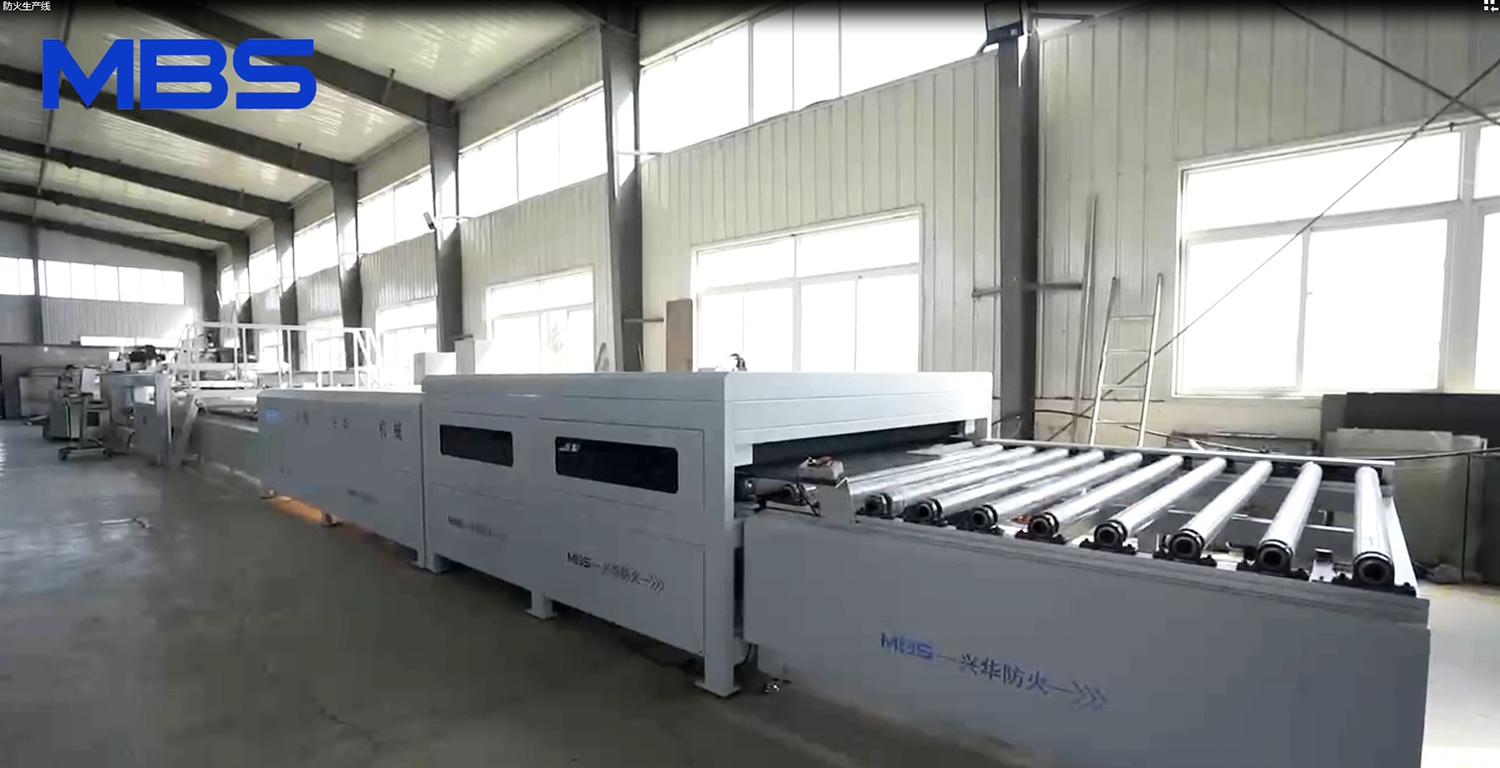

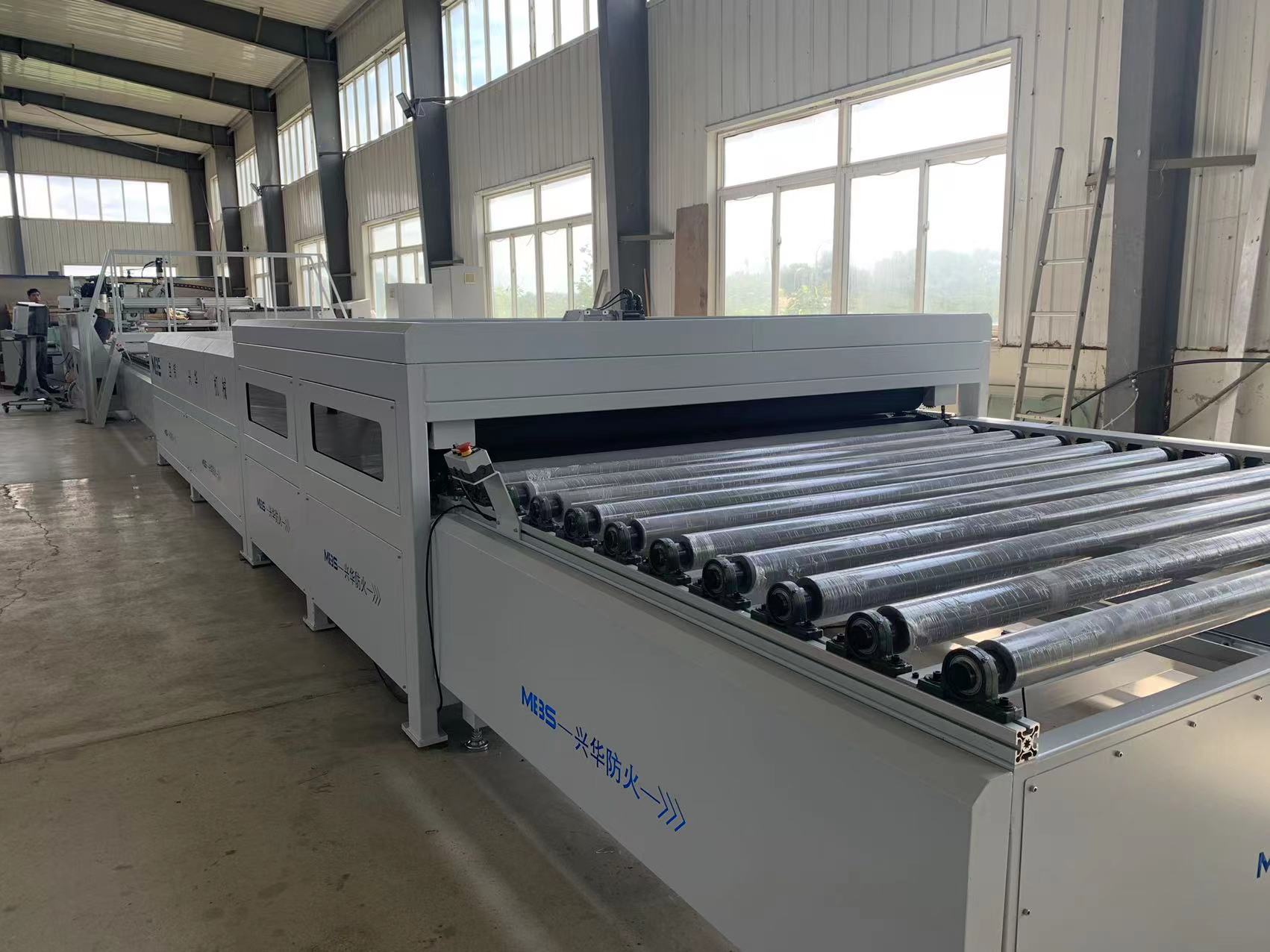

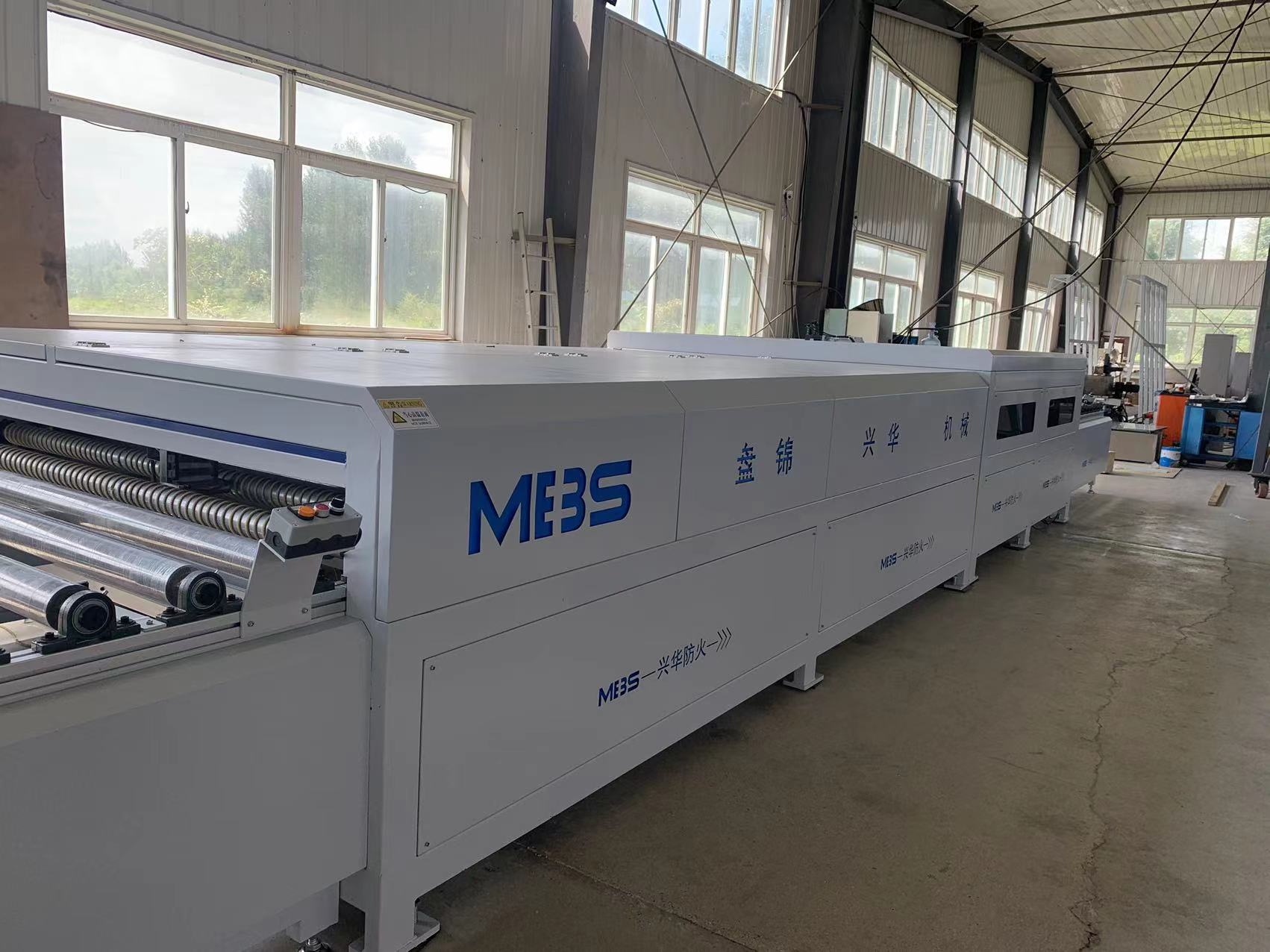

The hot press adopts Infrared radiation heating system with 5 pairs of pressure rollers provide gradually pressing to ensure uniformand smooth contract pressure.

Product Configuration

Product Paramenters

Model	B1820	B2025	B2532
Dimensions	L:18m W:4m H3.2 m	L:20m W:4.5m H3.2 m	L:22m W:5m H3.2 m
Max glass size	1800*2000mm	2000*2500mm	2500*3200mm
Min glass size	400*400mm	400*400mm	400*400mm
Electrical Power	90KW
IGUs thickness	12-50mm
Conveying speed	0-45m/min
IG Types	Double/Triple glazing glass Fireproof glass， Shaped Glass

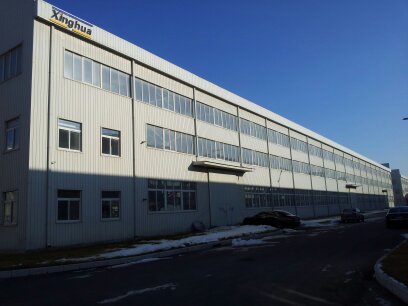

Panjin Xinghua Machinery Manufacturing Co., Ltd. former as Panjin Xinghua Bode Machinery Manufacturing Co., Ltd was founded in 2009, located in Panjin Economic Development Zone, Liaoning Province, China. Since our establishment, we have been committed to provide solutions sustainably boost the efficiency and quality for our customer in the insulating glass production industry.

1.Question:Are you a manufacturer?

Answer:

Yes,we are the professional insulating glass processing machines manufacturer with 20 years experience.

2.Question: How about the service ?

Answer:

1).Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.

2).Our professional technicians will install and adjust the line at your plant and help train the workers.

3).24-7 online technical support after sale. Point-to-point service help you solve the problems timely.

3.Question:What's the guarantee ?

Answer:

1). Our guarantee for 12 months.

2). Life time parts repair and replacement
