Galvanized corrugated profile sheet machine

corrugated profile sheet machine,it is customized design.Different designs can be cusotmized as your request.If you are interested in our machine.

Corrugated profile sheet roll forming machine is a so much necessary roll forming equipment that produces corrugated roofing and siding panels for industrial, agricultural and individual buildings.Machine can

We would ask you some questions first.

We are specialized manufacturer of roof sheet making machine.Different designs can be customized as your request.

1) Do you have an idea design you need?Including measurement.If pls tell me where are you from.So we can send you some popular designs at your place.

2) What is material thickness u use?Max and Min?

3) What is hardness of material?Is it standard?Or full hard?

4) What is voltage of machine u need?380V,50HZ?220V,60HZ?OR 415v,50HZ?We can make is as your request.

1.Main parameters of galvanized iron sheet roof machine:

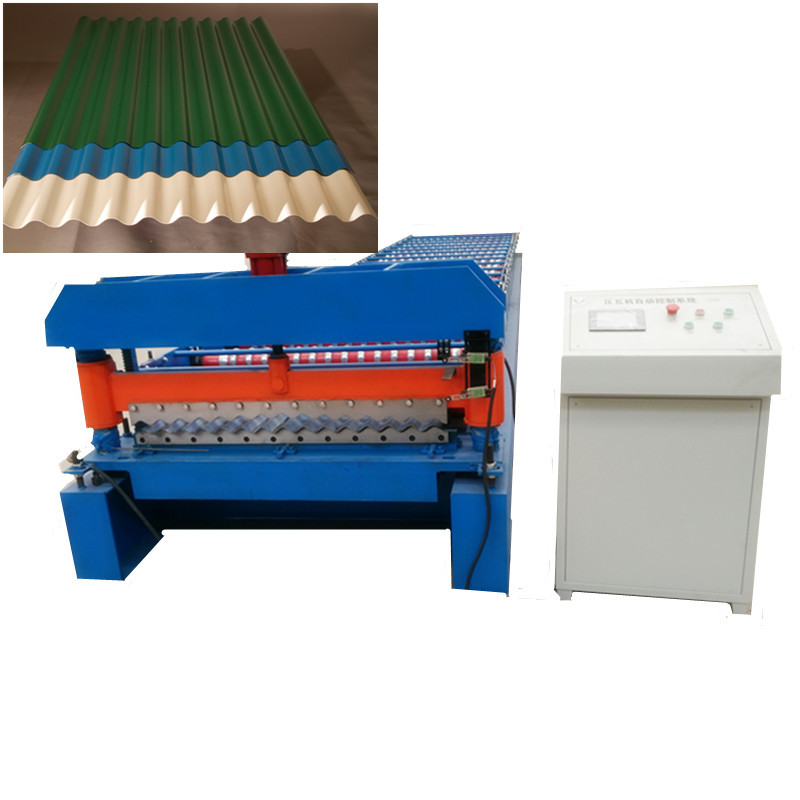

  Parameters of raw material 2.Photos of profile sheet forming Machine:

3.Technology parameters:
The weight of machine is about3.1tons.The total dimension of machine:6800(L)*1200(W)*1500mm(H)
3.1Manual decoiler:
Capacity of uncoiler:5tons
Expansion of segment:Manual
Rotation of segment:Manual
Number of segment:4
Range of segment expansion:480-520mm
Operation method:Manual
3.2 Guiding system:
To keep the material straight
Entrance and adjustable wheel: 2rolls
Qty: 1
3.3Main forming machine:
Coil thickness:0.18-0.7mm
motor type: 3 phase asynchronous motor
Main motor power:5.5kw+3kw(normal speed),
Approx.22groups roller including
Roller : S45C with quenching treatment,Shafts  of rollers are tooled by grinding machine for two times to ensure the precision of final product.

Shaft:Diameter of max shaft: ?70mm(hardening and tempering)

Transmission type:by one inch chain

3.4 Hydraulic cutting:
Material of blade: Cr12Mov,HRC58-62
Length measuring: Automatic encoder length measuring
Type of cutting:Cutting after forming:Cut the sheet after roll forming to required length.No need to change mold for different sizes
Cutting motion:The main machine automatically stops and the cutting will take place.After the cutting,the main machine will automatically start.
Power of motor:3kw
3.5 Product support frame
Size: L 3m x W0.5m
