Galvanized steel floor deck machine

We are specialized in designing and building various Galvanized steel floor deck machine, such as close-type Galvanized steel floor deck machine, 3-waves Galvanized steel floor deck machine, 2-waves with ribs Galvanized steel floor deck machine etc. In modern time, people prefers to use steel instead of stone or cement for construction projects, such as the steel floor decks, because it is more convenient to fill the concrete into the steel floor deckings than to use the stone floor.
Main parameters of Galvanized steel floor deck machine:

Thickness of Material: 0.7mm-1.2mm

Machine working speed: 8-12m/min

Weight of the machine: Appro 14 Tons

Feeding Guide of Decking floor sheet roll forming machine:

2 Rollers to guide the material into the machine

Both ends of the flat adopt bearing structure

Main roll forming machine of Galvanized steel floor deck machine:

Roller Stations: 22 stations

Diameter of Shaft: 90mm

Material of Shaft: 45# steel

Material of roller: Gcr15

Forming speed: 8-12m/min

Siding Plate: 350 H Steel

Transmission: chain

Main Power: 22kw

Dimensions: 11500mmx1500mmx1300mm

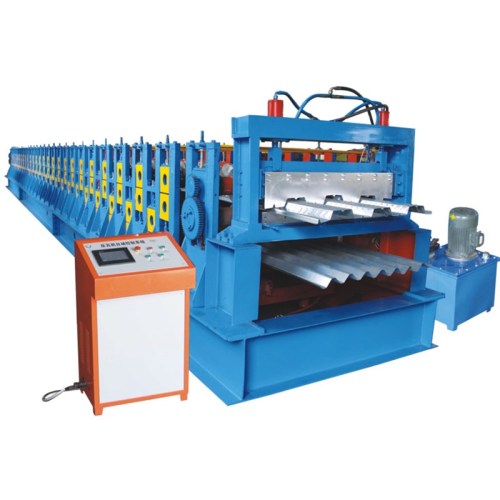

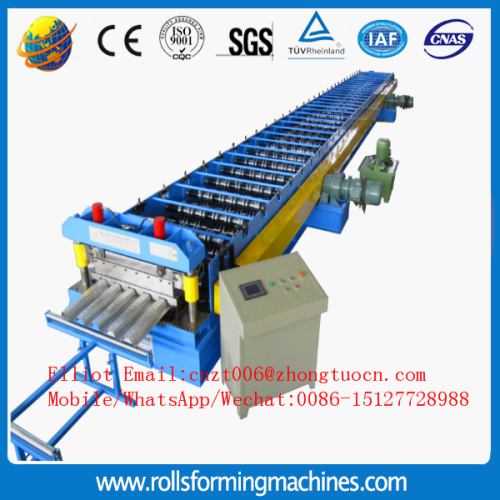

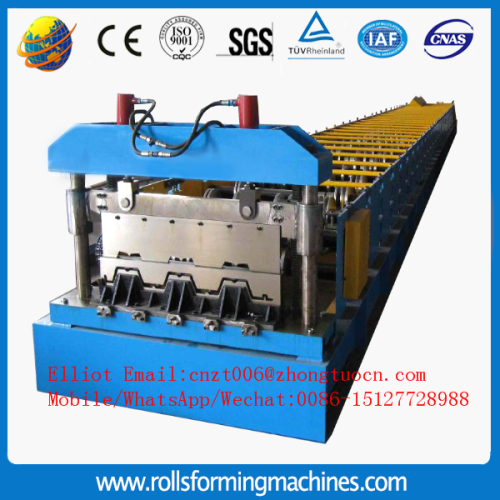

Our Decking floor sheet appliacation and Galvanized steel floor deck machinefor you reference:
