Galvanized Welded Wire Mesh Fence Gate

Galvanized welded wire mesh fence gate is used to decorate and protect effect highways, roads, railways, airports, factories, residential area, port, municipal green spaces, garden flower beds, green areas, garden.

welded wire mesh with brace and post is popular for fence gate.

The fence panel is welded with high quality low carbon steel wire, surface treated by electrostatic polyester powder spray coating over galvanized materials. Then connect the fence panel with post by suitable clips. Due to its simple structure, easy installation and nice appearance, more and more customers regard this product as the preferred common protective fence.

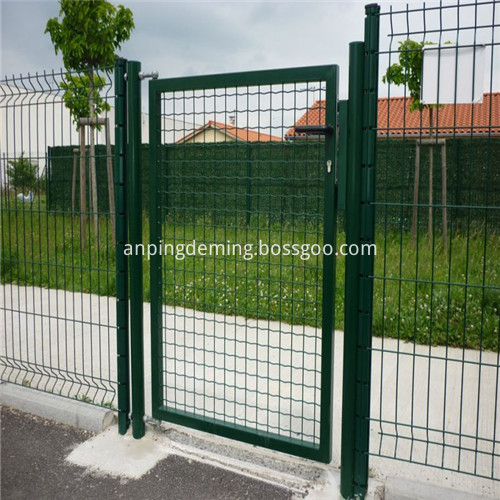

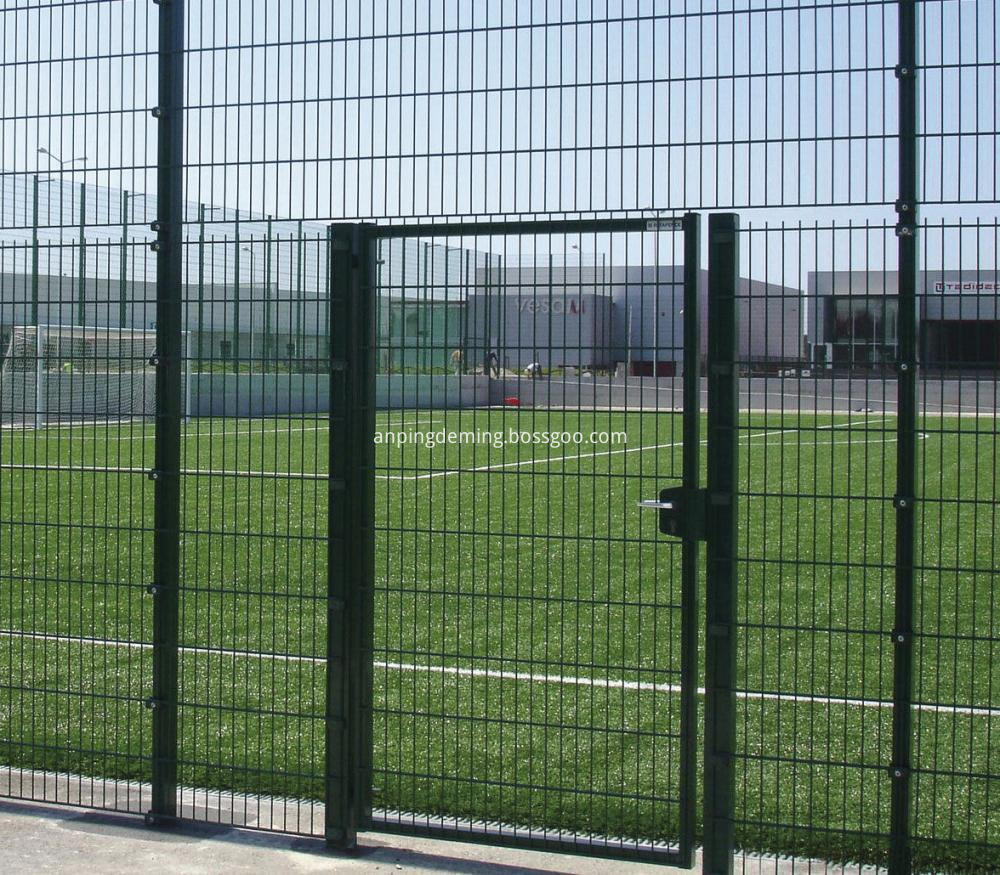

Single swing wire mesh fence gate

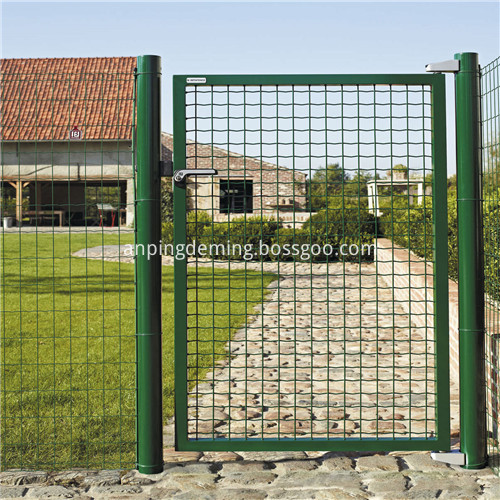

100x150cm Green Euro home yard metal fence gate garden gate with safety lock

 Gates 100x150 (green RAL6005)

suitable for fencing of height 100 cm

Dimensions: W100 x H150 cm (from post center to post center)

Meshing: 50 x 50 mm

Round and round post goal frame

Galvanized and powder coated



Type A

Garden Gate	Post Dia.	Frame Dia.	Wire Dia.	Mesh (mm)	Door Size	Post Height
100x100cm	60x1.5mm	40x1.2mm	4mm	50x50	87x100cm	150cm
100x120cm	60x1.5mm	40x1.2mm	4mm	50x50	87x120cm	170cm
100x125cm	60x1.5mm	40x1.2mm	4mm	50x50	87x125cm	175cm
100x150cm	60x1.5mm	40x1.2mm	4mm	50x50	87x150cm	200cm
100x175cm	60x1.5mm	40x1.2mm	4mm	50x50	87x175cm	225cm
100x180cm	60x1.5mm	40x1.2mm	4mm	50x50	87x180cm	230cm
100x200cm	60x1.5mm	40x1.2mm	4mm	50x50	87x200cm	250cm



Type B

Wire diameter: 4mm, 4.8mm, 5mm, 6mm

Mesh size: 50*100mm, 50*150mm, 50*200mm

Height: 1.5m, 2.2m, 2.4m

Single gate size: 1.5m*1m, 1.7m*1m

Post size: 40*60*1.5mm, 60*60*2mm

Surface treatment: Electric galvanized then Powder coated, hot dipped galvanized

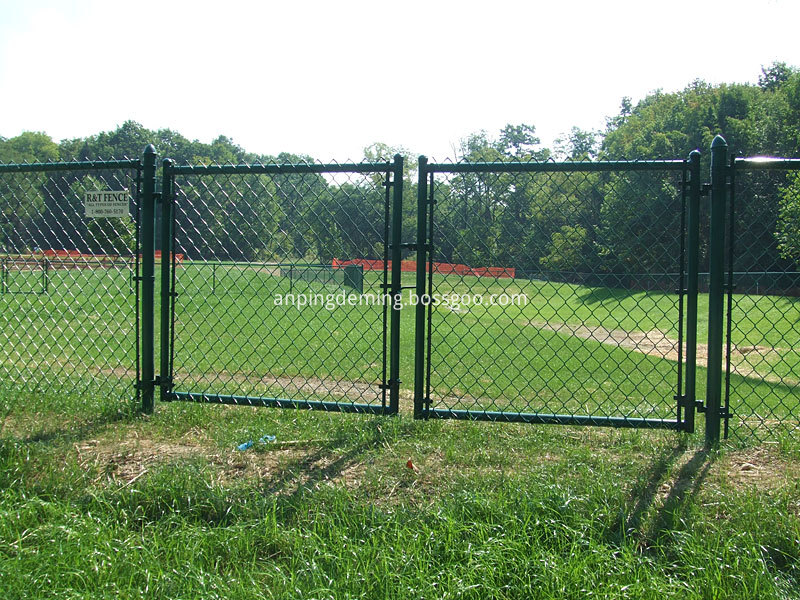

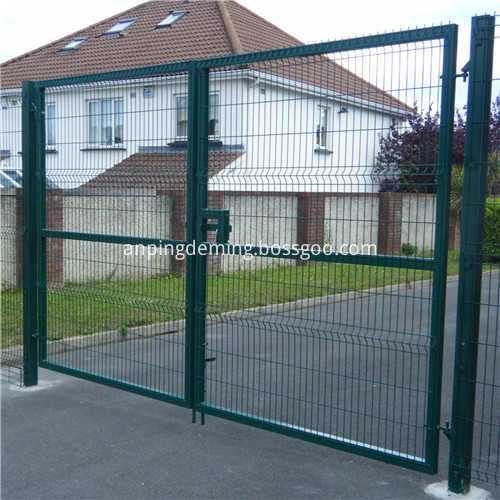

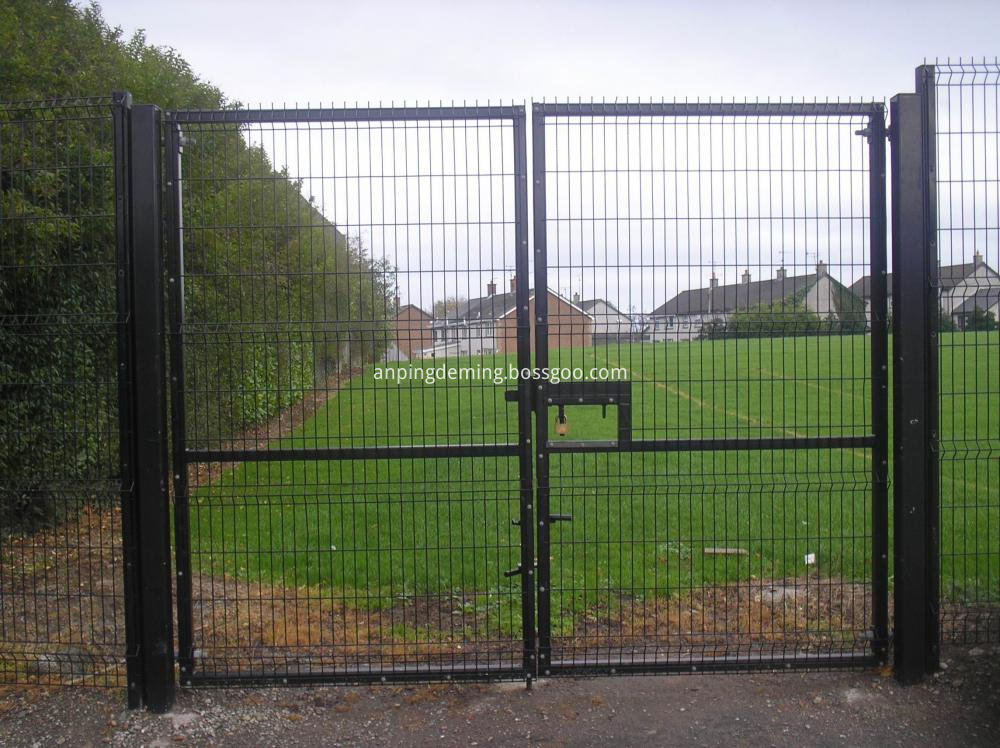

 Double swing wire mesh fence gate



Type A

Mesh	Wire Thickness	Surface Treatment	Panel Width	Folds NOS.	Height
50x200mm or 55x200mm	4.50mm or 5.00mm	Galvanized and  Electrostatic polyester coated or PVC coated	2.50m	2	830mm
				2	1030mm
				2	1230mm
				2	1430mm
				3	1630mm
				3	1830mm
				4	2030mm
				4	2230mm
				4	2430mm



 Type B

Mesh	Wire Thickness	Surface Treatment	Panel Width	Folds NOS.	Height
50x200mm and 50x100mm in folds Or 55x200mm and 55x100mm in folds	4.50mm or 5.00mm	Galvanized and  Electrostatic polyester coated or PVC coated	2.50m	2	1030mm
				2	1230mm
				3	1530mm
				3	1730mm
				4	2030mm

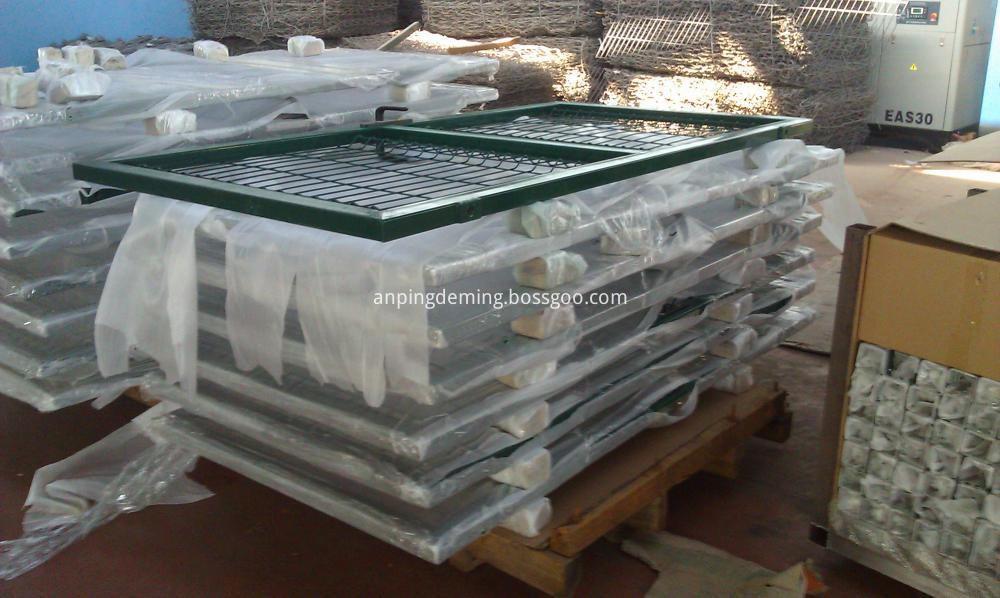

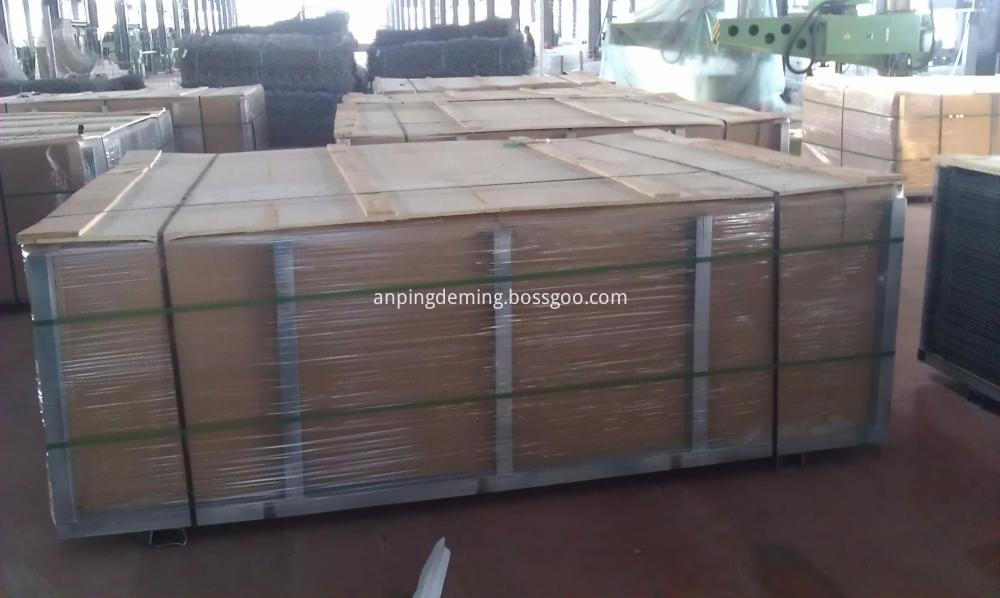

Packaging Details:

1> Fence panel: plastic film + metal pallet

2> Fence post: every post pack with a plastic bag (the cap is covered well on the post) + metal pallet

3> Accessory: small plastic bag +carton box

4> Standard export packing or as your requirement
