Gate Rolling Shutter Door Spring Making Machine

In the morden time , the gate rolling shutter door spring making machine enjoy tremendous popularit all over the world . For our company , we can design and  produce various of the shutter door euipment including the australia shutter door roll forming machine , wave shutter door machine ect . For the control system , it has the total automatic , semi automatic and manual roller shutter door machine . Our warranty time of this equipment is 24 months , our factory will delivery the spare parts to client for free . The technology service will be the whole life of  the roller shutter door roll forming machine .

The detailed parameter for the shutter door machine

• Material: Galvanized Steel , Prepainted Steel strips , stainless
• Material width: 175mm
• Structure: H Steel welded to Steel Plate;
• Expansion: Manual;
• Thickness of Material: 0.6-1.2mm;
• Roll Stations: 13 Stations;
• Forming Speed: 0-12 m/min;
• Material of Roller: 45# steel coated with hard chrome;
• Material of Shaft: 45# Steel with tempering treatment;
• Dia. Of Shafts: 70mm;
• Transmission: by chain-brackets;
• Main Power: 5.5 KW;
• Cutting : Hydraulic cutting
• Hydraulic Powe r: 3KW ;

• Material of Cutting Blade : Cr12 MOV Steel;
• Tolerance of Cutting Length: +/-2mm;
• Electricity : 380V/3ph/50HZ or as the clients requirement
• Control system : Delta PLC, Omron encoder,

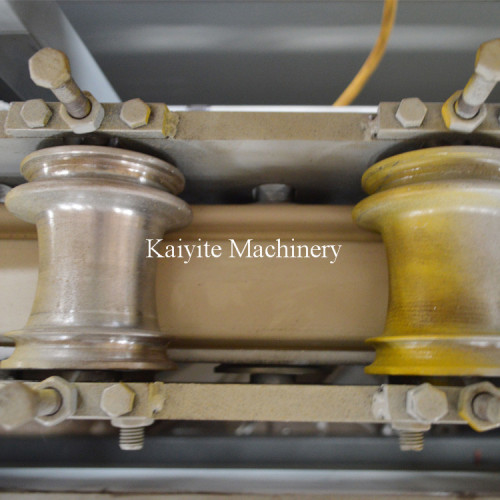

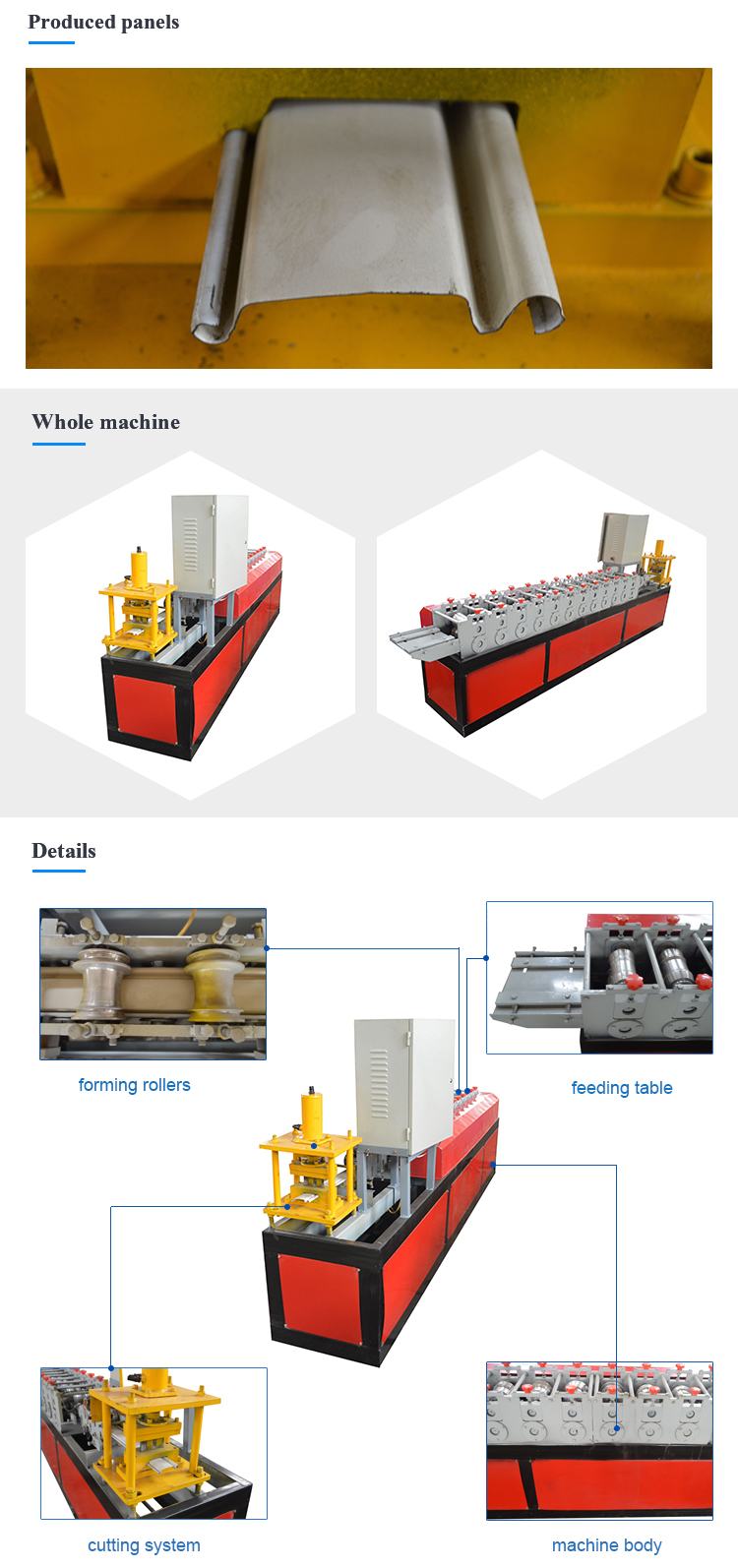

                                      --Details Show--

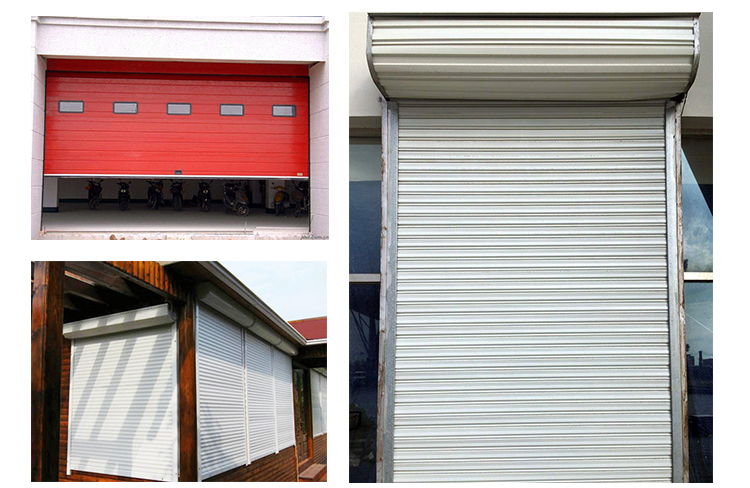

The shutter door slats has elegant surface , easy to install , save space , automatically operation  . So it is widely on the shop , restaurant , supermarket and cinema .

Packing and shipping of the anti-wind shutter door forming machine

A. For this Galvanized Fire Rated Roller Shutter Strip Door Machine need 1*20 GP container to load, one container can load 2 sets machines normally. Before loading to container, we will check and test machine frist.
B. Before loading, we will make the plastic package on the easy damage parts, paint the oil on the roller and shaft, in case the roller and shaft got corrosion and rusty during long time delievery.
C. Fix all the parts into container by steel wire rope, to ensure the machine will not damage when shaking on sea.
D. We will take phoots and videos for customer when loading to container, so that the customer can take out the machine easily when receive the goods
