Golf Cart Battery Meter Lead Acid Battery

Name: Golf Cart Battery Meter Lead Acid Battery
Brand: Dongguan Andu Electronic Co., Ltd.
Rating: 4.1 (11 reviews)

$10.00

≥50 Others
$9.80

≥200 Others
$9.50

≥500 Others

Get Latest Price

Basic Info

Model No.
Brand Name
Model Number	DS4015
Operating Voltage	12V/24V, 36V, 48V/72V
Operating Current	≤ 20 mA nominal
Operating Temperature	-40℃ - +85℃
Capacity	1 Red 2 Yellow 7 Green color LED for indicator
Application	12V/24V/36V/48V/72V volt DC battery powered equipment
Place of Origin	Guangdong, China

Product description

12V/24V/36V/48V/72V Golf Cart Battery Meter Lead Acid Battery Level Indicator Charging Reminder Resettable Hour Meter

Specification

System Voltage	12V/24V, 36V, 48V/72V
Operating Current	≤ 20 mA nominal
Operating Voltage	+/- 25% of nominal voltage
Operating Temperature	-40℃ - +85℃
Product installation range	works for carts, car, boat, marine, motorcycle, ATV, tractor, truck, forklift

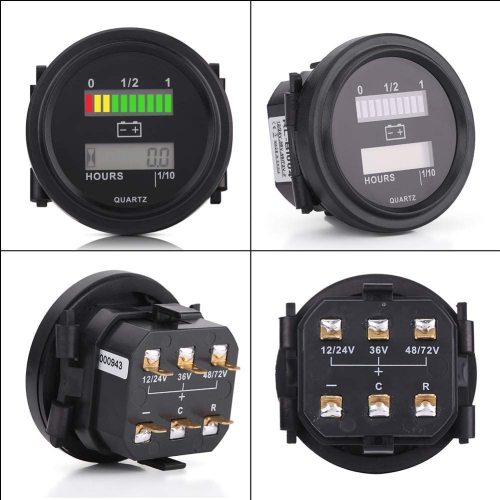

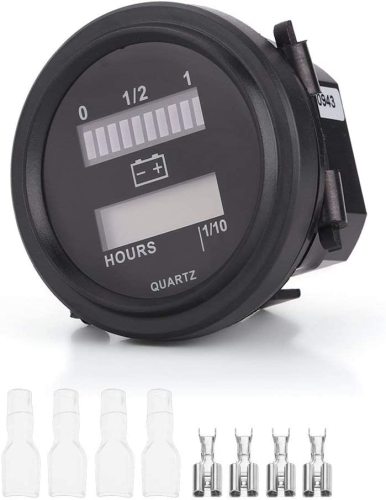

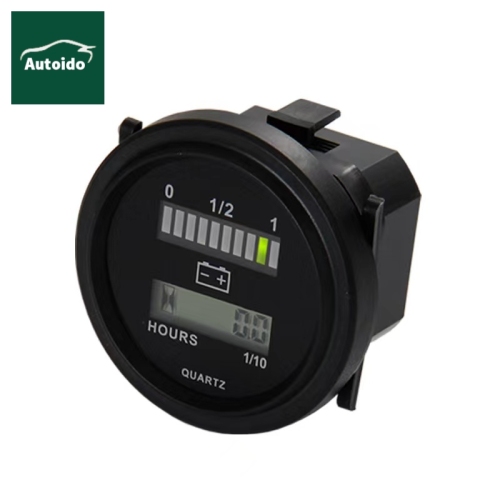

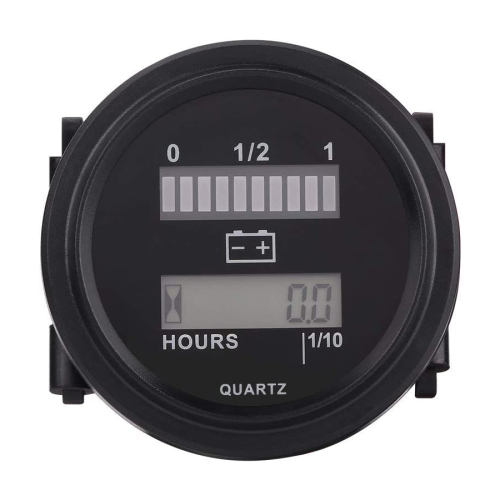

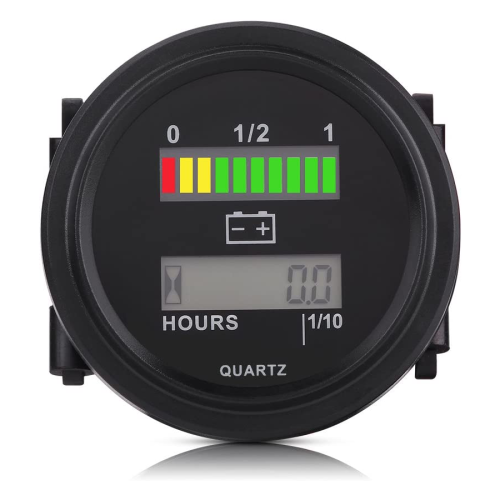

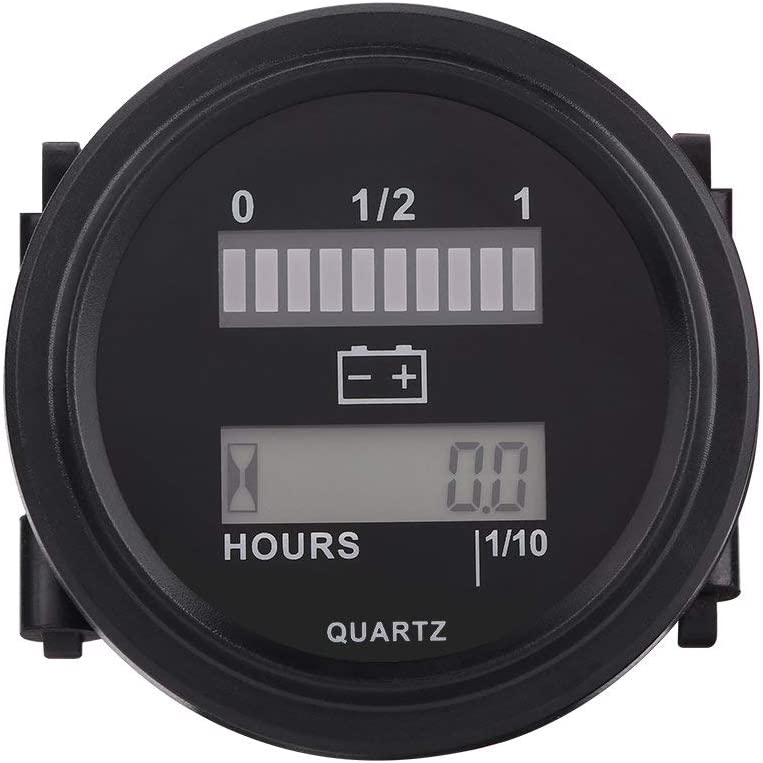

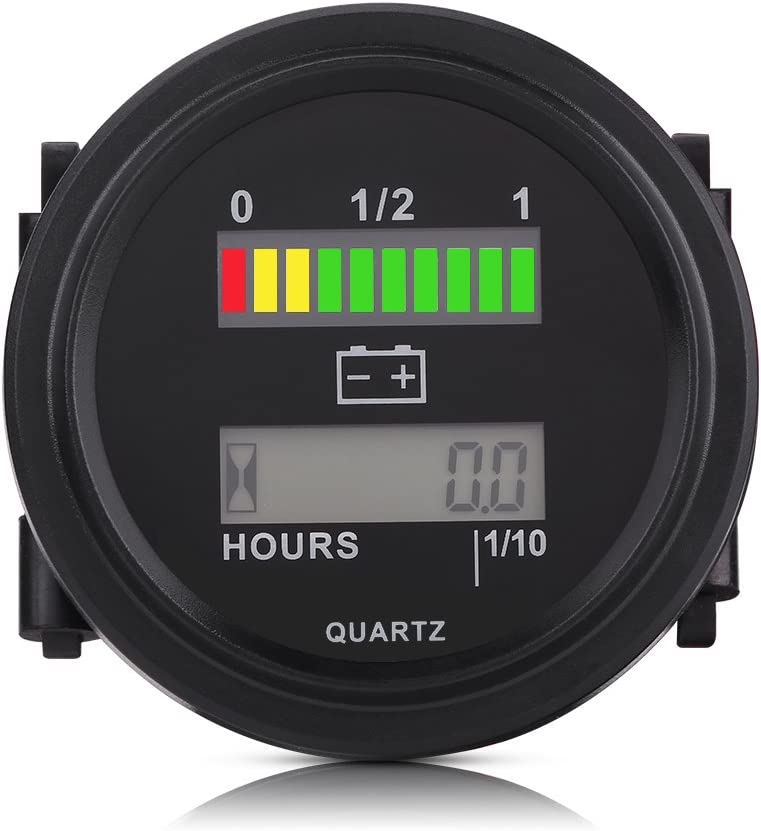

* MULTIFUNCTIONAL METER---- It is a multifunctional meter which include functions of battery capacity meter and hour meter;Display the battery capacity by LED bars, and display the total running hours by LCD screen; Wide operating voltage:12V to 24V,36V,48V to72V.

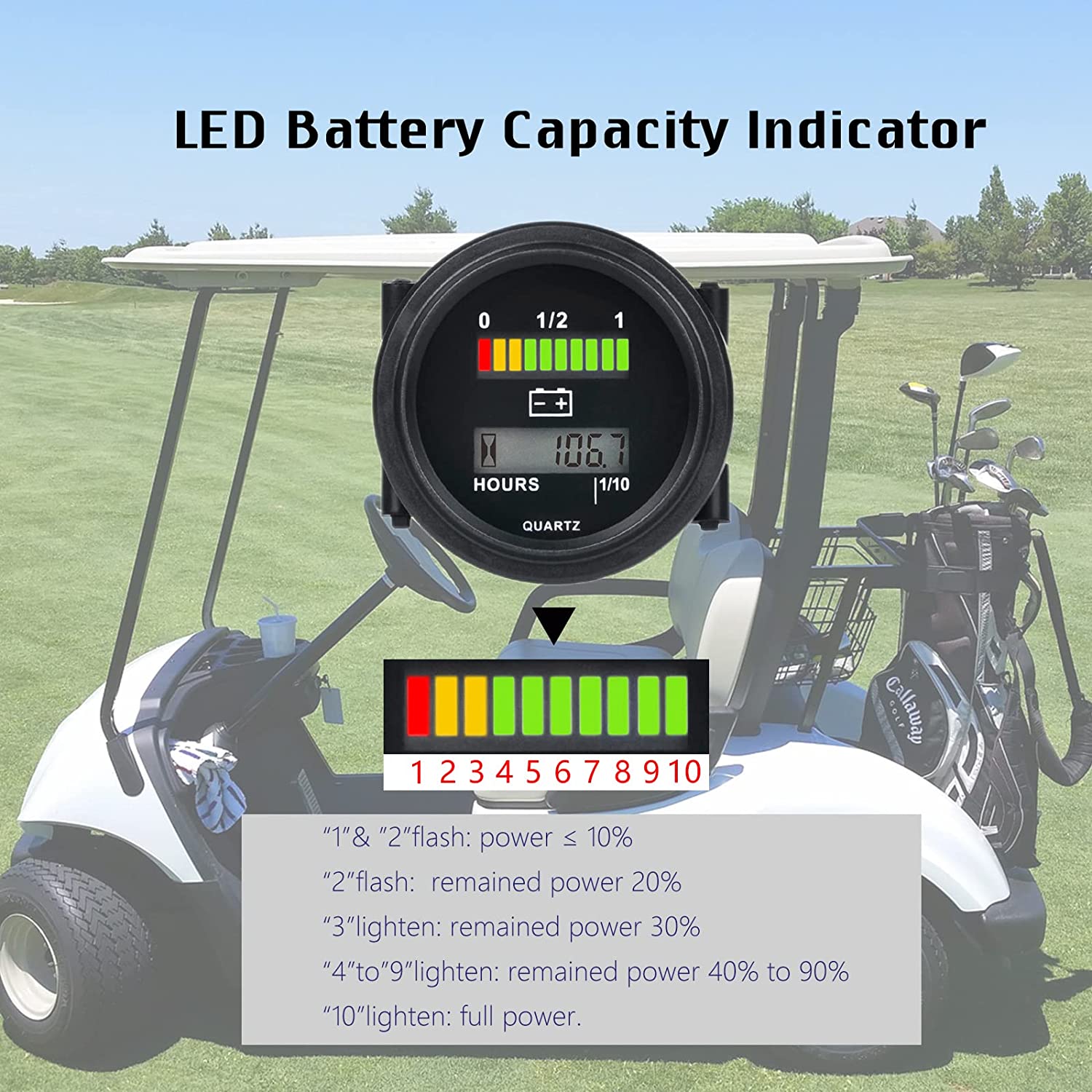

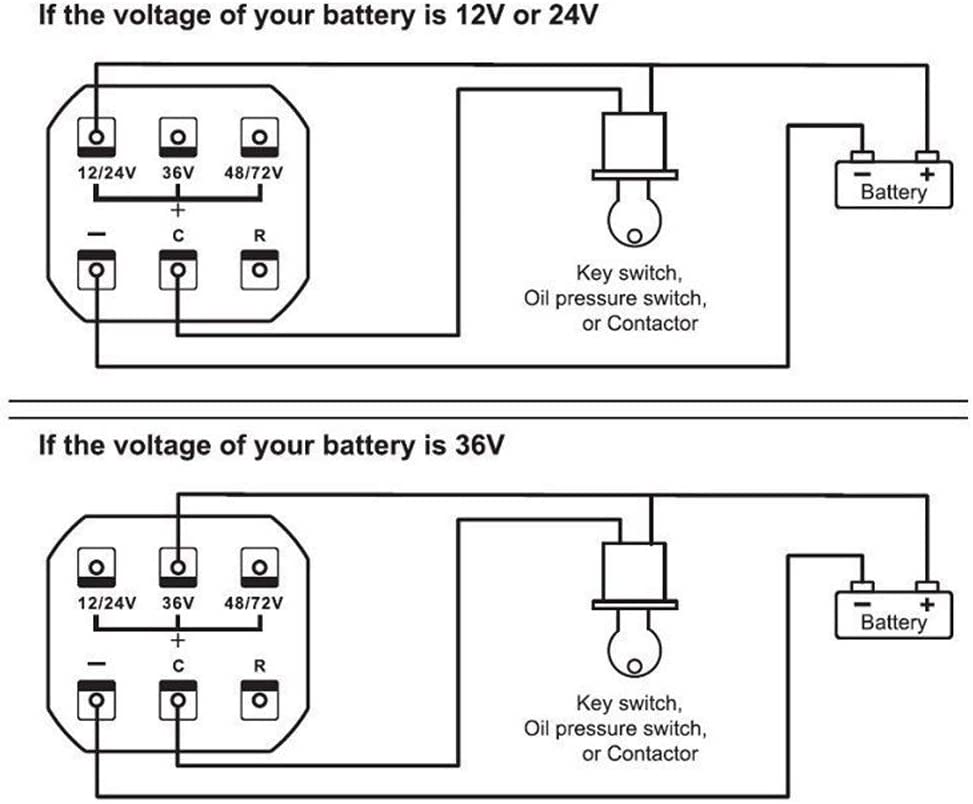

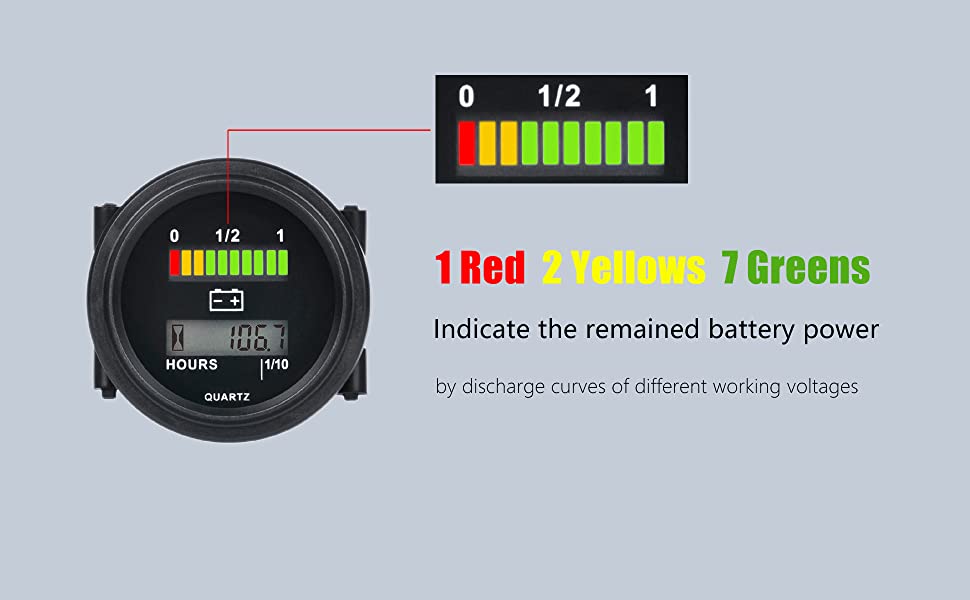

* BATTERY FUEL GAUGE---- It can be used on lead-acid battery (but not Trojian's)powered device to indicate the remain capacity;there are 10 LED bars with 3 colors(red,green,yellow) to display,10% capacity per bars; 3 voltage pins for 12V to 24V,36V and 48V to72V; It is only lighten the LED bar of current battery capacity whatever connect with key switch or direct connection.

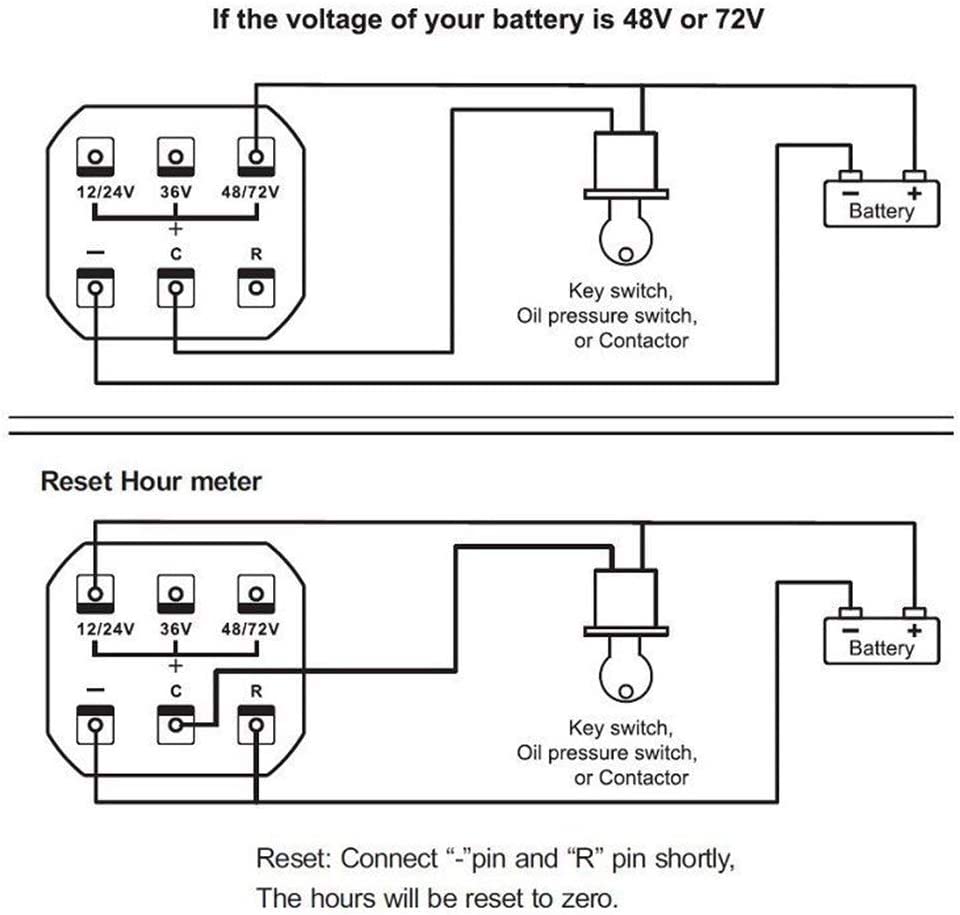

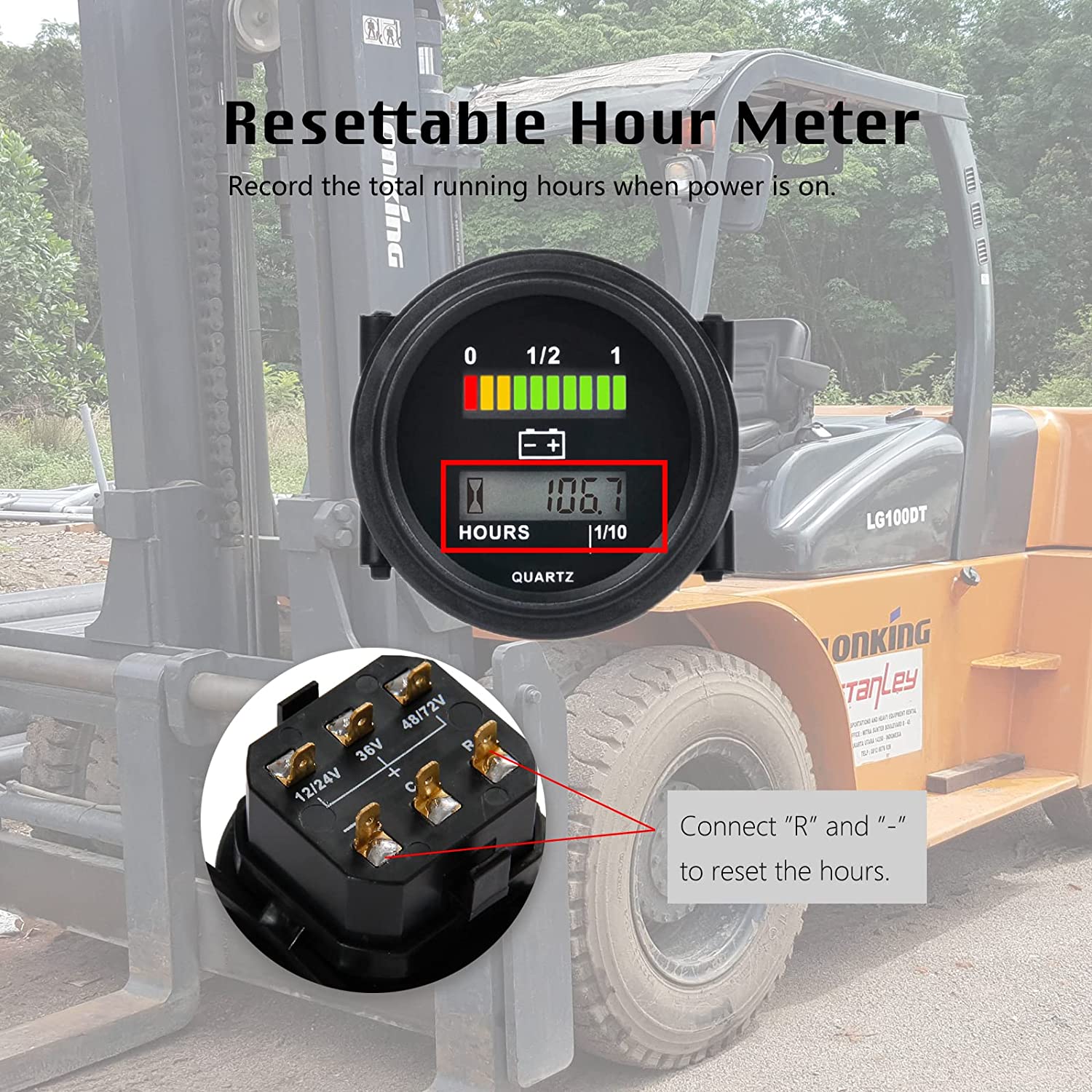

* HOUR METER(TOT)---- It also have function to track how many hours are the engine/machine working, hours read up to 999,999 hours with 0.1/1 hour resolution; TOT hours can be reset, when replace it to another device, it will be restart from 0 also.

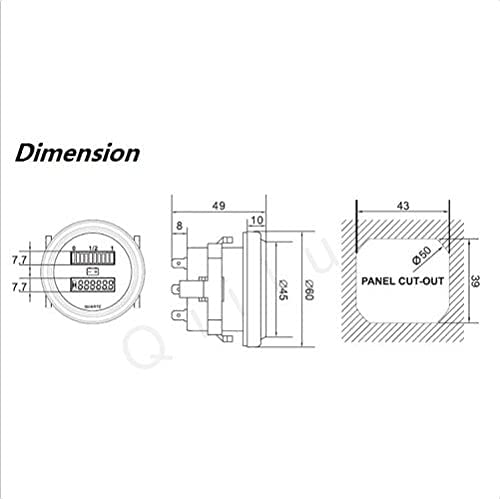

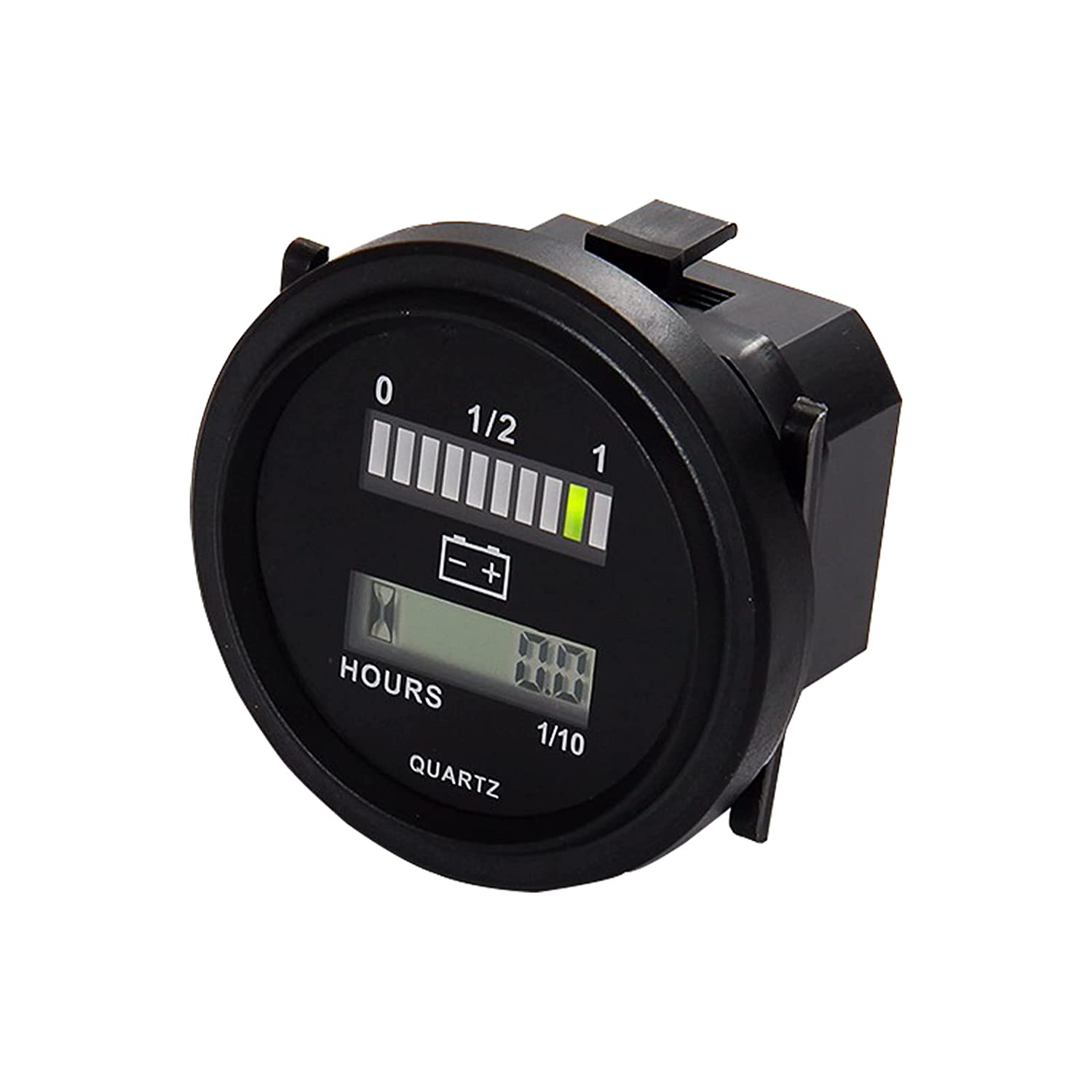

* INSTALLATION ---- Easy to install;Snap-in design with panel cut-out size:Approx 43×39mm,φ50(1.69x1.54 inch,φ50).

All YUJIE product With 12 months warranty.

Free parts will be sent during guarantee period!

Details Images
