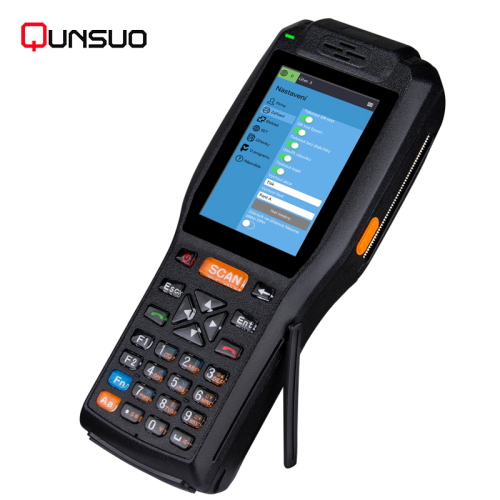

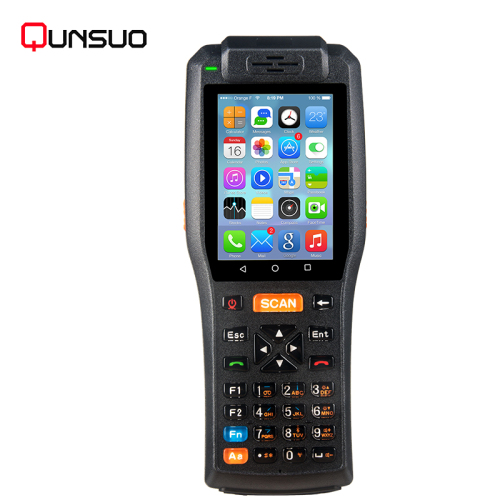

Handheld Android POS terminal for smart retail ticketing
Basic Info
| Model No. | PDA-3505 |
|---|---|
| Brand Name | Qunsuo |
| Type | Handheld Computer |
| OS | Android |
| Memory Capacity | 2G RAM, 16G ROM |
| Applications | Industrial Grade PDA |
| CPU Type | ARM |
Product description
Handheld Android POS terminal for bus ticketing machine
- It is an excellent Data collector for bus ticketing machine.
- It is a explosion-proof device, very durable.
- This unit can equipped with 1D barcode scanner or 2D QR code scanner.
- Our customers use this device for various application, such as parking ticketing machine, lottery management machine, warehouse management machine and so on.
- Qunsuo also have professional R&D team, welcome to contact us for more details about OEM ODM orders.
Spec datasheet:
| Model Name | PDA-3505 |
| OS | Android 6.0 |
| CPU | Quad-core 64bits 1.3Ghz |
| RAM | 2G RAM/16G ROM |
| Extended Storage | Micro SD card (Up to 64G) |
| Display | 3.5 Inch 480*320 Resolution/4 Inch 480*800 Resolution |
| Keyboards | 29 Physical Waterproof Keyboards |
| Printer | Internal 58mm/2 inch Thermal printer |
| INTEGRATED RADIO | |
| Network(3G/4G) |
CDMA/EVDO 800MHZ WCDMA(850/900/1900/2100MHz) GSM(850/900/1800/1900MHz) LTE-FDD: B1/B3/B7/B28 LTE-TDD : B38/B39/B40/B41 |
| Wi-Fi | IEEE 802.11 b/g/n |
| Bluetooth | Integrated Bluetooth 4.0 BLE |
| GPS | Built-in GPS and AGPS |
| DATA CAPTURE | |
| 1D Barcode Scanner | Symbol SE955 laser Scanner |
| 2D Scanner | CCD Image 2D Engine |
| Camera | AF 5.0M pixels with LED flash light |
| Contactless | 13.56MHz, ISO14443A/B, ISO15693, NFC |
| IC card reader(Optional) | ISO7816 Chip card reader |
| Fingerprint(Optional) | FPC1020 Capacitive fingerprint |
| PHYSICAL CHARACTERISTICS | |
| Battery | 7.4v 3400mAh Lithium Polymer Battery |
| SIM Slot | Dual SIM and Dual PSAM |
| Interface | Micro USB*1, Extended serial port*1,Charge DC port*1,Earphone port*1 |
| Sensor | Gravity sensor |
| Size | 220*85*59mm |
| Color | Black/Blue |
| Weight | 520g with Battery |
| ENVIRONMENT | |
| Operating Temperature | -20 ℃~ 55 ℃ |
| Storage Temperature | -40 ℃~ 70 ℃ |
| Humidity | 5% ~ 95% |
| Water & Dust proof rate | IP65 |
Advantage:
1. We are the manufacturer, which afford us deliver on time, sample order can be shipped within 2 days.
2. We have professional R&D team, we can provide OEM/ODM service to make customized products to physical.
3. Quality is most important to Qunsuo, we have 1 year Warranty to each of our products, and also we can provide prompt after-sales service.
4. We provide the most competitive wholesale price to our customers, MOQ as low as to 1pc.
5. Our products passed multiple certifications, such as CE, FCC, RoHS, IP65(IP67) and etc.
Product Specification: Pda With Built In Thermal Printer, Android Pda Scanner
1. ODM & OEM & FCC & CE & ROHS
2. High efficiency and safety delivery
3. Competitive wholesale price
4. Provide free SDK for secondary development
5. Prompt technical support
6. 1 Year warranty guarantee
1. Are you original manufacturer?
Yes, Qunsuo are the original manufacturer which is specialized in thermal printer, handheld PDA, barcode scanner and etc.
2. Would you provide SDK for me?
Yes, Qunsuo will offer SDK for free.
3. How about the warranty for the products?
According to our warranty policy, Qunsuo will provide 12 months warranty time from the shipment date for our products (Excluded the consumable parts).
4. How about the minimum order?
Qunsuo accept one piece sample order for standard products. If OEM/ODM needed, please DM for more details.
5. Do you accept Paypal?
Yes, Qunsuo accept paypal. Besides, we accept Western Union, T/T.L/C, Secure payment (Escrow Service from Alibaba) and so on.
6. How about the delivery time?
Generally, sample can be shipped within 2-3 working days after payment. Big order lead time depends on the quantity, normally 1 to 4 weeks.
7. How about the shipping methods?
By Express: DHL, UPS, TNT, FEDEX or Aramex EMS E-packing
By Sea: Inform us the Sea Port to check which ship line
By air: Inform us the Airport to check which flight
Or pick up by the customers
8. How about the after sales service?
a. Our all products will provide 12 months warranty
b. Enough stock spare parts for guarantee
c. Professional engineers provide 7*24 online service
- 7yrs
- Distributor/Wholesaler
- Manufacturer
- OEM service
