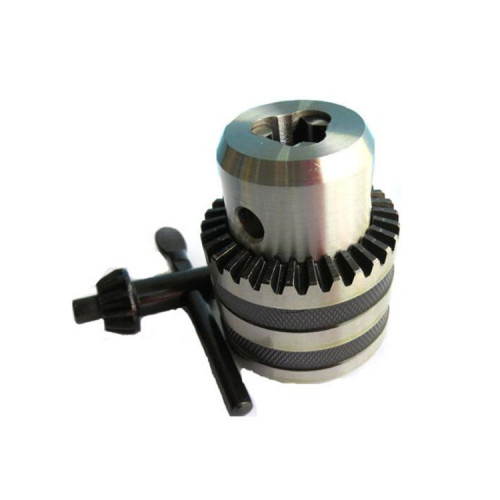

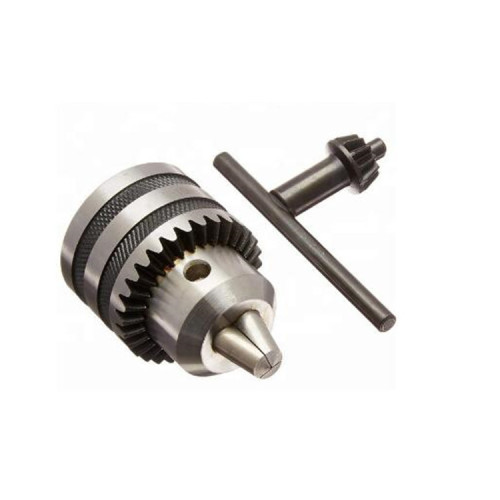

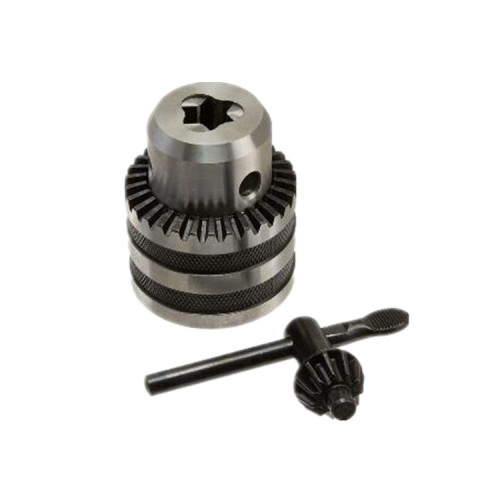

Heavy Duty Key type Drill Chucks
Heavy Duty Key type Drill Chucks
Heavy Duty Key type Drill Chucks

1 / 3

Heavy Duty Key type Drill Chucks

  • $1.00

    ≥1 Piece/Pieces

Options:

  • B10
  • B12
  • B16
  • B18
  • B22
  • JT3
Get Latest Price

Basic Info

Model No. 10mm,13mm,16mm
Brand Name QFMH
place of origin China
status New
Showroom location (in which countries are there sample rooms overseas) Turkey, United States, Italy, Brazil, Spain, Thailand
Video factory inspection Provided
Mechanical test report Provided
Marketing type New Product 2020
warranty period 6 Months
Out-of-warranty service Online Support
Where to provide local services (in which countries are there overseas service outlets) Turkey
Show More

Product description

Heavy Duty Key type Drill Chucks ,tool holder for high precision spanner drill chuck is connected with the tool, is used to clamp the handle type tool accessories. Key Type Drill Chuck There are two connection ways: threaded connections and taper connection. According to the specifications of the chuck now, specifications of the main thread of the 3/8-24UNF, 1/2-20UNF, 5/8-16UN, M12 * 1.25. Taper hole connection are mainly B10, B12, B16, B18, B22 and JT0, JT2, JT3, JT6, JT10, JT33 and other specifications. Threaded connection is mainly used for electric drill, drilling machine is mainly used for connecting taper hole.


 drill chuck Product information
1. Key Type Drill Chuck Suitable for medium and heavy drilling
2. Applied to milling machine, lathe, drilling machine, woodworking machinery
3. Ability to withstand high speed cutting
4. Keytype Drill Chuck Material: 20CrMnTi
5. Hardness: 56-58HRC
6. Provide two kinds of appearance: sandblasting appearance and coating treatment.
7. When drilling, tighten the chuck slightly, strengthen the grip force and increase the torque, increase the grip force obviously and prevent the bit from moving.

Key Type Drill Chuck Application:
Recommended for light, medium and heavy-duty portable bench or floor mounted power tiils


1. Thread Mount: Unf. Metric

Model

Capacity

Mount

mm

Inch

J3110M

1.0-10

1/32-3/8

3/8-24UNF

J3110M

1.0-10

1/32-3/8

1/2-20UNF

J3113M

1.0-13

1/32-1/2

1/2-20UNF

2. Moese Taper Mount

Model

Capacity

Mount

mm

Inch

J2110H

1.0-10

1/32-3/8

B12

J2113H

1.0-13

1/32-1/2

B16

J2516M

3.0-16

1/8-5/8

B16

J2516M

3.0-16

1/8-5/8

B18

J2116H

1.0-16

1/32-5/8

B16

J2116H

1.0-16

1/32-5/8

B18

J2120H

5.0-20

3/16-3/4

B22

3. Jacquard Taper Mount

Model

Capacity

Mount

mm

Inch

J2210H

1.0-10

1/32-3/8

JT2

J2213H

1.0-13

1/32-1/2

JT33

J2213H

1.0-13

1/32-1/2

JT6

J2616M

3.0-16

1/8-5/8

JT3

J2616M

3.0-16

1/8-5/8

JT33

J2616M

3.0-16

1/8-5/8

JT6

J2216AH

1.0-16

1/32-5/8

JT3

J2220

5.0-20

3/16-3/4

JT3

KEY TAPE DRILL CHUCK
