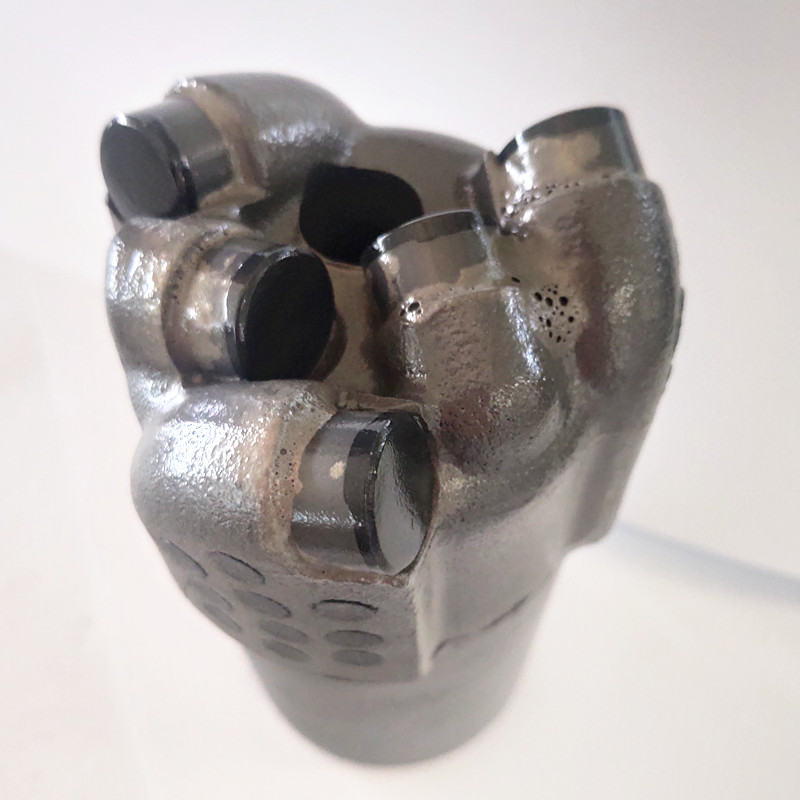

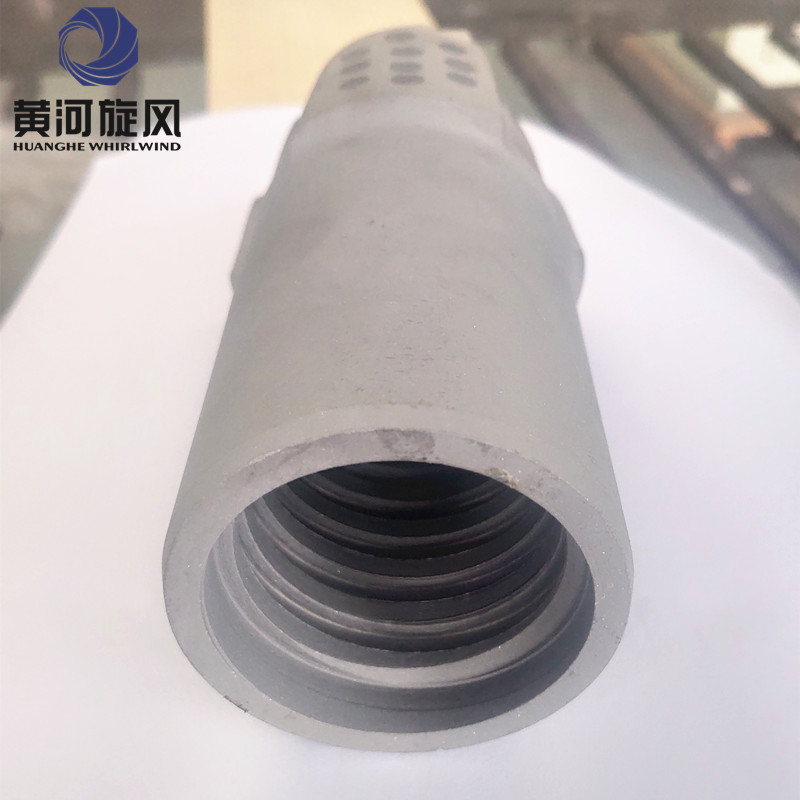

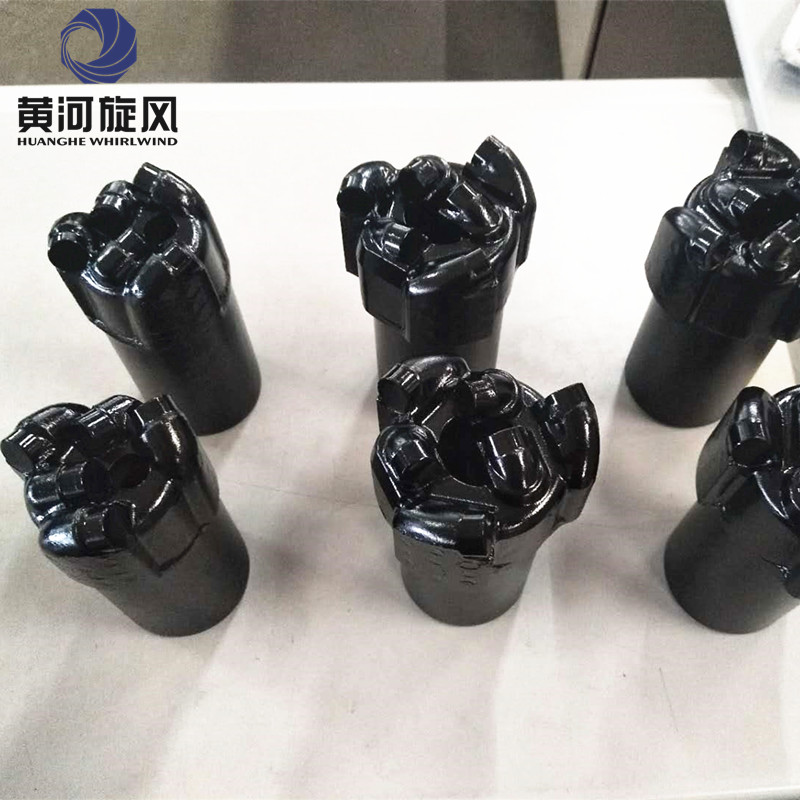

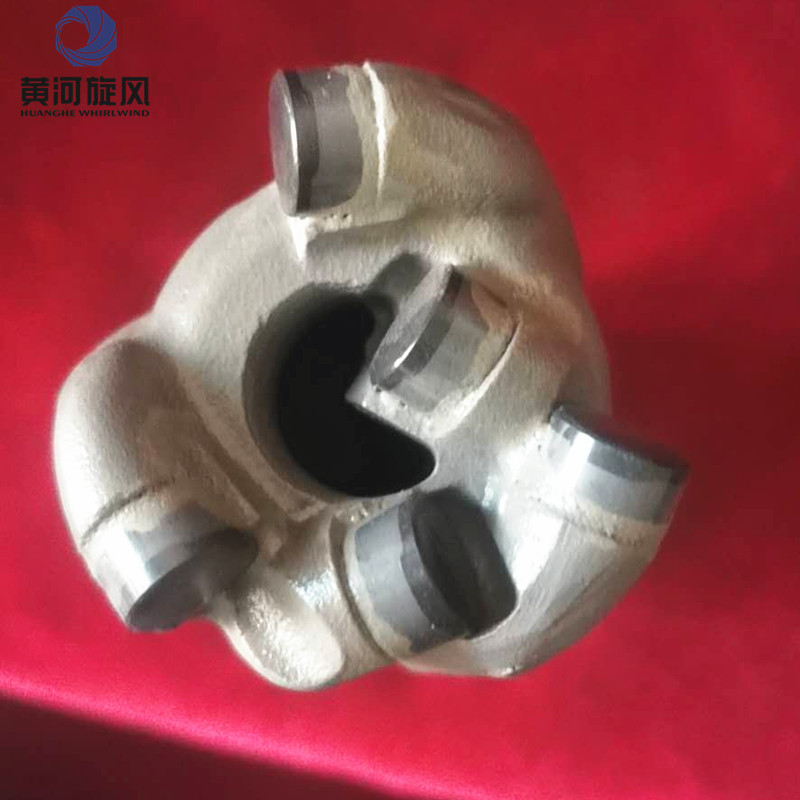

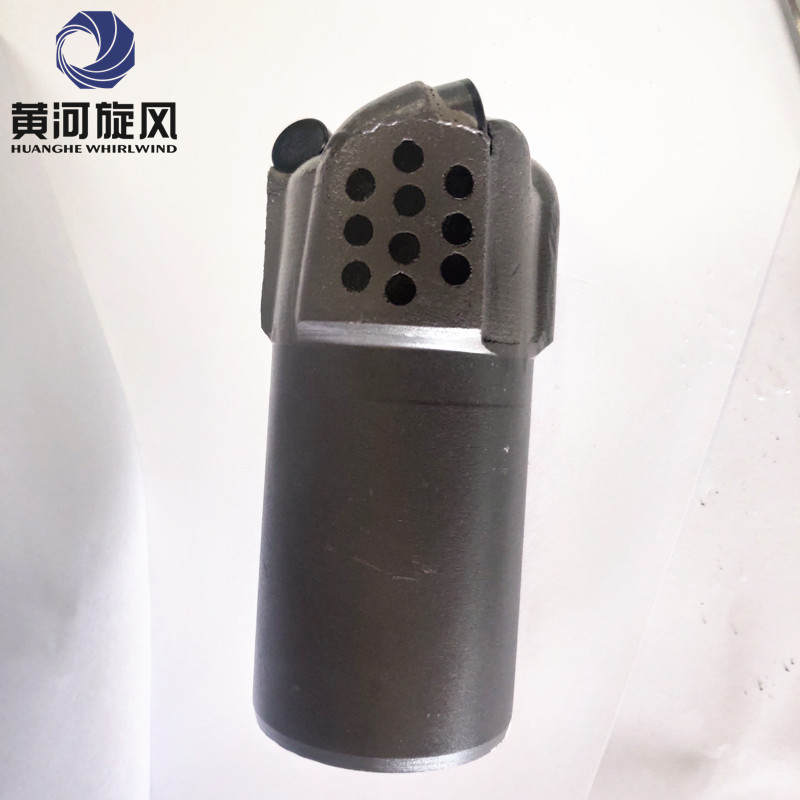

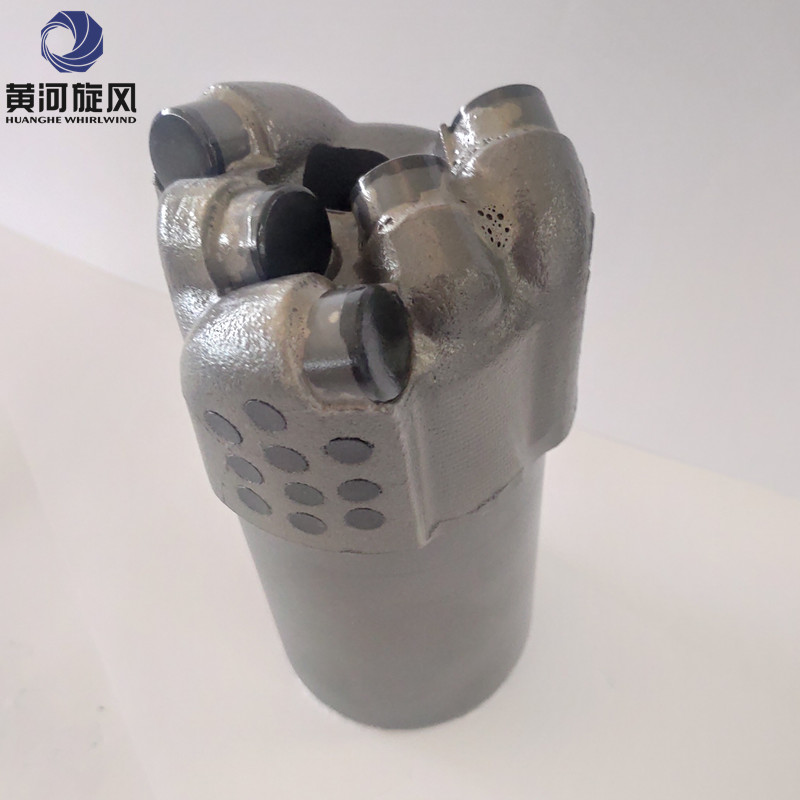

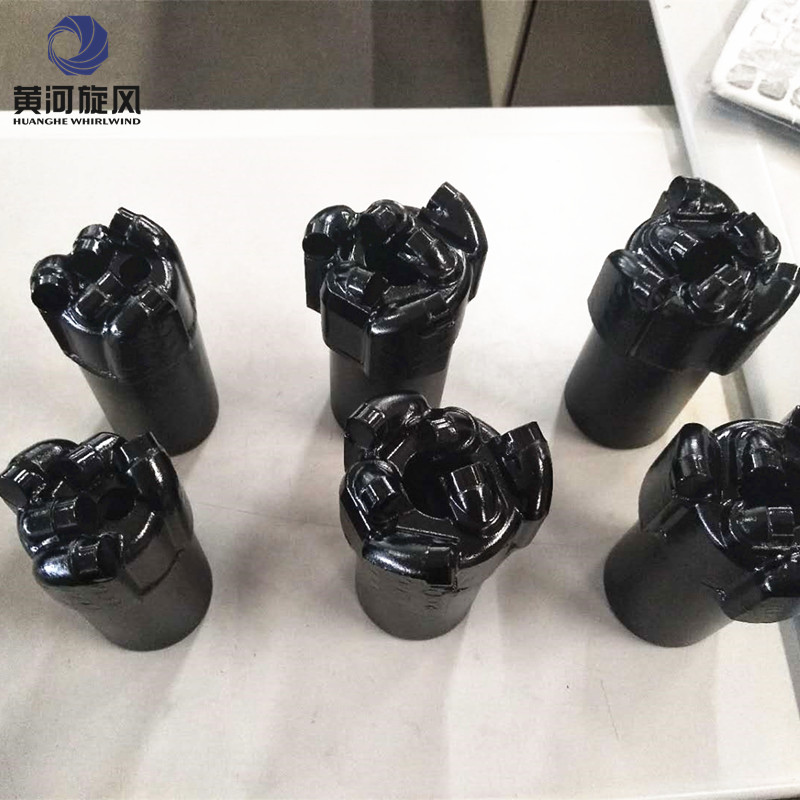

HHWW  76mm Non-Coring Matrix PDC Drill Bit
HHWW  76mm Non-Coring Matrix PDC Drill Bit
HHWW  76mm Non-Coring Matrix PDC Drill Bit
HHWW  76mm Non-Coring Matrix PDC Drill Bit
HHWW  76mm Non-Coring Matrix PDC Drill Bit
HHWW  76mm Non-Coring Matrix PDC Drill Bit
HHWW  76mm Non-Coring Matrix PDC Drill Bit

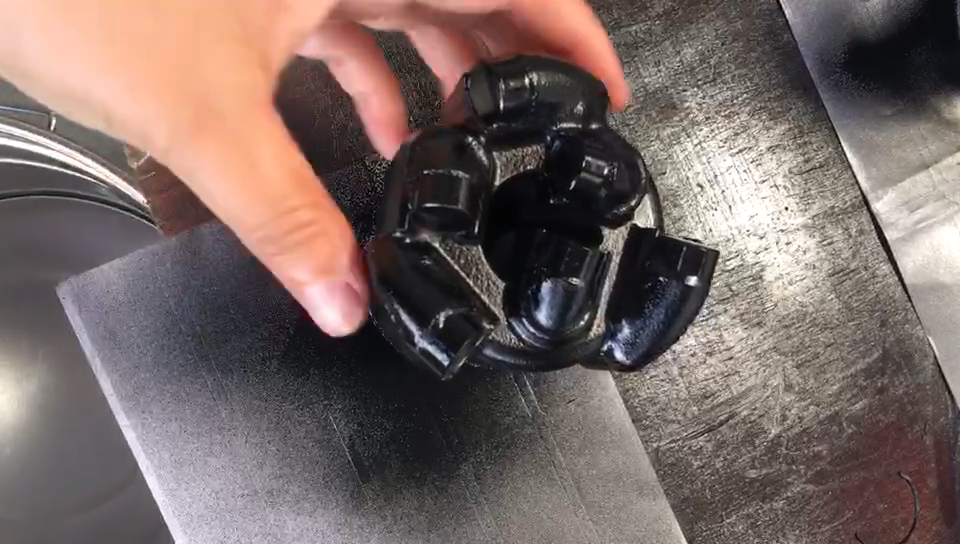

Video

1 / 7

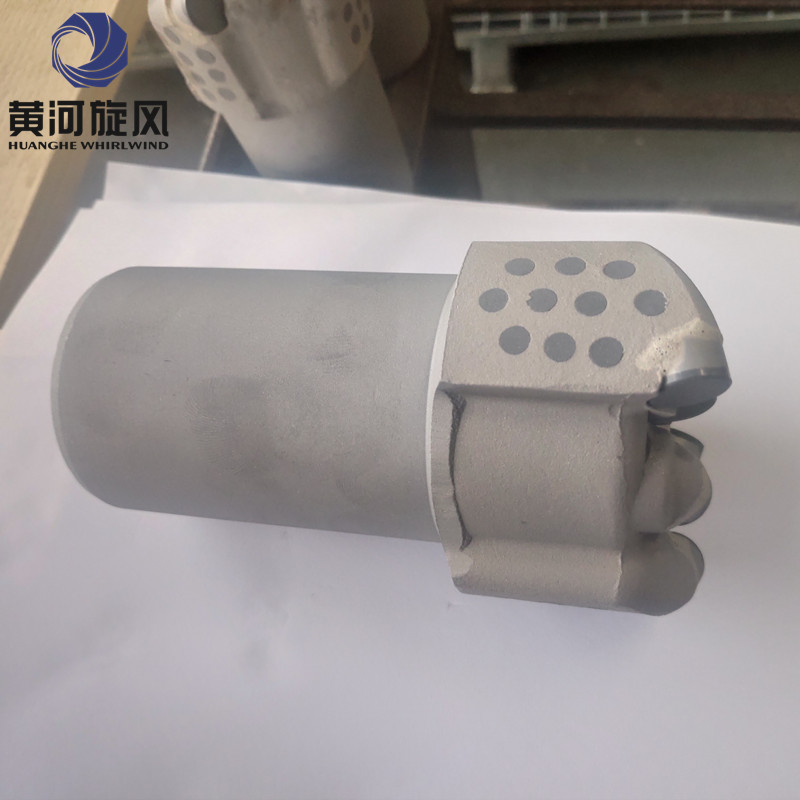

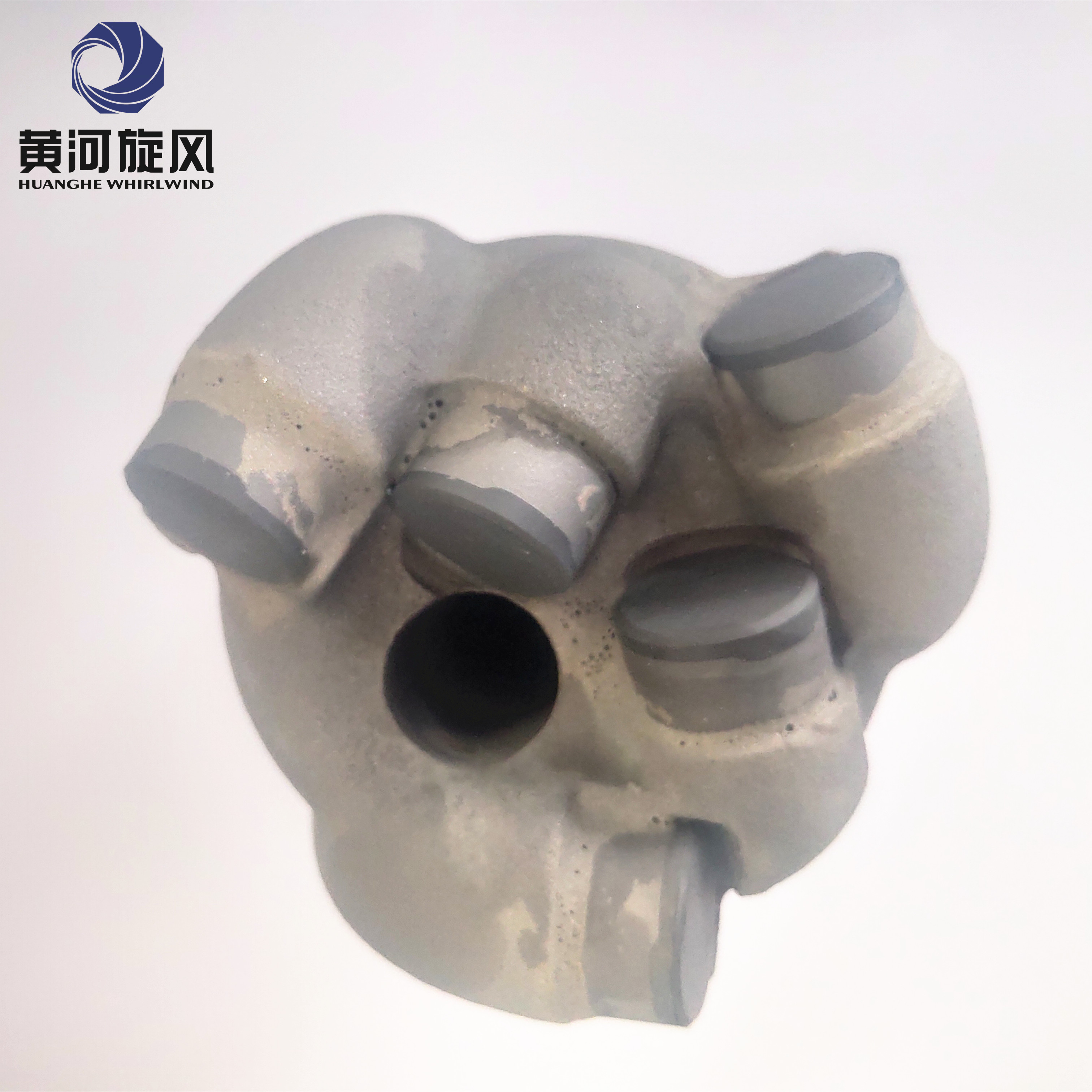

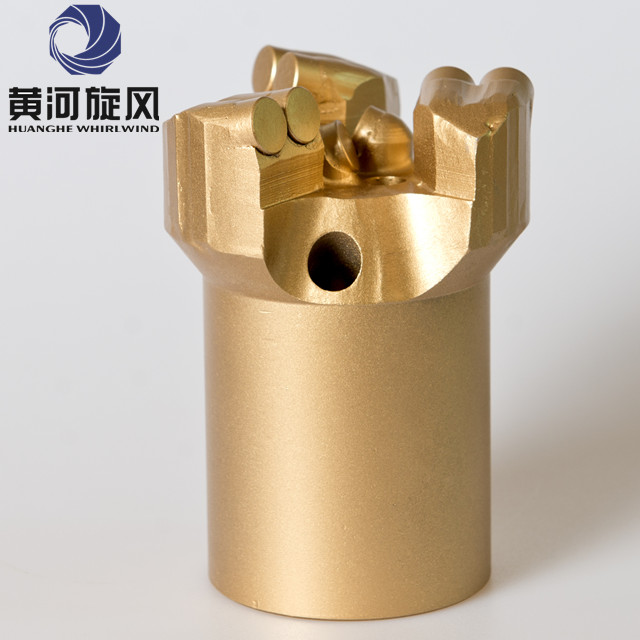

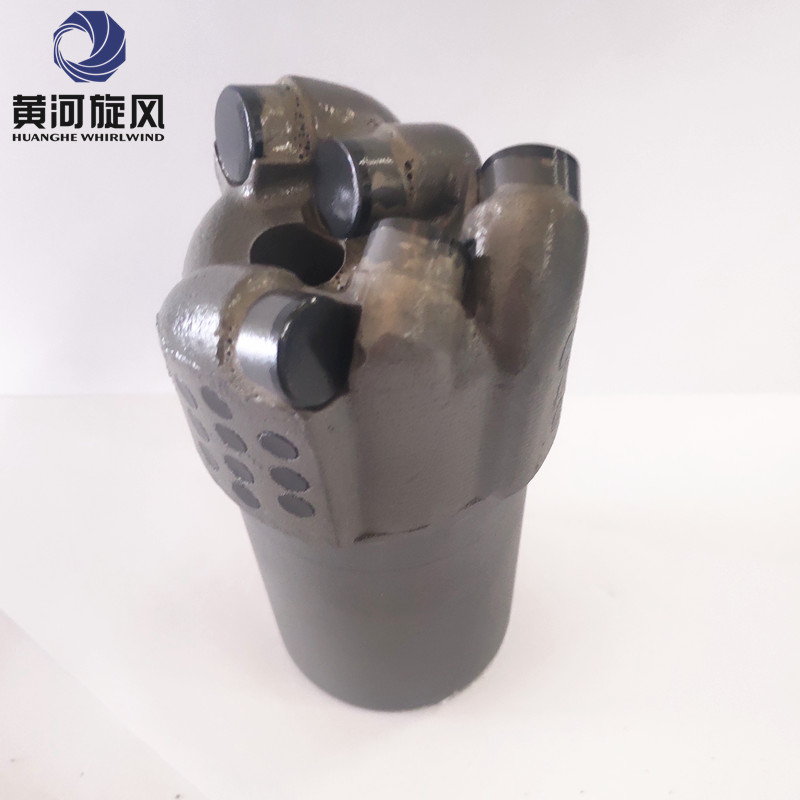

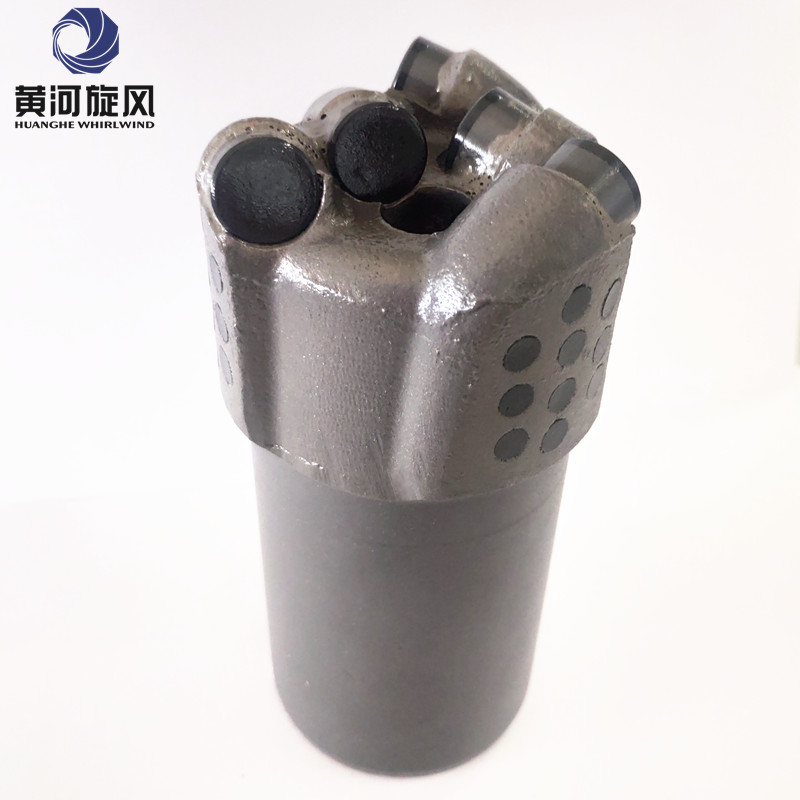

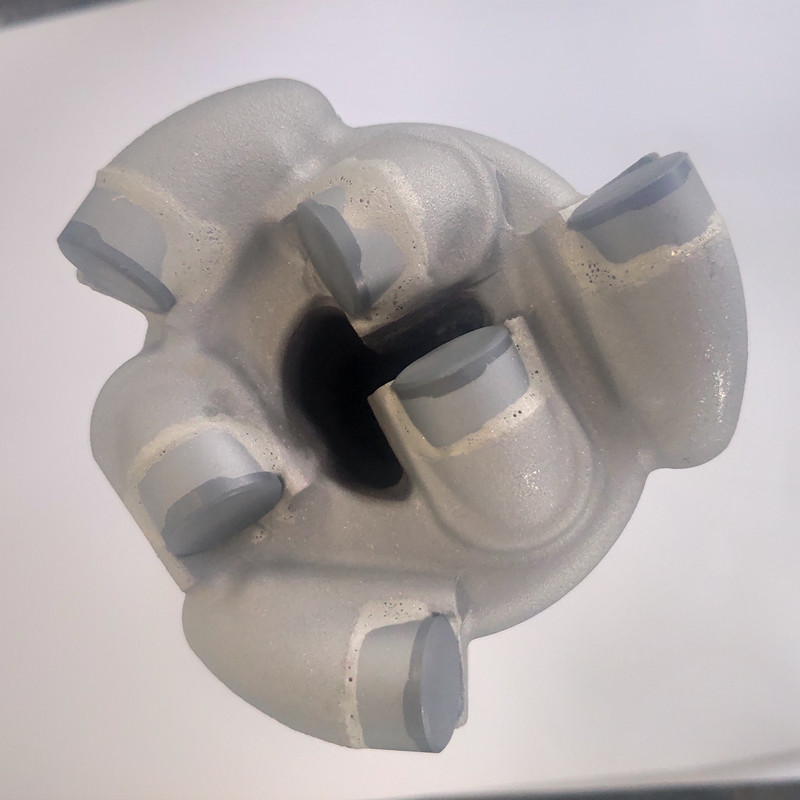

HHWW 76mm Non-Coring Matrix PDC Drill Bit

  • $130.00

    ≥1 Piece/Pieces

  • $120.00

    ≥500 Piece/Pieces

Options:

  • HW-SJ56
  • HW-SJ60
  • HW-SJ75
  • HW-SJ76
  • HW-SJ94
  • HW-SJ113
  • HW-SJ133
  • HW-SJ154
Get Latest Price

Basic Info

Model No.
Brand Name
Condition New
warranty 6 Months
Applicable Industries Farms, Construction works?, Energy & Mining
Weight (KG) 1.5
Showroom Location None
Video Outgoing-inspection Provided
Machinery Test Report Provided
Marketing type New Product 2020
Place of Origin Henan, China
Brand Name HUANGHE WHIRLWIND
Type DRILL BIT
Machine Type Drilling Tool
Material PDC+ carbon steel
Processing Type Forging
Use Coal Mining
Size range 56mm,60mm,75mm,78mm,85mm,94mm,113mm,130mm
Usage water Well Drilling
Application For drain hole, degassing hole, deep plug-hole

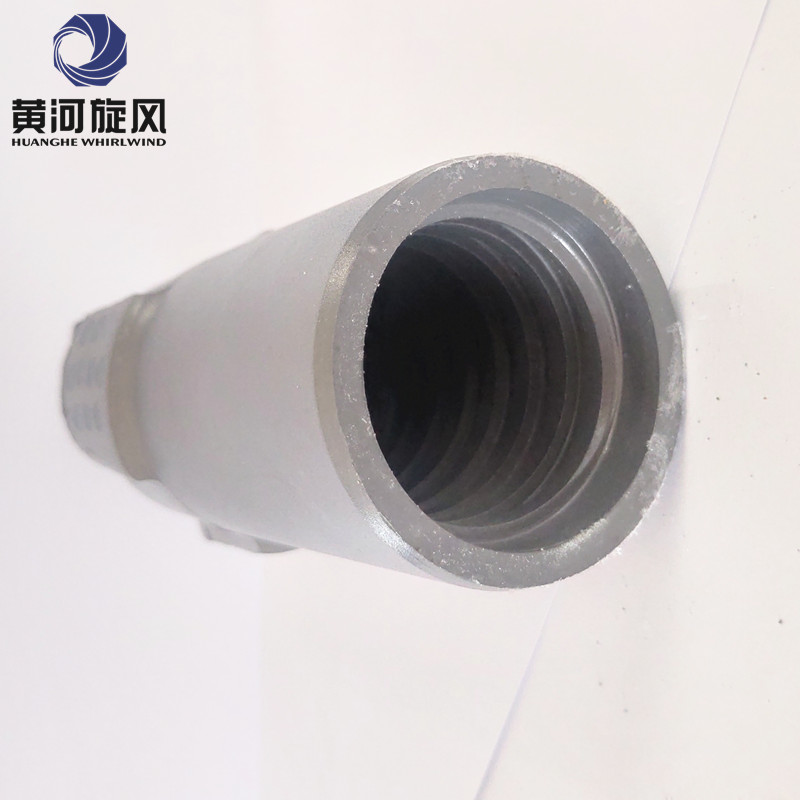

Connecting thread AW, BW,API and cusomized
Color Golden, silver, blue grey, black, etc.
Material Carbide
Product name matrix drill bit
Connect thread API standard pin or customized
Bit type Non core diamond bits
Our main products Mining consumbles and road milling machine spare parts
Show More

Product description

Product Description

Sinter matrix body PDC drilling bit for gas oilfield & mining water well drilling

PDC full face Bits has a very good penetration rate and long life in a wide range of rock formations.?
The application include in
mining, civil engineering and the oil and gas industries.

Generally, it include the Three Wings, Four Wings, Five wings or blades PDC Non-Coring Bits.

PDC flat sintered ( matrix ) drill bit & PDC steel body drill bit comparative
? ??PDC drill bit for coal? ? ? ? Steel body pdc drill bit
Type
Matrix body pdc drill bit
Steel body pdc drill bit
Applicable rock
F<11
F<9
Repair
YES
NO
Design
New design
Old design
Price
220-300
130-200

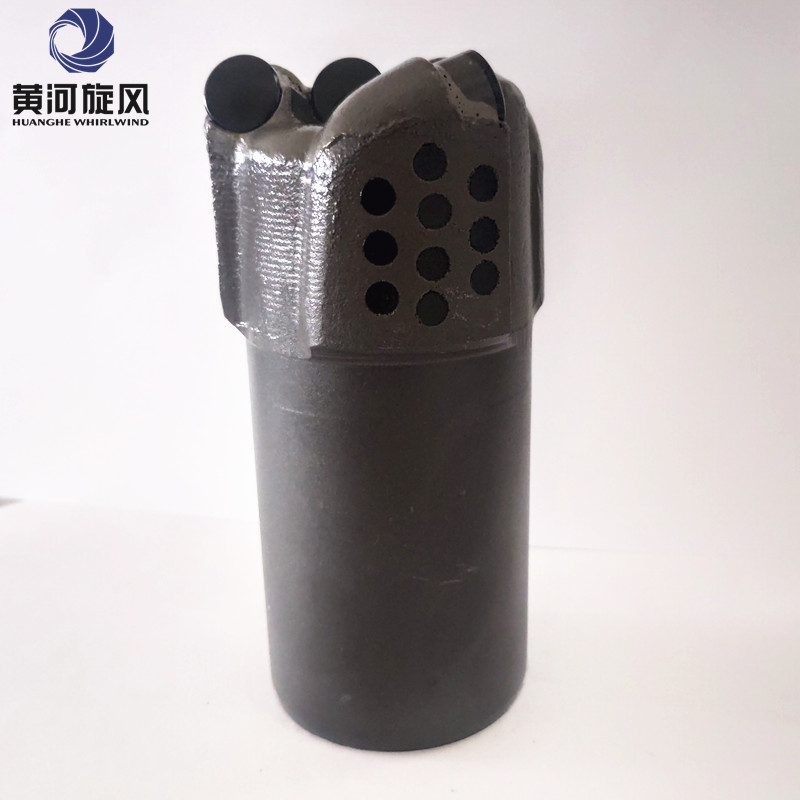

PDC Sintered Matrix Drill Bit for Coal Mining

Specification of flat face non-coring PDC bits(sintering drill bit)
Type
OD
PDC (quantity)
PDC cutter(type)
Water hole (quantity)
Application rock formation
Connection type
56
56mm/2 1/4”
4
1/2”
1
F=(5-12),
Suitable for medium hard, hard , very hard rock
drilling
AW/BW/
API/customer demand
65
65mm/2 1/2”
5
1/2”
1
75
75mm/3”
6
1/2”
1
98
98mm/3 7/8”
7
1/2”
1
113
113mm/4 1/2
10
1/2”
1
133
133mm/5 1/4”
11
1/2”
3
143
143mm/5 5/8”
12
1/2”
3
153
153mm/6”
18
1/2”
3

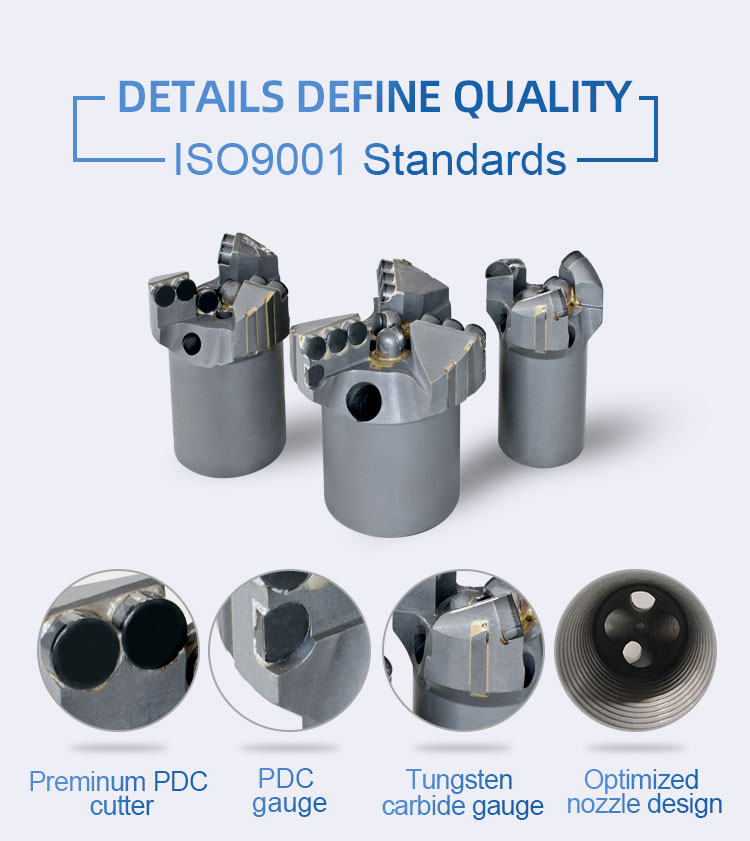

Product Advantages:
1. PDC sintered carbide bit has high quality PDC composite sheet cutter
2. Tungsten carbide as the drill bit body;It has good strength and wear resistance
3,Using polycrystalline diamond particles as profile gauge, It can guarantee the bit in the
process of using not reducing.
4. Cutter layout is force balanced to drill a precise round hole and reduce bit whirl;
5. Large junk slots and flushing ports;
6. We have many years of manufacturing experience.
7. Advanced geometric design for faster penetration;
Size Information
Size
Weight bit(KN)
Ratorys peed(RPM)
Thread
60
4.4-12
200-300
As per the customer request
65
4.4.-12
200-300
75
4.8-12
200-300
94
6.4-16
150-250
113
8.8-22
120-220
133
15-30
100-200
Sizes and types that are not showm abown can be customized
According to specific drilling requirements
Company Introduction

Henan Huanghe Whirlwind Co.,Ltd

is a manufacturer of Drill Bit with well-equpiied testing facilities andstrong technical force.With a wide range, good quality,reasonadle price and prompt delivery,our products are extensively used in oil filed,well Drilling,No Dig filed and other industries.our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and from all walks of life to contact us for future business relationships andmutual success!

FAQ

1.The Quality of Drill bit?

We have many series of rock bits,quality grades and prices are different.We believe that the proper tools with higher cost-performance is the most impormant.For example,our top quality rock bits is not cost-effective for water well drilling,as the water well drilling machine can not drive the super rock bit to perform their best.but for very deep well drilling high quality grades rock bits is cost effective even its price is much higher.So it is better tell us as more as possible the details of projects,then we provide the proper solutions and offer,usually 2 or 3 solutions wil be provided for options.

2.Trade Assurance

Answers:we have joined the Trade Assurance on Alibaba to protect your payment to make sure that we deliver on time and manufacture quality products as required.

3.How to send inquiry?

It is better send us detailed specificaltions of products,it is better attaching some photos for better understanding.If you are not experienced on drilling fields,for example,many customers don't know IADC code,please feel free,jusst tell us the applications like oil/gas/geothermal/HDD/ware/mining,depth of well,average hardness of rocks,then we will advise suggestions and solutions.You can:-Send us inquiry from Alibaba.com platform.-Send email to us directly or talk on Skype or Whatsapp,salespersons are always waitting for service in working days,and all the inquiries can be replied within 10 hours.?

?

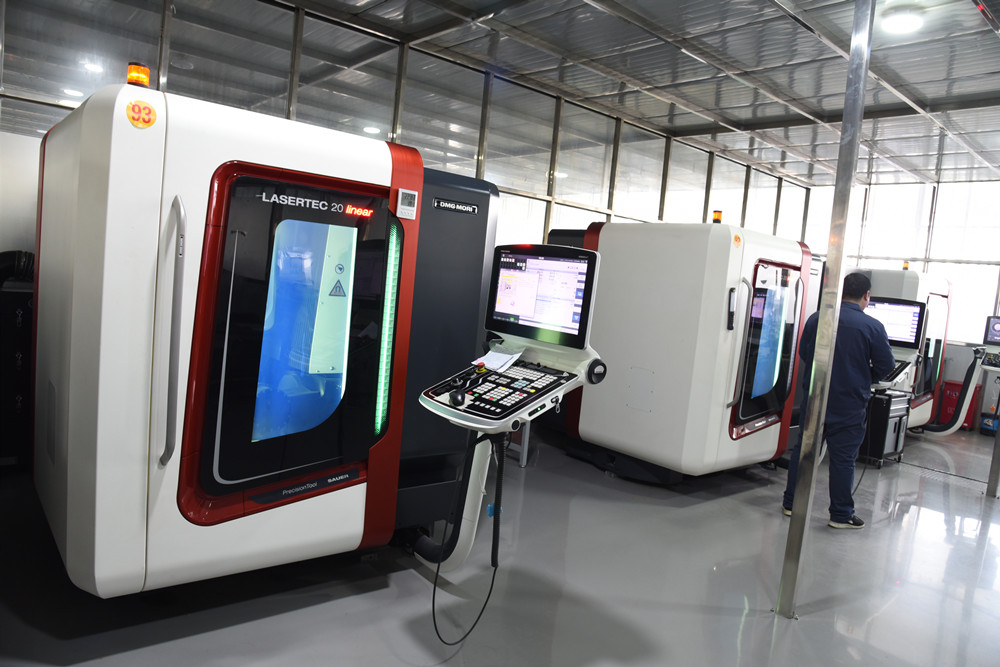

Plant Show
