Cartridge heaters are manufactured in two basic forms - high density and low density. High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
Search
Sign In Join Free
Video
1 / 7
High Density Electrical Heating Elements: Cartridge Heaters and Electric Heat Tubes for Industry
$6.48
≥2 piece
$5.48
≥500 piece
$4.48
≥1000 piece
Options:
- 600W
- 700W
- 800W
- 900W
- 1KW
- 2KW
- 1.5KW
- M3
- 100W
- 500W
- 80W
- 200W
- 300W
- 400W
Get Latest Price
You might also like
Basic Info
| Type | Air Heater |
|---|---|
| Power Source | Electric |
| Place of Origin | Jiangsu, China |
| Brand Name | Luertai/OEM |
| Dimension(L*W*H) | As Your Requests |
Show More
Product description

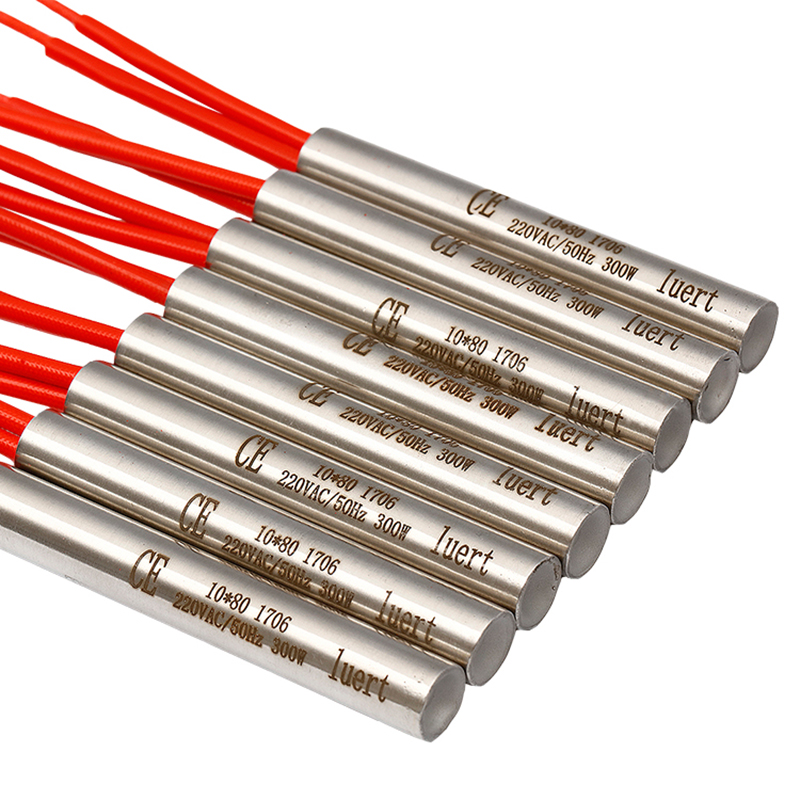

Cartridge heater introduction
Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form,that is used in heating applications.by way of insertion into metal blocks via a series of drilled holes.
Cartridge Heater for 3D Printer Parameter | ||
Resistance heating wire material | Cr20Ni80 | |
Tube material | SS304,SS316,SS310S,SS321,INCOLOY 800,INCOLOY 840 | |
Tube diameter | 4-6mm | |
Diameter?tolerance | -0.02~0.2mm (as your request) | |
Tube length | 15-20mm | |
Length?tolerance | ±1mm | |
Max. Temperature | 500℃ | |
Wattage tolerance | -6%~6% | |
Voltages | 12V/24V | |
Standard cold zone | 5-10mm | |
Insulation resistance (cold) | ≥500MΩ | |
Max. leakage current | ≤0.5mA | |
Thermocouple | Type J , Type K ,Type E | |
