Introduction:

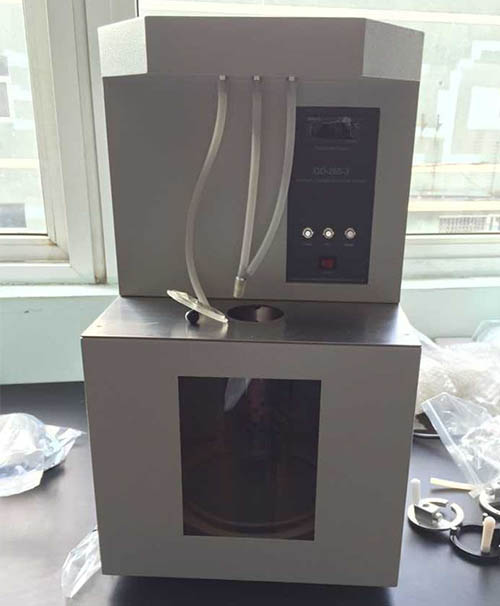

• The instrument is designed and made specially for washing the capillary viscometers, which are used for testing petroleum products.
•  It can be used to wash glass capillary viscometer of various types, such as Pinkevitch Viscometer, Ubbelohde Viscometer, Cannon-Fenske Viscometer, Counter-current Viscometer with three inlet.
• Especially for the capillary viscometer, which are used for testing heavy oil with high viscosity.
• It is high-efficient and time saving than traditional manual cleaning.
• It adopts micro-controller control technology, program control, automatic washing.
• It needs less solvent oil and it is convenient, efficient.
• It can be widely used in the enterprises producing and using petroleum products, colleges and universities, and scientific research institutes and so on, where capillary viscometer are used.

Main technical data:

1. Power supply: AC 220V±10%, 50 Hz;

2. Total power consumption: 700 W;

3. Water bath temperature controlling range: room temperature~80 °C;

4. Ambient temperature: 20°C~35°C

5. Relative humidity: ≤85%

6. Dimension of washer: 320mm×300mm×500mm ( excluding the aspirator )

7. Weight of washer: 10Kg (excluding the aspirator)
