Quick Details

• Condition	New
  Type	Tile Forming Machine
  Tile Type	Steel
  Use	Floor
  Place of Origin	Hebei, China (Mainland)
  Brand Name	YF
  Model Number	51-240-720
  Power(W)	5.5kw
  Voltage	380v
  Dimension(L*W*H)	156000*1000*1300mm
  Certification	BV
  Warranty	1yes
  After-sales Service Provided	Engineers available to service machinery overseas
  Place of Origin	China (Mainland)
  Brand Name	YF
  Use	floor
  Tile Type	floor tile
  Warranty	1year
  After-sales Service Provided	Engineers available to service machinery overseas
  Voltage	380V
  Type	Tile Forming Machine
  Dimension(L*W*H)	156000*1000*1300mm
  Model Number	51-240-720

Packaging & Delivery

Packaging Details:	in container in naked
Delivery Detail:	30 days after receivede your deposit

Specifications

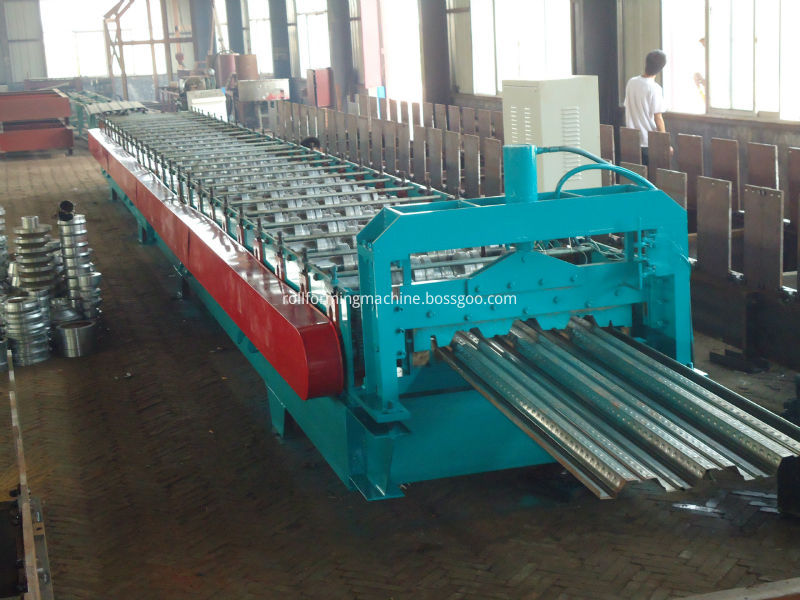

1.High Rib roofing Roll Forming Machine
2. BV Standard
3. Easy to operate
4. PPGI/GI
5.high strength sheet

Other machine we produce

Cold roll forming mahcine, color steel roll forming machine,roof and wall panel machine,decking floor roll forming machine,floor decing forming mahcine, stud and track roll forming machine, Glazed tile roll forming machine ,Z and C purlin machine, and so on

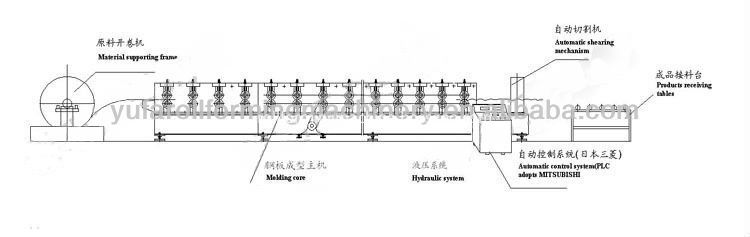

Working Flow :

Un-coiler ---Roll Forming Machine ---PLC Control System ---Hydraulic Cutting ---Exit Rack

Machine Components:

De-coiler	1 set
Forming machine	1 set
Cutting device	1 set
PLC control box	1 set
Hydraulic pump station	1 set
Production support table	1 set

Parameters of the machine :

No.	Spc.
1	suitable material	Color Steel plate, galvanized sheet
2	Feeding width	1000mm
3	Rows of rollers	28 rows
4	Main power	15kw
5	Hydraulic power	5.5kw
6	Main frame	250 channel steel
7	Thickness of raw material	0.8-12mm
8	Transportation system	Chain transportation
9	Thickness of chain	2 inches
10	Productivity	8-10m/min
11	Out diameter of shaft	80mm (solid shaft)
12	Material of shaft	Material of shaft
13	Roller material	45# steel polished and coated with chrome HRC55-60°
14	Shear mould	Gr12
15	Voltage	380V 50Hz 3phases
16	Control system	PLC Frequency Control System with touch screen

Terms :

Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 12months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
