High & Low Temperature Circulating Device - Multi-Function High Quality
Options:
- Blue
Basic Info
| Warranty | One Year |
|---|---|
| Customized support | Oem, Odm, Obm |
| Brand Name | Zzkd |
| Model Number | GDSC-2020 |
| Place of Origin | Henan, China |
Product description

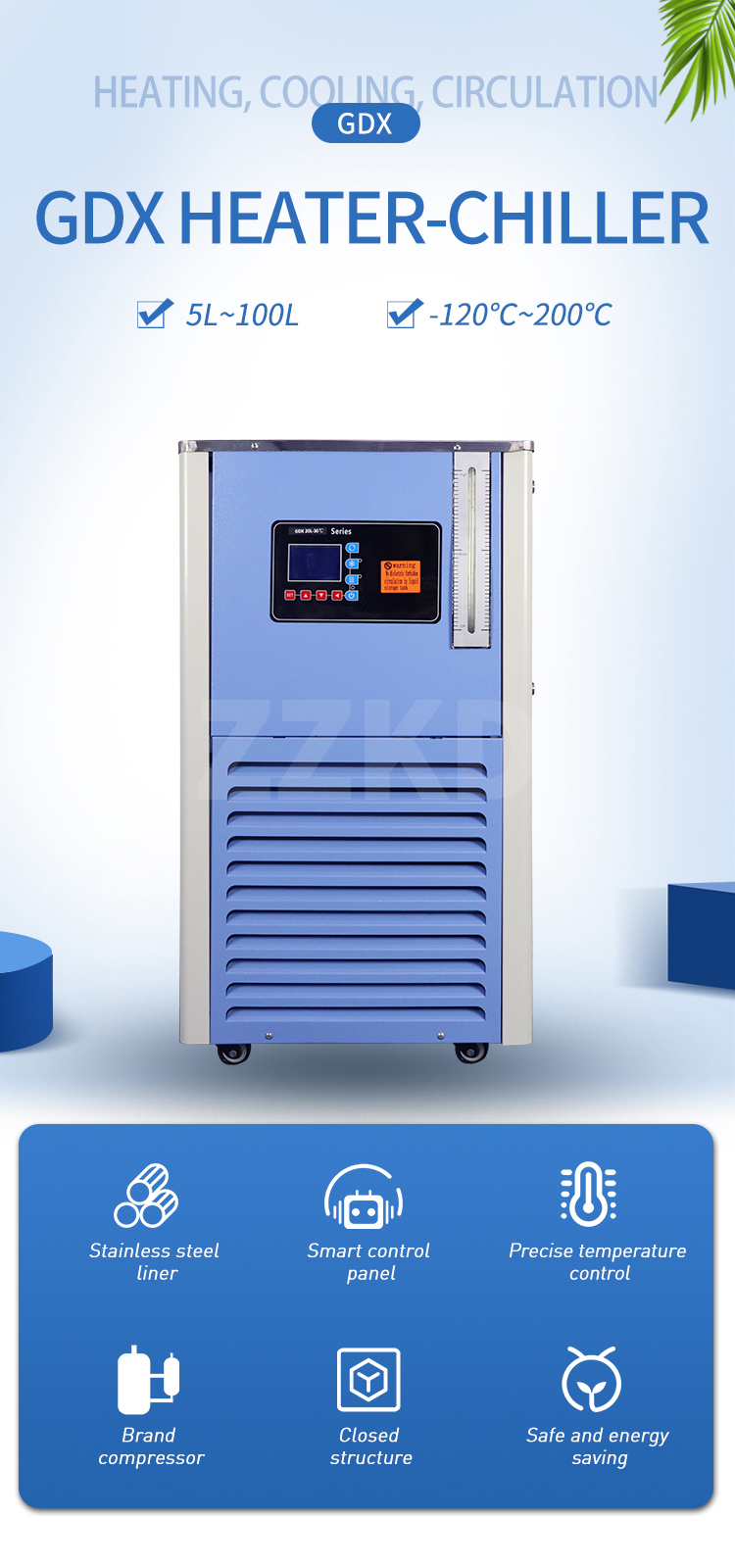

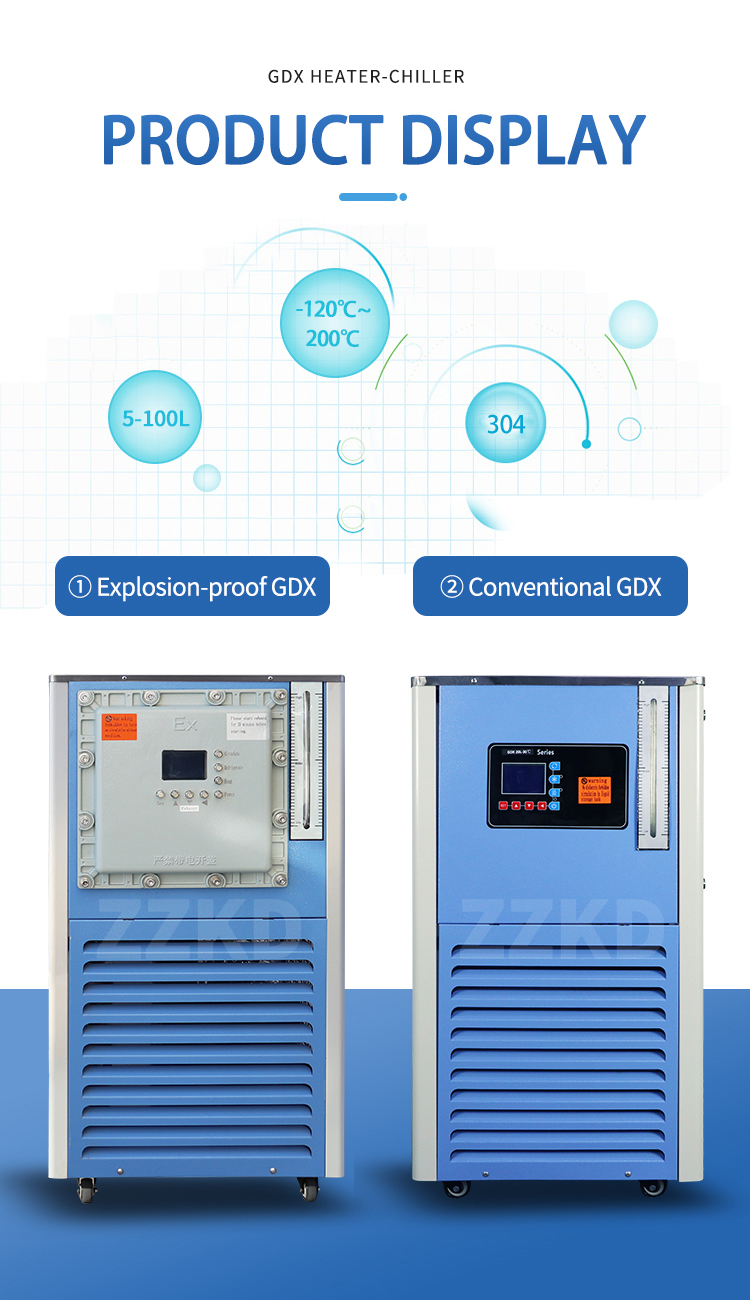

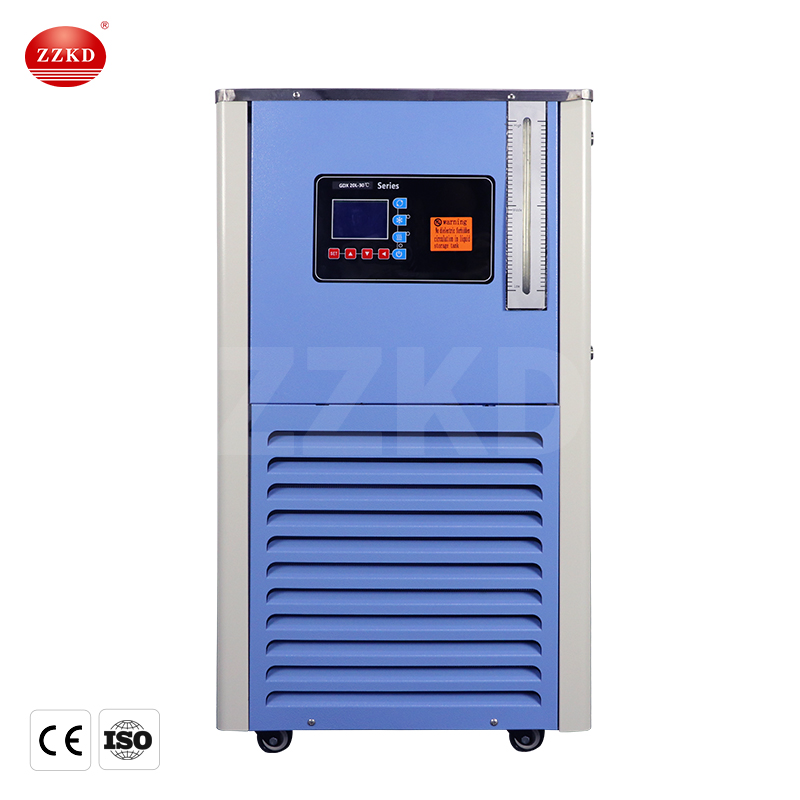

Multi-function High quality High and Low Temperature Circulating Device
?
?

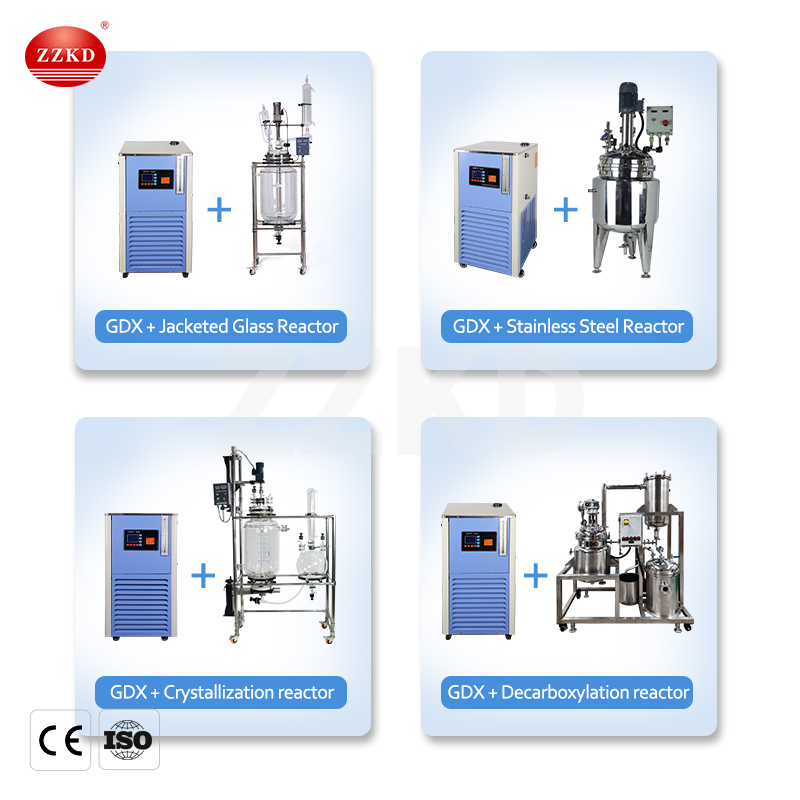

? ? The high and low temperature circulating device is designed on the base of low temp. cooling liquid circulating pump and high temp. oil bath.It is usually used as an ancillary equipment for jacked glass reactor, supply low and high temperature reaction condition.?Widely used Colleges and universities, environmental protection, biochemical, medical, chemical industry, scientific research, etc.
|

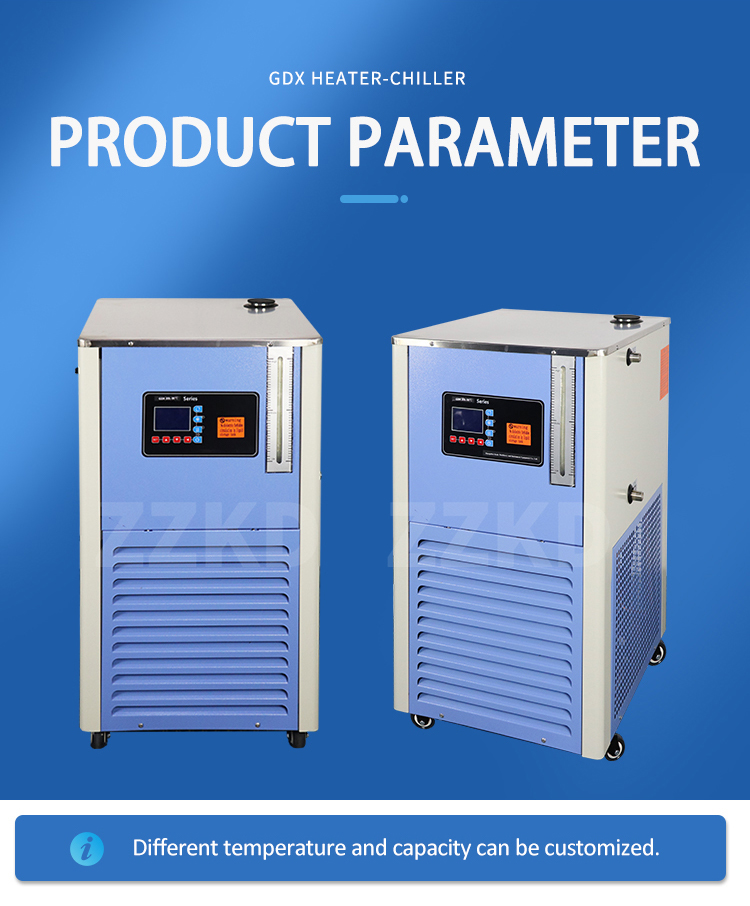

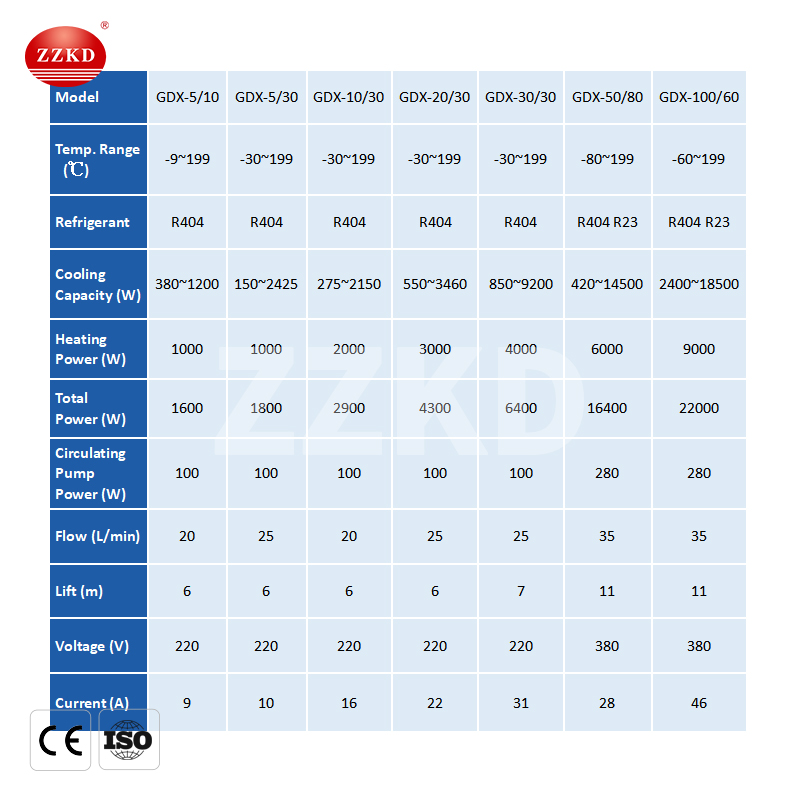

Model |
GDX-5/10 |
GDX-5/30 |
GDX-10/30 |
GDX-20/30 |
GDX-30/30 |
GDX-50/80 |
GDX-100/60 |
|
Temp.?Range ?(℃) |
-9~199 |
-30~199 |
-30~199 |
-30~199 |
-30~199 |
-80~199 |
-60~199 |
|
Refrigerant |
R404 |
R404 |
R404 |
R404 |
R404 |
R404 R23 |
R404 R23 |
|
Cooling? Capacity (W) |
380~1200 |
150~2425 |
275~2150 |
550~3460 |
850~9200 |
420~14500 |
2400~18500 |
|
Heating Power (W) |
1000 |
1000 |
2000 |
3000 |
4000 |
6000 |
9000 |
|
Total? Power (W) |
1600 |
1800 |
2900 |
4300 |
6400 |
16400 |
22000 |
|
Circulating Pump Power (W) |
100 |
100 |
100 |
100 |
100 |
280 |
280 |
|
Flow (L/min) |
20 |
25 |
20 |
25 |
25 |
35 |
35 |
|
Lift (m) |
6 |
6 |
6 |
6 |
7 |
11 |
11 |
|
Voltage (V) |
220 |
220 |
220 |
220 |
220 |
380 |
380 |
|
Current (A) |
9 |
10 |
16 |
22 |
31 |
28 |
46 |
?
?
?
Company introduction:
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company.?The main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, freeze dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high praise in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil,Egypt etc. countries and our customers have been fully affirmation.
?
Factory Size: 1,000-3,000 square meters
Year Established: 2009
Total Revenue : US$1 Million - US$2.5 Million
Registration No.: 410105000067362
Main Markets: Central America, Mid East, Oceania, Africa, South America
