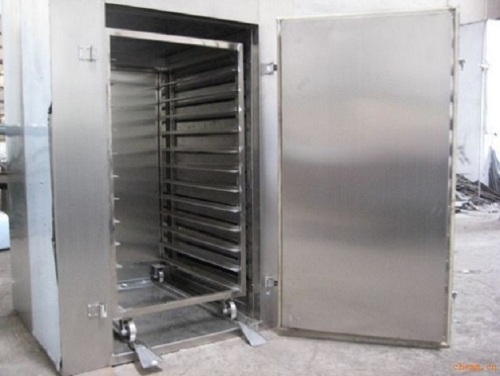

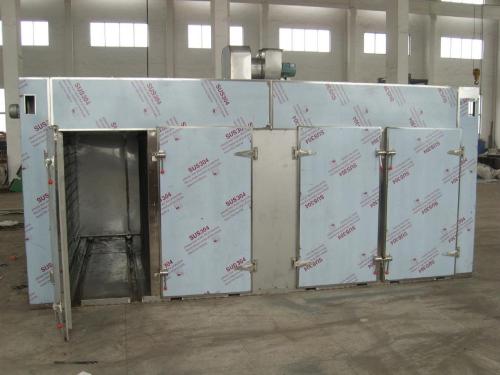

CT-C series hot a ir circulation oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efciency can be up to 50%. The successful design of CT -C hot air circulation oven makes that the hot air circulation drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benet. In1990,the medical management bureau of the State issued the industry standard and the uniform type is RXH.

◎The heat source can be steam, electricity , far infrared, or stesm+electricity . Customer can select one of the heating ways ◎in accordance with practical conditions;
◎Temperature of operation: 50 ~ 140 ℃ for steam, Maximum temperature will be 150 ℃;
◎50 ~ 350 ℃ for electricity or far infrared;
◎There are automatic and computer control systems for customer selection;
◎The normal pressure of steam will be 0.02-0.8MPa (0.2-8kg/cm 2);
◎The equipped power of electric heater will be 15kw Calculated with Model I and the operational power to be used will be 5-8kw/hr;
◎For special requirement, please indicate it in order ;
◎The price of non-standard oven shall be discussed additionally ;
◎If the operation temperature is more than 140 ℃ or less than 60 ℃, please indicate it in order;
◎The size of drying trolly and tray is standardized. They can be exchanged each other;
◎The size of drying tray: 460 ×640×45(mm).?

Hot Air Circulation Dryer Characteristics
Most hot air is circulated in the oven. The Heat ef ciency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly . The heating source might be steam, hot water , electricity and far infrared. With a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy . The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.

Material to be dried
This drying oven is suitable for the material and product hot solidication and dry de-watering in the pharmaceutical, chemical, food, farming, side-product,aquatic product, light industries, heavy industries and others industries. Such as:raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster , powder, particle, drinking agent, pill, packing bottle,pigment, dyestuf f, de-watering vegetable, dried fruit piece, sausage, plastics,resin, electric component, baking varnish and etc.
