Basic Info

Brand:MOSO                                                                                              Usage:Outdoor lighting applications

Model No:LDP-075M062H                                                                             Driving Method:LED Constant Current

Output Type:Single                                                                                     Power Supply Mode:Constant Current Source

Certification:CCC,CE,TUV,ISO9001,RoHS,SGS                                                 Surge Immunity:L-L 5KV;L-G 10KV

IP Rating:IP67                                                                                            Protection:OVP,SCP,OTP

Warranty:5 Years                                                                                        Dimming Function:0-10V,PWM,Resistor,Timming Control

Additional Info

Packaging:10pcs/CTN                                                                                  Productivity:330,000 pcs/month

Place of Origin:China                                                                                   Transportation:Oscean,Land,Air

Certification:CE,CB,TUV,ENEC,UL,BIS,SAA,CCC.etc                                          HS Code:8504409999

Production Description

 LDP 75W series is configurable constant current programmable LED driver with high reliability.

 Use MCU control to limite the delivery power,output current configurable,output voltage self-reacting.

LDP provides built-in timer dimming schedules further increasing the energy savings and CO2reductions

achieved with LED lighting.

The rated models are

 LDP-075M032    LDP-075R032   LDP-075M054      LDP-075R054    LDP-075M062,

 LDP-075R062     LDP-075M141   LDP-075R141      LDP-075M270    LDP-075R270 .

Programming Operation Guide

Products Features:

Technical Parameters:

Basic Specification	Part No.	LDP-075M062H
	Product Series	LDP-075M
	Output Type	Constant Power Design in Constant Current Mode
	Vin (Vac)	90 ~ 305
	Pout (W)	75
	Vout Min	35
	Vout Typ	-
	Vout Max	62
	Iout (A)	0.17~1.67
	Full-Power Current Range (A) (Only applicable for Programmabel Drivers with Constant Power Design )	1.20~1.67
	No Load Voltage Max(V)	70
	Vaux Typical Voltage (V)	-
	Vaux Max Current (mA)	-
	IP	67
	Power Stages	2
	Dimming	0-10V/PWM/Resistor/Timing control
	Dim-to-Off	-
	SCP Mode	Hiccup
	OTP Mode	Decrease Current
	Power Factor @ 220 Vac	0.96
	Power Factor @ 277 Vac	-
	Power Factor @ 480 Vac	-
	Eff. @ 220 Vac	87.0%
	Eff. @ 277 Vac	-
	Eff. @ 480 Vac	-
Application	Installation Type (Independent)	Y
	Installation Type (Built in luminaire)	Y
	Used for Dry & Damp Location	Y
	Used for Wet, Dry & Damp Location	Y
	Class I Luminaire	Y
	Class II Lumianire	-
	TYPE TL	√
	TYPE HL	-
Reliability	Calculated MTBF (hours)	200,000
	Lifetime (hours)	50,000
	Operating Temp min ( °C )	-40
	Operating Ambient max ( °C )	60
Global Certification	UL	√
	UL Listed
	ClassP
	CE	√
	ENEC	√
	CCC	√
	PSE	√
	TUV	√
	KC	√
	KS	√
	CB	√
	BIS	√
	EAC	√
	TUV	-
	SAA	√
	DALI test completed	-
Dimension	Dimension (mm) Length	164
	Dimension (mm) Width	68
	Dimension (mm) Height	39

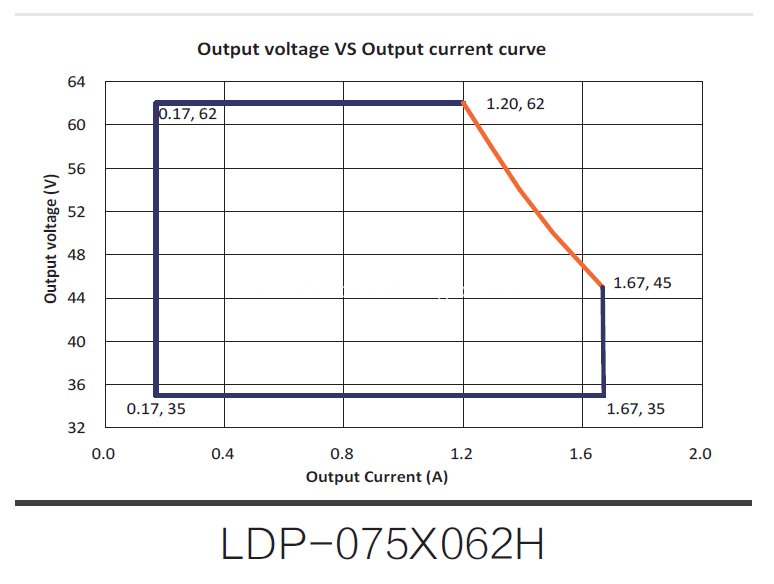

Output Voltage&Current Range:

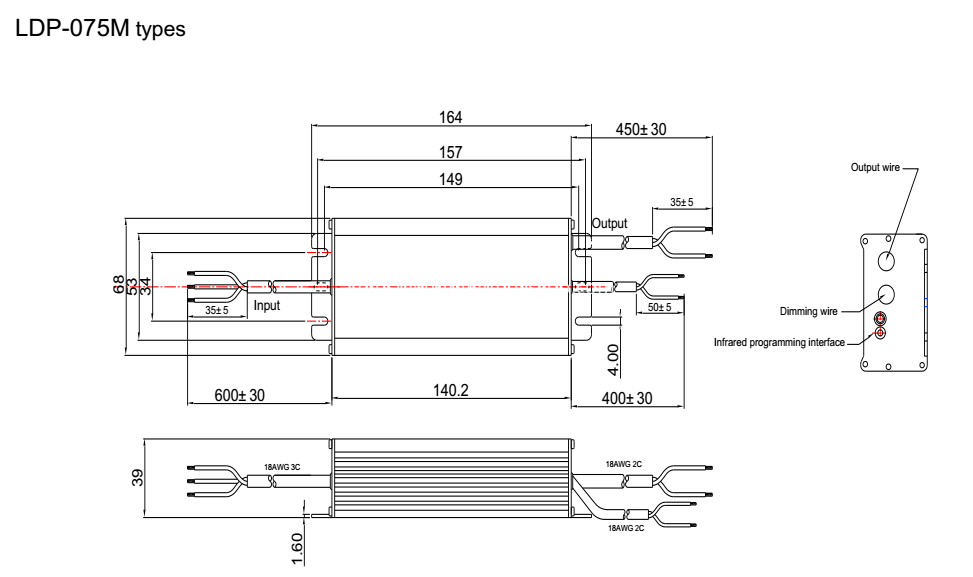

Product Dimension:

75W Constant Current LED Driver Model List

Outdoor Application:

About MOSO

MOSO always dedicates to providing professional outdoor lighting solutions. Please feel free to contact our sales team if you need any support.
