High quality false ceiling cold roll forming machine

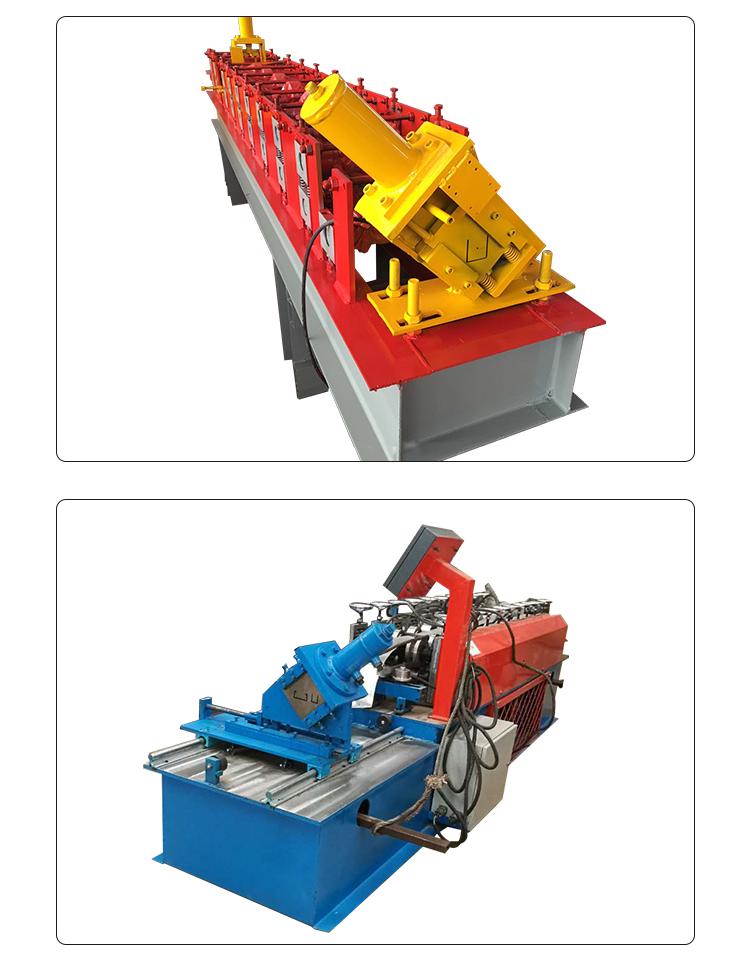

Automatic flying saw cutting keel roll forming machine Product Description   1. Roll Forming Machine: Feature:The color steel sheet is widely used in villa , holiday village , gardening industrial building , storage , scenic tourist area , pavilions , hotel , exhibition hall and so on . And we are emphasis on the detail and the technical update constantly.

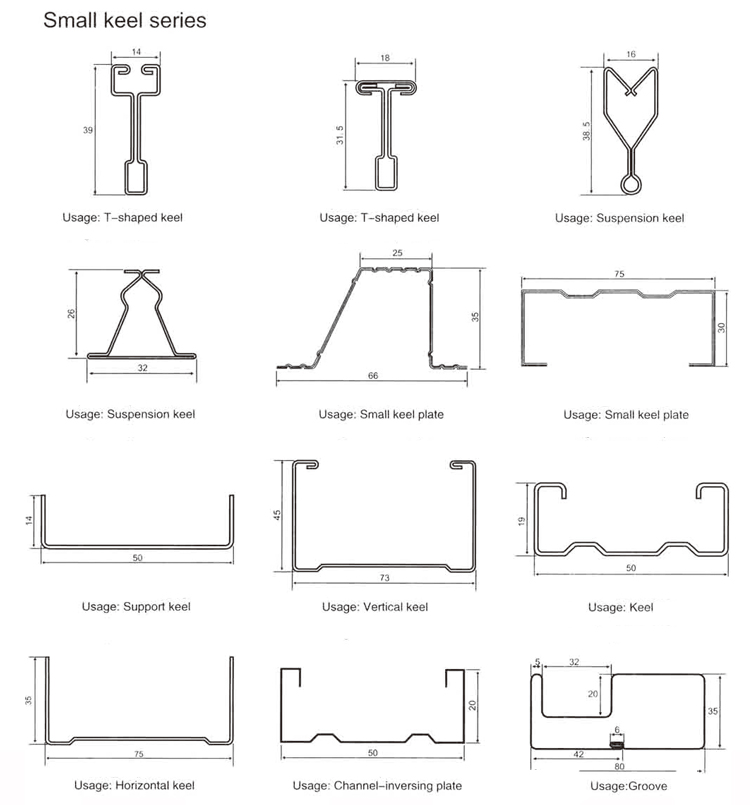

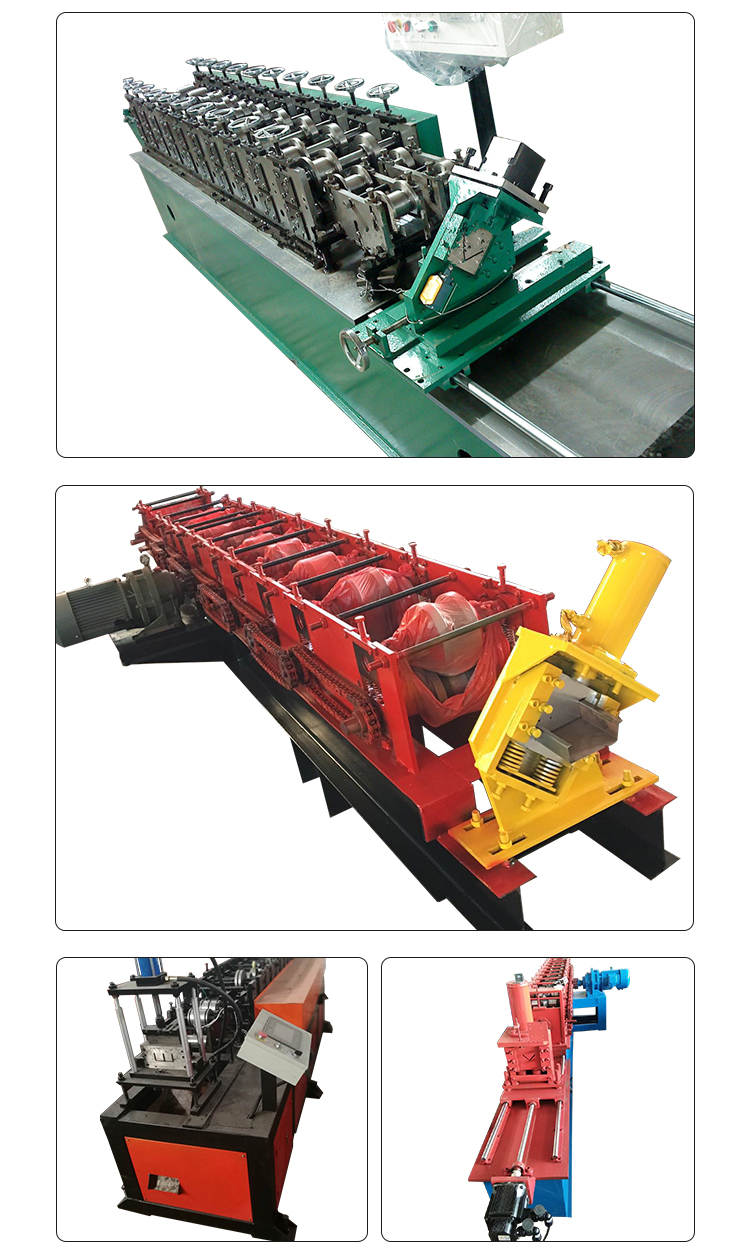

Our light steel keel roll forming machine can be profile custom,and are lower cost,high efficiency,reliable working ,low energy consumption.we can do any type of equipment according to customer requirements.

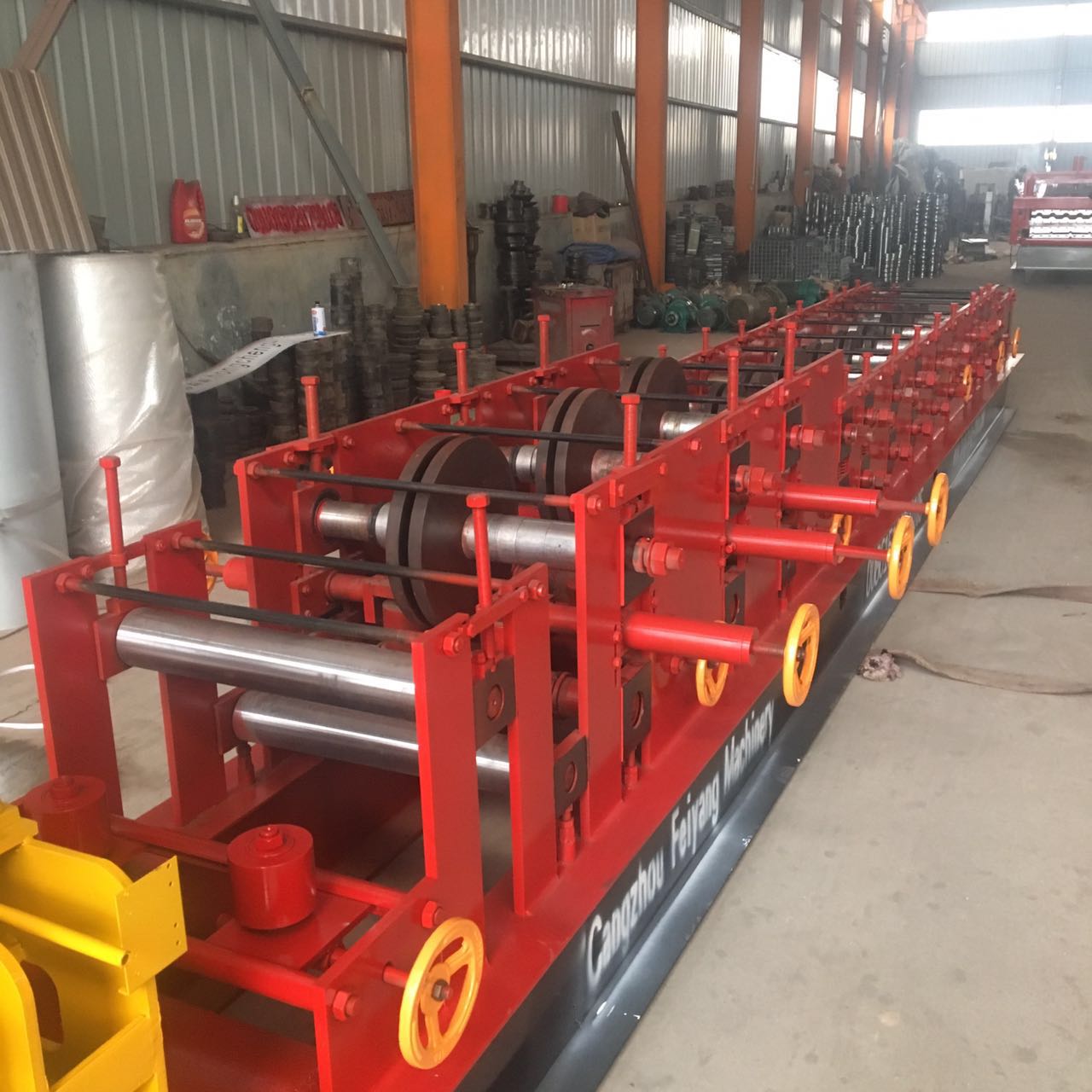

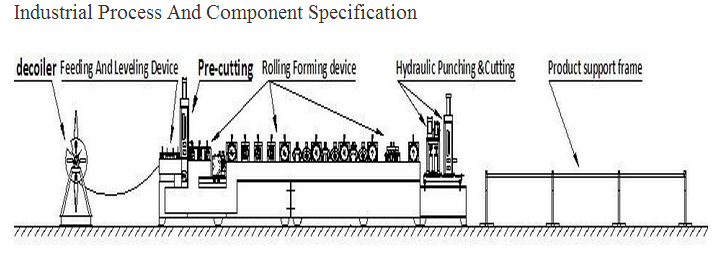

Process With Automatic C Purlin Machine

Technical Specification

1.Manual  Uncoiler

Put the raw material(steel plate) through the beach to manufacture and process

It can guarantee that the products are neat

Parallel and everything is uniformity

Please refer to the equipment regulation to know the function of locate angle iron.

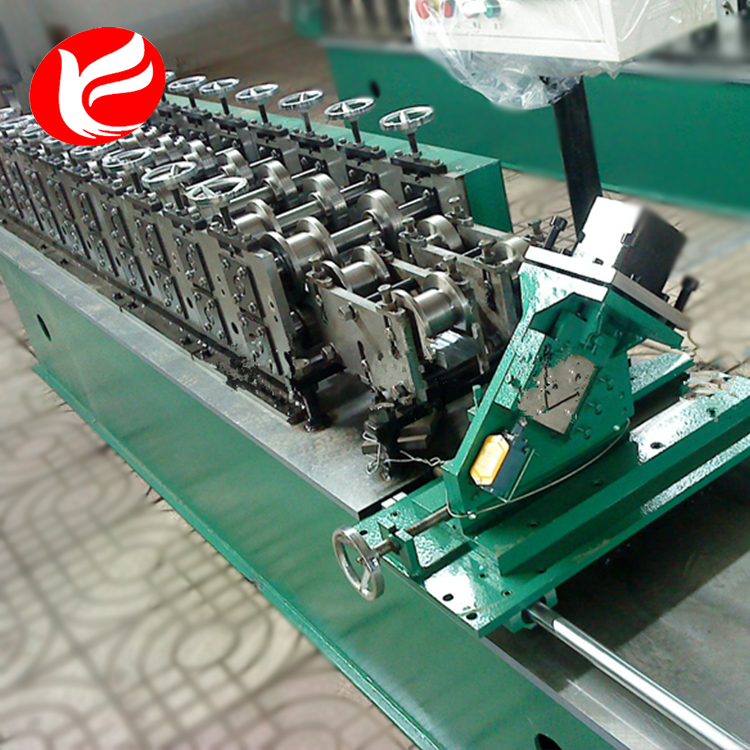

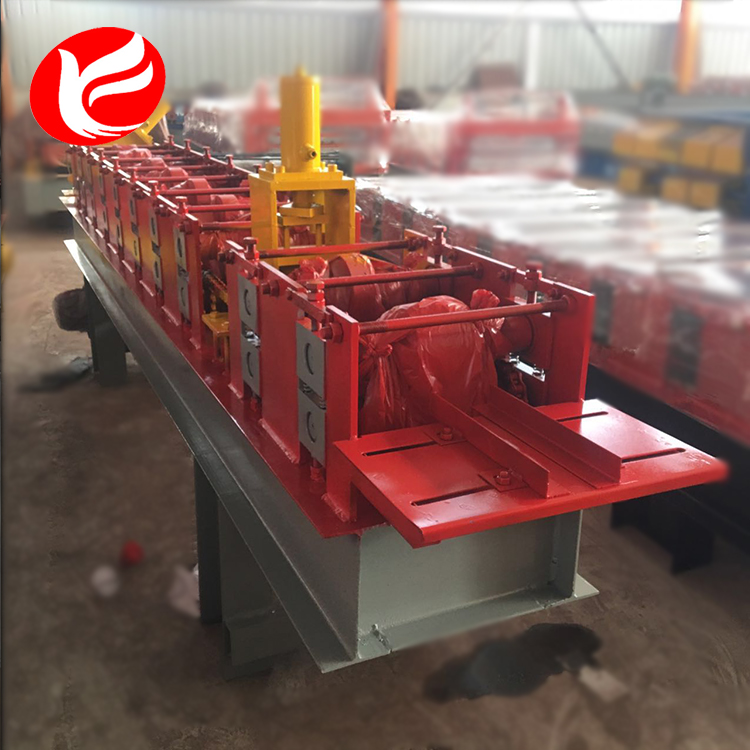

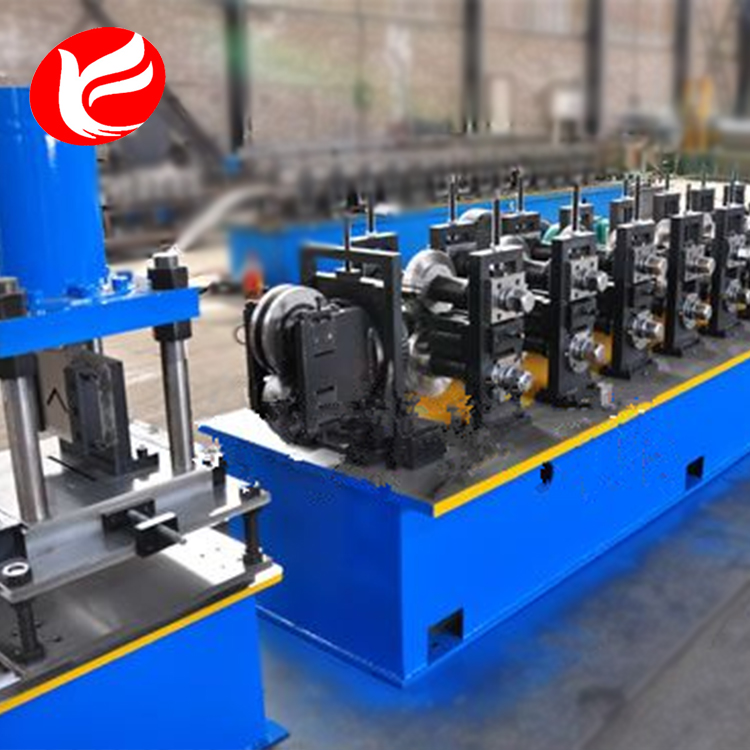

3.Main Roll Forming Machine

Material of rollers:45# steel,roller surfaces polishing, hard plating

The polished surface and the heat treatment towards the molds also can keep the molding

Plate surface smooth and not easy to be marked when it is being stamped

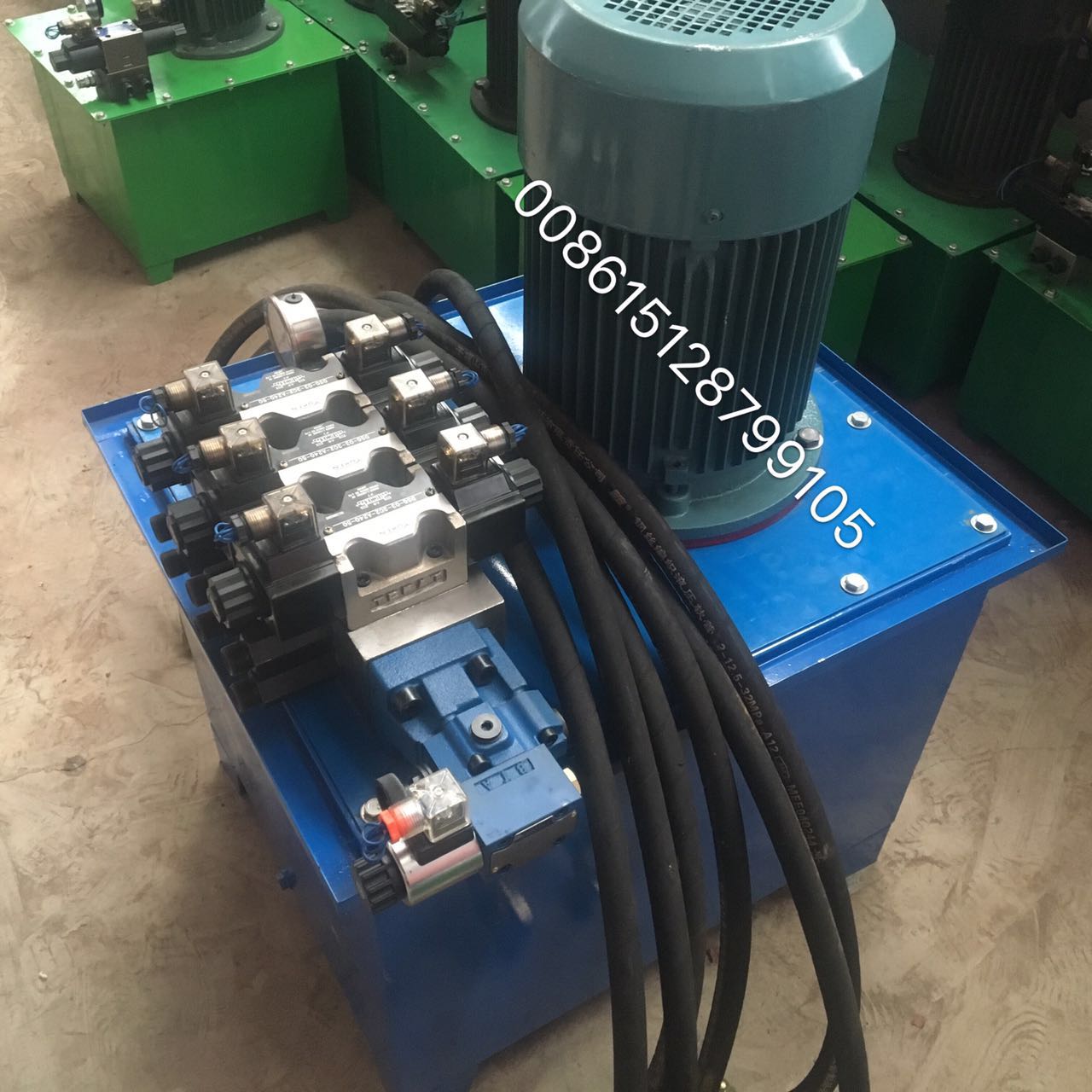

4.Hydraulic System  and  Computer Control Cabinet

Power:4kw,Hydraulic oil: 40#

Hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

The target piece`s length is adjustable and digit of it can be adjusted

Computed mode has two modes: automatic and manual one

The system is easy to operate and use

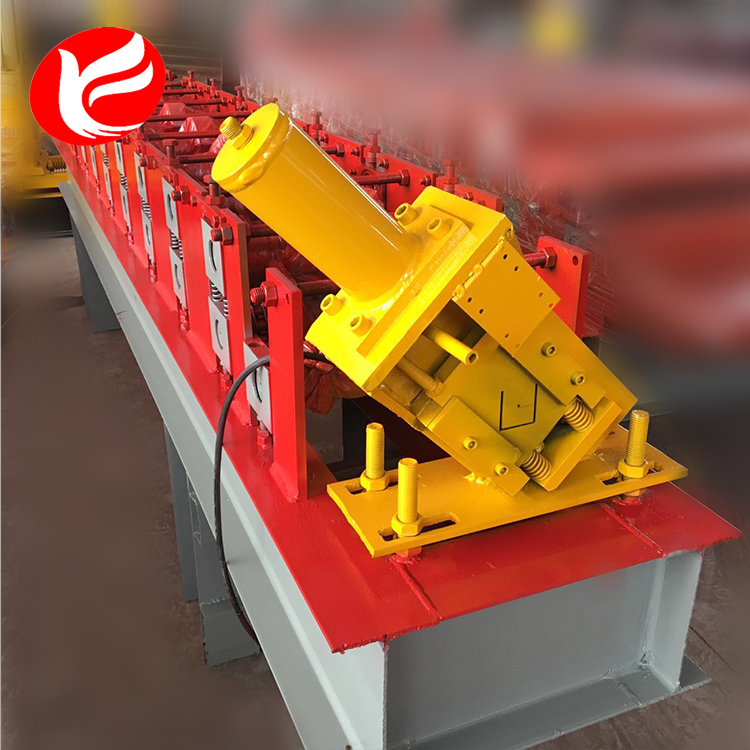

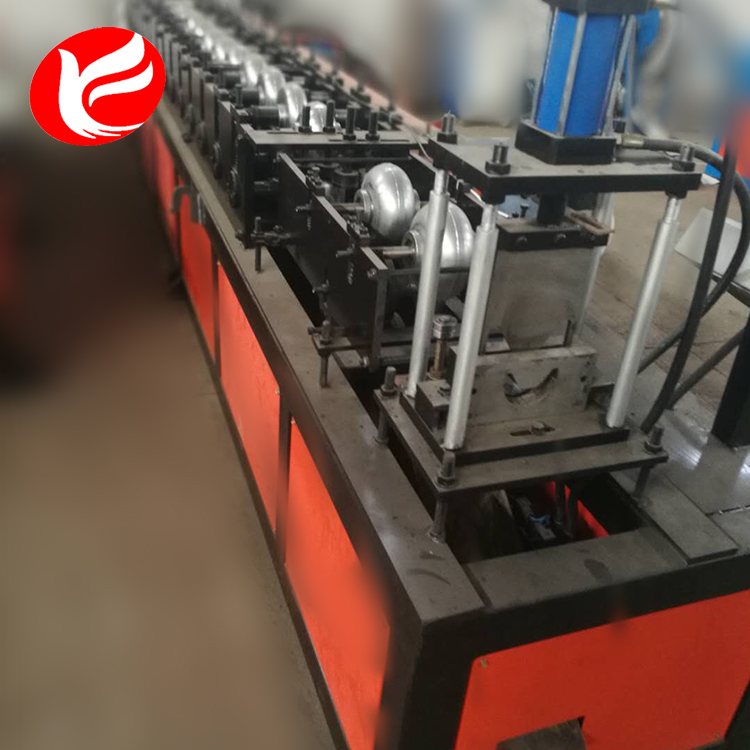

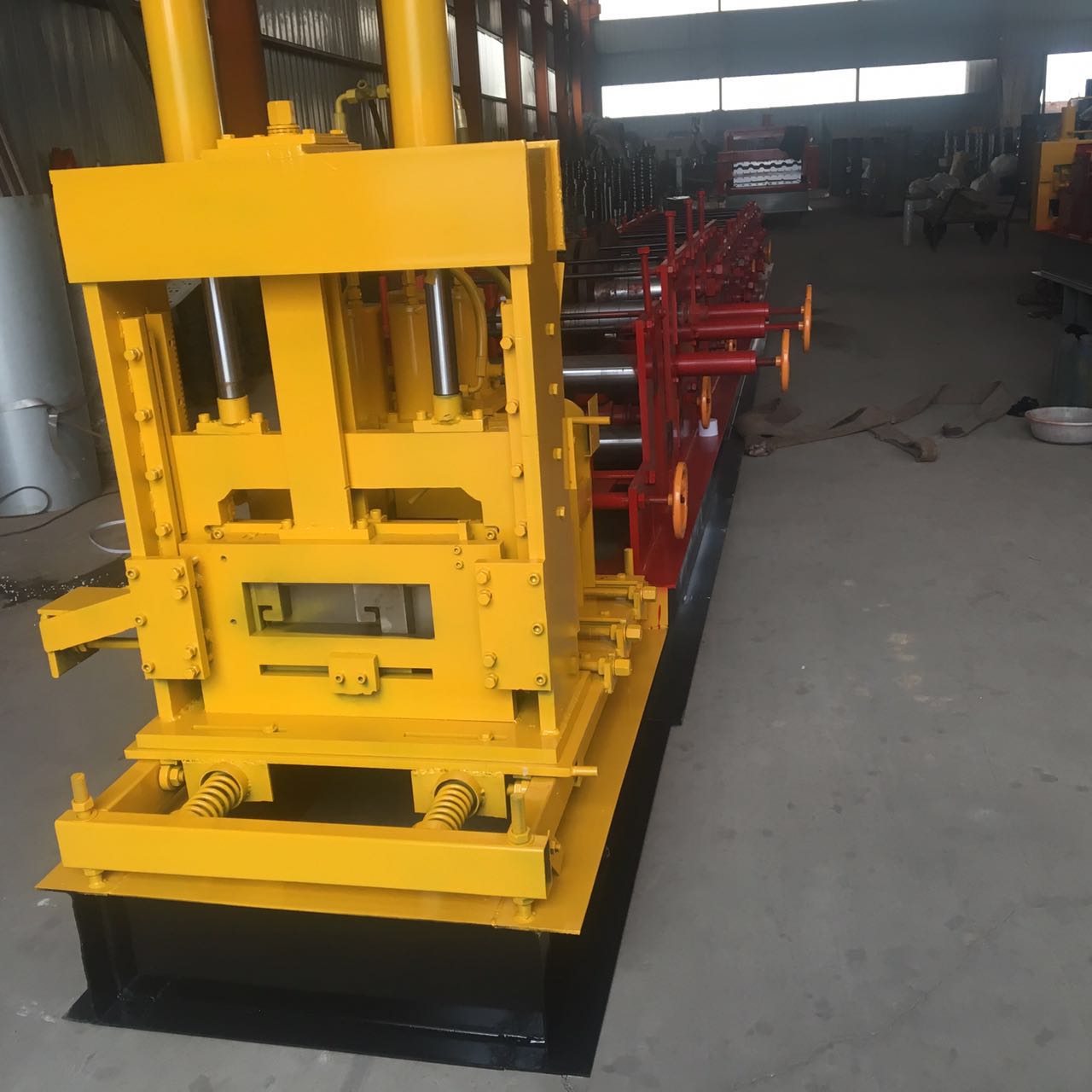

5.Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

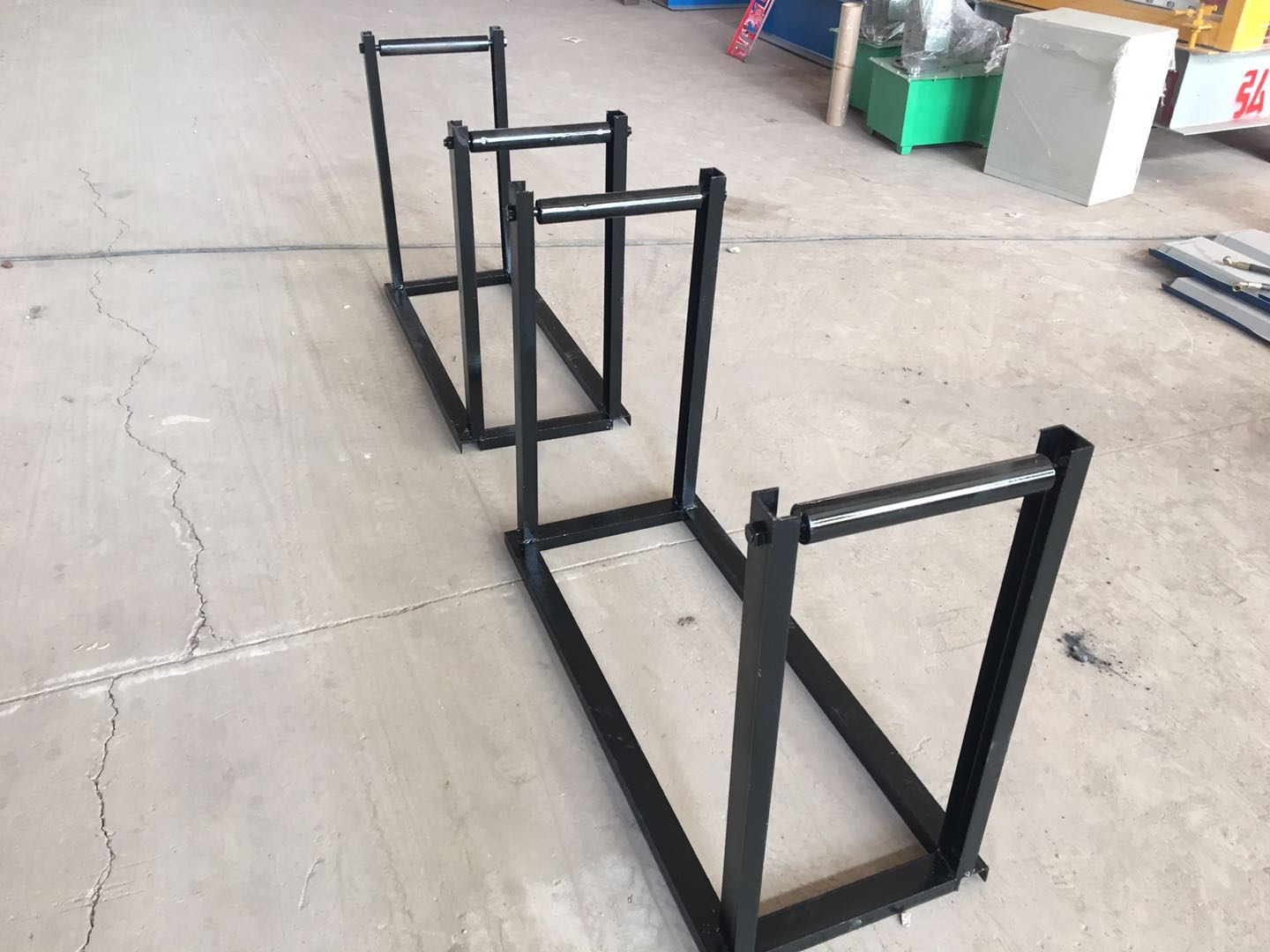

6.Output Table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.

Except this,we can also produce Wall Panel Roll Forming Machine,Roof Panel Tile Making Machines,C Purlin Roll Forming Machine,Steel Door Frame Roll Forming Machine,Double Layer Roll Making Machine,Road Guard Rail Roll Forming Machine,Slitting And Cut To Length Line and so on,welcome your inquiry.
