High speed gear replaceable feeder Peripheral equipment

Get Latest Price

You might also like

Высокоскоростные прессы Стеллажи для тяжелых материалов

1 Set/Sets (MOQ)

S-type Leveler-Precision Flattening, High Speed Stamping

1 Set/Sets (MOQ)

Dual-head Power Material Rack Eifficiency & Time Saving

1 Set/Sets (MOQ)

High Efficiency Clamp Feeder

1 Set/Sets (MOQ)

Precision Feeding, Efficient Production: Disc Feeder

1 Set/Sets (MOQ)

Heavy duty material rack

1 Piece/Pieces (MOQ)

Press Waste suction machine

1 Piece/Pieces (MOQ)

CR light material rack

1 Piece/Pieces (MOQ)

Receiving machine Power Press Peripheral equipment

1 Piece/Pieces (MOQ)

Disc feeder peripheral equipment

1 Piece/Pieces (MOQ)

Basic Info

Model No.
Brand Name	Samhoor
Whether CNC machine tool	Normal
status	New
Nominal force (kN)	Other
place of origin	China
Core selling point	Automatic
warranty period	1 Year
Applicable industry	Hotels, Building Material Shops, Manufacturing Plant, Restaurant, Machinery Repair Shops, Retail, Food &Amp; Beverage Shops, Advertising Company, Other, Printing Shops, Construction Works
Out-of-warranty service	Field Maintenance And Repair Service, Video Technical Support, Spare Parts, Online Support
Where to provide local services (in which countries are there overseas service outlets)	Viet Nam, India, Russia
Showroom location (in which countries are there sample rooms overseas)	Viet Nam, India, Russia
Marketing type	Other
Mechanical test report	Provided
Video factory inspection	Provided
Core component warranty period	1 Year
Core components	Bearing, Gear, Motor, Other

Product description

Brief description of mechanical characteristics of high-speed gear replacement feeder:High speed gear replaceable feeder Peripheral equipment Application: This feeder is specially customized for high-speed processing environments, especially for scenarios where high feeding accuracy is required in the production of punch products. Whether it is automotive, aerospace, precision electronics, or other high-precision component manufacturing industries, it ensures that products meet high quality standards.

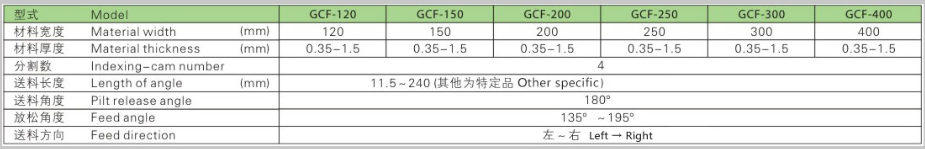

High speed gear replaceable feeder Related pa

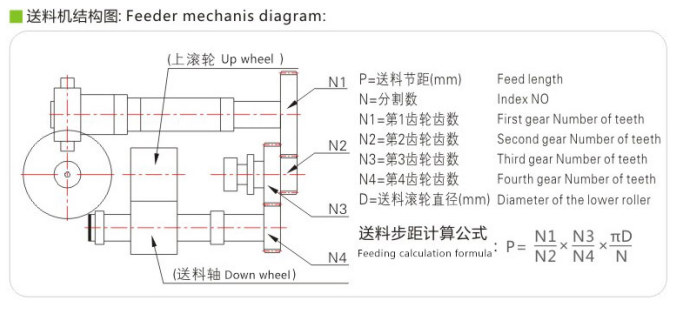

Feed adjustment mechanism: The device achieves precise adjustment of feed length through innovative gear change technology. Users only need to replace a combination of 1 to 4 gears, and can easily change the feed length without tedious debugging, significantly improving productivity and flexibility.Power press Peripheral feeder.

High speed gear replaceable feeder Peripheral

Standard equipment Overview:

- 4 sets of high-precision grinding gears have been installed: These precision grinding gears ensure the stability and accuracy of the feeding process, and maintain excellent wear resistance and service life even under long and high-intensity operations.

- Pneumatic material clamping and release system: Adopts advanced pneumatic control technology to grip and release materials quickly and stably, effectively preventing slip and deformation, and improving feeding accuracy and reliability.

High speed gear replaceable feeder Optional advanced configuration:

- Final material detection photoelectric sensor: the use of high-precision photoelectric induction technology, real-time monitoring of material surplus, when the material is about to be used up, instant alarm, to ensure production continuity and stability.

- Extended material support frame: For long material processing needs, optional extended material support frame is provided to ensure smooth and accurate material feeding process.Punching press Peripheral feeder.

- Material humidity control devices (RH devices) : In certain environments, material humidity can affect processing performance and feed accuracy. Therefore, an RH device can be selected to control the material's precise humidity, ensuring production stability and feeding accuracy.

In short, the high-speed gear replacement feeder has become the core equipment in the field of high-speed machining with its excellent mechanical properties and flexible configuration. In terms of feeding accuracy, production efficiency and material handling, it shows significant advantages.
