High Speed String Braid Machine
Get Latest Price
You might also like
Basic Info
| Brand Name | xinglong |
|---|---|
| Condition | New |
| Origin | China |
| Transport Package | Wooden Case |
| Certification | Ce, Iso9001: 2000 |
| HS Code | 84479090 |
Show More
Product description

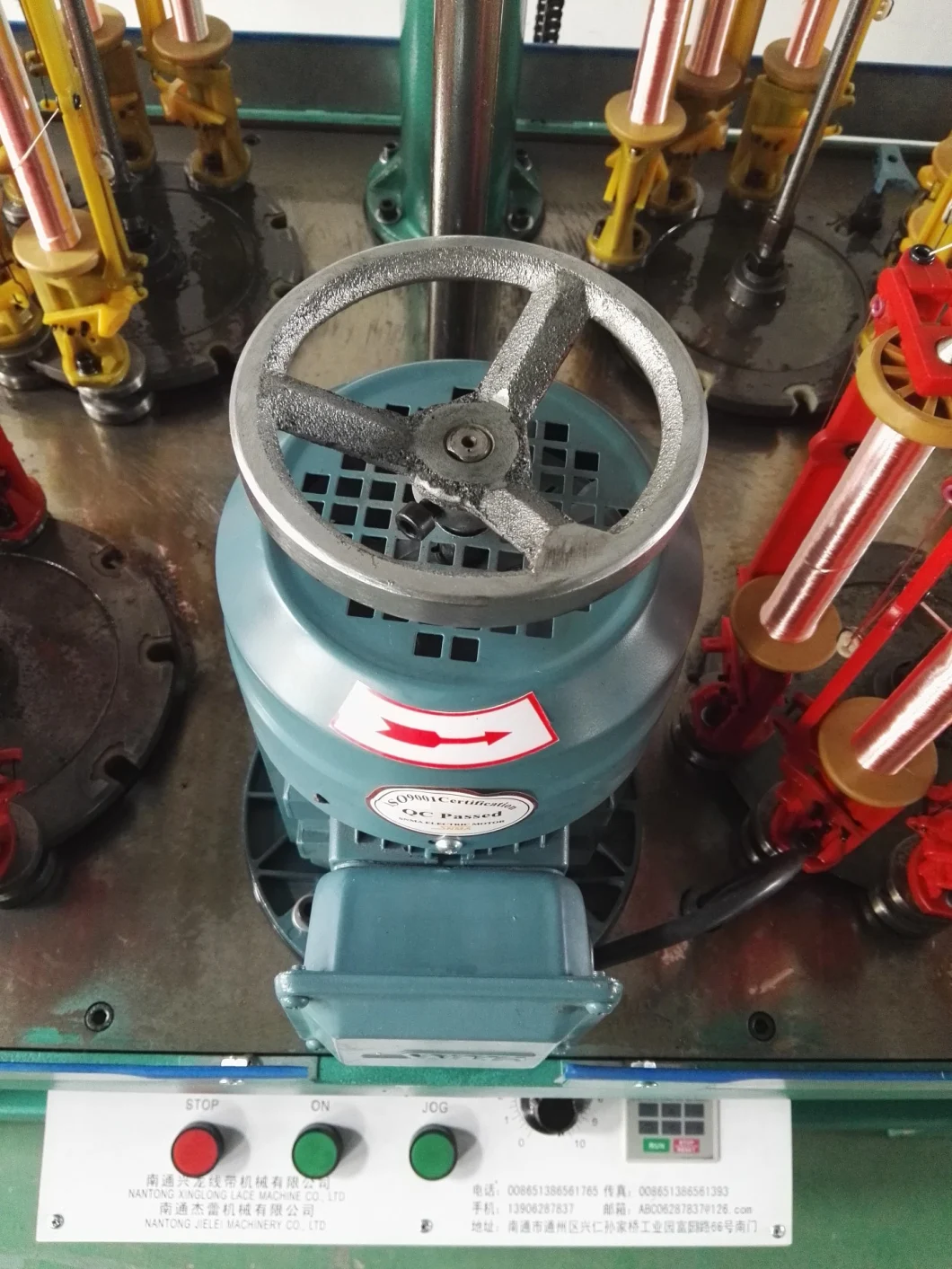

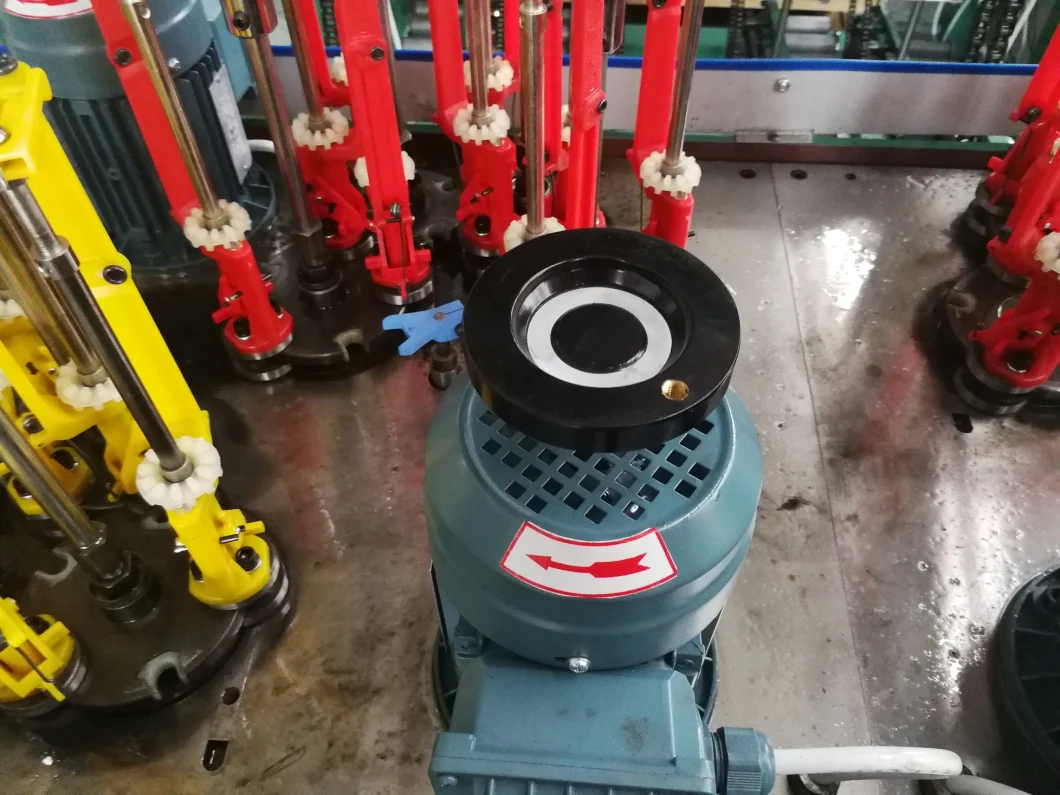

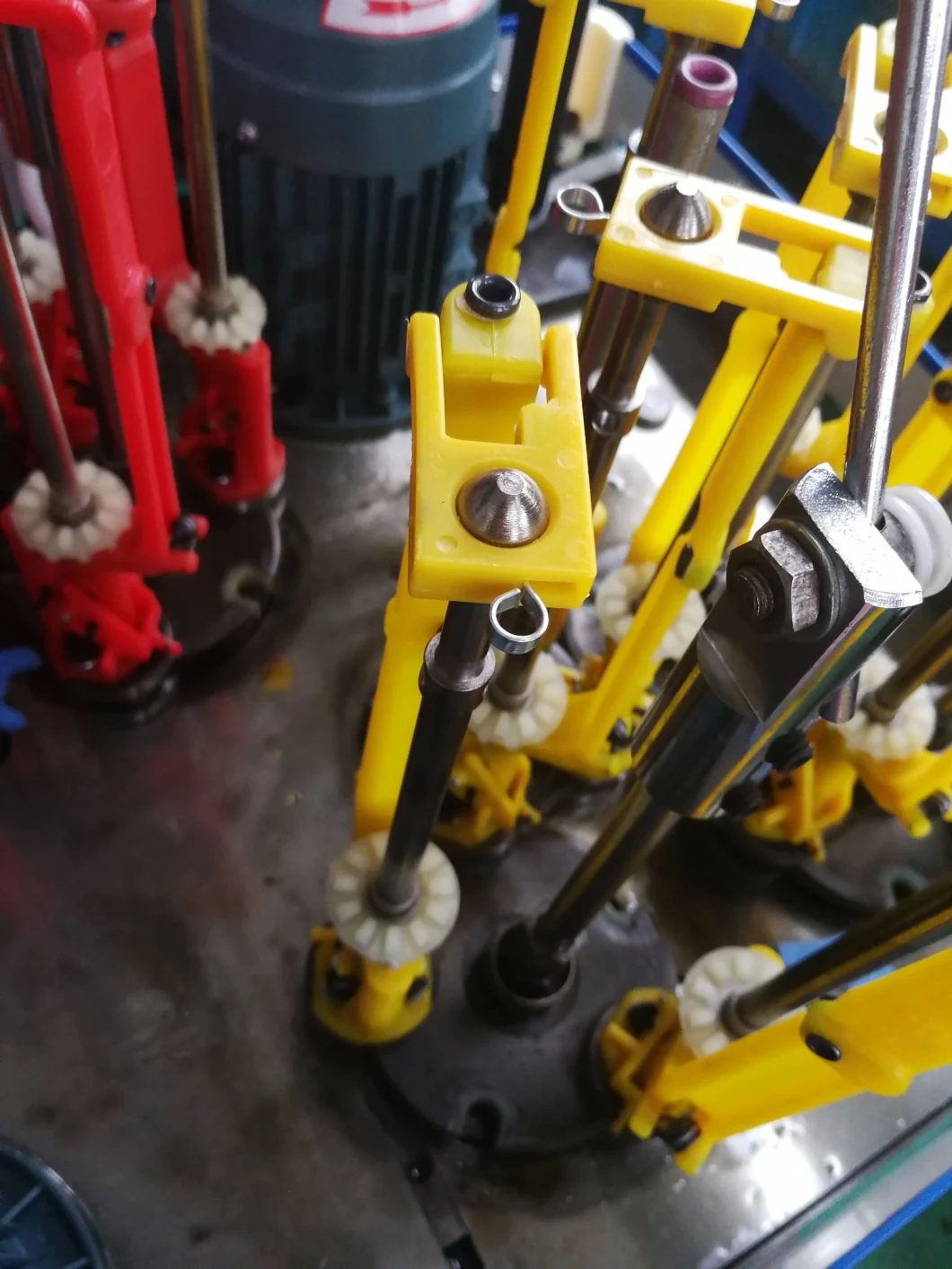

The drive motor of PGF hi-speed knitting machine is applied with the technique of frequency conversion, which allows the stepless speed control even during the operation, for example: while the feeding breaks (finishes), the machine is automatically stopped; while the auto feeding device is used for knitting core fabirc, for both thick or thin core material within the limit, the delivery is uniform; the machine is also stopped automatically while core breaking(finishing) to avoid degrated product. And the braided fabric that is made with PGF hi-speed knitting machine is of higher qualify and more reliable.
Basic Technical Parameters
Rated power of motor: 075W
Rated speed of motor: 1390r/min
Number of spindle: 16*4 960*790*700(L*B*H)
24*2 1240*620*700(L*B*H)
Specification of quill:(Φ48*160)mm
Spindle speed: 350r/min
Method of speed adjustment: frequency-change and stepless speed regulation
Voltage of power supply: AC220V±10%HUO or AC380V±10%
Frequency of power supply: 50HZ±5%
Ambient temperature: -10oC-40oC(no condensation and no freeze)
Ambient humidity: under 90%RH(no condensation)
Operating environment: no water droplets, steam, dust and grease stain;
no putridity, flammable gas and liquid;
no drifting dust and metal particle;
solid base, no serious vibration;
no interruption of electromagnetic noise.

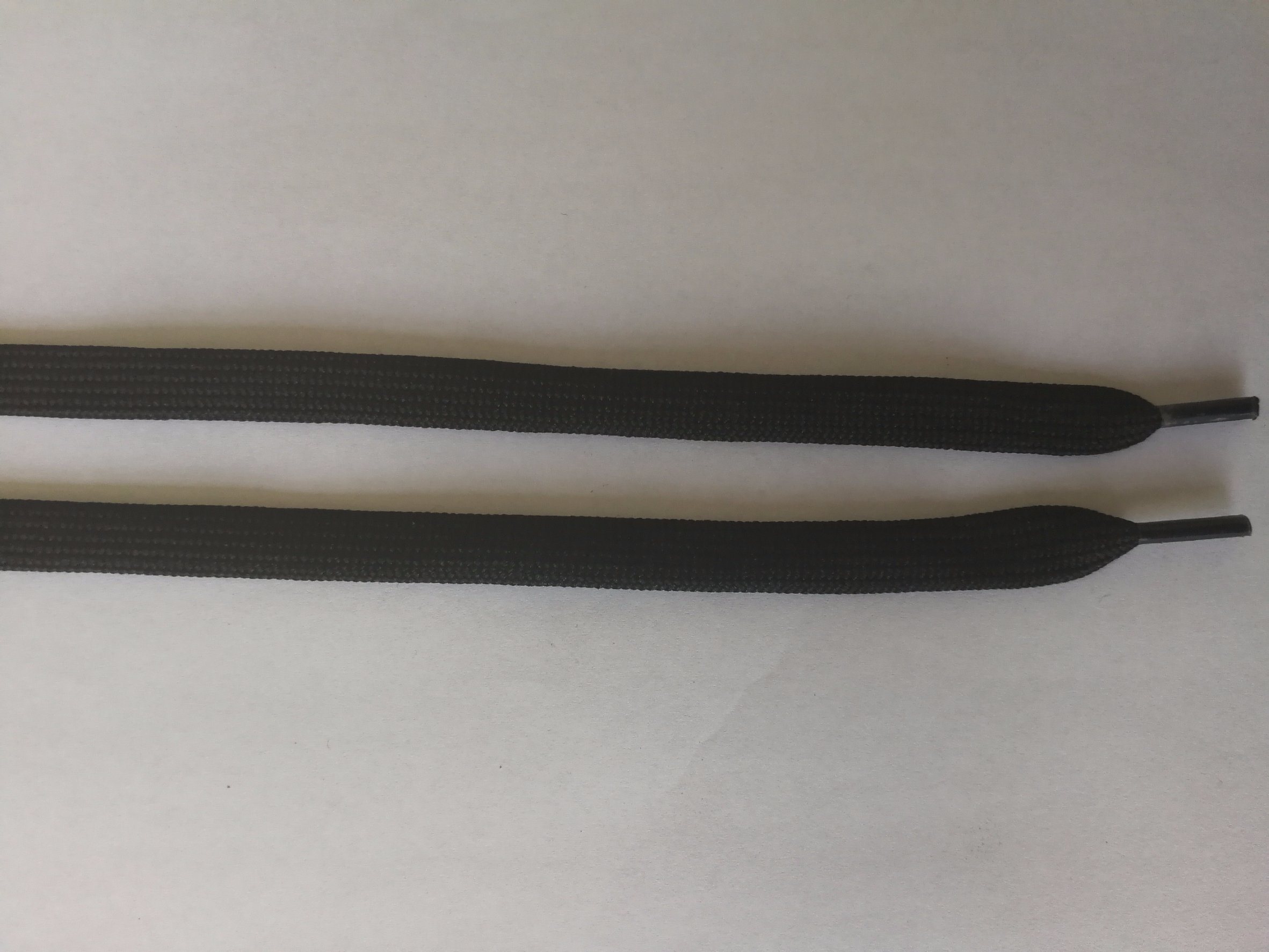

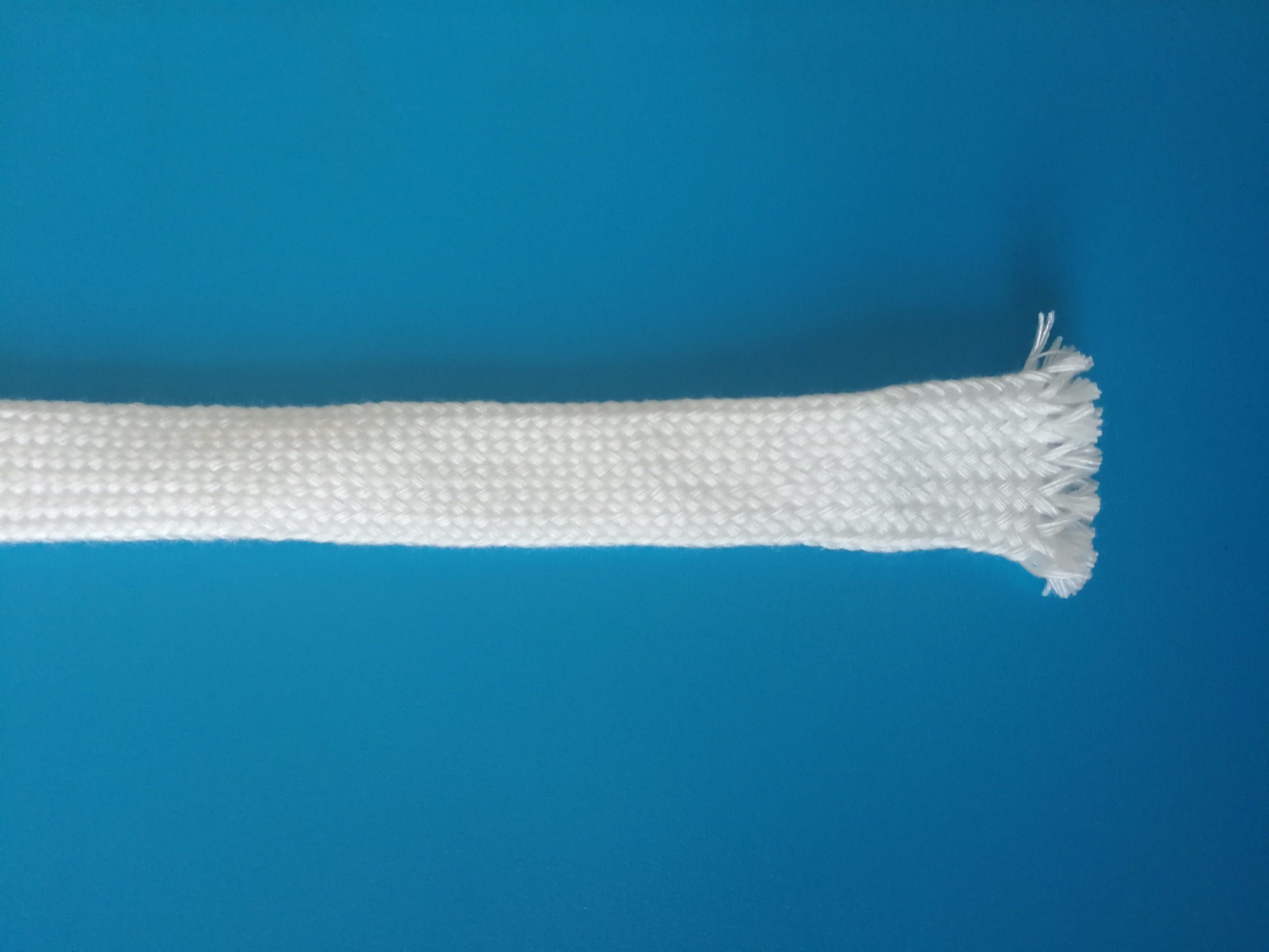

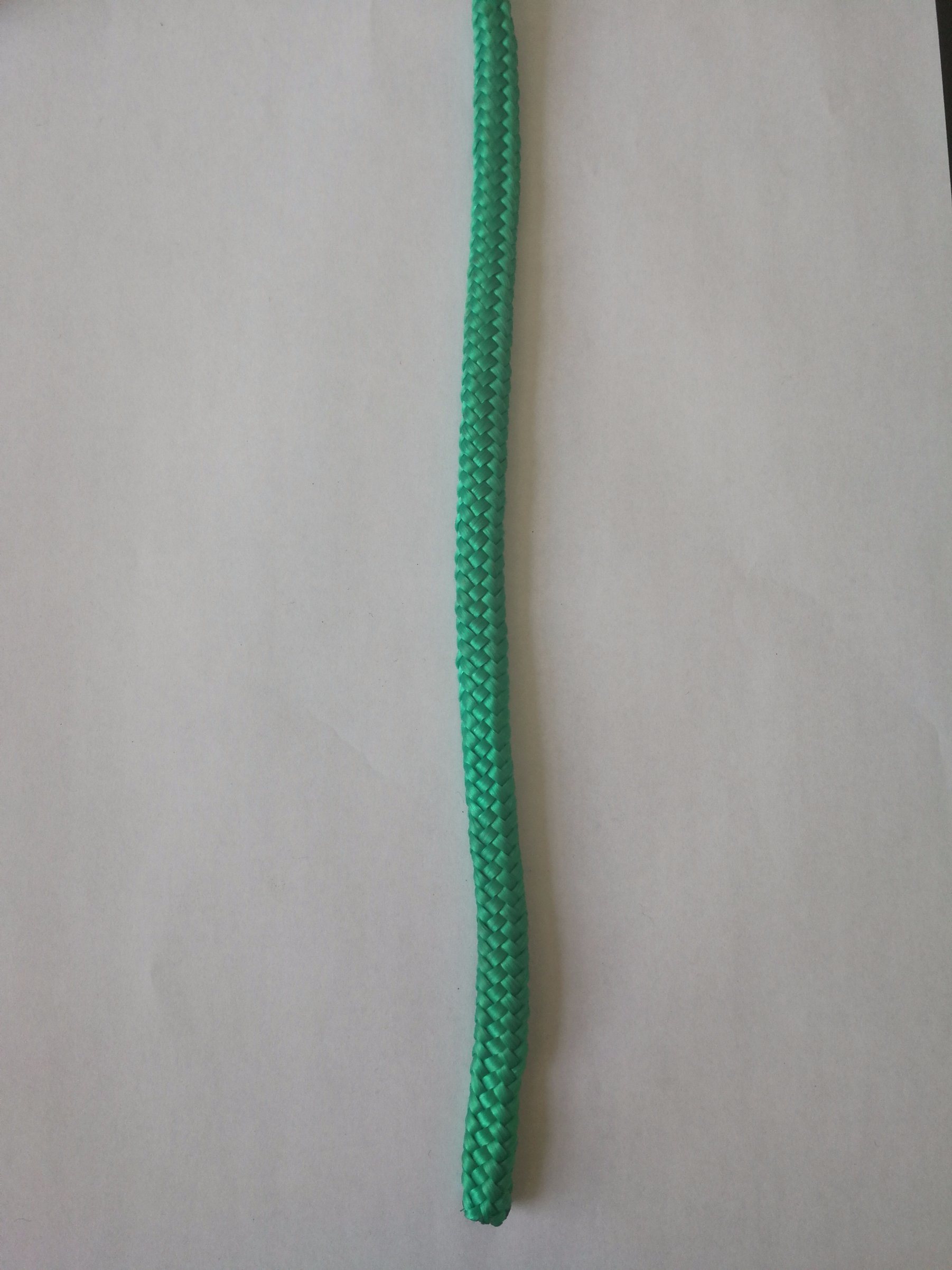

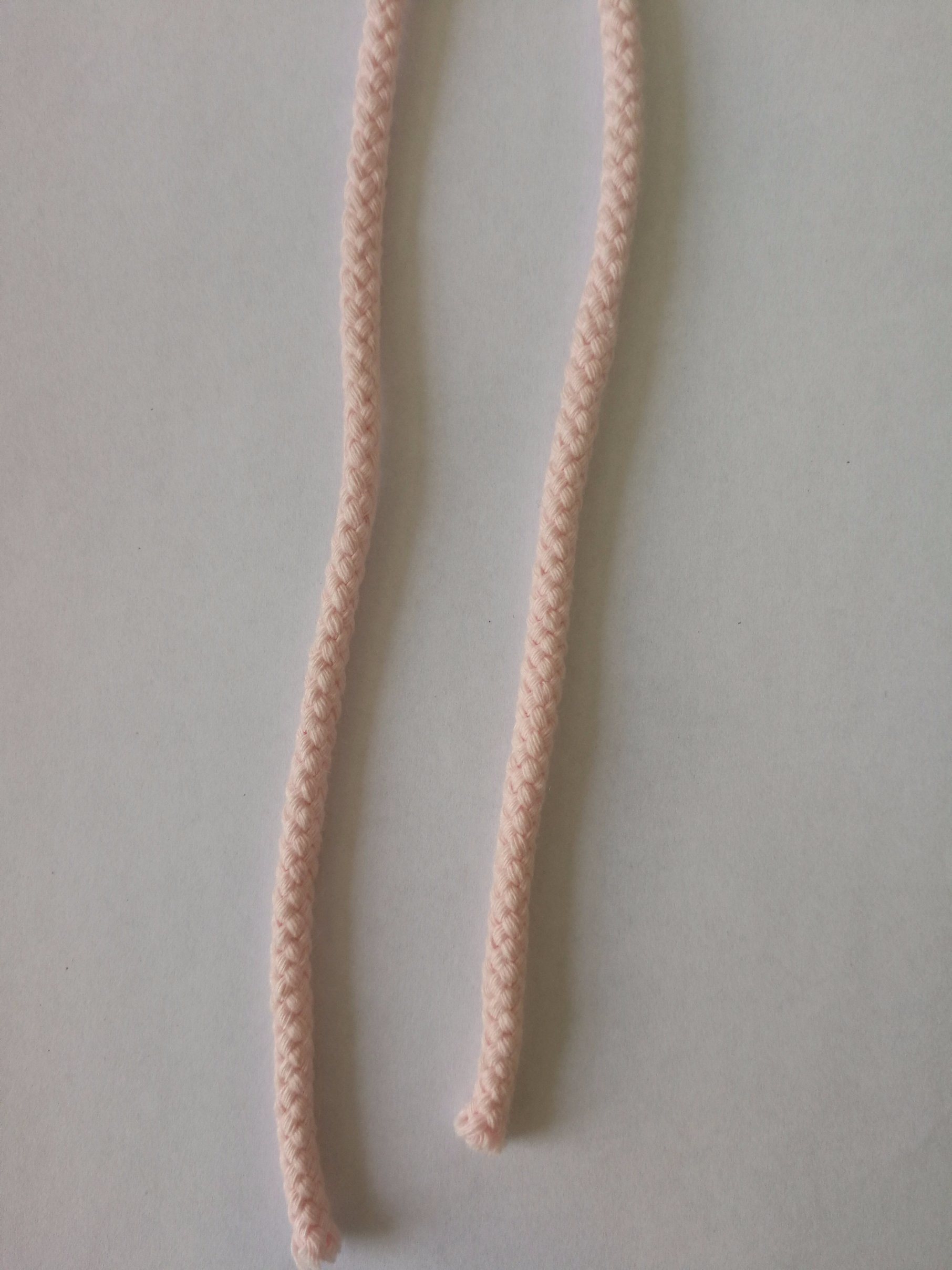

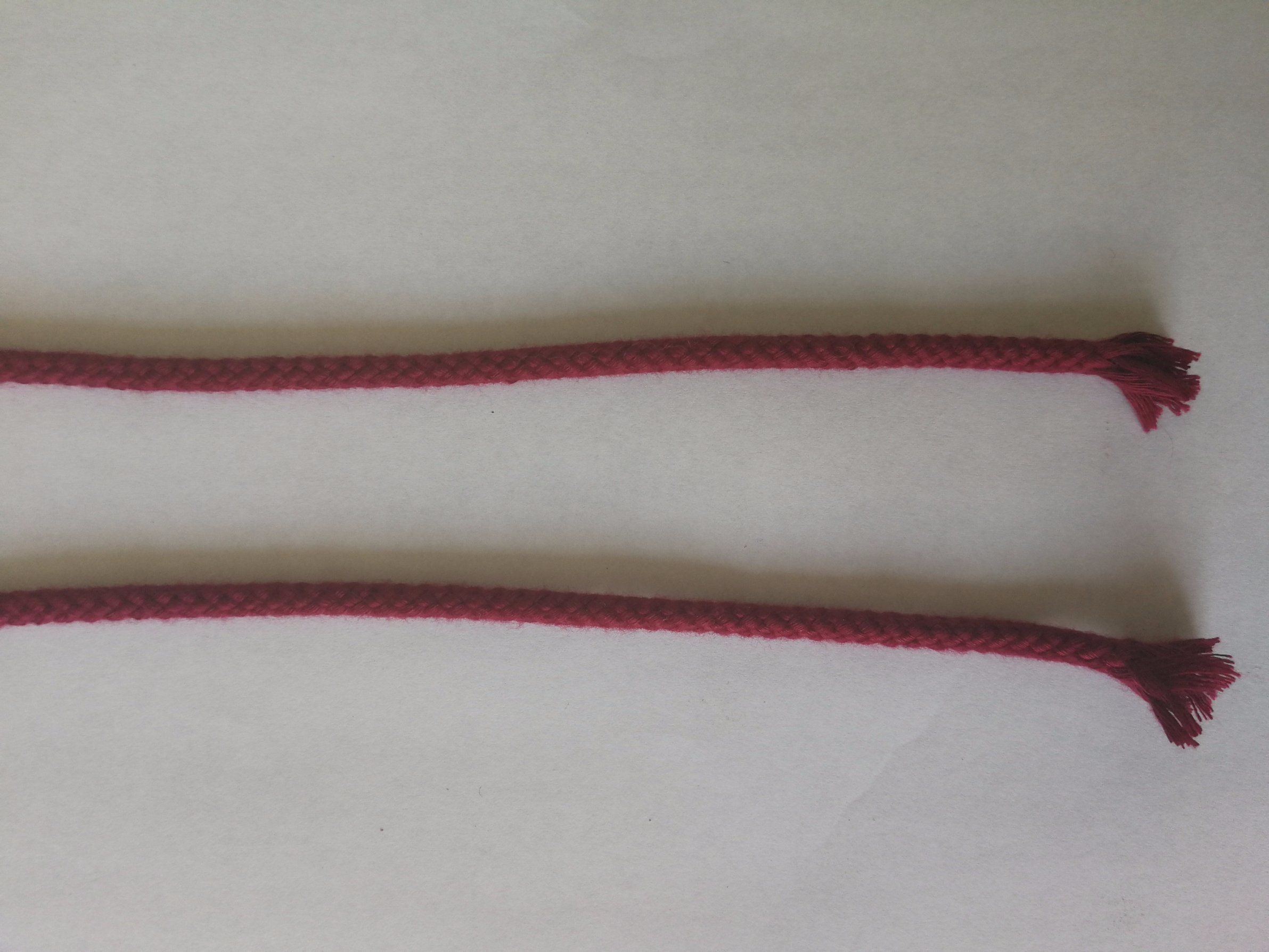

PGF hi-speed knitting machine is capable to knit curtain belt, shoe belt, cummerbund of the shapes of column, pipe, and flat, and pipe-shape jacket, and so on.
Various kinds of material are adoptable for PGF hi-speed knitting machine, such as cotton yarn, chemical fibre yarn, silk, soft metal wire, and so on.
