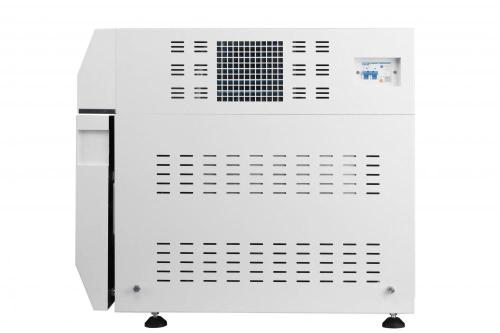

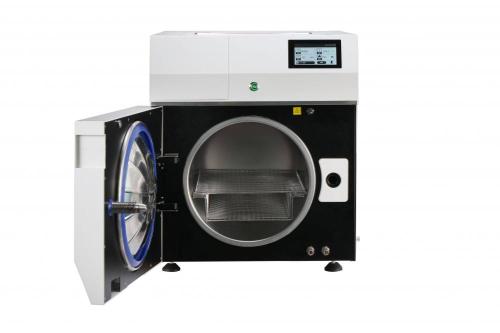

horizontal rectangular autoclave Machine
Options:
Basic Info
| Model No. | EC-X45 |
|---|---|
| Brand Name | ESCO MEDCO |
| Types of | Pressure Steam Sterilization Equipments |
| place of origin | China |
| Medical device classification | Class Ii |
| Warranty Service | 2 Years |
| After-sales service | Free Spare Parts, Online Technical Support |
Product description
ESCO Medical, is professionally engaged in the production and sales of dental medical equipment and relevant products. Product qualification rate, parts inspection rate, production inspection rate all reach 100%. And we provide one-stop service.
ESCOMEDCO provides you with the best autoclaves and other dental products. Our Class B sterilizer has a wide range of uses, such as beauty salon autoclave, laboratory autoclave, tattoo studio autoclave, veterinary autoclave, and so on. The complete sterilization process can be completed in as fast as 30 minutes, which is your best choice.
|
Specific Data of EC-45L
|
|
|
Model
|
EC - 45 L
|
|
Power supply
|
220V/50Hz
|
|
Sterilization temperature
|
121℃ and 134 ℃ two options
|
|
Sterilization chamber
|
304 stainless steel, with thickness ≥ 3 mm
|
|
Min.installation depth of bench
|
600mm
|
|
clean water tank
|
sealed, 7 liters
|
|
Lock ystem
|
Self adaptive thread lock
|
|
Drying system
|
AI intelligent drying
|
|
Data output
|
thermal printer, tag printing, SD card memory
|
|
Shortest sterilization cycle
|
less than 35 Min.
|
|
Dimension
|
576*726*647mm (L.W.H)
|
|
Chamber size
|
319*617mm
|
|
Net weight
|
104kg
|
|
Gross weight
|
111kg
|
|
Parameters of Preset Programs
|
|||||||
|
Program
|
Sterilization temperature（℃））
|
Temperature range
|
Pressure range（kPa）
|
Holding time（Min）
|
Pre-vacuum times
|
Drying time（Min）
|
Remarks
|
|
134℃ universal
|
134
|
134~138
|
204~242
|
4
|
3
|
15
|
Preset
|
|
134℃ universal quick
|
134
|
134~138
|
204~242
|
4
|
3
|
7
|
Preset
|
|
121℃ universal
|
121
|
121~125
|
112~134
|
20
|
3
|
15
|
Preset
|
|
B-D/Helix test
|
134
|
134~138
|
204~242
|
3.5
|
3
|
7
|
Test program
|
|
Vacuum test
|
Vacuum to -80kPa，holding 15min
|
|
|
|
Test program
|
||
|
134℃ Prion
|
134
|
134
|
204~242
|
19
|
3
|
15
|
Preset
|
|
96 Checking Points for every Autoclave
|
|||
|
Appearance
16 points
|
Assembly
27 points
|
Special Requirements
12 points
|
Electrical Safety
7 points
|
|
Fuction
10 points
|
Regular Faults Checking
10 points
|
Testing Cycles
3 points
|
Common Cycles
11 points
|
|
Tracking No. for all the main parts for every Autoclave
|
|||
|
PCB
|
Vacuum Pump
|
Water Pump
|
Solenoid Valves
|
|
steam generator
|
Chamber
|
Chip version
|
|
|
Warranty & After Sales
|
|
|
Parts and Description
|
Warranty (years)
|
|
Door Seal
|
1
|
|
Vacuum Pump (Chinese)
|
2
|
|
Vacuum Pump (German)
|
3
|
|
Other Parts
(Valves, Water Pumps,PCB,etc)
|
3
|
|
Consumables
(Air Filter, Printer, Paper, etc)
|
No Warranty
|
|
NOTE:
All spare parts will be offered freely if under warranty;
Serial No. and parts tracking No. will be provided if need replacement.
|
|
Q1:What is your MOQ ?
A:With regular packaging ,we support small quantity for your use&test market.
Q2:Does sample available before orders ?
A: Yes, SureQ3:What is the warranty of the products?
Q3:What is the warranty of the products?
A:24 months (2year)
Q4: What is your lead time?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity,and about 30-40 days for large quantity.
Q5: What is your payment term?
A: Usually by T/T.Other ways could be negotiable.
Q6: What is the shipping method?
A: It could be shipped by sea or by express(EMS,UPS,DHL,TNT,FEDEX).Please confirm with us before placing orders.
Q7:Does OEM&ODM available of your company ?
A:Yes ,we support print our client LOGO and help do some art work if needed .
Q8:Which port or airport the goods will be shipping from ?
A:Usually from Shanghai ,China or Ningbo China .It depends the areas our clients come from ..
