Hydraulic Plate Frame Filter Press

Plate-and-frame (type) filter press is a device for spasmic solid-liquid separation with plate, frame as filter room where liquid was transferred into by conveying pump, solid-liquid separation will be achieved by filter media.

Plate-and-frame (type) filter press is widely used in wastewater treatment for industries, such as chemical engineering, dyes, petroleum, pottery, pharmaceutical, sugar and food manufacturing, starch, syrup, painting, metallurgy and so on. Plate-and-frame (type) filter press has a superiority in separation of adhesive material with advantages of good performance, wild application, easy operation, low cost etc.

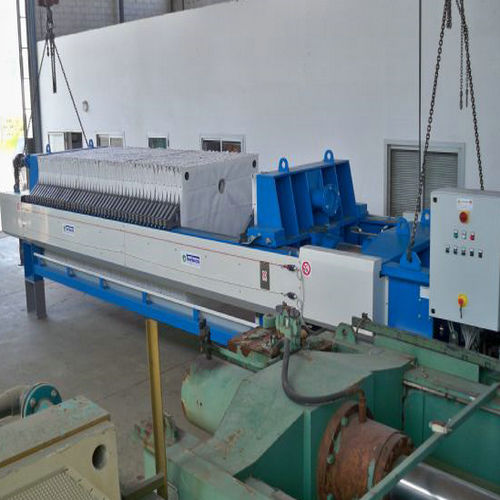

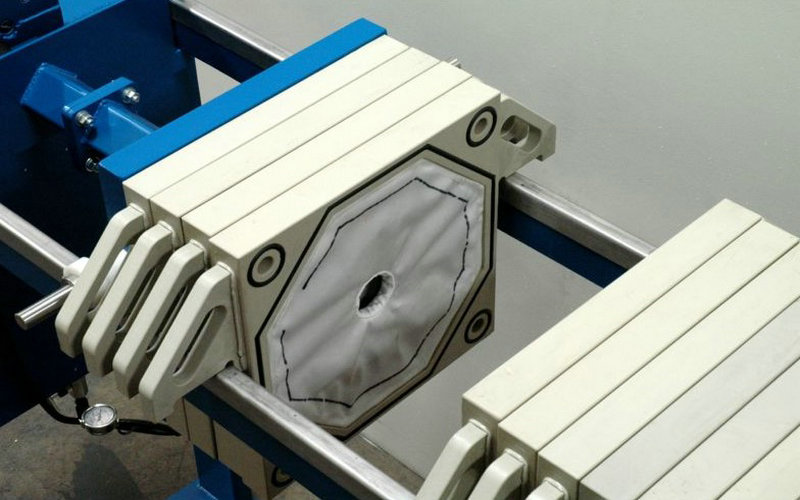

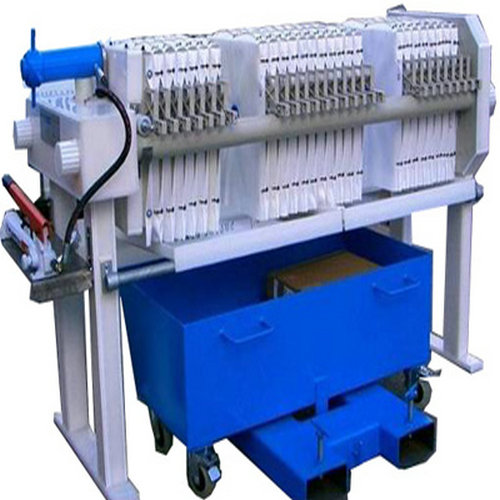

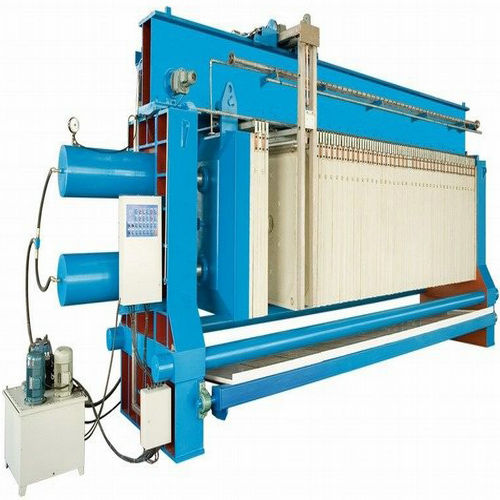

Plate Frame Filter Press pics:

Plate Frame Filter Press Technical parameter:

1.       Manual operation

2.       X AM Y  Mechanical Tighten Filter Press

3.       X AM Y  Hydraulic Tighten, Mechanical Tighten Filter Press

4.       X AM Y  Automatic Filter Press

Plate and Frame Filter Press Features:

1.Plates and Frame are fully S.S.304 material. It can meet the food degree.
2.It can ensure high pressure and temperature, so that could used in more fields, get lowest moisture and most output.
3.Manual Jack closing is practical and cost saving. Basically ZERO running cost.
4.Plate & Frame structure designed for easy operation and maintenance.
5.The flatness of the filter plate is lower than 25μm can perfectly avoid leakage.
6.Every plates is tested under high closing pressure 21 MPa.
7.All structure is also coated by S.S.304, so that easy to clean and serves longer.
8.Main beam is made of high quality SS304 with sand blasting processing and it is of high intensity and corrosion resisting.
9.All beams are produced by making use of submerged arc auto welding technology.
10.The filter cloth is pure cotton material, so that non-toxic, odourless.
