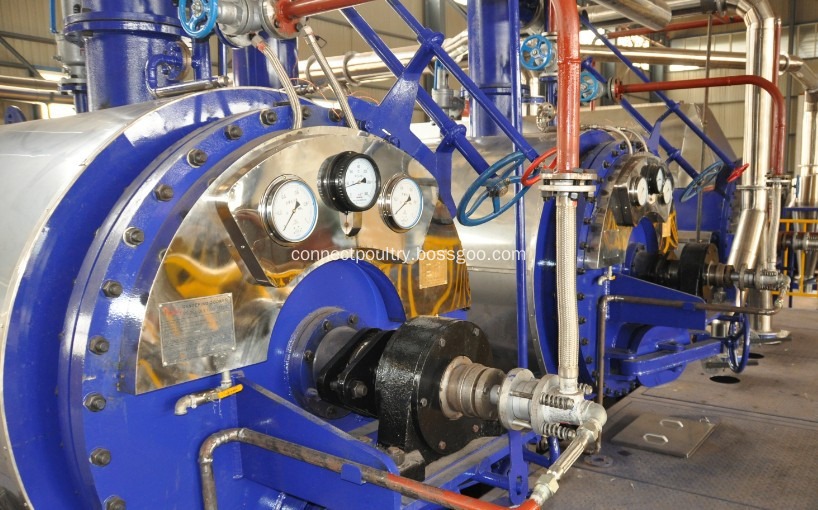

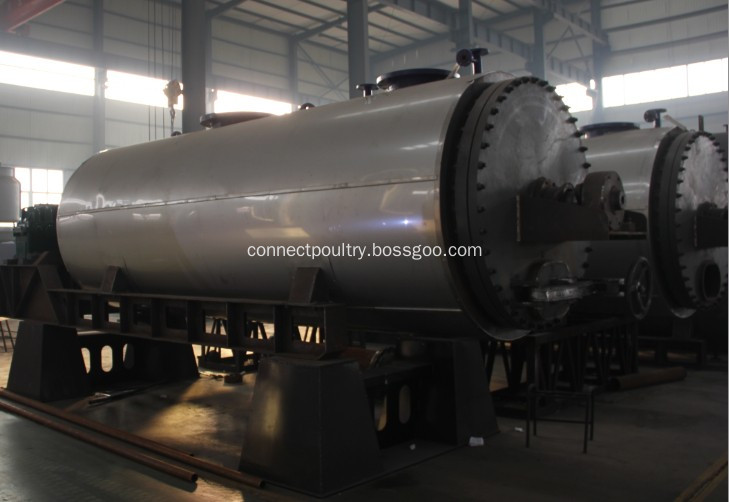

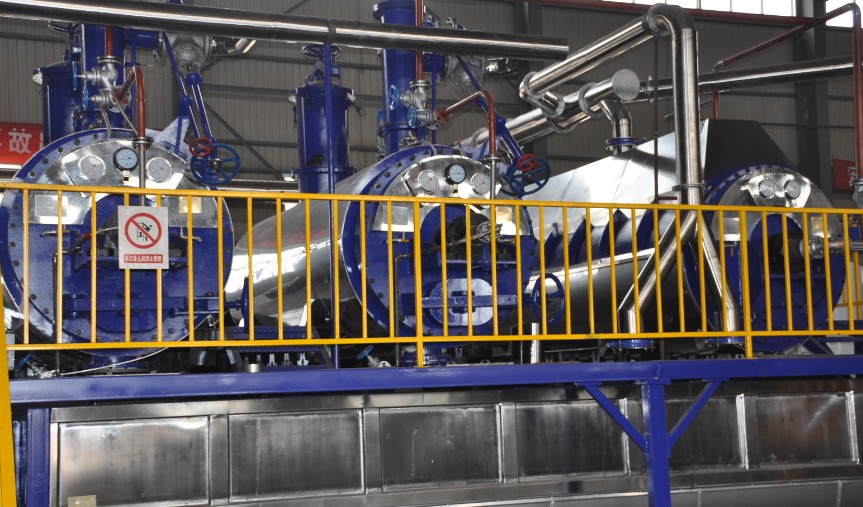

CONNECT manufacture batch cooker.

Batch cooker is used to rendering the raw material of

Poultry waste of feather and mixture by-products,

animal waste into meal by the high temperature, pressure process.

First feeding the raw material into batch cooker and cooking for about 30 minutes with normal temperature, and seal it with cover until the temperature reach to 130℃ to kill E. Coli, break the keratin molecules. Keep cooking for 15 minutes after the working pressure reach to 0.3Mpa, and release the steam. Going on heating for about 20 minutes. If raw material is only feather, the protein contains is around 82%,after drying the water contains lower than 10%.

If the raw material is mixture poultry waste from chicken slaughterhouse, the protein contains is 65 to 70%, If the raw material is dead chicken , the protein contains is around 60%, and is similar for animal mixture by-products or dead carcass meal which is around 60%.

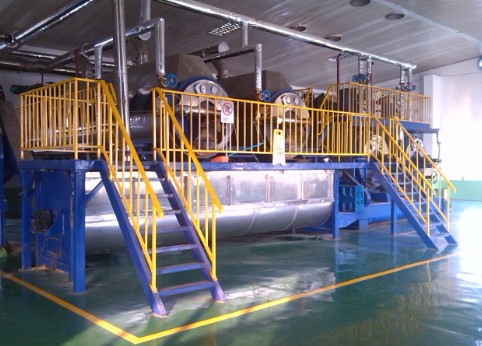

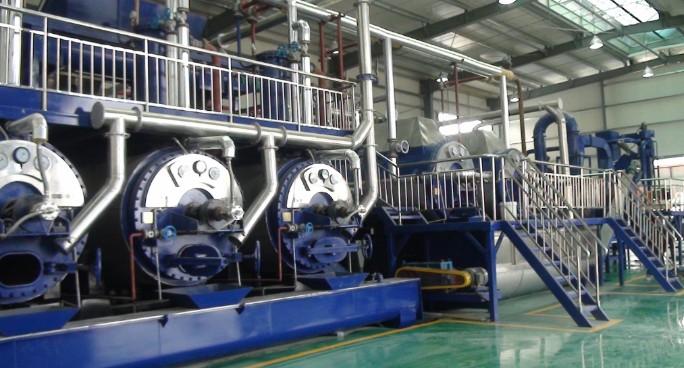

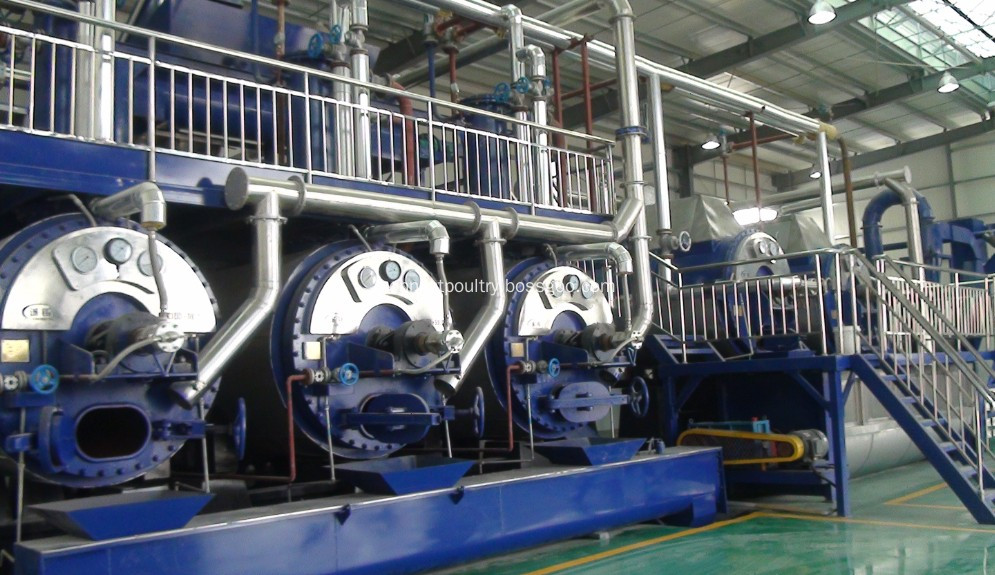

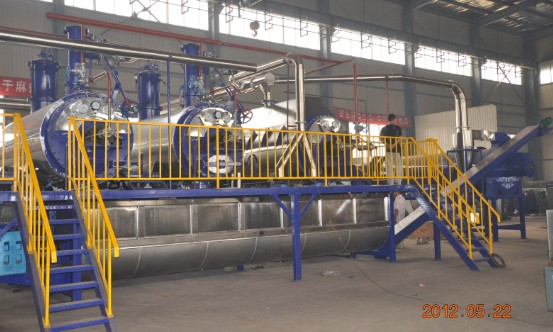

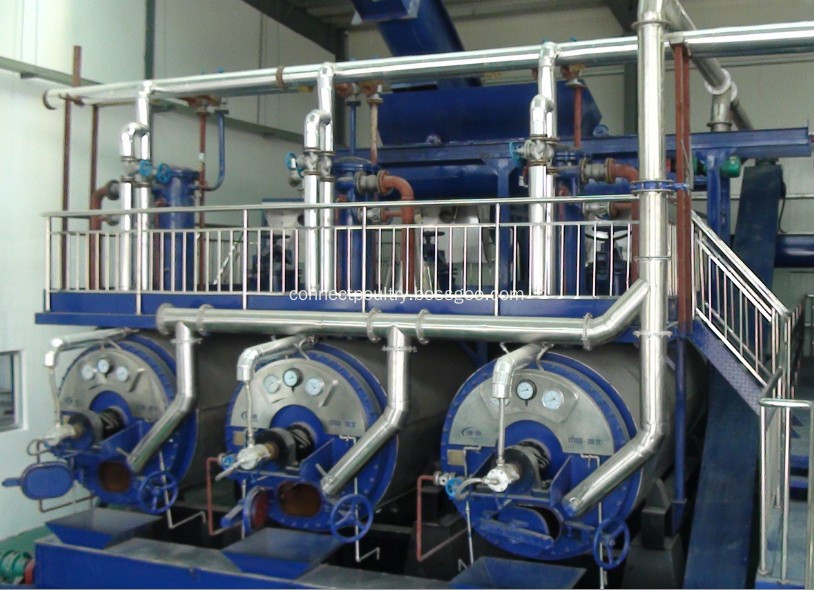

Rendering plant including raw material handling equipment of raw material receiving silo, pre-breaker of large bones or dead animal body, raw material pumping system, rendering processing equipment of batch cooker, drying machine, transit hopper, fat press machine of fat press, oil stirring and heating system, centrifugal of oil purify, meal cooling machine ,  odor system of odor pipelines, cyclone, condensor, vacuum station, cooling tower of chilled water, water spraying tower, bio filter , grinding system, and packing.

Model	Tank Dimension		Steam consumption(kg/h)	Capacity(t/batch)	Motor power(KW)	Reducer
	inner(mm)	length(mm)
CZS1200	1200	3200	200	1.0(3000L)	22	JZQ650
CZS1300	1300	4000	300	1.5(4500L)	30	JZQ 650
CZS1400	1400	4500	350	2.0(6000L)	37	ZSY 280
CZS1500	1500	4500	500	2.2(7000L)	45	ZSY380
CZS1600	1600	5000	500	2.5(8000L)	55	ZSY355
