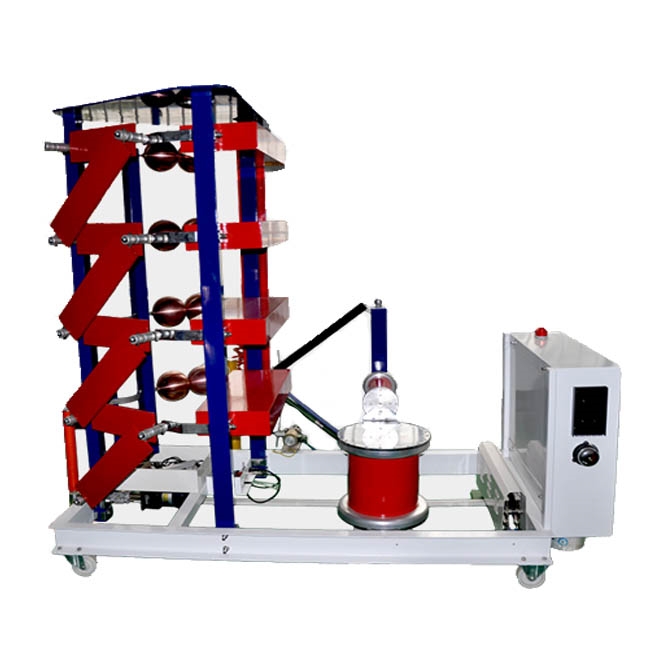

1.Nominal voltage: ±3000kV

2.Rated voltage: ±200kV 3、Nominal energy:450 kJ

4 、impact the total capacitance: 0.1 mF (3.0 mF /100 kV single pulse capacitor, a total of 30)

5、Series: level 15

6. Impact voltage waveform parameters:6

(1)Standard lightning impulse voltage full wave, ±1.2/50ms voltage utilization factor>85% (more than 90% when no load 300PF);

(2)Truncated wave: cut-off time (2-6) ± 10% ms, zero-crossing coefficient ≤ 0.3%

(3)Standard operating impulse voltage wave 250±20% ms / 2500±60%ms,

The impulse voltage waveform parameters and their deviations are in line with the requirements of the national GB311 and GB16927 standards.
