Incremental Encoder 58mm Optic Shaft Encoder

The 58S series incremental encoder adopts a 58mm size shell, which can accurately measure angle, position, speed, speed, acceleration and length. Encoders can be divided into wiring lead type, wiring lead plug type and various control output options. Except solid shaft encoder, hollow rotary encoder and through hollow encoder are also supplied.

Accurately measure angle, position, speed, acceleration and length Wiring lead type, wiring lead plug type encoder

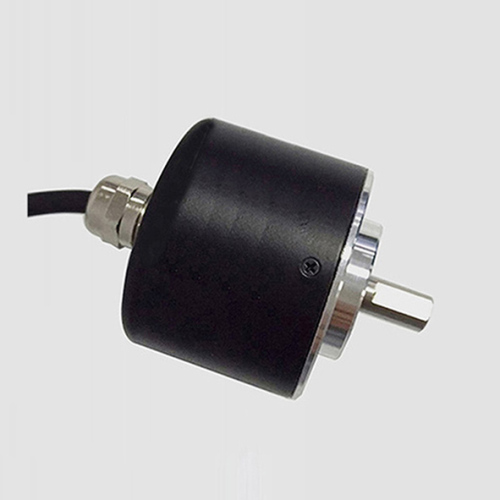

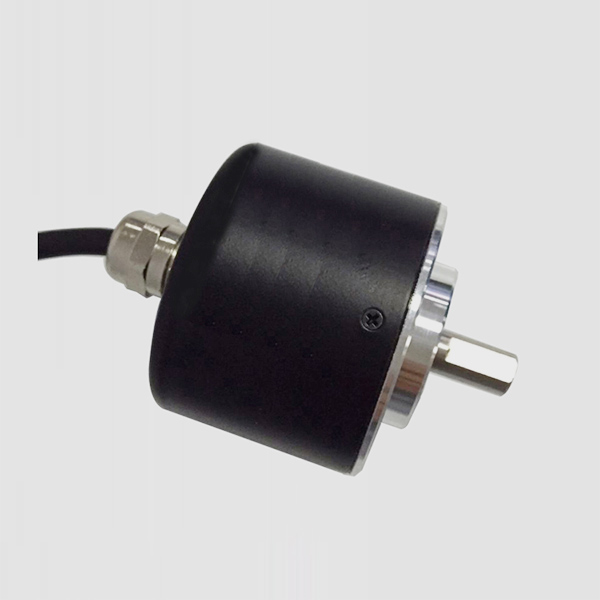

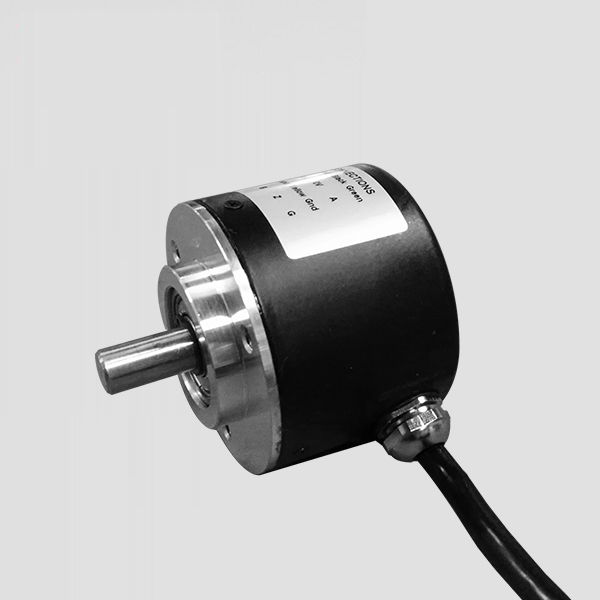

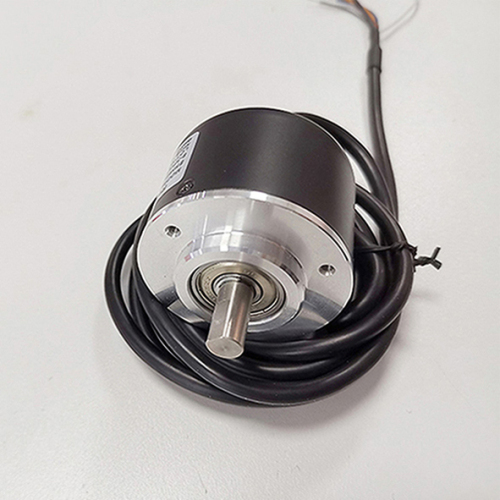

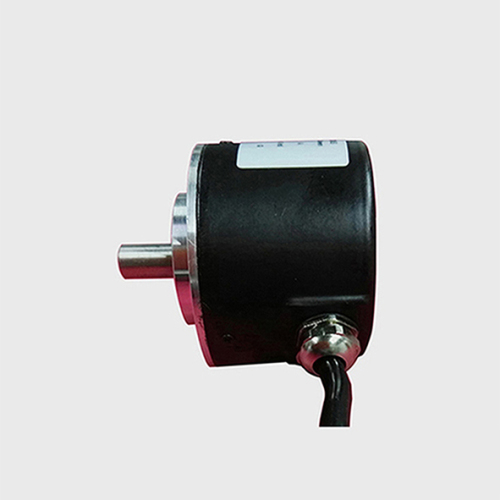

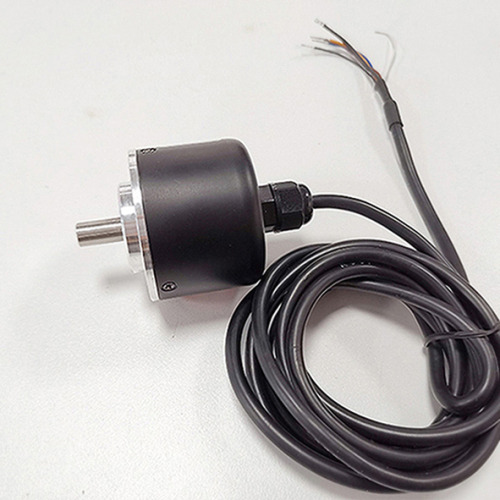

58mm shell optical rotary sensor, 6mm solid shaft encoder

Resolution up to 5000 pulses

Features:

* Good reliability, long life, anti-jamming performance.

* Stainless steel shaft has a higher stability and protection.

* Metal shell is more solid and anti-impact.

* Bearing load heavy, anti-oil and water.

* Applicability to a wide variety of mechanical and industrial control.

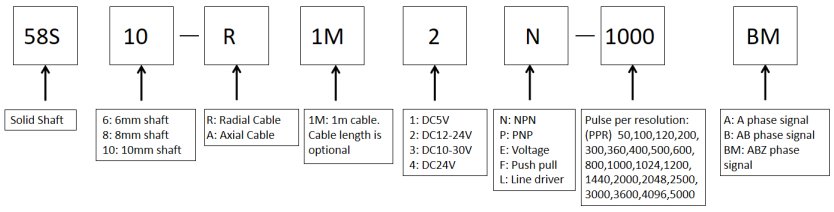

Model Selection Guide

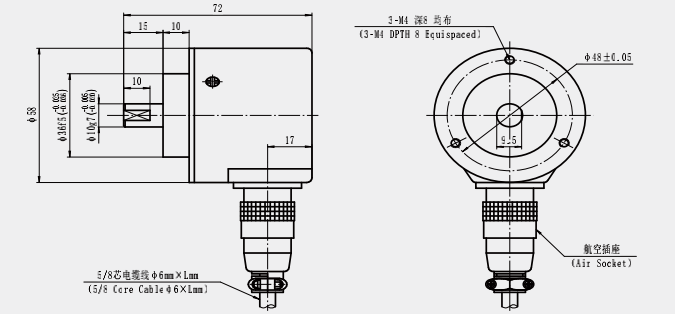

Manufacturing Dimensions

Product Paramenters

ITEM	PARAMTERS
Brand	LANDER
Encoder type	Incremental encoder
External diameter	58mm
Thickness	47mm
Shaft length
Solid Shaft diameter	6mm/8mm/10mm
Resolution	50;100;200;250;256;300;360;400;450;500;512;
	600;700;720;800;900;1000;1024;1200;2000;2048;
	2500;3000;3600;4096;5000；
Output mode	NPN&PNP
	Voltage output
	Push-pull output
	Line driver (TTL,HTL,RS422)
Output phase	Phase A,B,Z,A-,B-,Z-
Outlet type	Cable out from side
Protection grade	IP50 & IP65
Cable length	1m
package	Carton box
Net weight	About 120g (with package)
Certification	CE/ ISO9001
Consumption current	100mA MAX
Top response frenquency	300KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
starting torque	less than 4.4X10-3 N.m
Intertia moment	less than 1.5x 10-6kg.m2
Shaft load	Radial 40N; Axial 20N
Top REV	5000RPM ;IP65≤3000r rpm
Environmental temperature	Operating:-20 ～+85℃；storage:-25 ～+90℃
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)	49m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	Dia cast aluminium
Cable length	1000mm(cable with shielding)
Certification	CE
