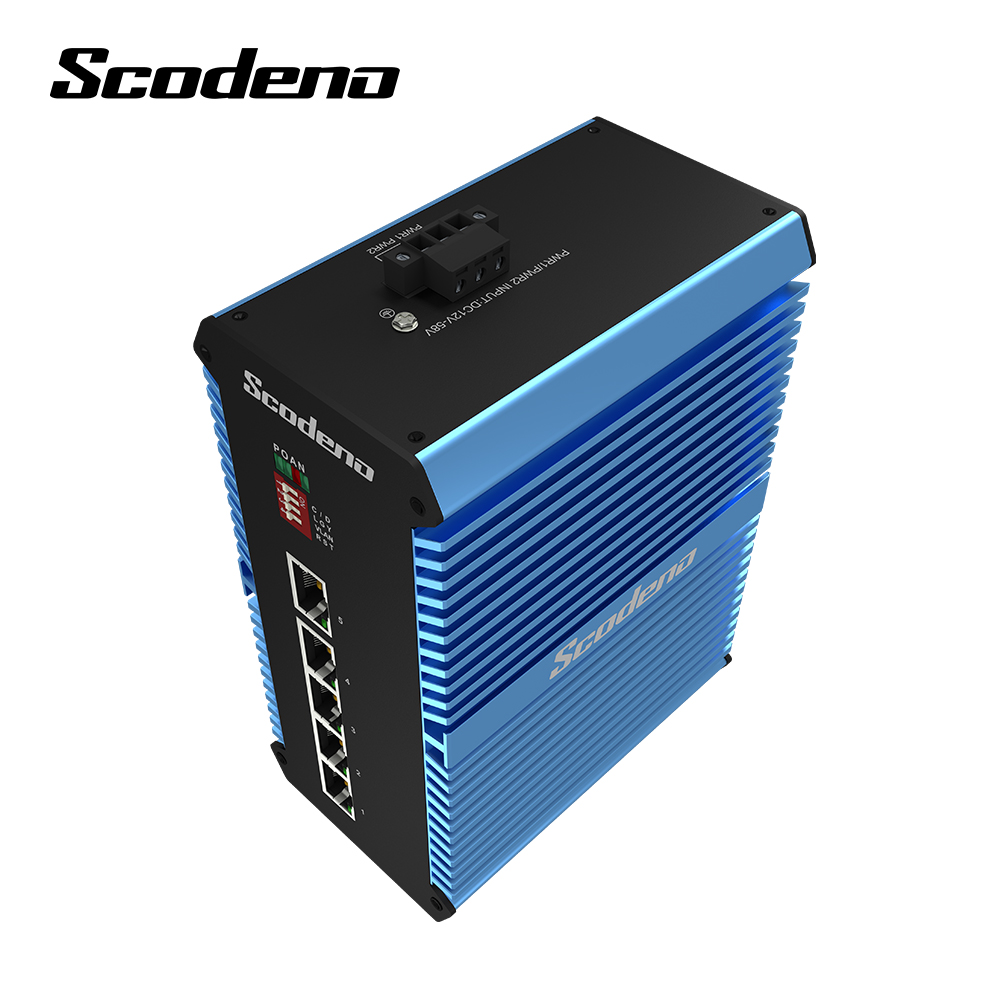

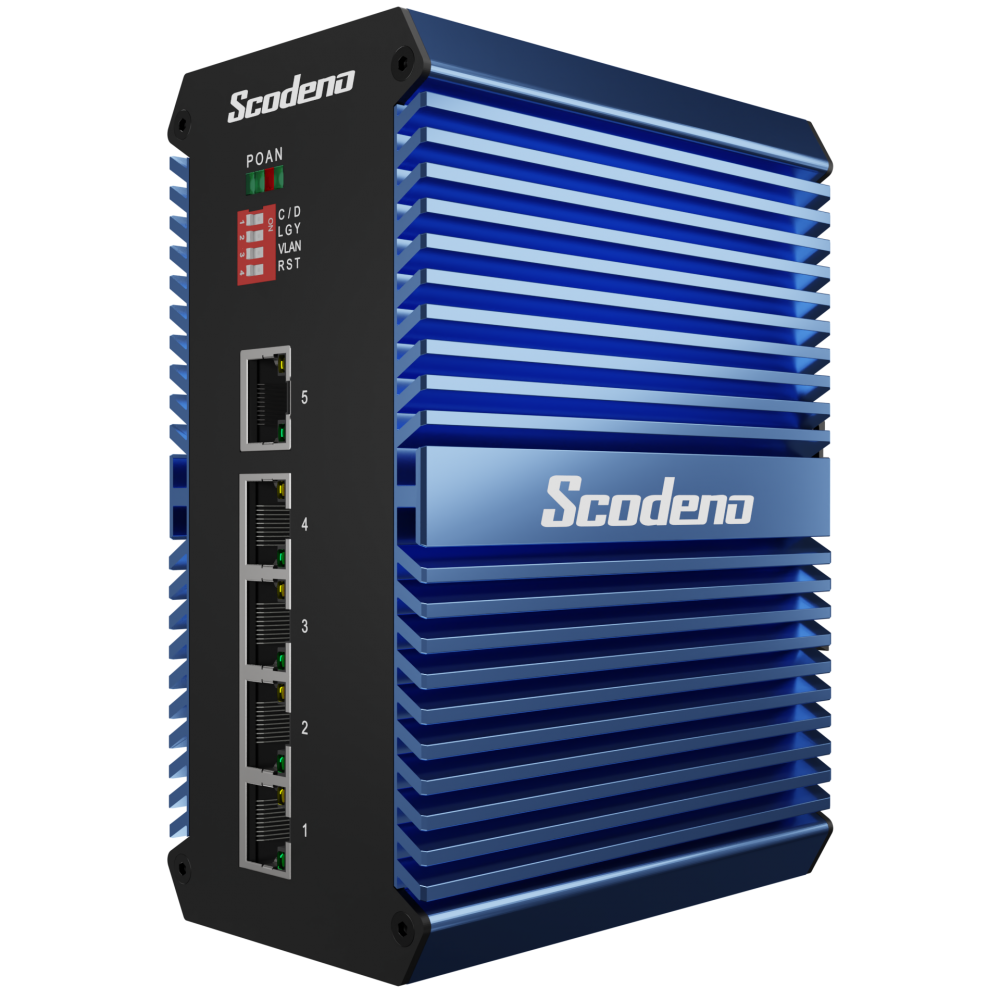

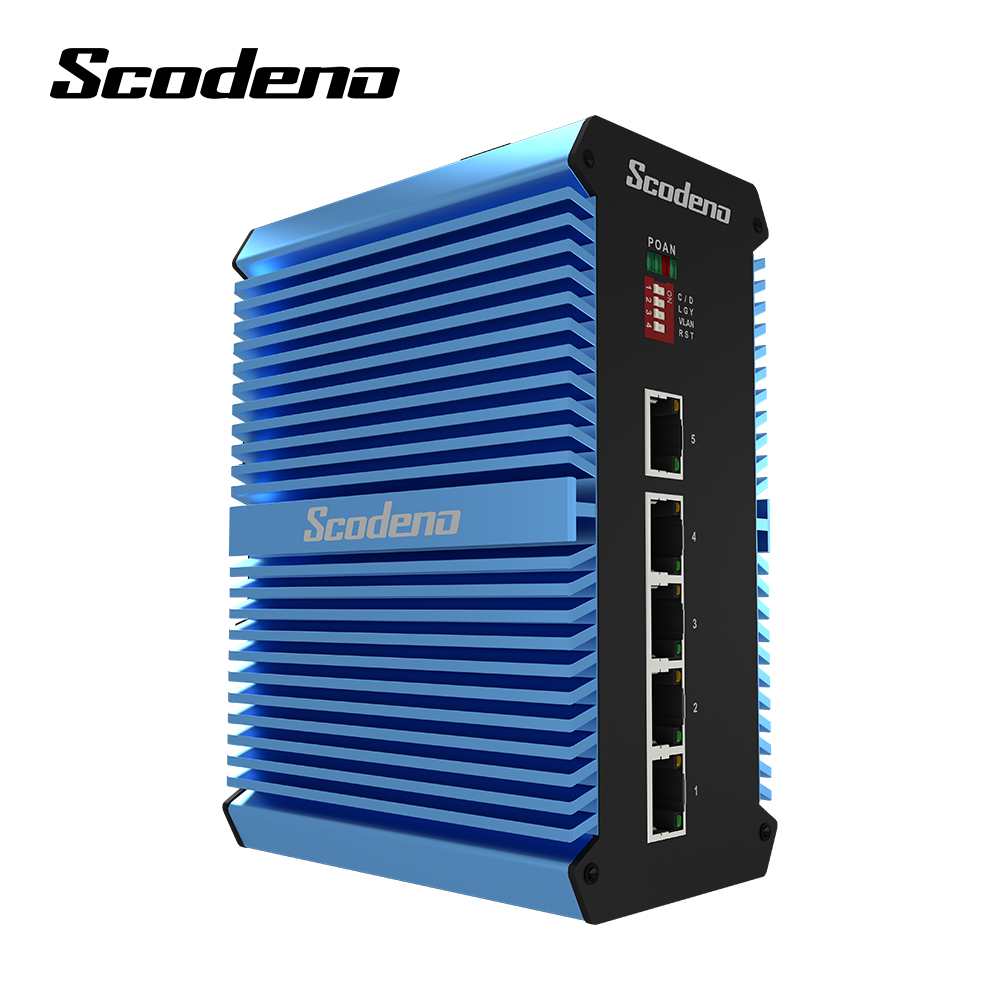

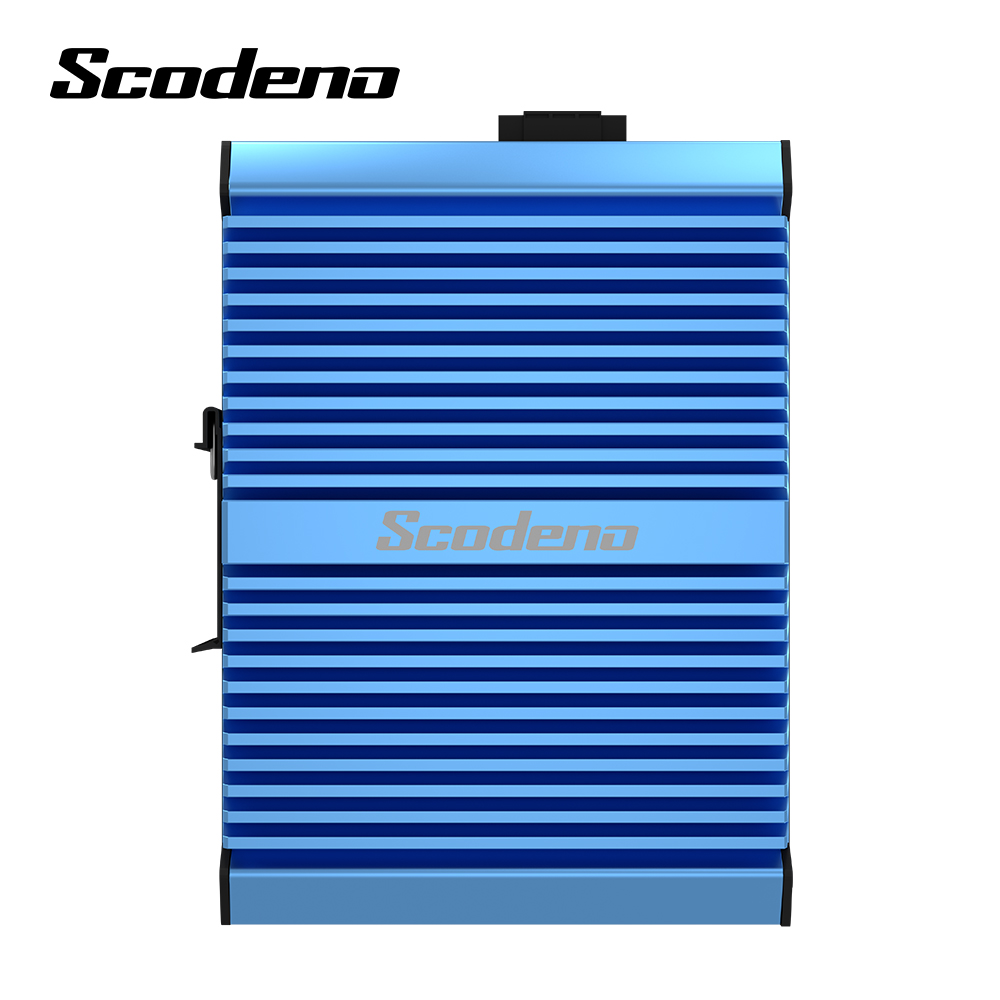

Industrial 5 Port 10/100BASE-T Unmanaged -40°C to 75°C DIN-Rail IP50 Ethernet Switch
Color:
- Blue
Basic Info
| Model No. | XPTN-9000-65-5TX-X |
|---|---|
| Brand Name | Scodeno |
| product status | Stock |
| Number of interfaces | ≤ 8 |
| Transmission rate | 10/100mbps |
| Communication mode | Full-Duplex &Amp; Half-Duplex |
| Certification | Fcc, Ce, Sgs, Bis（isi）, Rohs, reach |
Product description
Din-Rail network switch IP50 Gigabit 5 Port Ethernet Switch outdoor Lan switch
Product Description
|
Provider Mode Ports |
|
|
Fixed port |
5*10/100/1000 Base-T |
|
Power interface |
Phoenix terminal, redundant dual power supply |
|

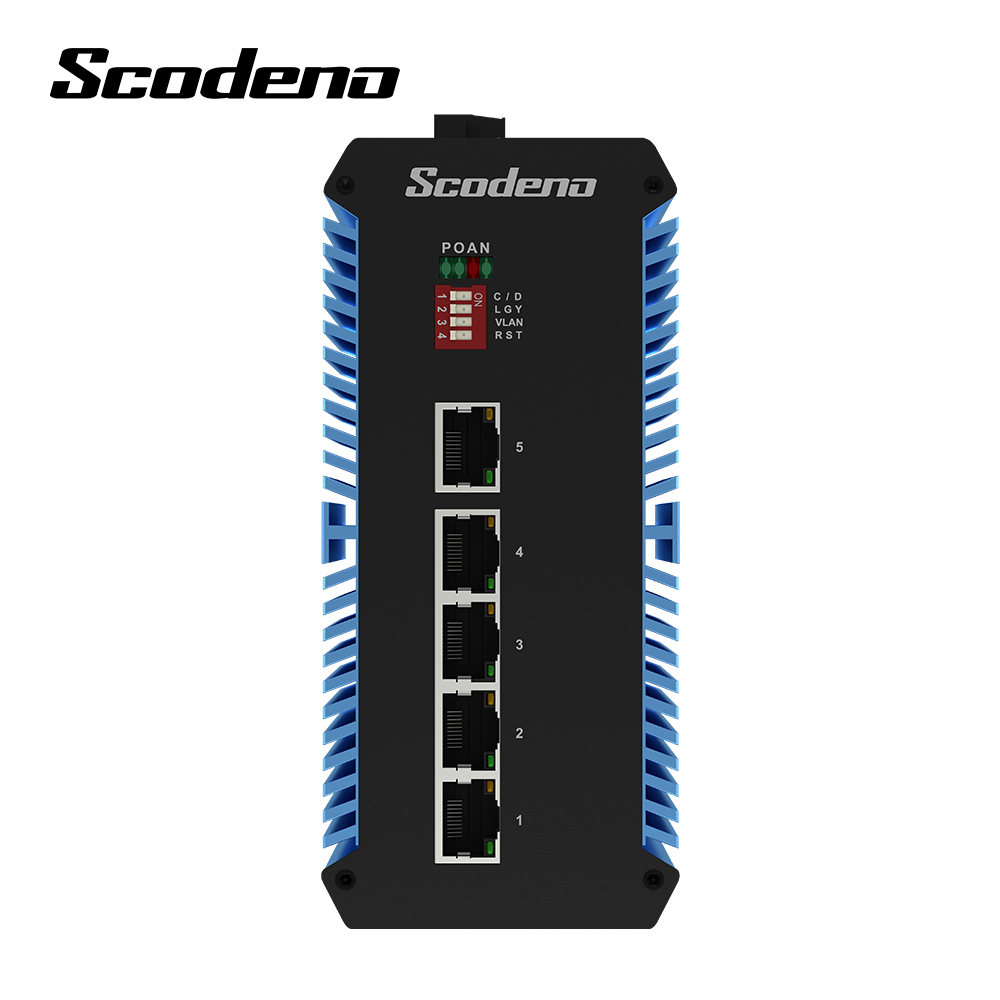

LED Indicators |
PWR, OPT, NMC, ALM |
|
|
|
|
DIP Switch |
|
|
1 C/D |
Reserve |
|
2 LGY |
Stand/Non-standard PoE Mode |
|
3 VLAN |
Port Isolation |
|
4 RST |
Reset |
|
|
|
|
Cable Type & Transmission Distance |
|
|
Twisted-pair |
0-100m(CAT5e,CAT6) |
|
Monomode optical fiber |
/ |
|
Multimode (optical) fiber |
/ |
|
|
|
|
Network Topology |
|
|
Ring topology |
Unsupported |
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree Topology |
Support |
|
|
|
|
Electrical Specifications |
|
|
Input voltage |
DC10-58V |
|
Total Power consumption |
<6W |
|
Voltage Alarm
|
Support |
|
|
|
|
Layer 2 Switching |
|
|
Switching capacity |
10G
|
|
Packet forwarding rate |
7.44Mpps
|
|
MAC address table |
8K |
|
Buffer |
1M |
|
Forwarding delay |
<5us |
|
MDX/MIDX |
Support |
|
Flow control |
Support |
|
Jumbo Frame |
Support 10Kbytes |
|
WatchDog
|
Support |
|
Port Isolation
|
Support |
|
|
|
|
Environment |
|
|
Operating temperature |
-40℃~+75℃ The device is tested for 8 hours at temperatures in 85°C |
|
Storage temperature |
-40℃~+85℃ |
|
Relative humidity |
5%~95% non-condensing |
|
Thermal methods |
Fanless, natural cooling
|
|
MTBF |
100,000 hours |
|
|
|
|
Mechanical Dimensions |
|
|
Product size |
65X104X143mm |
|

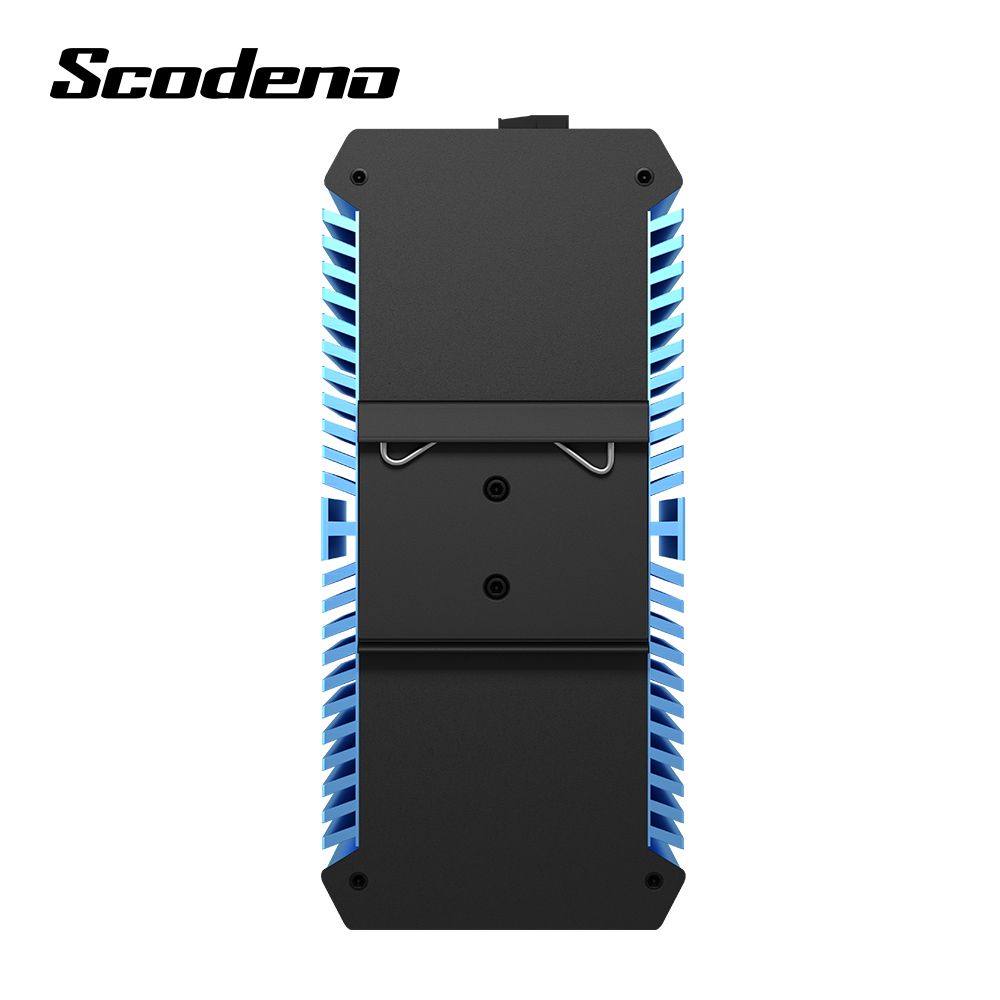

Installation Method |
DIN-rail |
|
Weight |
0.7KG around |
|
|
|
|
EMC & Ingress Protection |
|
|
IP Level |
IP50 |
|
Surge protection of Power |
IEC 61000-4-5 Level X(10KV/10KV)(8/20us) |
|
Surge protection of Ethernet port |
IEC 61000-4-5 Level X(6KV/4KV)(10/700us) |
|
RS |
IEC 61000-4-3 Level 3(10V/m) |
|
EFI |
IEC 61000-4-4 Level 3(1V/2V) |
|
CS |
IEC 61000-4-6 Level 3(10V/m) |
|
PFMF |
IEC 61000-4-8 Level 4(30A/m) |
|
DIP |
IEC 61000-4-11 Level 3 (10V) |
|
ESD |
IEC 61000-4-2 Level 4(8K/15K) |
|
Free fall |
0.5m |
|
|
|
|
Authentication |
|
|
Authentication |
CCC, CE, FCC, RoHS
|
|
|
|
|
Accessories |
|
|
Accessories |
Device, Terminals, Specification, Certificate, power adapter(optional) |
|
|
|
|
Optional Model |
|
|
XPTN-9000-65-5GP-X |
5*10/100/1000Mbps RJ45 Port, PoE support 802.3af&at |
