Innovative Forensic Gene sequencer

Special Dna Analyzer For Laboratory

Nanjing Superyears Gene Technology Co., Ltd was founded in September 2017. In December of that year, the prototype of genetic analyzer (Sanger sequencer) was successfully developed. In 2020, real-time fluorescence quantitative PCR was designed successfully. Superyears Gene Company is focused on high-end scientific instruments which integrate with self-sufficient R&D and manufacturing capability. It is an innovation-driven high tech company. Superyears Gene Company has been certified with ISO9001 and ISO13485 quality management system and has got Medical device registration, CE certificates, Ministry of Public Security test report, etc. In addition, the company is recognized as a High-Tech Enterprise by the National Ministry of Science with various patents.

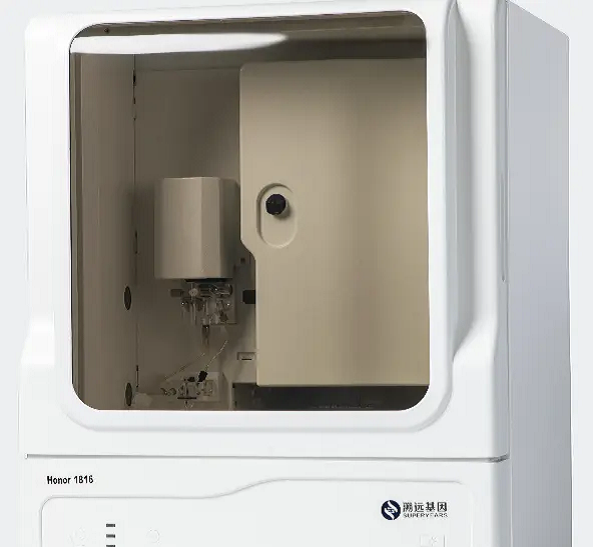

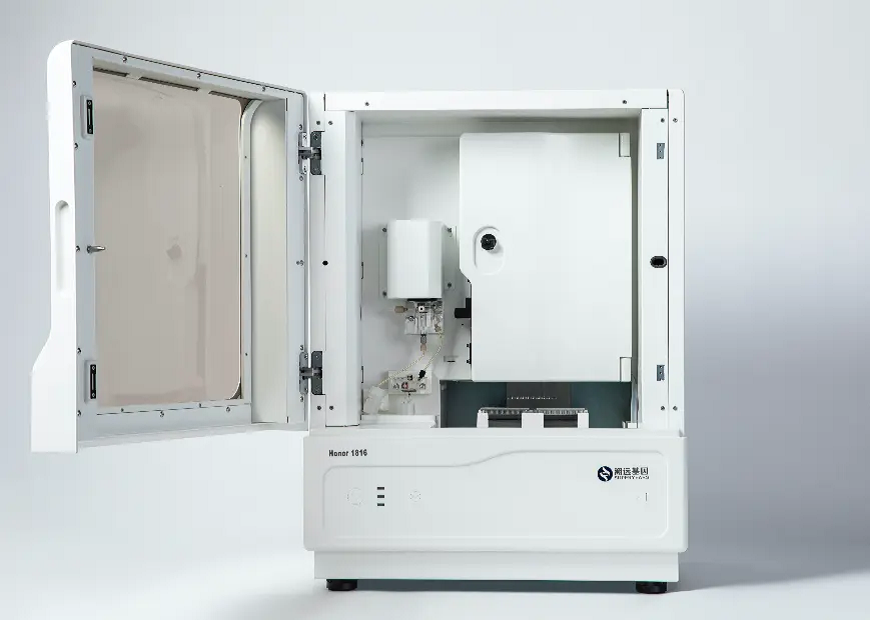

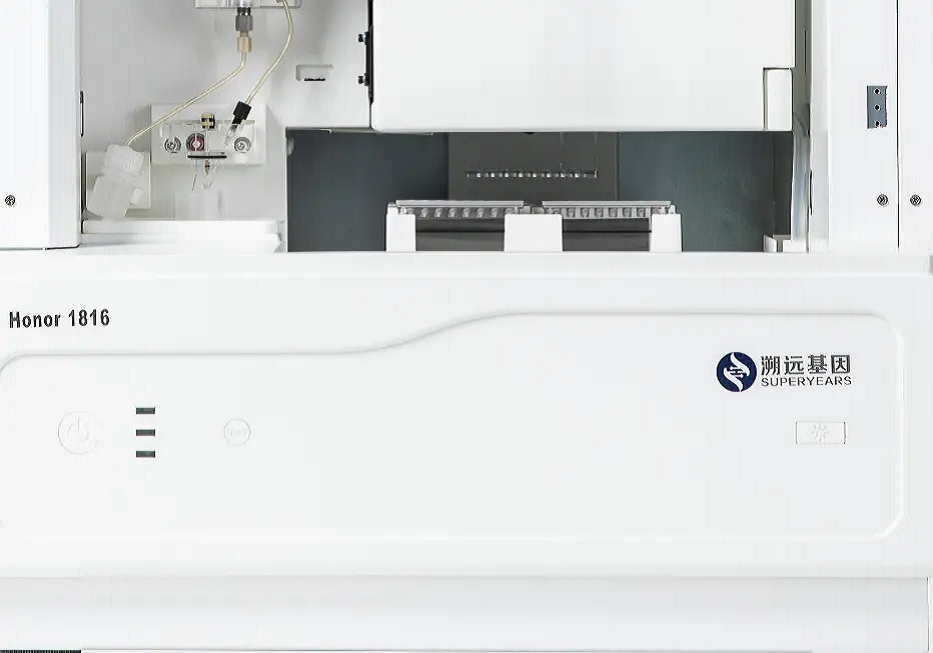

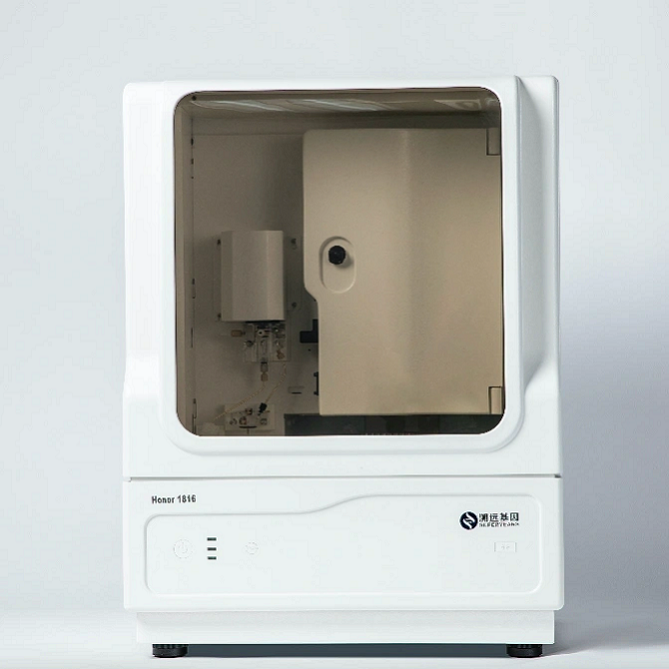

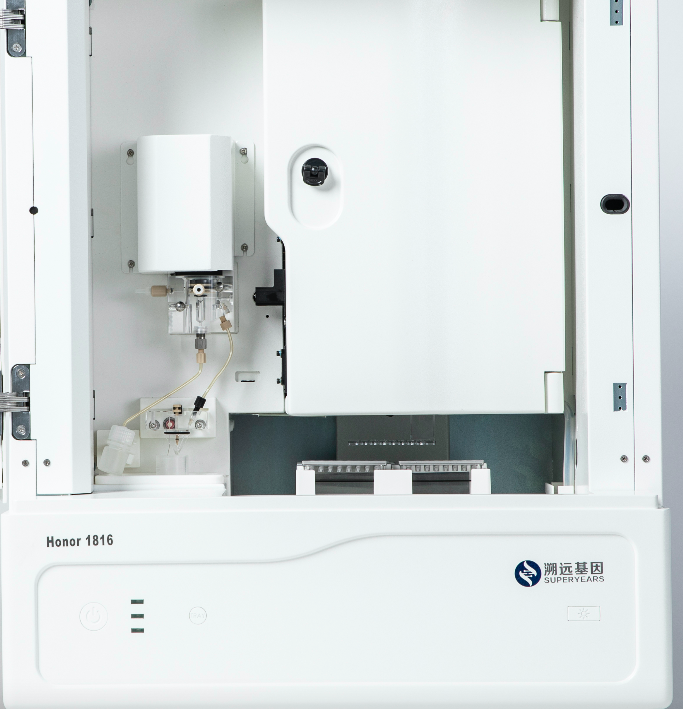

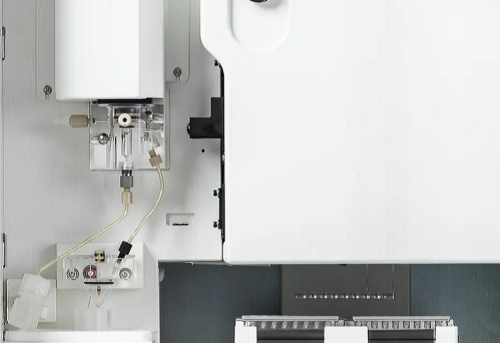

Automatic Gene Analyzer Display

Gene Count Analyzer Parameters
?Dimensions: Hatch closure: 610mm×532mm×812mm
（L×W×H）
Fully open: 1225mm×532mm×812mm
?Weight: About 95 kg
?Channel: 8/16
?Fluorochrome No.: 6/8
?Capillary Length: 36 cm、50 cm
?Sample Handling: Automatic, 96 orifice plate
?Injection Method: Automatic
?Laser: Semiconductor Solid
? Wavelength of laser source : 505 nm
?Wavelength of fluorescent dye: > 520 nm
Product Performance
Operating mode
General Performance
GeneScan36_SY04 50 448 36 SY04 40-640bp 640bp <0.15 <0.3 N/A
GeneScan36_SY07 35 656 36 SY07 40-640bp 640bp <0.15 <0.3 N/A
GeneScan50_SY07 45 512 50 SY07 40-640bp 640bp <0.15 <0.3 N/A
GeneScan50_SY07Long 125 176 50 SY07 40-1200bp 1200bp <0.15 <0.3 <0.35
?Temp. Accuracy: ΔT≤0.2℃
?Resolution: 1 bp
?Read length: Above 800 bp
?Power supply: 220 VAC，50 Hz；single phase：10 A，2200 VA
?Ambient Temp.: 20℃～30℃，the temp. fluctuation would not be
more than ±2℃ during operation period
?Relative Humidity: 20%-80% (non condensing)
?Atmospheric pressure: 86 kPa~106 kPa
