The inserted socket fixing magnet consists NdFeB magnet, steel casing and thread rod. The NdFeb magnet is with NiCuNi plating and steel is plated with zinc or other coating to prevent corrosion. Inserted socket fixing magnet is the best solution to premake holes or fix pipes on precast concrete.

The contact surface should be clean and flat otherwise the actual magnetic force will reduce. The maxim working temperature is 80 ℃. If higher working temperature is needed,the higher grade of NdFeB magnets will be necessary then.

Inserted socket fixing magnet,also known as embeded socket fixing magnet, inserted fixing magnet,pipe fixing magnet.

Advantages

1. Our know-how experts in magnetics could ensure the holding force of eache concrete magnet.

2. All NdFeB magnets are produced by our own factory thus the quality is stable.

3 Standard producing process and strict quality checking.

4 Competitive price,stable quality, in time reponse.

5. Fast delivery.

Detailed specifications:

1.Glue:  Loctite. The gluing of magnet and steel cup could be well guaranteed.

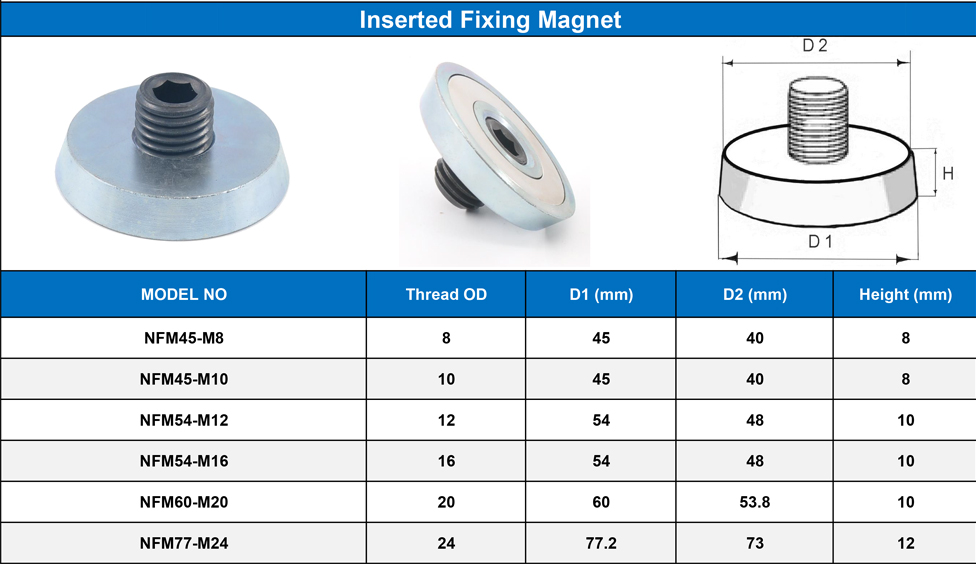

2.Size: As per the table. Customer tailored design are available.

3.Coating: NiCuNi or as per customers requirement.

4.Material: NdFeB magnets + Steel cup

Delivery & Packing:

Popular Model: 5-10 days after receipt of payment
Customer Tailored Size: 15-20days
Packing: Plywood Box.

Detailed specifications:

1.Material: NdFeB magnets + Metal House (well surface treatment from corrosion)

2.Size: As per the table. Customer tailored design are available.
3.Coating: As Per customers requirement.
4.Certificates:  ISO9001:2000,ROHS
