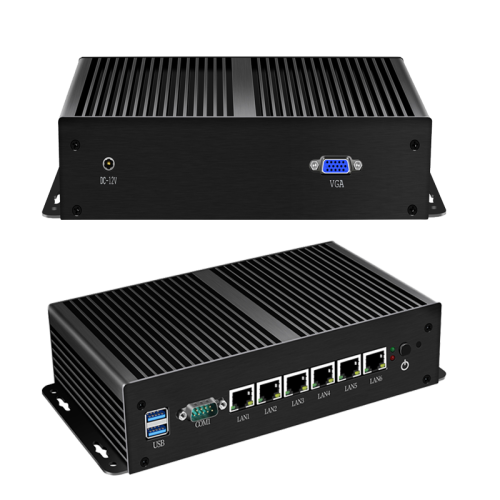

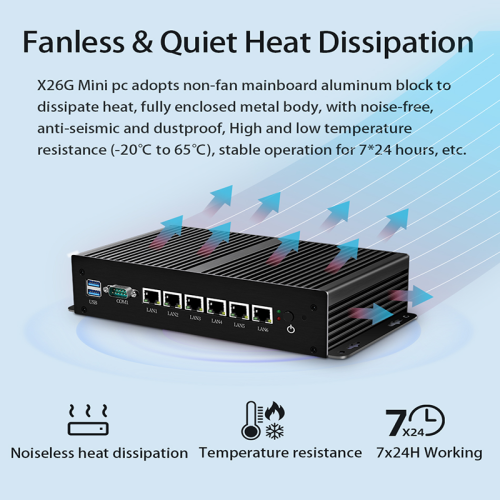

This mini pc with 6 RJ45 gigabit ethernet port, applied in firewall, network server, VPN router. This portable mini pc adopt aluminum case for dustproof. Basic of fanless and exquisite cooling teeth, the desktop computer can be quick heat dissipation, no noise during operation.As a network firwall mini pc, it probide multiple protection to avoid ARP virus intrusion.

Product Details

1.Processor: Intel Celeron Processor 1007U,2M Cache, 1.50 GHz,2 cores 2 threads,TDP: 17W

                Intel Celeron Processor 1017U,2M Cache, 1.80 GHz,2 cores 2 threads, TDP: 17W

                Intel Pentium Processor 2117U,2M Cache, 1.80 GHz,2 cores 2 threads, TDP: 17W

                Intel Celeron Processor 3855U,2M Cache, 1.60 GHz,2 cores 2 threads, TDP: 15W

                Intel Celeron Processor 3955U,2M Cache, 2.00 GHz,2 cores 2 threads, TDP: 15W

                Intel Pentium Processor 4405U,2M Cache, 2.10 GHz,2 cores 4 threads, TDP: 15W

                Intel Core i3-6006U Processor,3M Cache, 2.00 GHz,2 cores 4 threads, TDP: 15W

                Intel Core i3-7100U Processor,3M Cache, 2.40 GHz,2 Core 4 threads, TDP:15 W

                Intel Core i5-7200U Processor,3M Cache, up to 3.10 GHz,2 Core 4 threads, TDP:15 W

2.GPU: Intel HD Graphics: 1017U/1007U/2117U; Intel HD Graphics 510:3855U/3955U/4405U; Intel HD Graphics 520: i3-6006U; Intel HD Graphics 620: i3-7100U/i5-7200U

3.VGA: Maximum resolution 1920×1080@60Hz

4.Memory: DDR3L 1333/1600MHz,1.35V,1*204-pin SO-DIMM (Maximum capacity:8G)

5.Hard Disk: 1* Full Height Mini PCIe mSATA, 1*SATA socket.

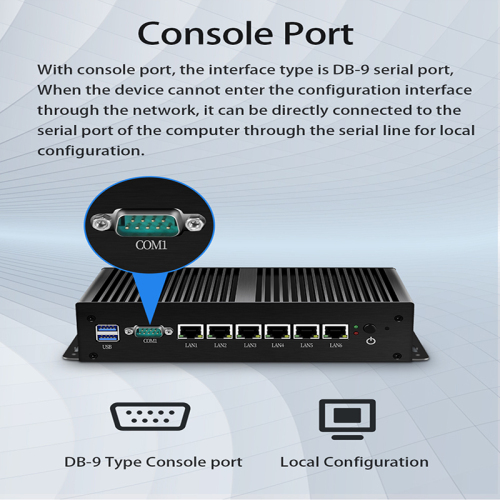

6.Port: 2 x USB 3.0,1 x VGA,6 x RJ45 LAN, 1 x RS232 COM

7.Power Requirement: DC 12V 5A/60W(AC TO DC,100~240V)

8.Working Environment: Operating Temperature -20-65℃, Storage Temperature 15℃-35℃, Relative Humidity 5%~95% (non-condensing)
