IP40 High Accuracy Angle Encoder Sensor

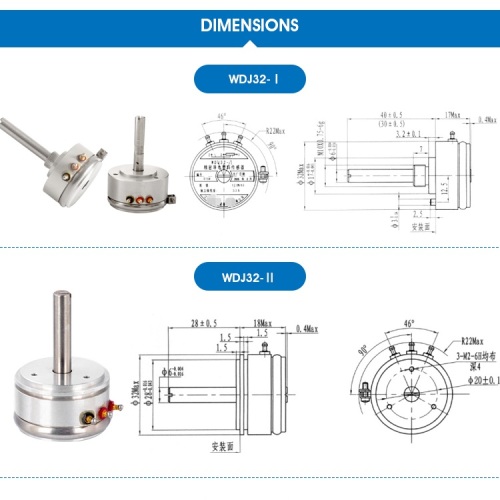

JRTWDJ32-1 angle sensor are industrial grade & proetection up to IP40. Also, the angle encoder offers a wide variety of models(WDJ32-Ⅰ, WDJ32-Ⅱ, WDJ32-Ⅳ etc.) for your measurement project.
With +0.05% FS high accuracy, the angle encoder sensor are used for precision measurement of ≤0.05 output smoothness or vibration & strike proof.

TECHNIQUE PARAMETER
Standard resistance values：1K.2K,5K.10KQ+10%(Can be customized)
Theoretical electrical angle：18°+3°，345°+3°,(Can be customized)
Mechanical angle：360°Continuous rotation, With limit
Comprehensive accuracy：+0.05% FS,+0.1% FS,+0.25%FS
Repeatability: 0.002mm
Output smoothness: ≤0.05
Operating voltage: 5-36VDC
Power rating: 0.5W/170C, 0W/125℃
Dielectric strength: 500V.AC 1min
Temperature coefficient of Temperature: ≤+400PPM/'C
Operating temperature range: -45℃ -- +125℃
Vibration proof: 20g.10-2000HZ AR≤+2%
Strike proof: 50g.11ms AR≤+2%
Starting torque: ≤0.98mN.m
Insulation resistance: ≥100MQ(50VDC)
Resolution: 0.001MM (infnitesimal)
Material: Aluminium alloy
IP Protection: IP40
Life: ≥500 Ten thousand times(circle)

How to choose the angle sensor for your project?

Applications: control system of control lever, valve, textile machine, navigation equipment, variousautomatic control systems of UAV, etc.
