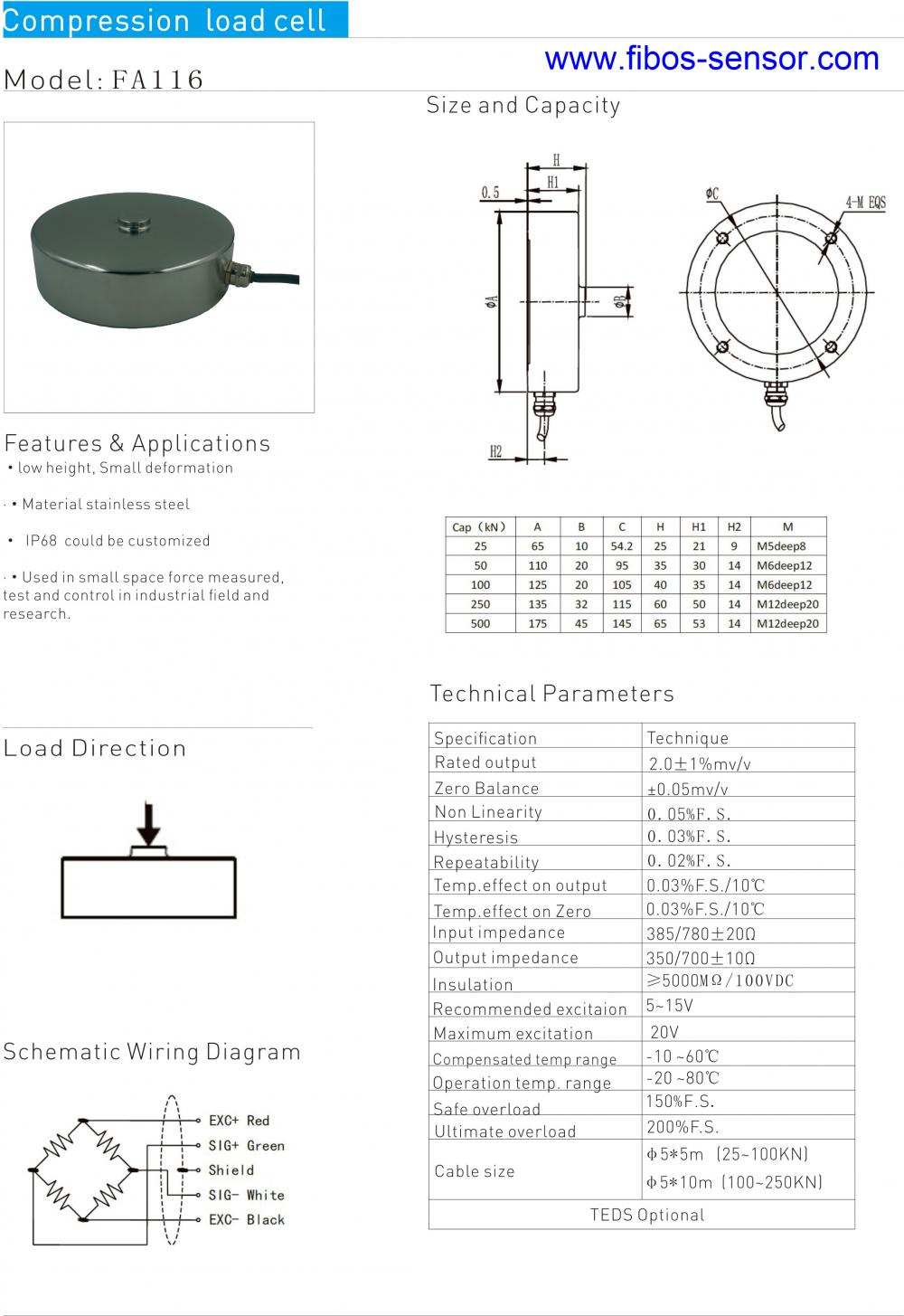

IP68 compression load cell sensor factory supply

·low height, Small deformation

·Material stainless steel

· IP68 could be customized

·Used in small space force measured, test and control in industrial field and research.



technical parameters
Specifications	Technique
Capacity	25,50,100,250,500KN
Rated output	2.0±1%mV/V
Zero balance	± 0.05mV/V
Non-linearity	0.05%F.S.
Hysteresis	0.03%F.S.
Repeatability	0.02%F.S.
Temp.effect on output	0.03%F.S./10℃
Temp.effect on zero	0.03%F.S./10℃
Input impedance	385/780±20Ω
Output impedance	350/700±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5~15V
Maximum excitation	20V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Cable size	φ5*5m  (25~100KN)                        φ5*10m  (100~250KN)
TEDS Optional

Professional customized load sell solution provider



1. MOQ?

Different load cell ,different MOQ. Samples available

2. How long will client get reply from us?
Usually within 12 hours. Please call the sales directly under emergency

3. Price?
Quality first, price reasonable

4. Visit factory?
Visit factory is welcome

5. Lead time?
Load cell sensor in stock, shipped within 1-2 working days.
Load cell sensor not in stock, usually 10-20 work days.

6. Payment terms?
T/T, Western Union, L/C, Escrow, paypal or Cash



7. Delivery?
DHL, Fedex, TNT ,EMS, UPS or by Sea etc.

8. Load cell sensor warranty?
   12 months.

9. after-sale service?

After-sale service is available since the load cell sensors are received. The after-sales service will be done through e-mail, skype, trade manager, telephone, wechat or QQ.
