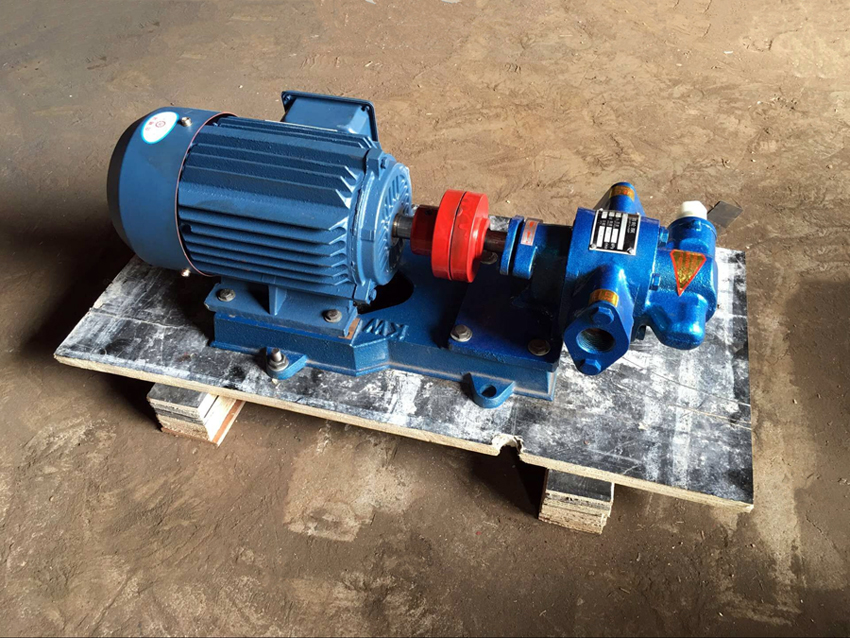

Brief introduction

KCB series electric grease gear type oil pump applies to delivering different types oil or equivalent liquid without solid particles and fibres at temperature below 200 C, and with the viscosity of 5-1500 cSt.

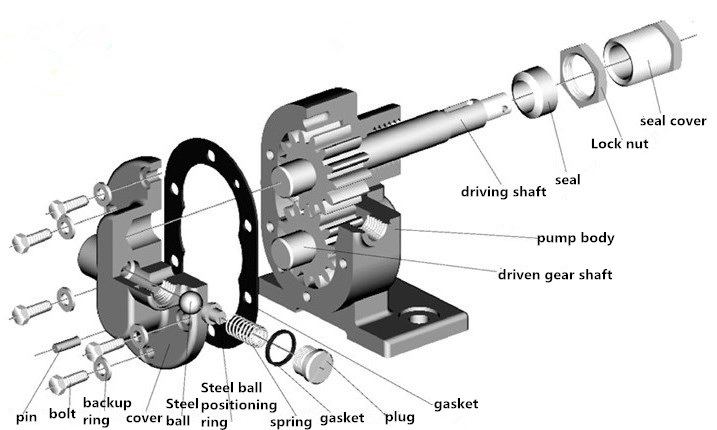

Construction

1. KCB series electric grease gear type oil pump is mainly gear oil pump gear, shaft, pump body, valve, shaft end seal of. Gear after heat treatment have higher hardness and strength, and with the shaft installed in the replaceable sleeve inside operation. All the parts in the pump will automatic reach lubrication by output medium when pump working

2. In pump with design reasonable drainage and return chute, making gear in the work under the minimum torque force,so bearing load is small, little wear and tear, pump with high efficiency.



Application cope

1. Medicine industry

2. Fine chemical industry

3. Food industry

4. Cosmetics industry

5. Printing and dyeing industry

6. Brewing industry

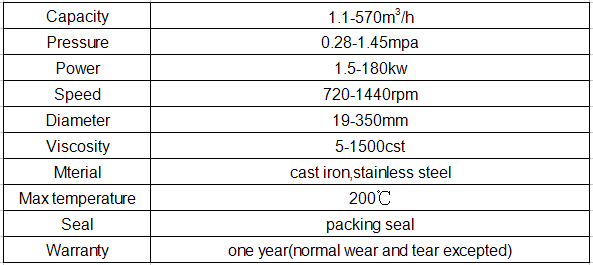

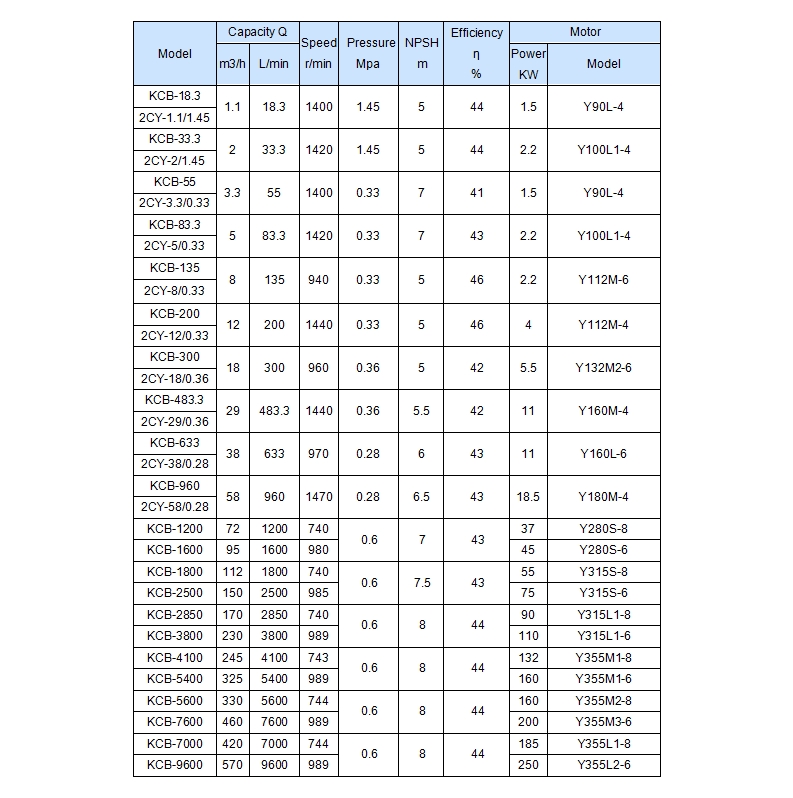

Parameter Date

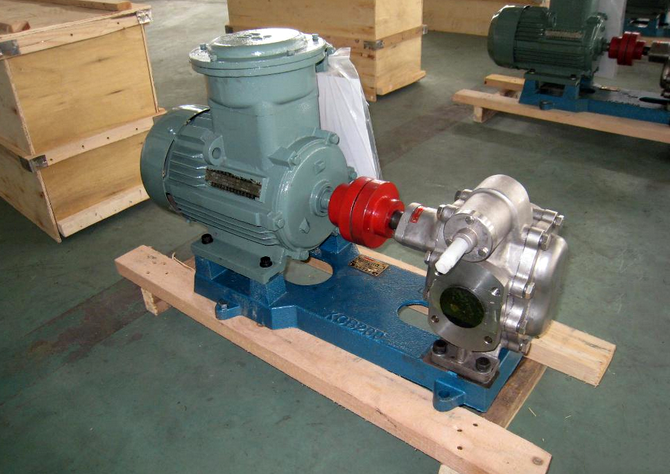

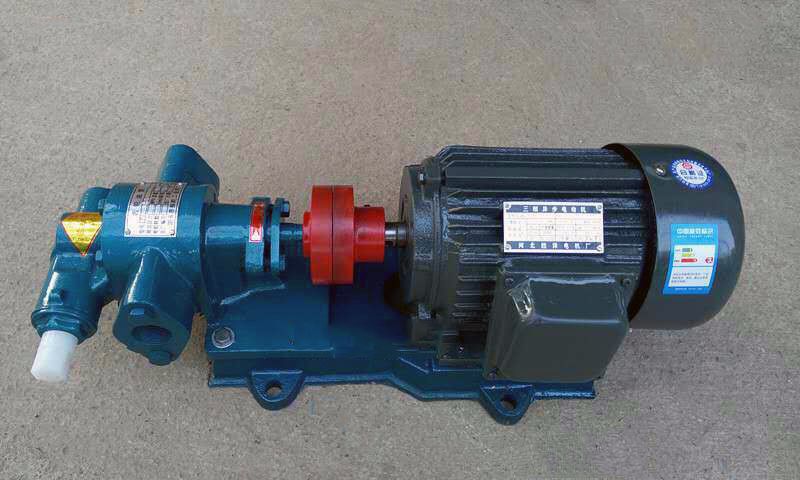

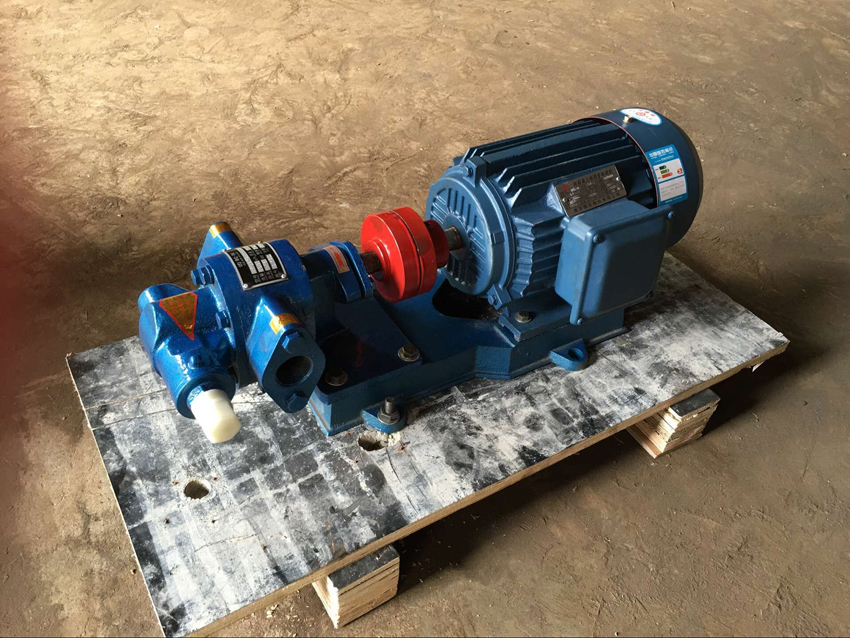

KCB18.3-KCB83.3 oil transfer gear pump:

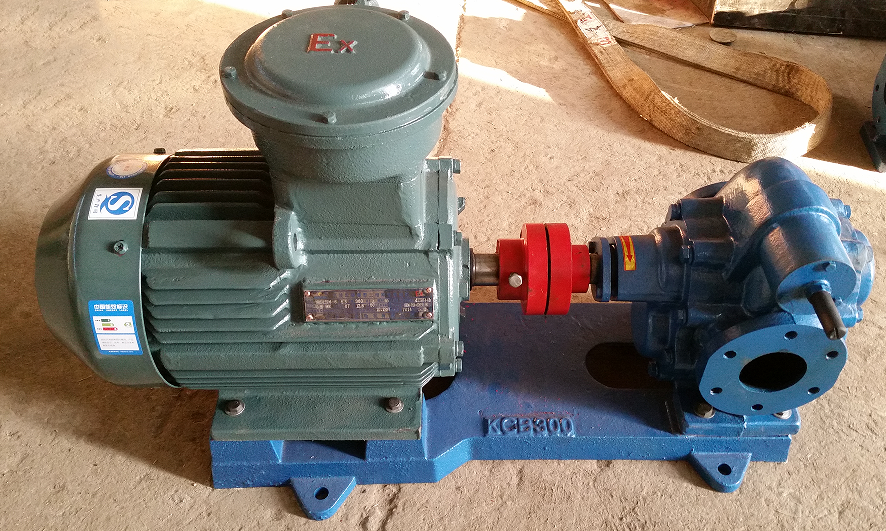

KCB135-KCB960 oil transfer gear pump:

KCB1200-KCB900 oil transfer gear pump:
