Basic Info
| Model No. | 97301161 |
|---|---|
| Brand Name | SVLEC |
| place of origin | China |
Product description

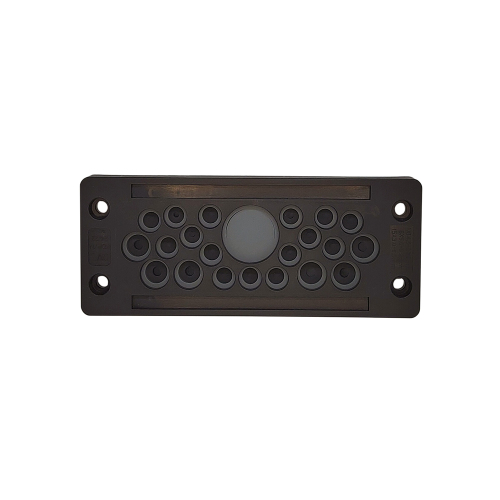

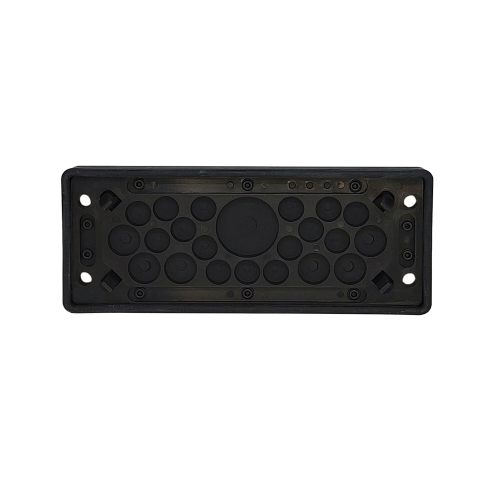

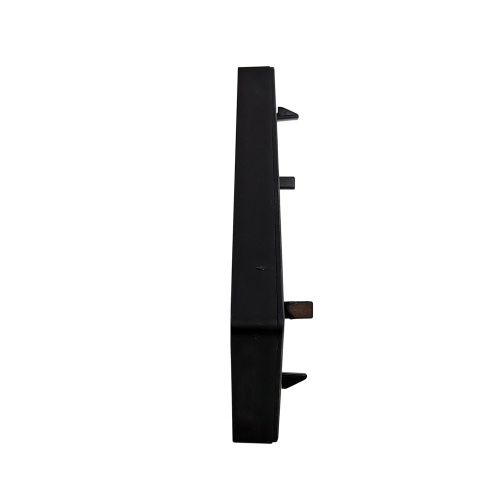

KDP Wall Plate Straight Panel Cable Entry System

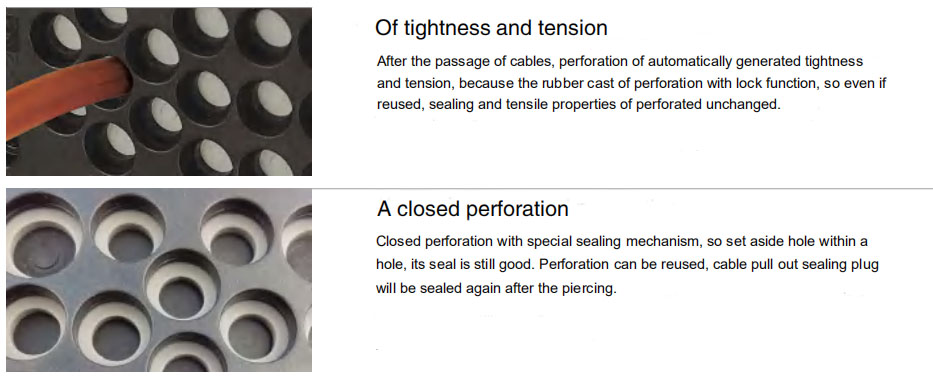

KDP series Cable Entry Frame can provide extremely low space requirement, and ingress protect can reach to IP65 . The KDP cable entry system leads an better way in the industrial fields. It has many advantages such as time saving & cost reductions, high packing density, assembly without tools, high protection class, perforation of tightness and tension and a closed perforation that is aviable to be reused.

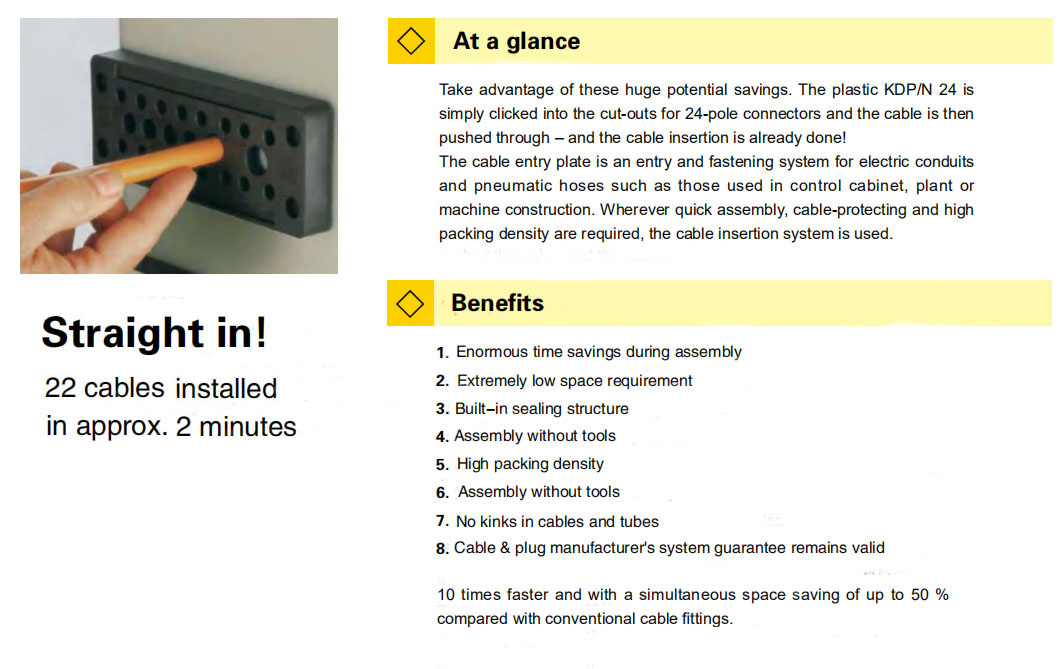

Advantage:
Save a lot of time during installation
High thread density
fairly small space requirements
Installation without tool assistance
Protects cables from entanglement of connection cable ducts
| Name: |
Stright Cable Entry Frame |
| Material: | Nylon |
| Temperature: | -30℃ to +70℃ |
| Protection degree: | IP65 |
| Flame class: | V0 |
| Color: | Black |
|

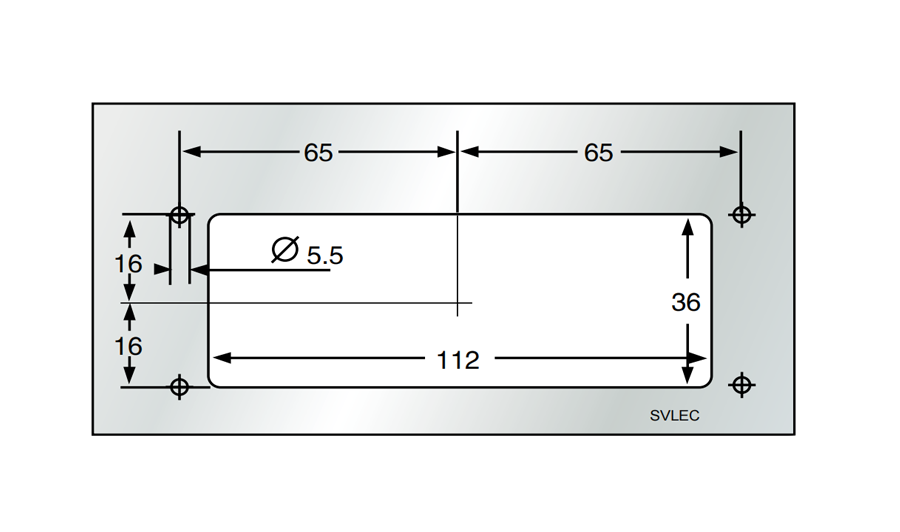

Cut surface: |
112*36MM |
| Size: | L=147MM, B=59MM*15MM |
| Grommets material: | TPR |
| Grommet diameter: | 3-16mm |
