KINCNC 4-Sided Wood Planer: Precision woodworking tool for thicknessing and profiling door frames and timber

Video

1 / 7

KINCNC 4-Sided Wood Planer: Precision woodworking tool for thicknessing and profiling door frames and timber

$7950.00 ~ $19860.00 / set

Options:

MBQ412A
MBQ416A
MBQ421A
MBQ423A

Get Latest Price

You might also like

Professional KINCNC Industrial Wood Planer: A Heavy-Duty Solution for Precision Woodworking

1 set (MOQ)

KINCNC Affordable Single-Sided Veneer Bench Planer for Furniture Manufacturing

1 set (MOQ)

KINCNC Single Side 1300mm Woodworking Spiral Thicknesser and Helical Wood Planer for Solid Wood

1 set (MOQ)

Multi-Function Industrial Heavy-Duty Single-Sided Wood Planing Machine with Automatic Function and Helical Cutter

1 set (MOQ)

Professional KINCNC Woodworking Surface Planer: Heavy Duty Auto Super Planer and Thicknesser for Enhanced Woodworking

1 set (MOQ)

KINCNC High-Quality 6 Spindle Wood Planer Machine: Expert Tool for Four-Sided Woodworking

$18140.00

1 set (MOQ)

KINCNC 6 Axis 4-Side Planer Moulder for Woodworking: A Comprehensive Guide

1 set (MOQ)

KINCNC Heavy Duty Woodworking Four-Sided Planer: Top Selling 4 Side Moulder for Precise Wood Finishing

1 set (MOQ)

KINCNC Heavy Duty 4 Sided Automatic Wood Working Planer: A Comprehensive Guide

1 set (MOQ)

KINCNC MBQ404A Four-Side Planer: Factory Direct Pricing for High-Quality Woodworking and Door Frame Milling

1 set (MOQ)

Basic Info

Model No.
Brand Name
Condition	New
Max.Planing Depth(mm)	100 mm
Max.Planing Width(mm)	200
Type of Cutter Head	Spiral
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	PLC

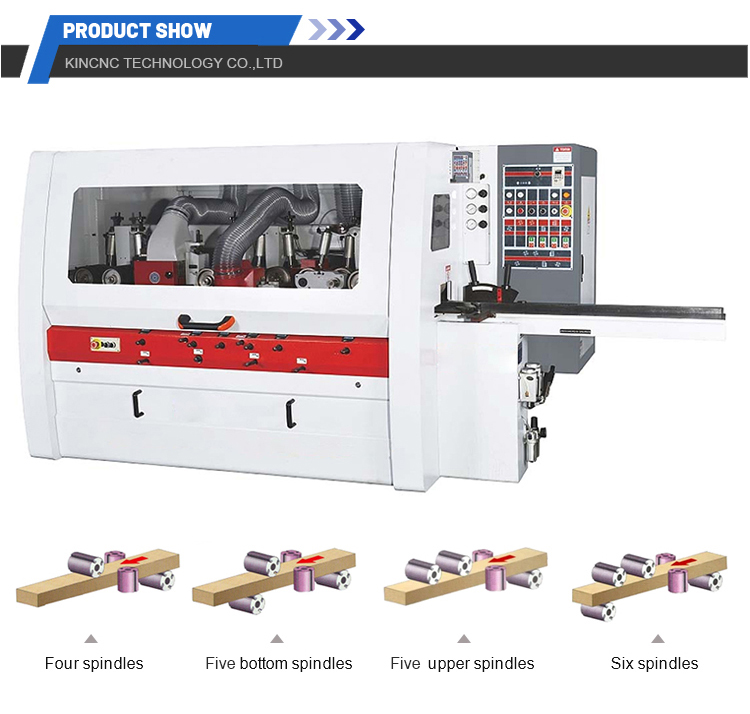

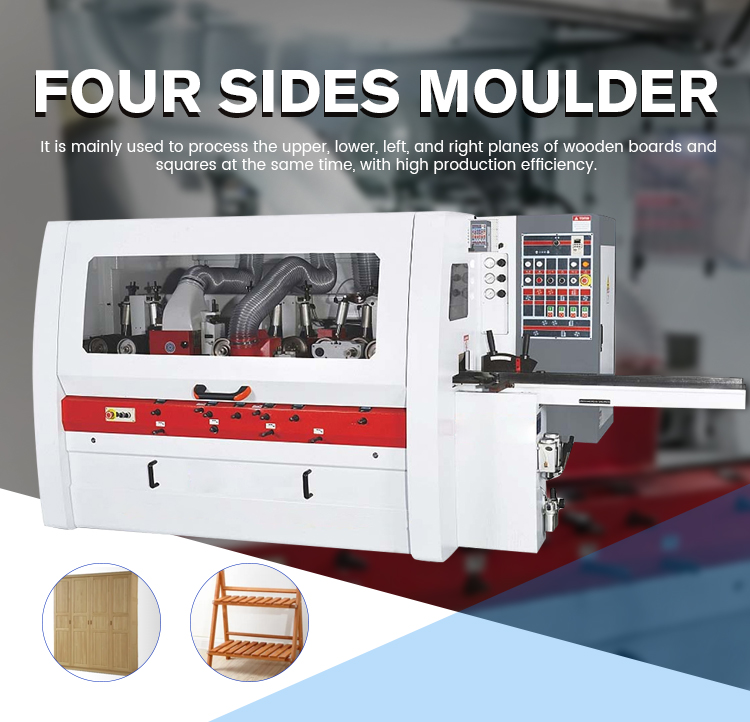

Type	Four Side Moulder
Number of Blade	4
Place of Origin	Shandong, China
Sliding Table Equipped	NO
Brand Name	KINCNC Woodworking Machine
Voltage	220v/380v/custom
Dimension(LWH)	270012001650mm
Warranty	1 Year
Weight (KG)	1950 KG
Power (kW)	15.75
Key Selling Points	Easy to Operate
Applicable Industries	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Product Name	Four sides planer

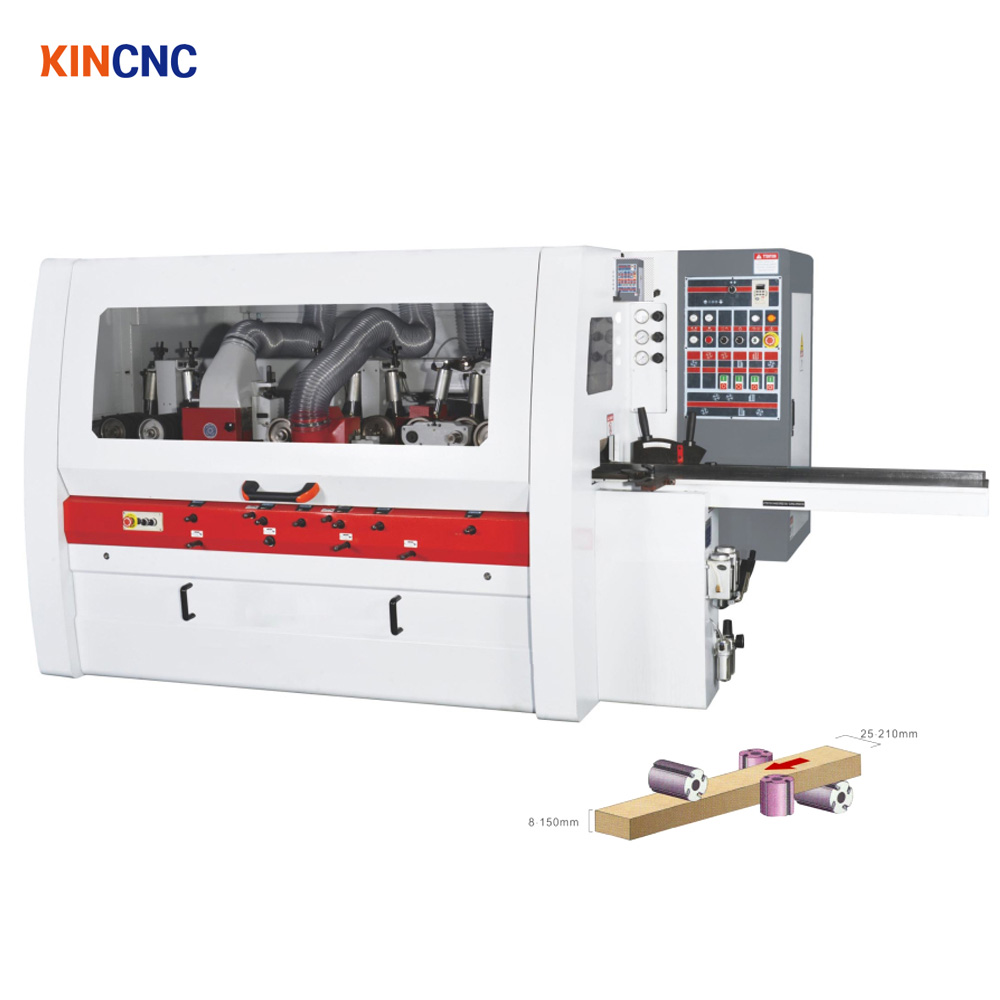

Working width	25-200mm
Working thickness	8-100mm
Working table length	1250mm
Feeding speed	6-35m/min
Main shaft diameter	40mm
Main shaft revolution	6000r/min
Pneumatic source pressure	0.6Mpa
Dust outlet diameter	125mm
Function	Woodworking Planing

Product description

Model	MBQ412A	MBQ416A	MBQ421A	MBQ423A
Working width	25-120mm	25-160mm	25-210mm	25-230mm
Working thickness	8-100mm	8-100mm	8-120mm	8-150mm
Feeding speed	10-40m/min	10-45m/min	10-45m/min	10-40m/min
Main shaft diameter	1200mm	1800mm	1800mm	1800mm
Spindle diameter	Φ40mm	Φ40mm	Φ40mm	Φ40mm
Axial movement	0-20mm	0-20mm	0-20mm	0-20mm
Main shaft revolution	6000r/min	6800r/min	6800r/min	6000r/min
Pneumatic source pressure	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa
First bottom spindle	3kw	4kw	5.5kw	7.5kw
Right side spindle	3kw	4kw	5.5kw	5.5kw
Left side spindle	3kw	4kw	5.5kw	5.5kw
First top spindle	4kw	5.5kw	7.5kw	11kw
Feed	3kw	4kw	4kw	4kw
Feed beam rise&fall	0.55kw	1.1kw	1.1kw	0.75kw
General power	16.55kw	22.6kw	29.1kw	34.25kw
First bottom spindle	Φ125	Φ125-Φ140	Φ125-Φ140	Φ125
Right side spindle	Φ125-Φ160	Φ125-Φ165	Φ125-Φ165	Φ125-Φ160
Left side spindle	Φ125-Φ160	Φ125-Φ165	Φ125-Φ165	Φ125-Φ160
First top spindle	Φ125-Φ160	Φ125-Φ165	Φ125-Φ165	Φ125-Φ160
Dust outlet diameter	Φ120mm	Φ140mm	Φ140mm	Φ140mm
Feeding wheel diameter	Φ140mm	Φ140mm	Φ140mm	Φ140mm
Overall Dimensions(mm)	270012001650	410016301750	410016301750	355016301750
Net weight	2000kg	2500kg	3000kg	3200kg

Products Description

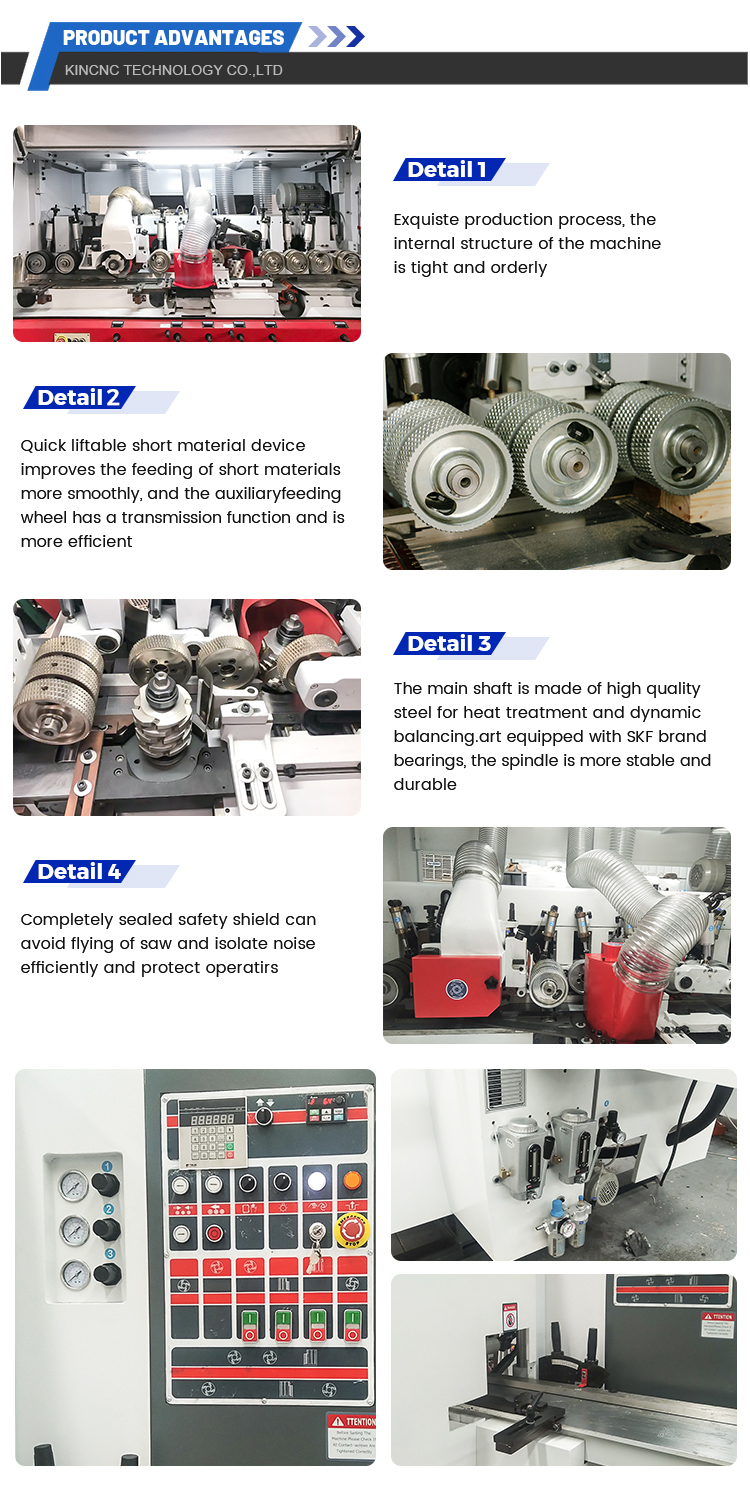

Advantage And Features:
1.This adopts frequency conversion material feeding, material feeding speed ranges from 8-35m/min.

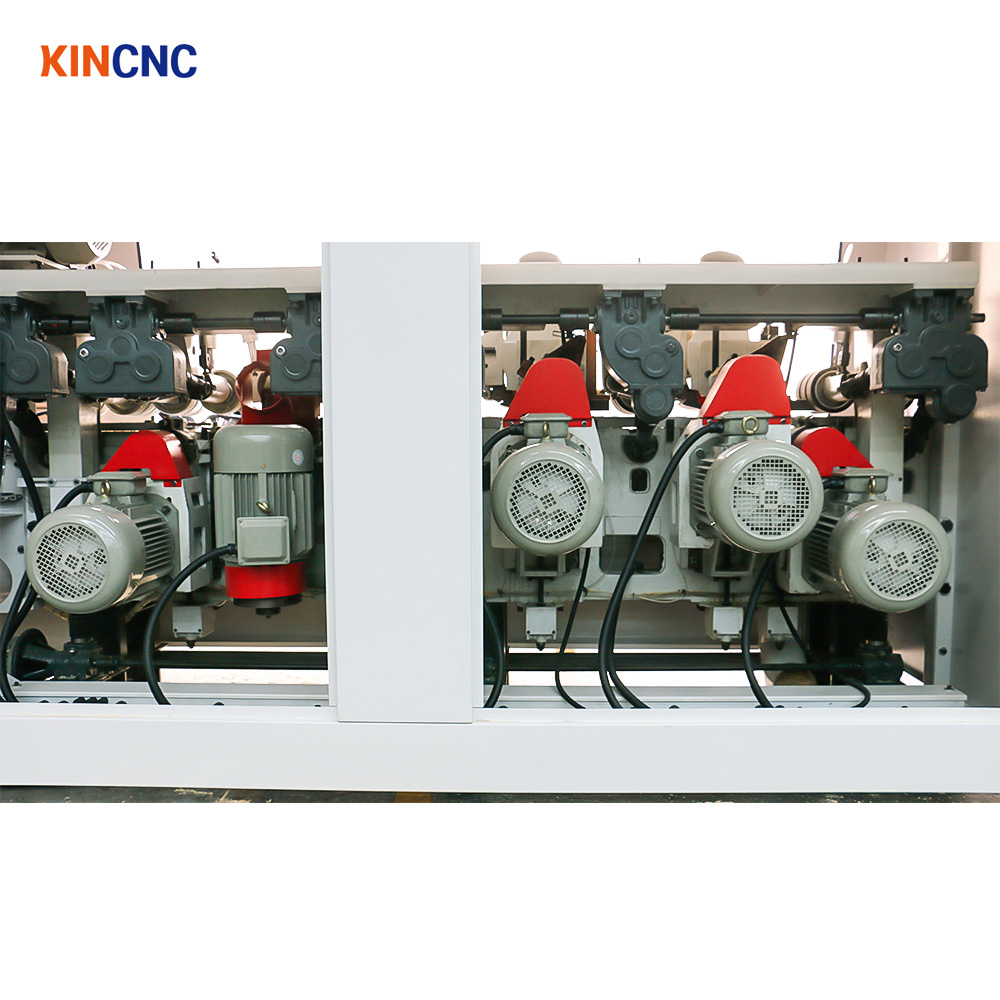

2.Each main shaft is driven by independent electric motor, cutting force is powerful.
3.Main shaft is adjustable to focus on the front, operation is convenient.
4.Hard chrome plating worktable is durable.
5.Equips with auxiliary unit alarming lack of material, it effectively improves smooth feed-in while lack of material.

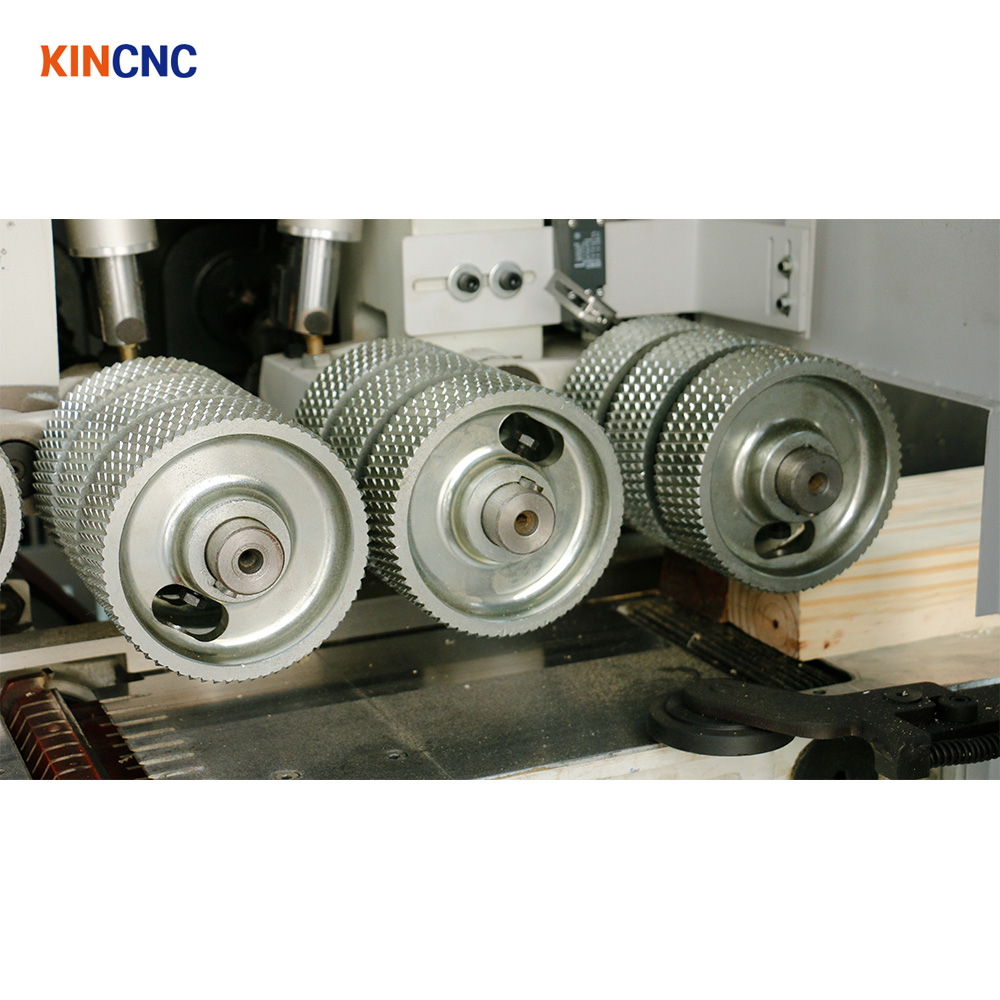

6.Multi-group drive rollers improve feeding efficiency.
7.Adopts central charging system, features convenience and promptness.
8.International brands electrical parts are applied for good stability.
9.On the horizontal axis with the front support means to improve the rigidity of the spindle.
10.Spare parts are thick and solid to maintain high precision,high stability and high reliability.
11.Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.
12.Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.

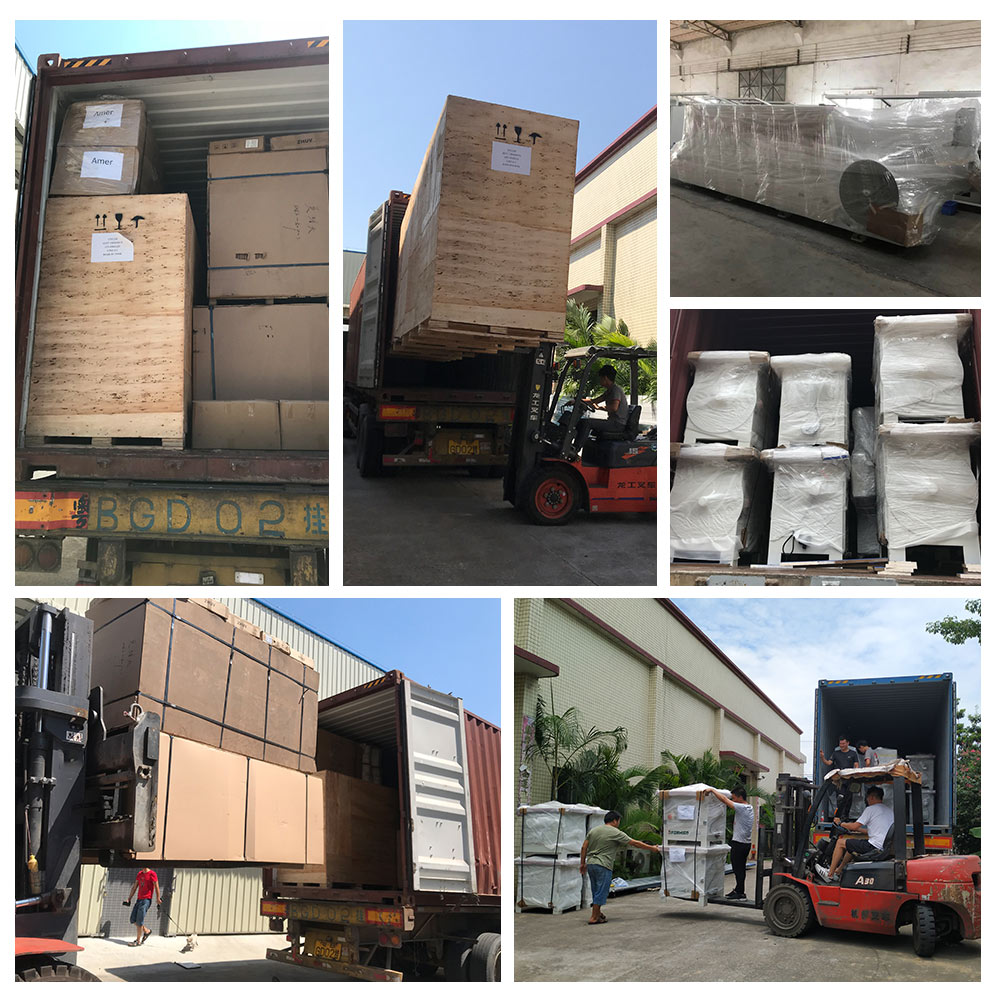

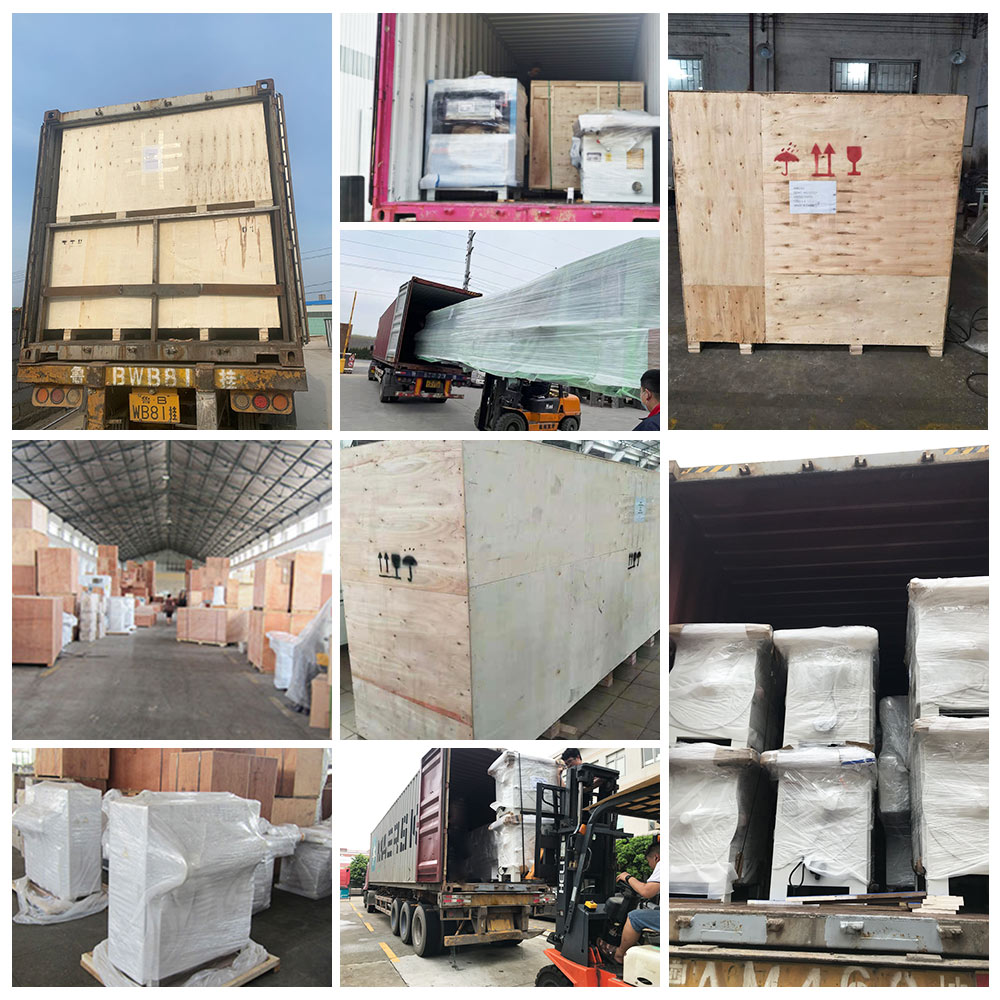

Product packaging

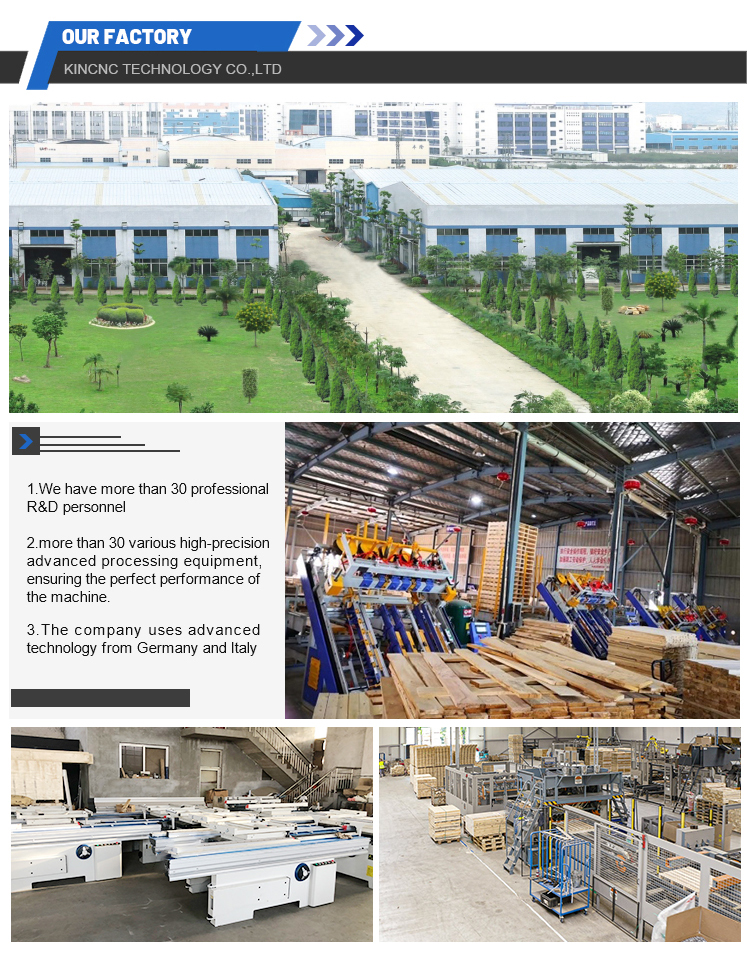

Qingdao KINCNC Technology Co., Ltd.

KINCNC is one leading manufacturing and exporting company of woodworking machine in China. We are committed to provide one-stop service to our customers all over the world. Our machines are widely used in the woodworking industry with the following advantages: 20,000 m2 Professional Factory 200+ Production Equipment 100+ Factory Employees 20+ QC Team Cooperation With Enterprises From 130+ Countries Strict quality control system is our core competitiveness. KINCNC uses advanced technology from Germany and Italy to develop automated woodworking CNC equipment that meets the needs of the furniture and wood products industry. As a China famous brand, our products also exports around the world including Southeast Asia, Middle East, Africa, European, U.S.A. and so on. Our company managing idea is improving the high quality products. We are searching for the distributors around the world. Hope we can have the honor to cooperate with you.

Q: This is the first time I use this kind of machine, is it easy operate?
A: Our machine is installed and tested well before shipment. There are guide video that show how to use machine, the English instruction book send to you with machines. If there is still have any question, we will provide free professional guide for you .

Q: If we buy machines from you, how about after-sale?
A: We have 24 hours on line after sale, and provide you 13 months warranty time. If there has any problem with your machine in the warranty time, we can provide free after sale.

Q: How can we get replacement parts?
A: Most of the spare parts are ready in stock. We will send it directly from our warehouse, If you have any need . You also can buy spare parts from local market, our spare parts are internationally accepted.

Q: Can you provide custom service?
A: Sure. Our machines can be customized according to buyers’ requirements. If you have any required, welcome you contact us, our engineer will help you solve it.

Q: What other machine do you offer?
A: We provide one-stop shop service of the machines for the buyers. Other kinds of machines, like sawing machine, wood pallet machine, wood block cutter, sanding machine etc., can be provided as well. If you have other need, please contact us on line, we will reply you ASAP.

Q: How solve the shipment ?
A: We can help you solve shipment, we have much experience on packing and shipping,If you have no much time deal with it, we can help you solve them. You can get machines from local port or place.
