There are several names for linear modules, linear modules, Cartesian coordinate robots, linear slides, etc., which are automated upgrade units following linear guides, linear motion modules, and ball screw linear drive mechanisms. The linear and curved movement of the load can be realized through the combination of various units, making the automation of light loads more flexible and positioning more precise.

Synchronous belt type:
The working principle of the synchronous belt type is: the belt is installed on the drive shaft on both sides of the linear module, which is used as the power input shaft, and a slider used to increase the equipment workpiece is fixed on the belt. When there is input, the slider is moved by driving the belt.
Generally, the synchronous belt type linear module is specially designed, and the elasticity of the belt movement can be controlled on one side, which is convenient for the debugging of the equipment during the production process.
Synchronous belt linear modules can choose to increase the rigidity of the linear module according to different load needs. Linear modules of different specifications have different upper load limits.
The accuracy of the synchronous belt linear module depends on the quality of the belt and the processing process in the combination, and the control of power input will also affect its accuracy.
Screw type:
1. The ball screw is an ideal product that converts rotary motion into linear motion, or converts linear motion into rotary motion. The ball screw is composed of a screw, a nut and a ball. Its function is to convert rotary motion into linear motion, which is a further extension and development of ball screws. The important significance of this development is to change the bearing from rolling motion to sliding motion. Because of its low frictional resistance, ball screws are widely used in various industrial equipment and precision instruments. High-precision linear motion can be achieved under high load conditions.
2. Linear guides, also known as slide rails, linear guides, and linear slides, are used in linear reciprocating motion applications. They have a higher rated load than linear bearings, and can bear a certain torque at the same time to achieve high precision under high loads. Linear motion. Structure, high precision; precision-grade guide rail plate,
3. Aluminum profile sliding table has beautiful appearance, reasonable design, good rigidity and reliable performance. It is an ideal basic power component for modular machine tools and automatic lines. It has good dynamic performance. The sliding table has high rigidity, small thermal deformation, and feed stability. High, so as to ensure the actual accuracy under the processing state (under load).
Linear motor module type:
The linear motor module is a transmission device that directly converts electrical energy into linear motion mechanical energy without any intermediate conversion mechanism. It has the advantages of simple structure, convenient realization of long stroke, high acceleration, fast response, high precision, etc., and the highest repeatability positioning accuracy is ±0.001μm.

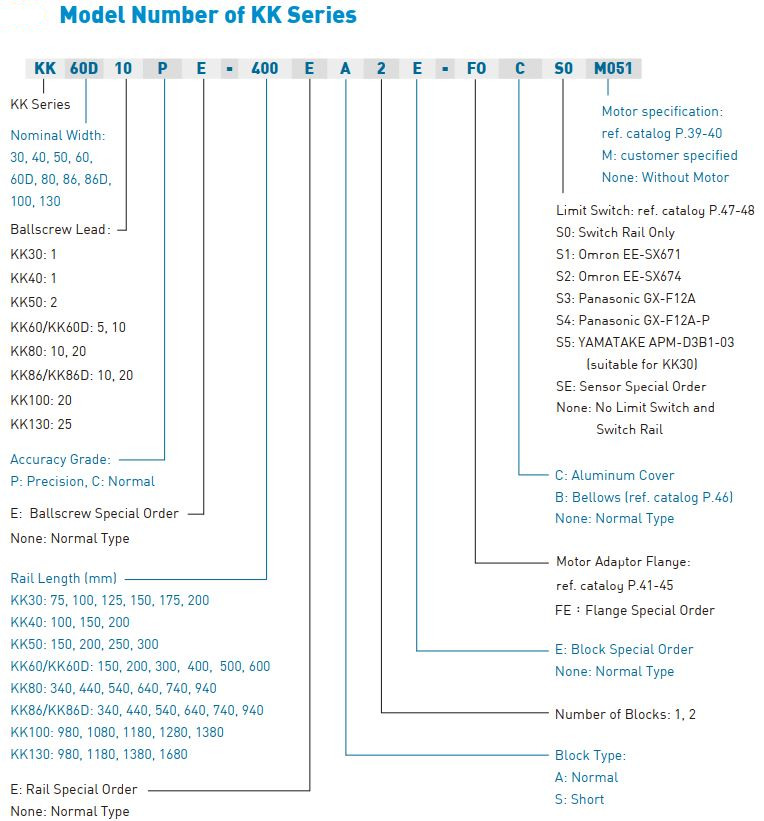

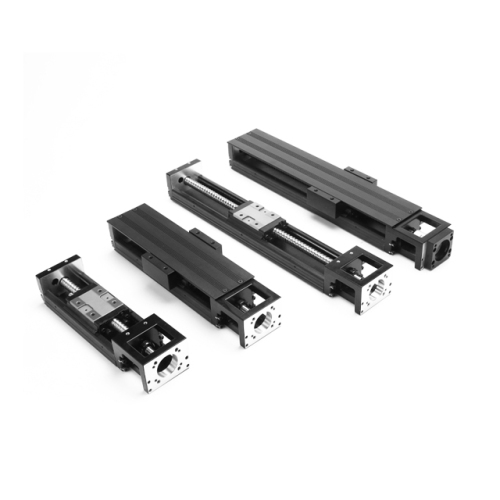

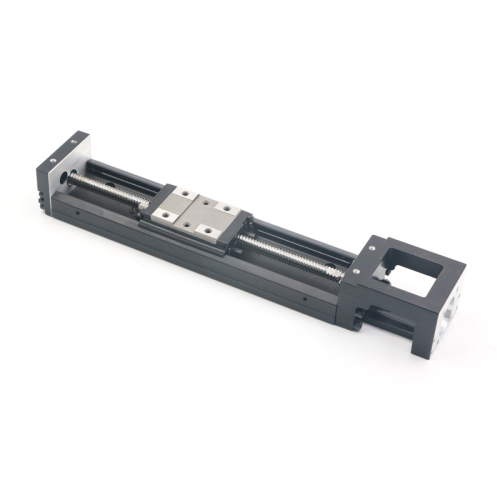

Product Name	Precision Linear Slide Stages KK Module
Material	Alloys
Blockes types	square, flanged, lengthed
Accuracy Grade	C, H, P, HP, UP
Preload code	Z0, Z1, Z2
Application	Automation Device;Transportation equipment;CNC machining centers;Heavy duty cutting machines;CNC grinding machines;Injection molding machines;Electric Discharge Machines;Plano millers;Devices requiring high rigidity and high load capacity

Main Features
1. Products Stock
2. Low Cost
3. Low Noise
4. Reliable Quality
5. Years of Experience

Name: Linear Module
Brand: WKT
Original: Suzhou, China (Mainland)

Packaging Details:
In cartons or Wooden cases upon your requirement
For samples:
we have DHL, FEDEX VIP account, so the shipping freight will be much cheaper after discount.
For bulk order:
we have freight forwarder to ship by air,by train or by sea.You can also arrange shipping through your own agent.
Port:
Shanghai
Lead Time:
7-15 days
