Product features: ·The main body is made of aluminum alloy, which has high combination accuracy; built-in Renishaw origin, and equipped with photoelectric limit switches;

Using the British Renishaw grating ruler, stable and reliable, high precision;

Using Japanese THK advanced guide rail, high precision, high rigidity, low noise and long life;

The linear motor module has a built-in reliable anti-collision design to prevent motor damage caused by collision;

Using Israel Servotronix driver, the response frequency is high, the function is powerful, and the stability is strong.

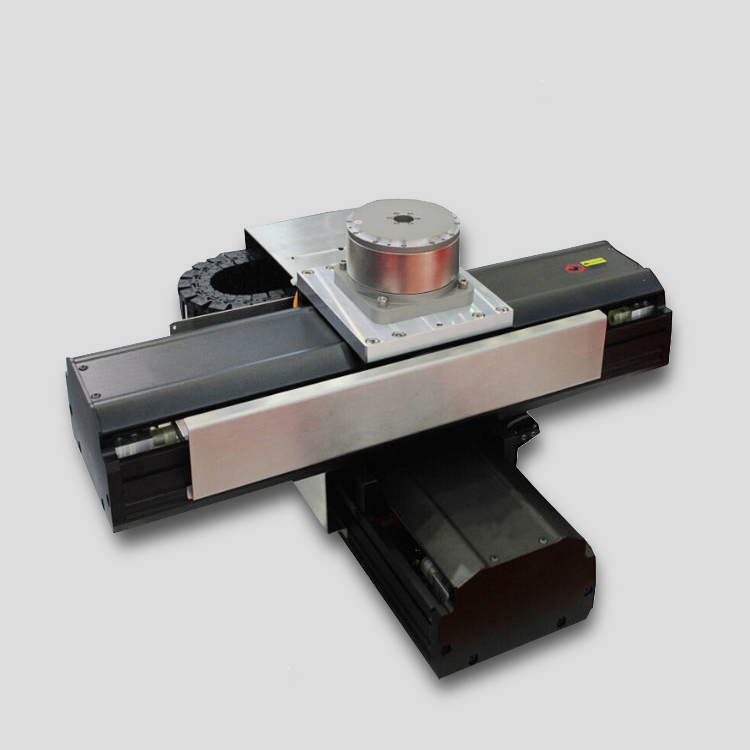

Linear Motor Module Platform

Brand: Baolai BORAUTOMATION

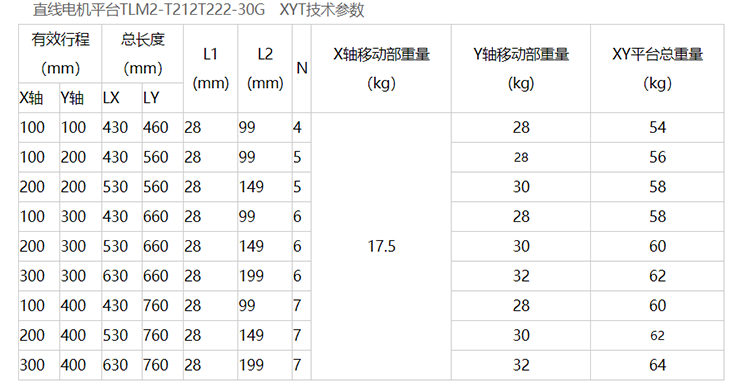

Model: Linear Motor TLM2-T212T222-30G XYT

Repeat positioning accuracy: ±3Arc - ±1sec

Repeatability: ±2.5Arc sec

Product introduction: Linear and rotary motion can be realized, high speed, high precision, large torque Imported accessories, the stroke can be customized on demand

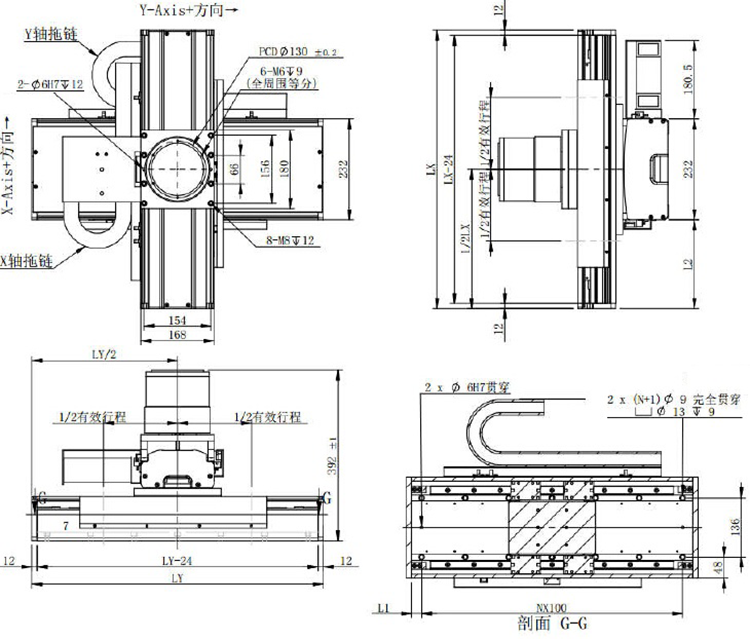

XYT linear motor stage is composed of XY axis linear motor coupled with DD motor, which can realize linear and rotary motion,

The CCTL linear motor stage has the advantages of high speed, high precision and large torque.
