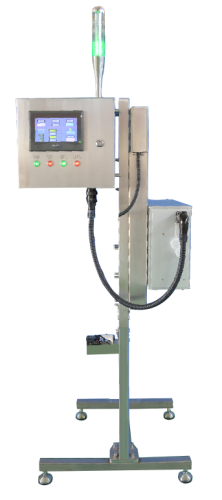

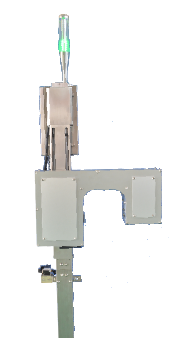

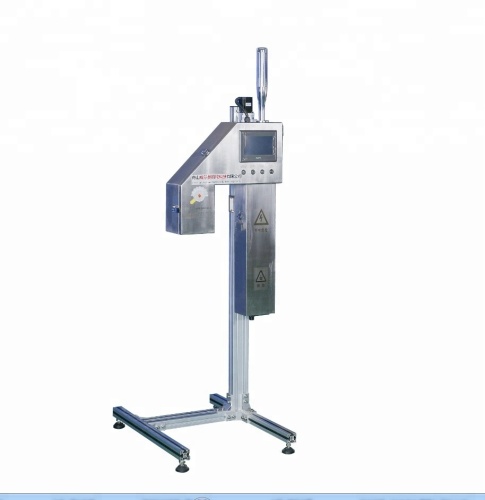

XYW-400 type filling liquid level detector is a kind of advanced liquid level detector which is researched, development and manufactured by our company, and reaches the advanced level of domestic and abroad. The principle of that “the ray intensity changes with the charge level change of detected material after interaction between low-energy photon source and detected material” is utilized to control and inspect the filling liquid material capacity. Given its non—contact measure way, the product basically solve the problem that the conventional weighing method cannot measure the filling liquid material capacity on production line, and it’s widely applied in the automatic online control of filling liquid material production lines(both bottling and filling) of food, medicine, chemistry, weapon and  etc.



 Functional description

Scope of application: online liquid level detection of two- piece-can, three-piece-can, PET bottle and glass bottle

1.  Technological characteristics

(1)Without warming-up, the detection can be conducted directly after starting up the product.

(2)Non-contact inspection, fast inspection speed, and high accuracy.

(3)The product can automatically fit to the different production line speed and realize dynamics detection.

(4)The product is manufactured with stainless steel shell and seal design mainframe, which is anti-fog, anti-water drop and possesses strong environmental suitability.

(5)The radiation of high-frequency ray will be automatically interdicted at free time.

(6)The product employs hardware circuit implementation and built in operate system, which can ensure long-term stable operation.

(7)Simultaneous alarm of sound and light, automatic remove of unqualified container.

(8)The 9 inch touch screen display provides simple and reliable man-machine operate interface, which is flexible and convenient to change bottle type.

(9)Large screen Chinese display, LED backlit liquid crystal, clear and bright character, man and machine communicate method operation.

(10)Without isotope radioactive source, the product employs soft ray design while its ray protection is safety and reliable.

 2.       Major technological indicators

(1)Band carrier linear speed of production: ≤1.8M/s

(2)Container diameter:20MM-100MM

 (Different detectors for different containers concentrations and diameters)

(3)Dynamics container resolution: ±2MM(bubble and shaking may influence the accuracy)

(4)Static liquid level detection accuracy: ≤0.5MM(water)

(5)Static l detection stability of 8 hours: ≤0.15MM(water)

(6)Unqualified container remove ratio: ≥99%(detection speed:1200 can/min)

(7)Temperature error:0-40 ℃

≤0.25MM for the temperature error of the detection value of 20 ℃

(8)Working requirements:10MS minimum time width (both with and without can)

(9)Usage environment: 0-40 ℃ temperature, relative humidity≤95%
