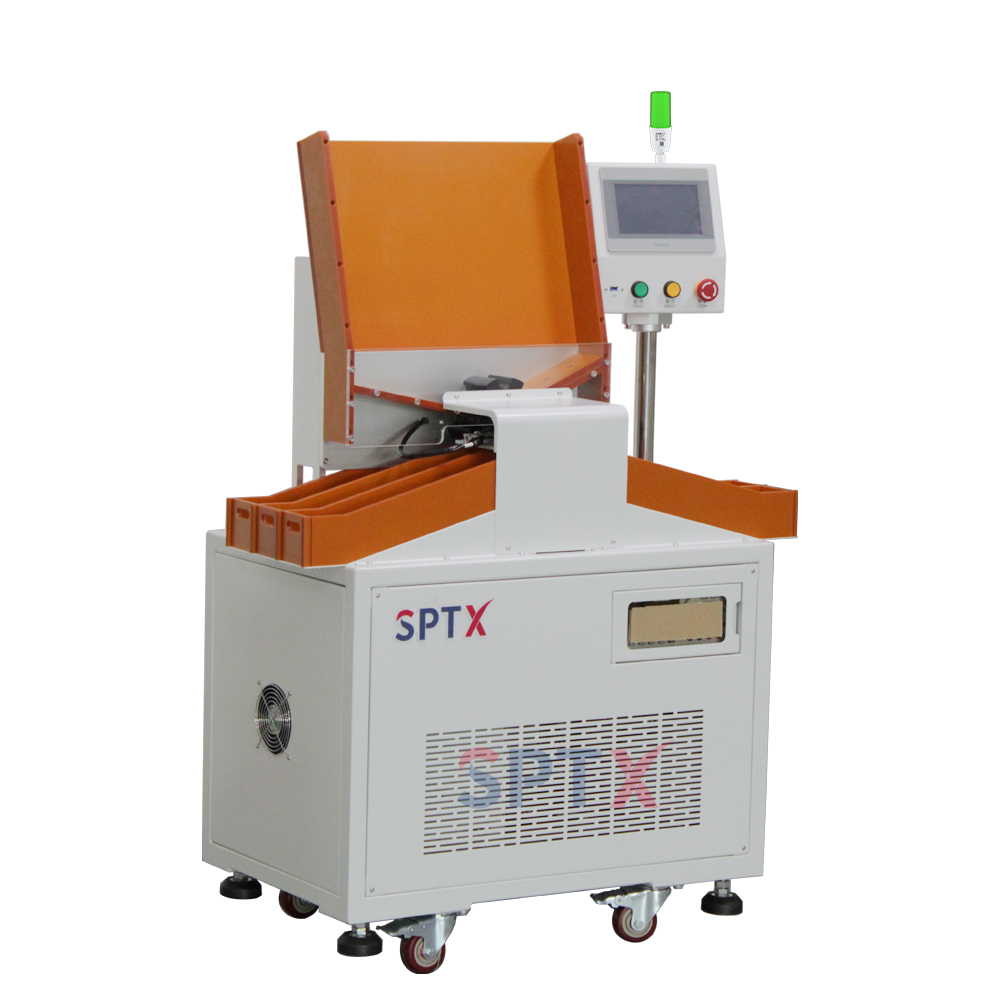

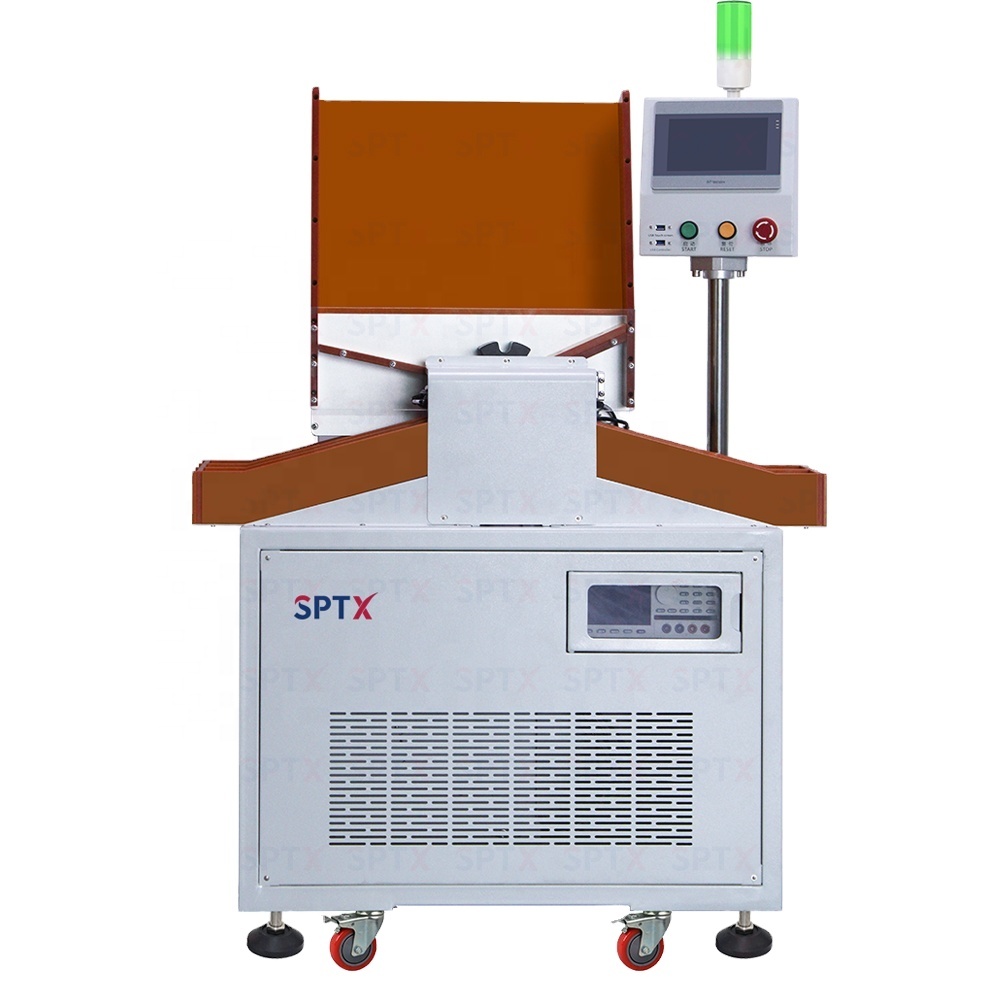

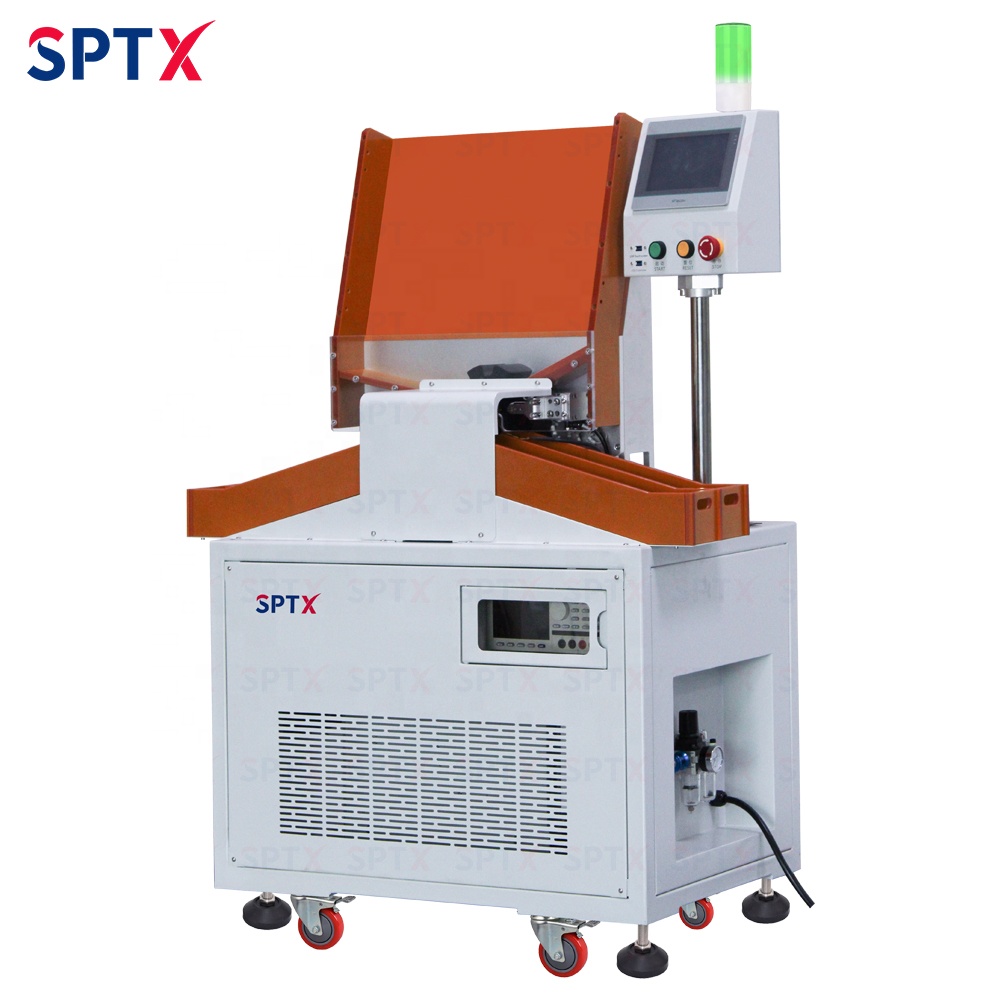

5?Channels Automatic Battery Sorting Machine For Cylindrical Battery Pack

?

The principle of sorting machine

?

SPTX CS-FX05S?Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to difference?channels according to the setting.

?

?

Why you need sorting machine?

?

Our sorting machine can greatly improve production efficiency, effectively and accurately sort the internal resistance and voltage of battery cells from different places, saving labor costs.

?

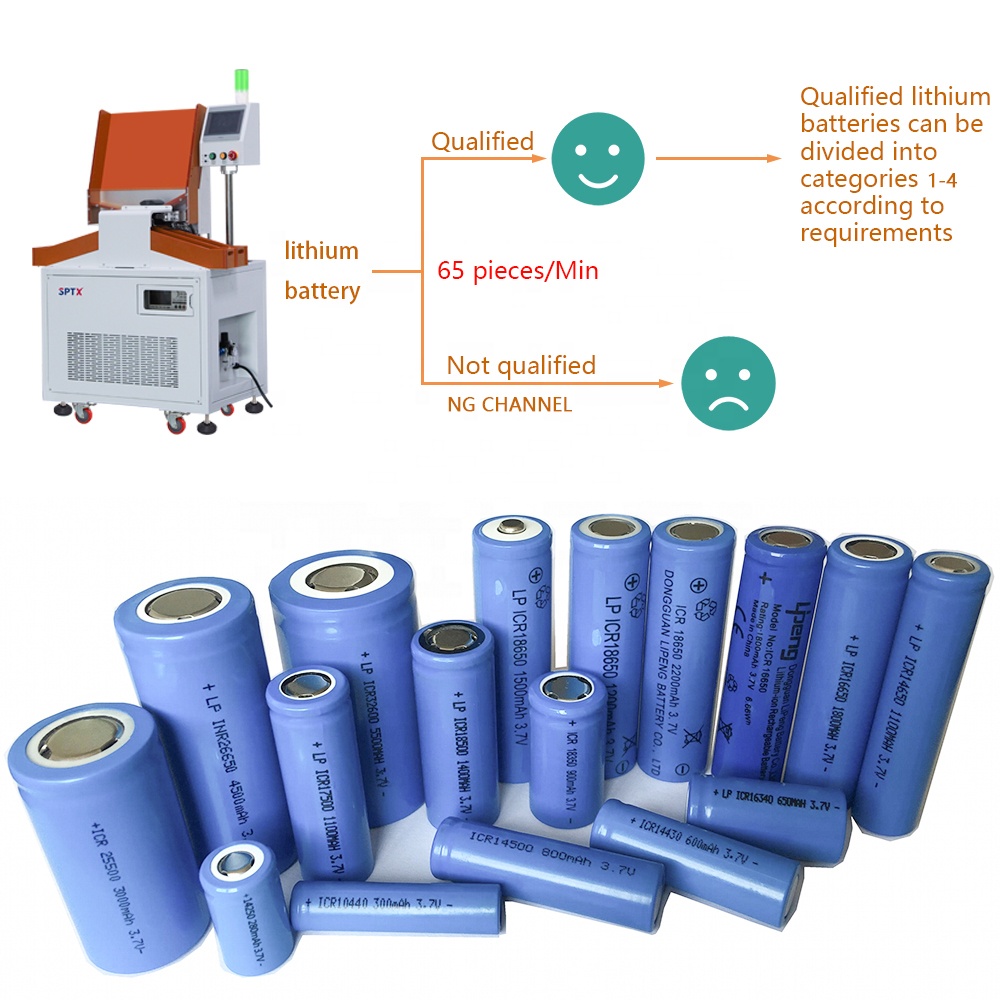

How sorting machine works?

1.?Manually install the battery into the unloading belt

2.?The battery flows into the scanning position for scanning

3.?The battery flows into the test position for testing

4.?The robot grabs the corresponding channel for battery sorting

?

?

Optional features

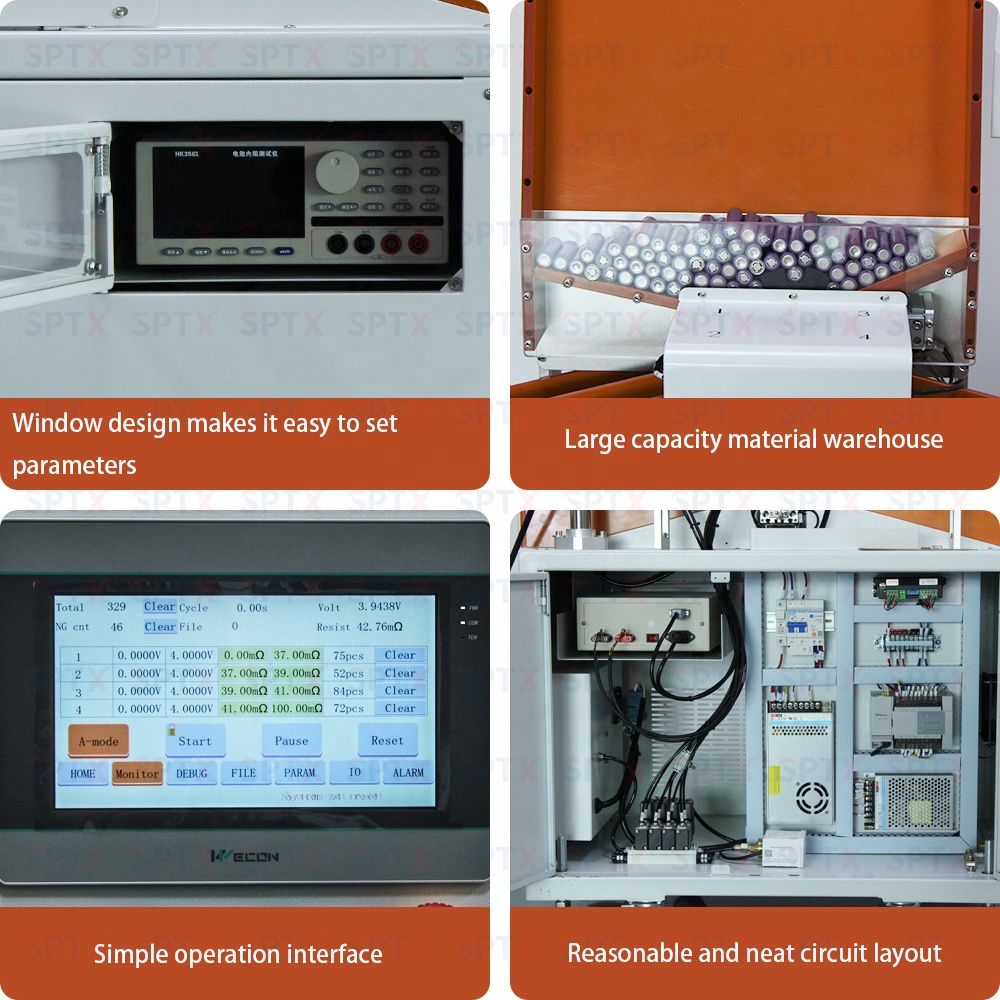

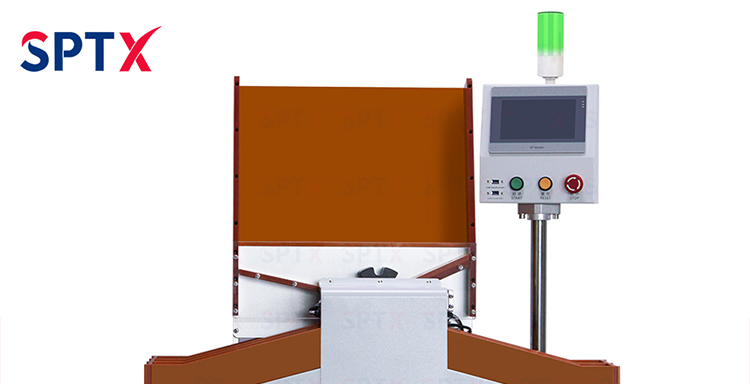

Details Images

?

?

Advanced Features

1)?5?channels,?4 effective and 1 NG channel.

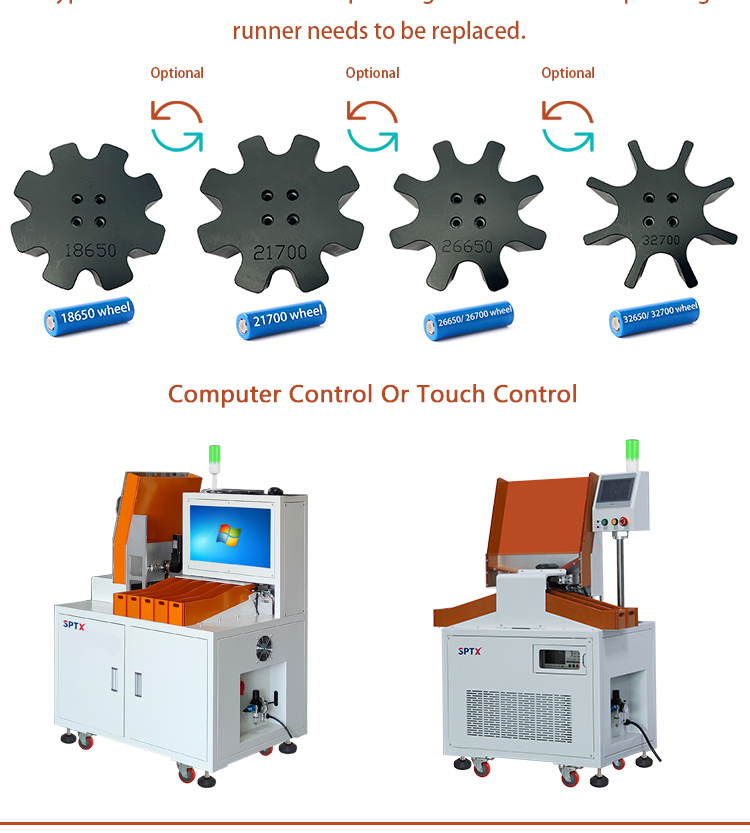

2)?Multi-cell types support via change mould

3)?Support cells: 18650,21700,26650,32650

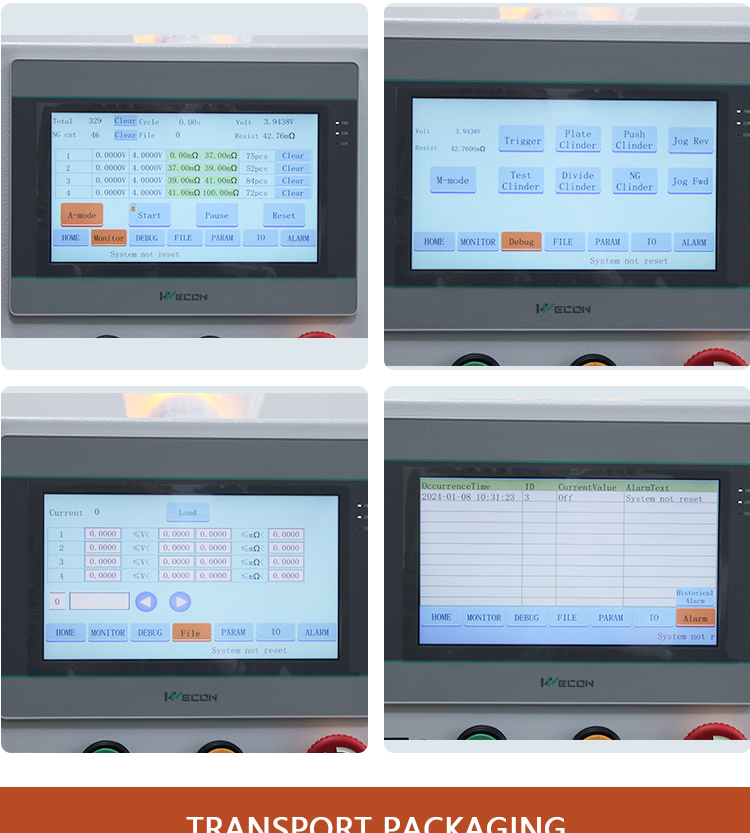

4)?Touch screen or computer version optional

5)?Data storage, analysis, export function

6)Optional battery barcode scanning and logging capabilities

7)?Integrated with industrial control, all parameters of the battery can be traced and tracked, which facilitates data management. It is simple to operate the management functions of battery voltage,Battery internal resistance configuration information, etc.

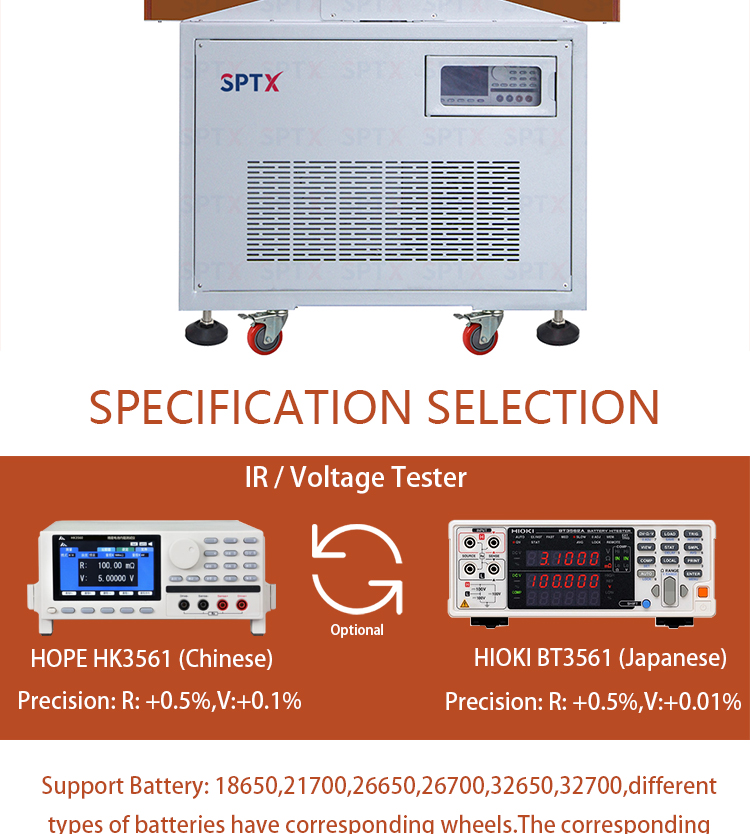

8)?Built-in high-precision HK3561 internal resistance tester, high test accuracy and fast speed.

?

?

?Specifications

?

No	Item	Parameter
1	User interface	Touch screen or Computer
2	Equipment efficiency	3700~4000pcs/H
3	Equipment transfer rate	≥95%
4	Data storage	Computer version have
5	Data output	Computer version have
6	Power supply	AC220V/50Hz
7	Power	1000W
8	Sorting Channels	5?channels,?4 effective and 1 NG channel
9	Voltage accuracy	±0.05% RDG,Display resolution: 0.1 mV
10	Resistance accuracy	±0.5% RDG,Display resolution 0.01 milliohm
11	Display resolution	0.1mΩ
12	Battery support	18650,21700,32650...
13	Air pressure	0.4-0.6MPa
14	Efficiency	>3000 pcs/h
15	Controller	Micro computer controller
16	Weight	120KG
17	Size	L102*W61*H150

?

?

FAQ

1.What should we do if we don’t know how to operate the machine?

?

We have professional engineers to give professional guidance and attach instructions for use. We have specially filmed operation videos for buyers.

?

2.?What is your warranty terms?

?

We provide a 1 years warranty for our machines, and long-term Technical Support.

?

3.?What certificates do you have?

?

We have CE and FCC certificate,but some model machine need to be applied with your assistance.

?

4.?How do I get after-sales service?

?

We are online 24 hours a day, you can contact us through wechat, whatsapp, skype?or email, we will provide 100% satisfactory after-sales service.

?

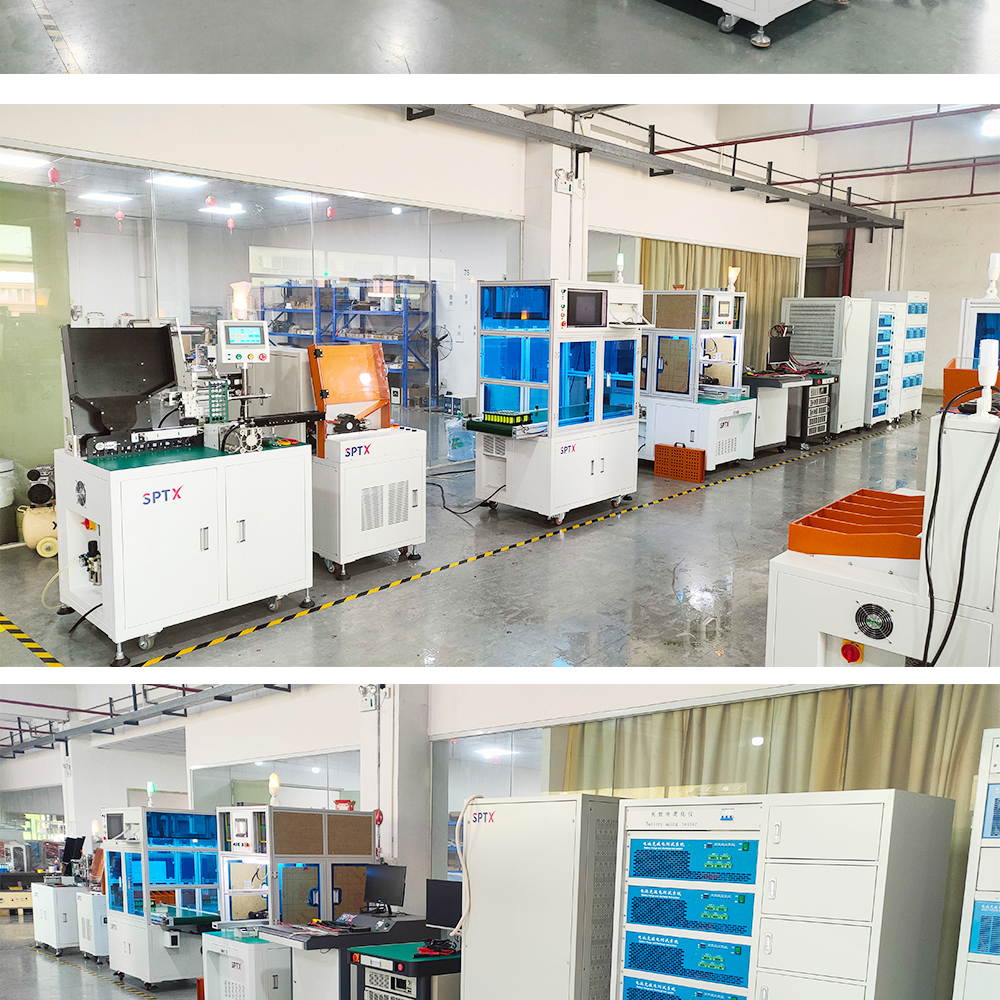

5.?Can I visit your factory?

Your are welcomed to visit our factory, and we will take care of you during the visiting

?

6.?Can I customize the machine?

?

Yes, you can. We can provide you with customized services according to your needs?but we need to provide detailed design documents.

?

7.?How do we control the product quality?

?

Our company has own research & development and production base, the products have been calibrated by central laboratory professionals before they leave the factory, ensure the accuracy of test results and authority

?

?

?

?

?
