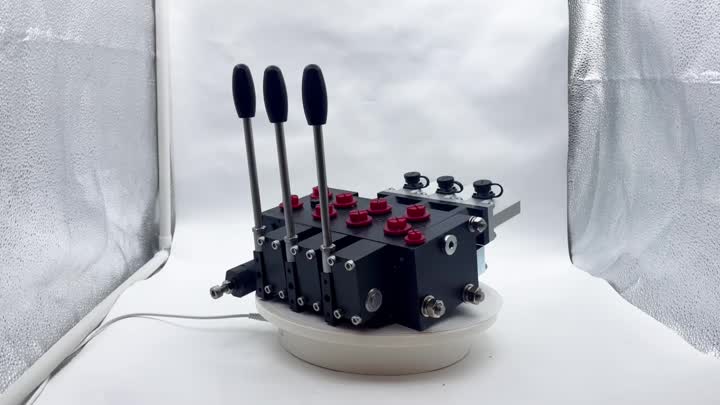

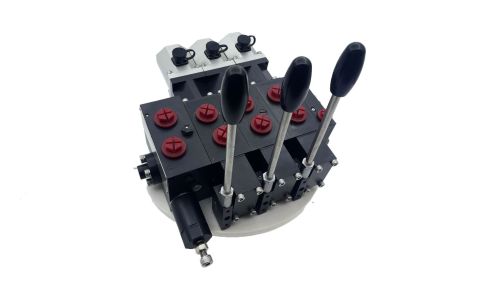

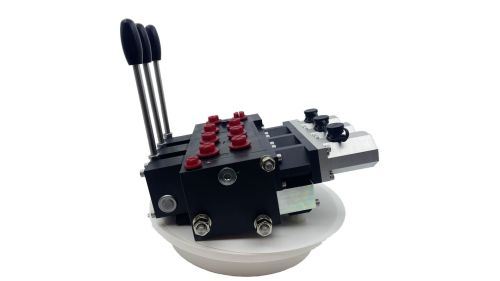

Proportional multi-way directional spool valve type HLPSL and HLPSV according to load-sensitive principle are mainly applied to engineering machinery electric hydraulic control field to control the movement direction & speed of hydraulic oil cylinder or hydraulic motor. With various functions such as electric proportional control, electric switching value control, hydraulic control, pneumatic control, manual control, etc., such valves can realize stepless speed regulation and will not be influenced by load change. The characteristic of load sensing enables the multi-way actuators to run simultaneously and independently from each other at different speed and pressure ratings until the maximum flow of bumping source is reached.

Load Sensing HAWE Valve, HAWE Load Sensing Valve，Load Sensing Valve HAWE are widely used for Coal mine, oil, and various aerial work vehicles.





HLPSL3C1C/350-3-32H40/40A300B300N/EA2

                               -32L40/25NN/EA2

                               -32L16/16NN/EA2

                               -32L16/16NN/EA2

                               -32L16/16C250N/EA2-E1-G24



For 3 series constant displacement pump system, The safety pressure is set as 350 bar, each directional spool valve has the differential reducing valve. While L valve Core is on Neutral position, P、A、B、R port is closed ; While H valve Core is on Neutral position, P port is closed and A、B port is open to R port. A、B port of 1st directional spool valve flow is 40L/min, and A、B port press is not more than 300 bar, for the 2nd directional spool valve A port flow is 40L/min, B port flow is 25L/min, for the 3rd&4th&5th directional spool valve, A&B port flow is 16L/min, for the 5th directional spool valve pressure should not more than 250bar. The end plate is Standard, and the T port is connected externally to oil tank.



1st directional spool valve control action:    turn around

2nd directional spool valve control action:   big arm

3rd directional spool valve control action:   middle arm 1

4th directional spool valve control action:   middle arm 2

5th directional spool valve control action:   little arm



4 Valve Plates 3 Series For Concrete Boom Pumps Vehicles

HLPSL3C1C/350-3-32H40/40A300B300N/EA2

                               -32L40/25NN/EA2

                               -32L16/16NN/EA2

                               -32L16/16C250N/EA2-E1-G24



For 3 series constant displacement pump system, the safety pressure is set as 350 bar, each directional spool valve has the differential reducing valve. While L valve Core is on Neutral position, P、A、B、R port is closed ; While H valve Core is on Neutral position, P port is closed and A、B port is open with R port. A、B port of 1st directional spool valve flow is 40L/min, and A、B port press is not more than 300 bar, for the 2nd directional spool valve A port flow is 40L/min, B port flow is 25L/min, for the 3rd&4th directional spool valve, A&B port flow is 16L/min, for the 4th directional spool valve pressure should not more than 250bar. The end plate is Standard, and the T port is connected externally to oil tank.



1st directional spool valve control action:    turn around

2nd directional spool valve control action:   big arm

3rd directional spool valve control action:   middle arm

4th directional spool valve control action:  little arm
