Manual Equipment Two-component Glue Sealant Coating Machine

1 / 4

Manual Equipment Two-component Glue Sealant Coating Machine

$4500.00 ~ $8000.00 / Set/Sets

Get Latest Price

You might also like

Korea brand sealant pump for silicone rubber sealant

1 Set/Sets (MOQ)

Manual sealant pump machine for IGU line

1 Set/Sets (MOQ)

Two Component Glue Coating Extruder

1 Set/Sets (MOQ)

Two-compoment fast speed silicone sealant spreading machine

1 Set/Sets (MOQ)

ST06 Manual Operation Control Silicone Sealing Machine

1 Set/Sets (MOQ)

Silicone Filling Machine For Making Double Glass

1 Set/Sets (MOQ)

Manual Double Glass Sealing Machine

$6000.00

1 Set/Sets (MOQ)

hot-sale sealant-spreading machine(air motor system)

1 Set/Sets (MOQ)

two component insulating glass second sealing equipment

1 Set/Sets (MOQ)

Insulating Glass Manual Air Motor Sealant Spreading Machine

1 Set/Sets (MOQ)

Basic Info

Model No.	ST06
Brand Name	Weili
Type	Insulating Glass Production Line
Certification	PDA
Structure	Vertical
Control System	PLC
Glass Washing Machine Type	Ultrasonic Glass Washing Machine
Condition	New

Company Overview Company Photos Production Certification Our product advantage

Product description

Manual Insulating Glass Silicone Extruder sealing Machine

Main feature

1. The main components of the pneumatic glue machine (including A, B component glue pump, glue gun and safety valve) are imported from South Korea or heat-treated with high-strength high-quality stainless steel. The reliability and durability of the machine are greatly improved. improve.

2. The machine's curing agent system is completely closed to prevent the agent from being exposed to the air and solidifying.

3. Ensure the flow stability of the glue and improve the mixing effect. The system is also equipped with a pipeline overload protection device to make it safer to operate.

4. The high pressure valves of the A, B component pumps and proportional pumps are made of ground special alloy.

5. Special and convenient mixing device to ensure high-precision mixing performance.

6. It adopts the internationally-used fixed reciprocating mixer with specially designed needle valve for excellent mixing effect. The dispensing nozzle is made of elastic special material, and the production of the insulating glass is more convenient and simple and generous.

7. The imported glue gun has reliable sealing performance.

8. The machine can be used to apply two-component polysulfide or silicone glue.

Main technical parameter

Mix rate	6:1~14:1 changeable
Max. amount of extruded glue	4L/min
Pump A platen diameter	50 gallon(190L) φ570mm
Pump B platen diameter	5 gallon (20L) φ280mm
Max. air consumption	0.8 CBM/min
Max. extruding pressure	19Mpa
Air pressure admission	0.5~0.8Mpa
Overall dimensions	1100 x 950 x 1630mm

Our related products:

Insulating Glass Machine

Double Glazing Machine

Auto Sealant Sealing Robot

Glass Washing Machine

CNC Vertical Glass Drilling and Milling Machine

Vertical Auto Gas Filling Production Line

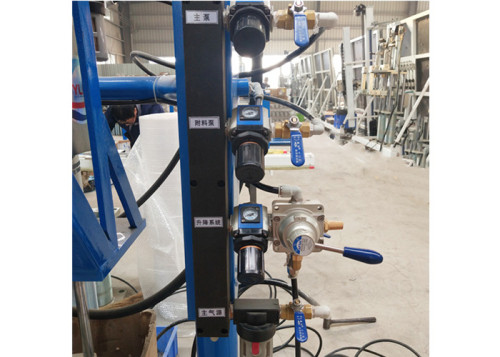

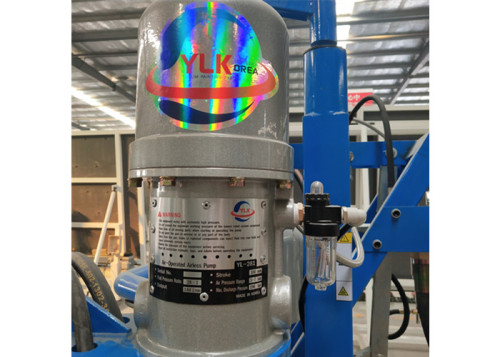

Detail Photos

Glue Sealant Coating Machine

manual glass sealing machine

Company Overview

Jinan Weili Machine Co., Ltd is the member of China Glass Machinery Equipment Committee and the National Insulated Glass Committee. The company is in the service of construction glass and glass-use industrie

Company Photos

Production Certification

Our product advantage

Product advantages

1. Whole process with PLC control system, man-machine interface touch screen .
